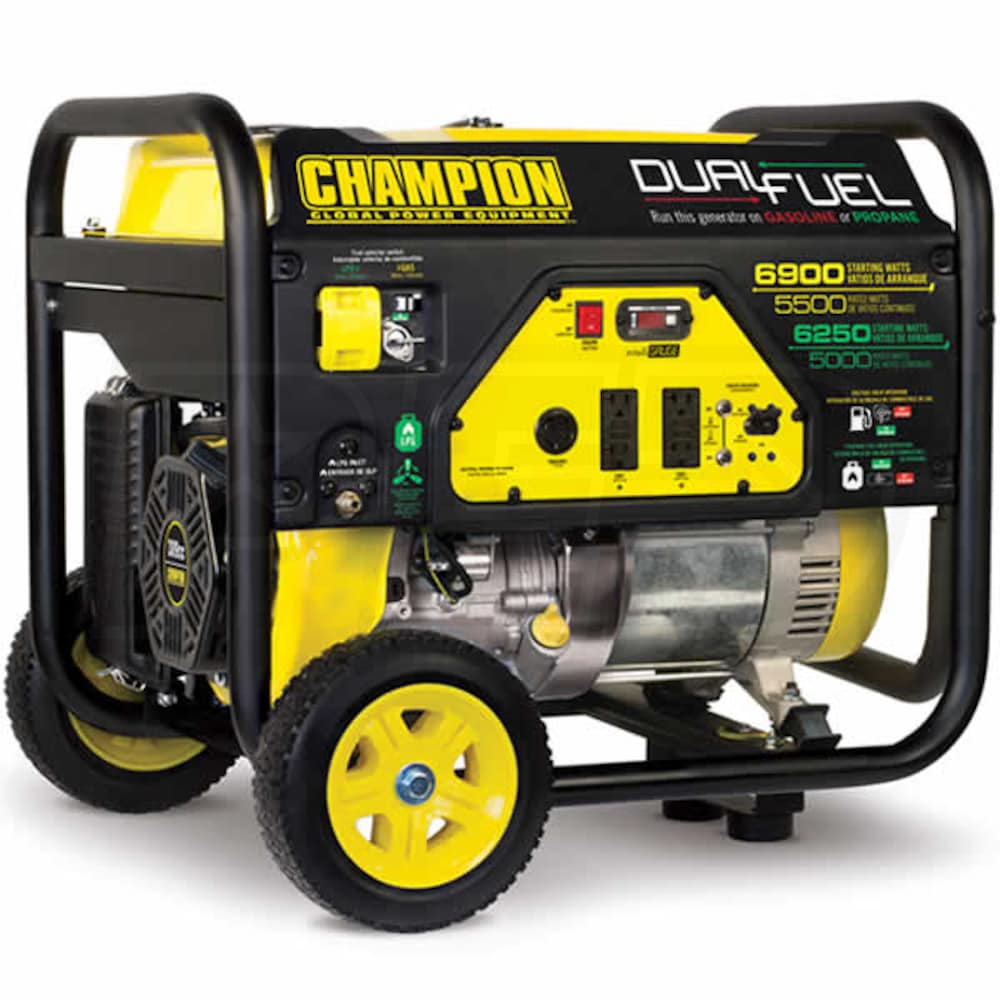

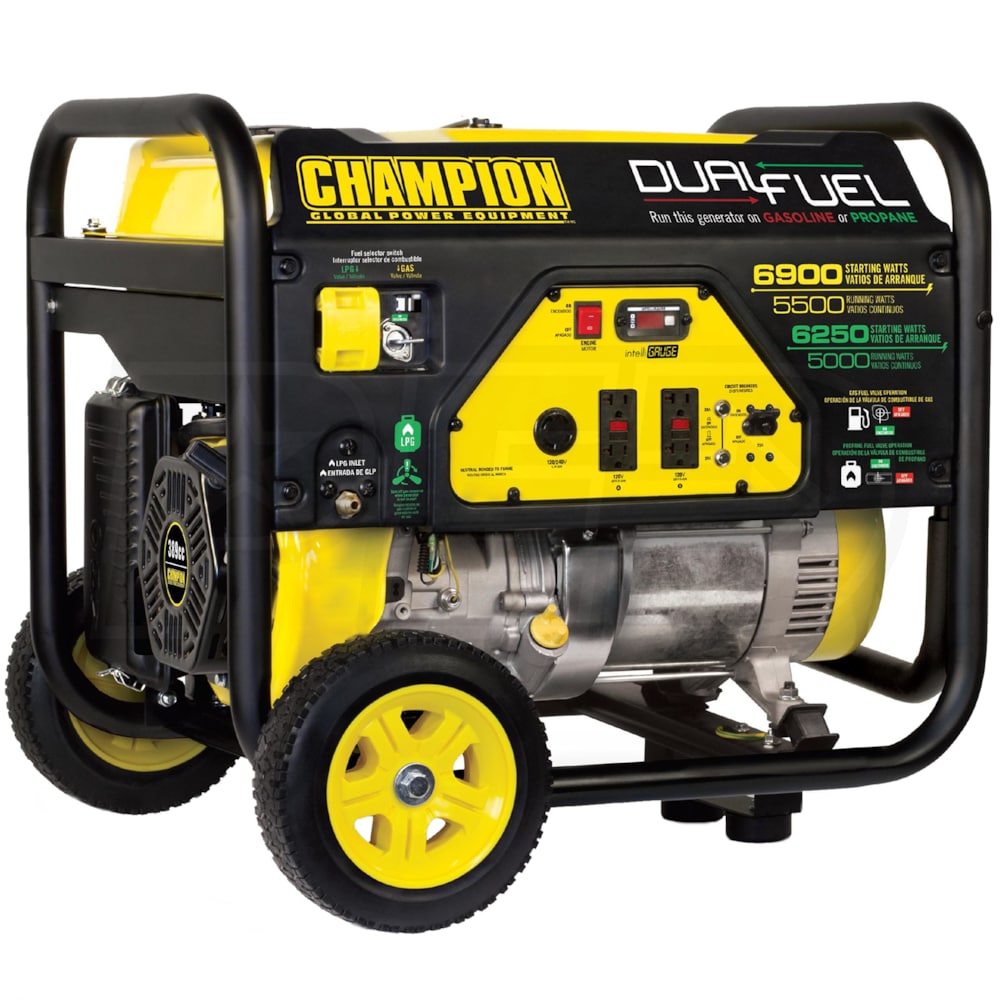

Champion 100231 - 5500 Watt Dual Fuel Portable Generator (CARB)
Model: 100231
+
Share This Product
-
Product Description
-
8Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
5,500
Rated Watts
Surge Watts
6,900
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
5,500
Surge Watts
6,900 Starting Watts
Fuel
Gasoline/LP
Engine
Champion
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Champion Dual Fuel Portable Generator
- Provides up to 5,500 running watts & up to 6,900 starting watts on gasoline
- Provides up to 5,000 running watts & up to 6,250 starting watts on propane
- 389cc Champion 4-Stroke OHV w/ Low-Oil Shutoff Sensor
- Cast iron sleeve for long life and easy maintenance
- Provides added protection to extend the life of the generator
- Patented Fuel Selector Switch
- Simply turn the dial to the fuel choice you're using
- Large 6.1-Gallon Extended Run Fuel Tank
- Provides up to 8 hours of runtime at 50% load

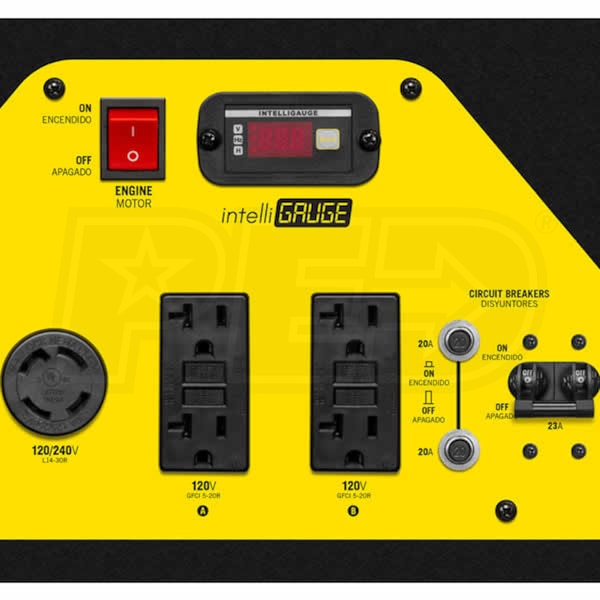

- Intelligauge Digital Display
- Easily monitor your voltage, frequency & operating hours
- 30-Amp 120/240V (L14-30R) Twistlock Outlet***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord
- (2) GFCI-Protected Duplex Outlets
- Helps prevent electrical shock, especially during wet conditions
- Circuit Breaker Protection
- Helps prevent overload to generator
- 20 or 30-lb Tank Compatible (Not Included)
- Provides up to 6.5 hours of run time @ 1/2 load (20 lb.)
- Includes 3.3' LPG hose w/ regulator
- Mobility Kit w/ Fold-Away Handle & 8" Never-Flat Wheels
- Makes transporting and positioning as simple as possible
- Engine Oil NOT Included
- 3-Year Limited Warranty - CARB Compliant - For Use In All 50 States
- ***Note - Allows You To Get Maximum Power From Generator
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Surge Watts
6900 Watts
Fuel Type
Gasoline/LP
Rated Amps
22.91 Amps
Portability Kit
Never Flat Wheels
Tank Size
6.1 Gallons
Run Time @ 50% Load
8 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
162.5 Pounds
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
27 Inches
Product Width
27.7 Inches
Product Height
24.4 Inches
UPC
850878006198
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
Grade
Style
Run Watts
5,500
Rated Watts
Surge Watts
6,900
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
5,500
Surge Watts
6,900 Starting Watts
Fuel
Gasoline/LP
Engine
Champion
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Champion Dual Fuel Portable Generator
- Provides up to 5,500 running watts & up to 6,900 starting watts on gasoline
- Provides up to 5,000 running watts & up to 6,250 starting watts on propane
- 389cc Champion 4-Stroke OHV w/ Low-Oil Shutoff Sensor
- Cast iron sleeve for long life and easy maintenance
- Provides added protection to extend the life of the generator
- Patented Fuel Selector Switch
- Simply turn the dial to the fuel choice you're using
- Large 6.1-Gallon Extended Run Fuel Tank
- Provides up to 8 hours of runtime at 50% load
- Intelligauge Digital Display
- Easily monitor your voltage, frequency & operating hours
- 30-Amp 120/240V (L14-30R) Twistlock Outlet***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord
- (2) GFCI-Protected Duplex Outlets
- Helps prevent electrical shock, especially during wet conditions
- Circuit Breaker Protection
- Helps prevent overload to generator
- 20 or 30-lb Tank Compatible (Not Included)
- Provides up to 6.5 hours of run time @ 1/2 load (20 lb.)
- Includes 3.3' LPG hose w/ regulator
- Mobility Kit w/ Fold-Away Handle & 8" Never-Flat Wheels
- Makes transporting and positioning as simple as possible
- Engine Oil NOT Included
- 3-Year Limited Warranty - CARB Compliant - For Use In All 50 States
- ***Note - Allows You To Get Maximum Power From Generator
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Surge Watts
6900 Watts
Fuel Type
Gasoline/LP
Rated Amps
22.91 Amps
Portability Kit
Never Flat Wheels
Tank Size
6.1 Gallons
Run Time @ 50% Load
8 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
162.5 Pounds
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
27 Inches
Product Width
27.7 Inches
Product Height
24.4 Inches
UPC
850878006198
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Surge Watts
6900 Watts
Fuel Type
Gasoline/LP
Rated Amps
22.91 Amps
Portability Kit
Never Flat Wheels
Tank Size
6.1 Gallons
Run Time @ 50% Load
8 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
162.5 Pounds
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
27 Inches
Product Width
27.7 Inches
Product Height
24.4 Inches
UPC
850878006198
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Does The Champion 100231 generator come equipped with a lifting handle?
Saul A.
from Texas
June 02, 2019
Answer
The Champion generator will come with a lifting handle as shown in the Owner's Manual.
Was this answer helpful?
Yes
0
No
0
