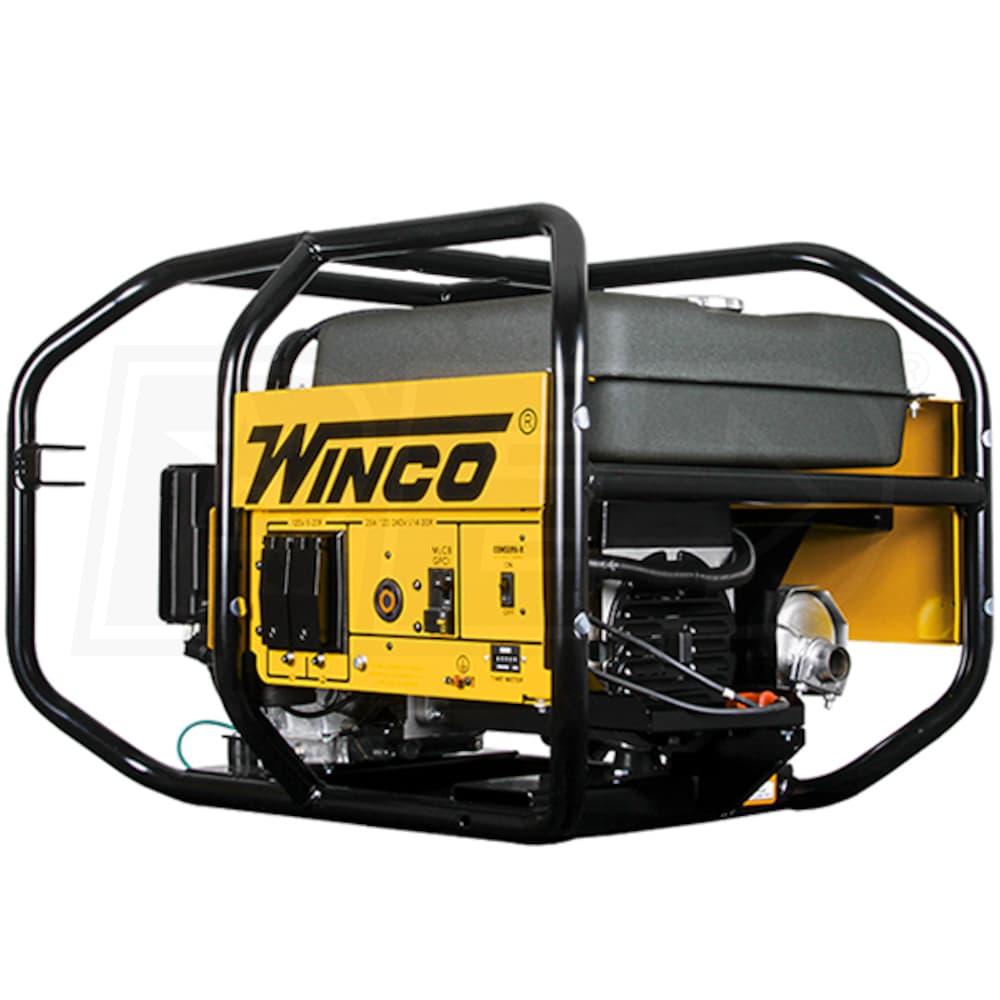

Winco W6000HE-03/A - 5500 Watt Electric Start Portable Generator w/ Honda GX Engine (CARB)
Model:
24006-007
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Professional
Style
Portable
Run Watts
5,500 Rated Watts
Surge Watts
6,000
Starting Watts
Fuel
Gasoline
Engine
Honda GX
- Winco WC6000HE Electric Start Portable Job Site Generator
- Redesigned and improved for years of reliable service
- Electric Start w/ Recoil Backup (Battery Not Included)
- Provides easy starting with or without a battery
- 389cc Honda GX340 OHV Engine
- More power, greater fuel economy & reduced emissions
- Oil Alert® Warning System
- Shuts the engine down if oil reaches an unsafe operating level
- Automatic Voltage Regulator (AVR) +/- 1%
- Allows you to safely power sensitive electrical products
- Conserv-R Automatic Idle Control
- Helps conserve fuel and lowers noise for longer engine life
- Full Panel GFCI Protection - OSHA & NEC 2011 Compliant
- Must use GFI type manual transfer switch for panel connection
- Not for use with interlock kit
- 7-Gallon Fuel Tank (EPA Approved) w/ Fuel Gauge
- Provides up to 8.1 hours of run time @ 100% load
- 30-Amp NEMA L14-30R 120/240V Outlet
- Makes it easy to power tools and equipment on the job site
- Premium Square D Circuit Breakers
- With built-in Visi-Trip indicator for added safety
- Redesigned 14-Gauge Tubular Steel Cradle
- Allows for easier servicing of generator components
- 100% Load Tested
- All generators are tested before they leave the factory
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Ethylene glycol (ingested) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
24006-007
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Weight
212 Pounds
CA (CARB) Compliant
Yes
Certification
CARB, EPA
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
34.25 Inches
Product Width
24.625 Inches
Product Height
23.4 Inches
Additional Model Numbers
WC6000HE, 24006-007
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Surge Watts
6000 Watts
Fuel Type
Gasoline
Rated Amps
45.8 Amps
Portability Kit
Sold Separately
Tank Size
47 Gallons
Run Time @ 50% Load
8.1 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
79-84
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
CO Sensing
No
Low THD
Yes
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
CC
389 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
