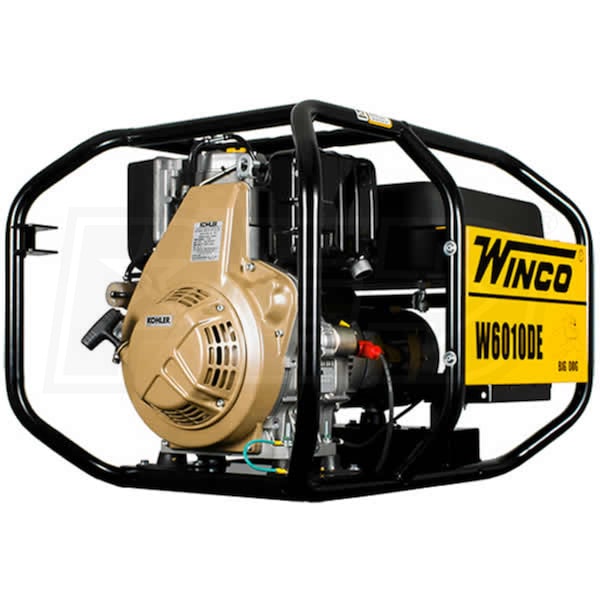

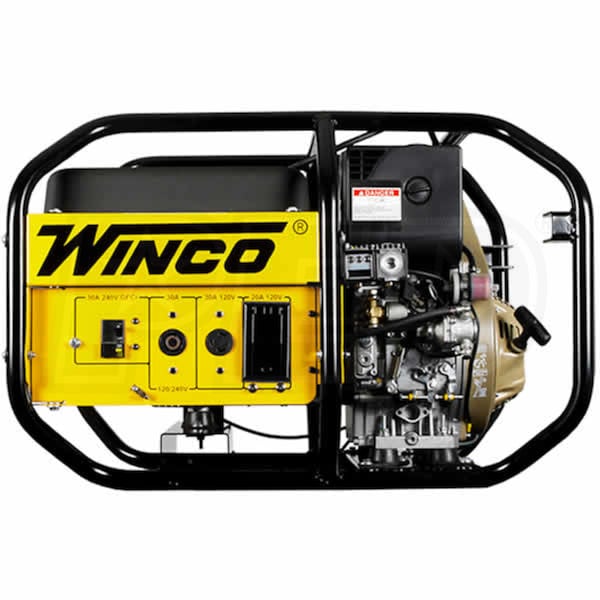

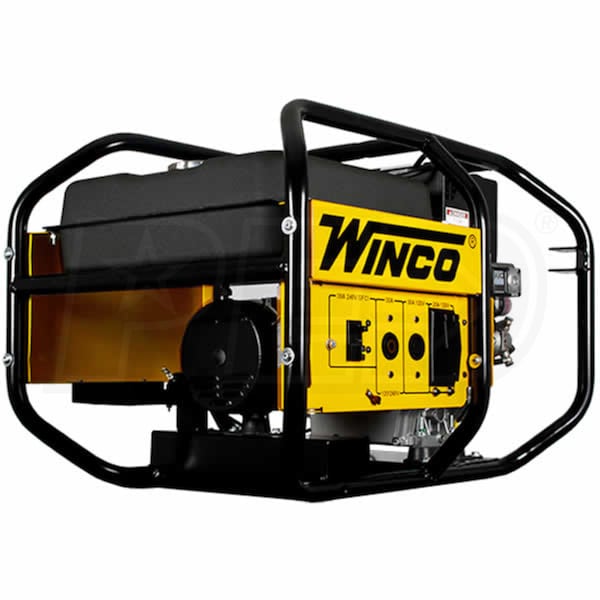

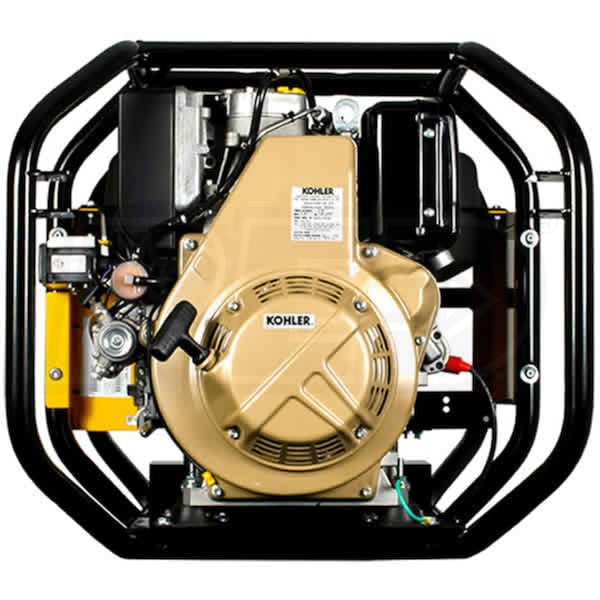

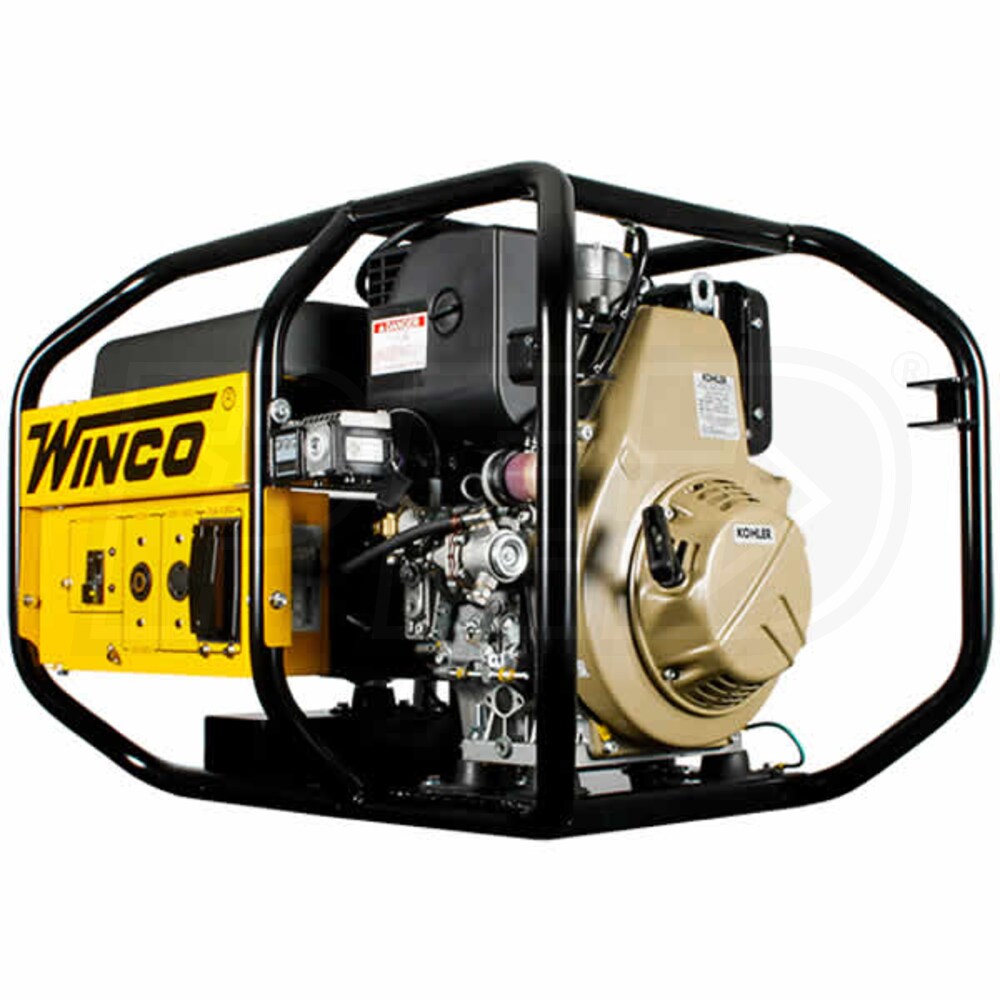

Winco W6010DE - 5160 Watt Electric Start Portable Industrial Diesel Generator (49-State)
Winco W6010DE - 5160 Watt Electric Start Portable Industrial Diesel Generator (49-State)
+
Share This Product
-
Product Description
-
1Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
5,160
Rated Watts
Surge Watts
6,010
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
5,160
Surge Watts
6,010 Starting Watts
Fuel
Diesel
Engine
Kohler
Features
Features
- Winco W6010DE Industrial Diesel Generator
- Completely redesigned for 2016
- 440cc Kohler KD440 OHV Diesel Engine
- Full pressure lubrication with full-flow oil filter for maximum engine protection
- Direct injection provides increased power and lower fuel consumption
- Low Oil Protection
- Provides safer operation especially during extended operation
- Electric Start (Battery Not Included) w/ Recoil Backup
- Allows for easier starting on the jobsite
- Full Panel GFCI Protection
- Must use GFI type manual transfer switch for panel connection
- Not for use with interlock kit
- YourGen LED Display
- Displays hours, RPM's, voltage and Hz readings
- Load bars and warnings
- 30-Amp L5-30R (120V) & 30A L14-30R (120/240V) Receptacles
- Provides the ability to power 30A tools and equipment
- Premium Square D Circuit Breakers w/ Visi-Trip Indicators
- Easily see when a tripped circuit occurs
- 7-Gallon Fuel Tank w/ Fuel Gauge
- Long-run design, provides up to 11.7 hours of run time @ 100% load
- LED Indicator Lights
- Warning indicators for Electric System OK, Low Oil Pressure & Battery Charging circuit
- 1.25" Wrap-Around 16-Gauge Welded Tubular Cradle
- Powder-coat paint protects finish from damage and debris
- 100% Load Tested
- Winco load test's every generator prior to leaving the factory
- 3-Year Engine & 3-Year Generator Warranty
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
5160 Watts
Surge Watts
6010 Watts
Fuel Type
Diesel
Rated Amps
43 Amps
Portability Kit
Sold Separately
Tank Size
7 Gallons
Run Time @ 50% Load
19.4 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
87.6
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Circuit Breaker Size
30 Amps
Cooling System
Air Cooled
Grade Type
Professional
Engine
Engine Brand
Kohler
Starting System
12-Volt Button Start w/ Recoil
CC
440 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
252 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
34.5 Inches
Product Width
24.6 Inches
Product Height
23.4 Inches
Additional Model Numbers
W6010DE, 24006-006
Plugs
NEMA 5-20R - GFCI
1
NEMA L5-30R
1
NEMA L14-30R
1
Grade
Style
Run Watts
5,160
Rated Watts
Surge Watts
6,010
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
5,160
Surge Watts
6,010 Starting Watts
Fuel
Diesel
Engine
Kohler
Features
Features
- Winco W6010DE Industrial Diesel Generator
- Completely redesigned for 2016
- 440cc Kohler KD440 OHV Diesel Engine
- Full pressure lubrication with full-flow oil filter for maximum engine protection
- Direct injection provides increased power and lower fuel consumption
- Low Oil Protection
- Provides safer operation especially during extended operation
- Electric Start (Battery Not Included) w/ Recoil Backup
- Allows for easier starting on the jobsite
- Full Panel GFCI Protection
- Must use GFI type manual transfer switch for panel connection
- Not for use with interlock kit
- YourGen LED Display
- Displays hours, RPM's, voltage and Hz readings
- Load bars and warnings
- 30-Amp L5-30R (120V) & 30A L14-30R (120/240V) Receptacles
- Provides the ability to power 30A tools and equipment
- Premium Square D Circuit Breakers w/ Visi-Trip Indicators
- Easily see when a tripped circuit occurs
- 7-Gallon Fuel Tank w/ Fuel Gauge
- Long-run design, provides up to 11.7 hours of run time @ 100% load
- LED Indicator Lights
- Warning indicators for Electric System OK, Low Oil Pressure & Battery Charging circuit
- 1.25" Wrap-Around 16-Gauge Welded Tubular Cradle
- Powder-coat paint protects finish from damage and debris
- 100% Load Tested
- Winco load test's every generator prior to leaving the factory
- 3-Year Engine & 3-Year Generator Warranty
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
5160 Watts
Surge Watts
6010 Watts
Fuel Type
Diesel
Rated Amps
43 Amps
Portability Kit
Sold Separately
Tank Size
7 Gallons
Run Time @ 50% Load
19.4 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
87.6
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Circuit Breaker Size
30 Amps
Cooling System
Air Cooled
Grade Type
Professional
Engine
Engine Brand
Kohler
Starting System
12-Volt Button Start w/ Recoil
CC
440 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
252 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
34.5 Inches
Product Width
24.6 Inches
Product Height
23.4 Inches
Additional Model Numbers
W6010DE, 24006-006
Plugs
NEMA 5-20R - GFCI
1
NEMA L5-30R
1
NEMA L14-30R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
5160 Watts
Surge Watts
6010 Watts
Fuel Type
Diesel
Rated Amps
43 Amps
Portability Kit
Sold Separately
Tank Size
7 Gallons
Run Time @ 50% Load
19.4 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
87.6
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Circuit Breaker Size
30 Amps
Cooling System
Air Cooled
Grade Type
Professional
Engine
Engine Brand
Kohler
Starting System
12-Volt Button Start w/ Recoil
CC
440 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
252 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
34.5 Inches
Product Width
24.6 Inches
Product Height
23.4 Inches
Additional Model Numbers
W6010DE, 24006-006
Plugs
NEMA 5-20R - GFCI
1
NEMA L5-30R
1
NEMA L14-30R
1
