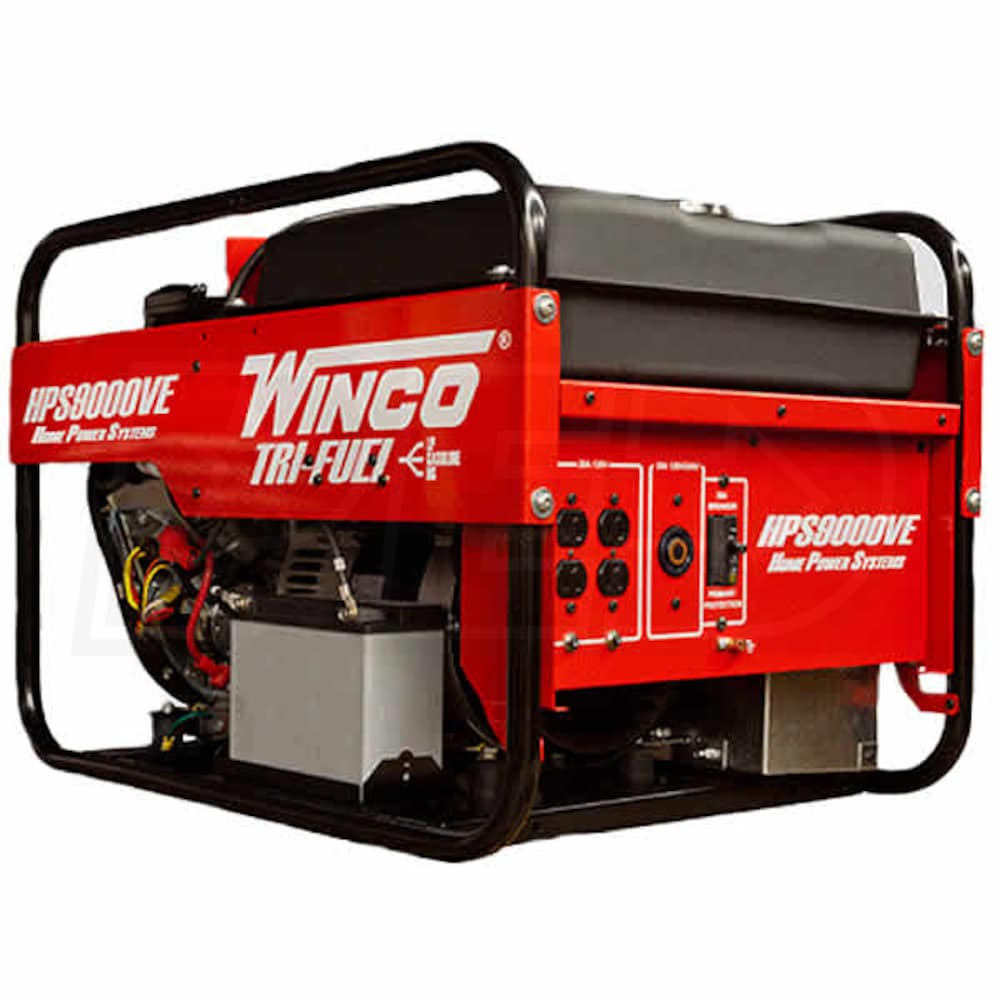

Winco HPS9000VE - 8,000 Watt Tri-Fuel Generator w/ Electric Start B&S Vanguard Engine (49-State)
Model: 16609-002
4.6 out of 54.6 out of 54.6 out of 54.6 out of 54.6 out of 5
Number of Reviews(14)
Write a Review
Q&A (5)
$2,618.00
Free Shipping
&
Lift Gate
Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Backordered
Estimated Availability December 21, 2020
Shipping to60601
Shipping Details
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to California or any destination outside of the United States
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Add an Extended Warranty
Excludes CA
Share
  • Product Description
  • 14
    Reviews
  • 5
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Grade
Style
Run Watts
8,000
Rated Watts
Surge Watts
9,000
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
8,000
Surge Watts
9,000 Starting Watts
Fuel
LP/Natural Gas/Gasoline
Engine
Briggs and Stratton Vanguard
Features
Features
  • Winco HPS9000VE Electric Start Tri-Fuel Portable Generator
  • Ideal for providing emergency home backup power
  • Electric Start - Just Turn The Key
  • Includes battery rack and cables
  • Requires Group 20 or 24HL 300CCA (Not Included)
  • 480cc V-Twin OHV Briggs & Stratton Vanguard Engine
  • Engineered to deliver the dependability you need
  • V-Twin OHV technology for improved valve & fuel economy
  • Low Oil Protection
  • Shuts the engine down if oil reaches an unsafe operating level
  • Tri-Fuel Carburetor and Gas Regulator
  • Versatile generator runs on L.P gas, natural gas or gasoline
  • Mecc Alte S20W Brushless Alternator
  • 100% copper windings, NEMA Class F insulation
  • Capacitor Regulated Voltage - < 5% Total Harmonic Distortion (THD)
  • Inherent voltage regulation protects electronics from surges
  • 7-Gallon Steel Fuel Tank w/ Fuel Gauge
  • EPA approved design eliminates carbon emissions
  • 120/240V 30-Amp (L14-30) Receptacle
  • Allows for connection to a manual transfer switch (MTS)
  • 35-Amp Main-Line Circuit Breaker
  • Provides superior overload protection
  • Wrap-Around 1" Tubular Steel (14-Gauge) Cradle
  • Powder-coat paint protects finish from damage and debris
  • 100% Load Tested
  • All generators are tested prior to leaving the factory
  • 2-Year (Generator) / 3-Year (Engine) Residential Warranty
  • NOTICE* - Tri-Fuel Starting On Vapor Fuel (LP or NG)
  • Use of the choke will prevent air and fuel from properly mixing
  • Must be started using the electric start system provided
  • Will NOT start on (LP/NG) when using recoil starter
  • *Note - Derate Output By 10% For LP & 20% For NG
  • Please see spec sheet for details
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
8000 Watts
Surge Watts
9000 Watts
Fuel Type
LP/Natural Gas/Gasoline
NG Fuel Consumption @ 100% Load
180 ft³/hr
LP Fuel Consumption @ 50% Load
1.5 gallons/hr
Rated Amps
33 Amps
Portability Kit
Sold Separately
Tank Size
7 Gallons
Run Time @ 50% Load
7 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
77 dbA
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Battery
Not Included
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Button Start w/ Recoil
HP
16 HP
CC
480 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
242 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
32.75 Inches
Product Width
22.5 Inches
Product Height
22 Inches
Additional Model Numbers
HPS9000VE, 16609-002
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
Grade
Style
Run Watts
8,000
Rated Watts
Surge Watts
9,000
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
8,000
Surge Watts
9,000 Starting Watts
Fuel
LP/Natural Gas/Gasoline
Engine
Briggs and Stratton Vanguard
Features
Features
  • Winco HPS9000VE Electric Start Tri-Fuel Portable Generator
  • Ideal for providing emergency home backup power
  • Electric Start - Just Turn The Key
  • Includes battery rack and cables
  • Requires Group 20 or 24HL 300CCA (Not Included)
  • 480cc V-Twin OHV Briggs & Stratton Vanguard Engine
  • Engineered to deliver the dependability you need
  • V-Twin OHV technology for improved valve & fuel economy
  • Low Oil Protection
  • Shuts the engine down if oil reaches an unsafe operating level
  • Tri-Fuel Carburetor and Gas Regulator
  • Versatile generator runs on L.P gas, natural gas or gasoline
  • Mecc Alte S20W Brushless Alternator
  • 100% copper windings, NEMA Class F insulation
  • Capacitor Regulated Voltage - < 5% Total Harmonic Distortion (THD)
  • Inherent voltage regulation protects electronics from surges
  • 7-Gallon Steel Fuel Tank w/ Fuel Gauge
  • EPA approved design eliminates carbon emissions
  • 120/240V 30-Amp (L14-30) Receptacle
  • Allows for connection to a manual transfer switch (MTS)
  • 35-Amp Main-Line Circuit Breaker
  • Provides superior overload protection
  • Wrap-Around 1" Tubular Steel (14-Gauge) Cradle
  • Powder-coat paint protects finish from damage and debris
  • 100% Load Tested
  • All generators are tested prior to leaving the factory
  • 2-Year (Generator) / 3-Year (Engine) Residential Warranty
  • NOTICE* - Tri-Fuel Starting On Vapor Fuel (LP or NG)
  • Use of the choke will prevent air and fuel from properly mixing
  • Must be started using the electric start system provided
  • Will NOT start on (LP/NG) when using recoil starter
  • *Note - Derate Output By 10% For LP & 20% For NG
  • Please see spec sheet for details
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
8000 Watts
Surge Watts
9000 Watts
Fuel Type
LP/Natural Gas/Gasoline
NG Fuel Consumption @ 100% Load
180 ft³/hr
LP Fuel Consumption @ 50% Load
1.5 gallons/hr
Rated Amps
33 Amps
Portability Kit
Sold Separately
Tank Size
7 Gallons
Run Time @ 50% Load
7 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
77 dbA
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Battery
Not Included
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Button Start w/ Recoil
HP
16 HP
CC
480 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
242 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
32.75 Inches
Product Width
22.5 Inches
Product Height
22 Inches
Additional Model Numbers
HPS9000VE, 16609-002
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
Product Specs
+−
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
8000 Watts
Surge Watts
9000 Watts
Fuel Type
LP/Natural Gas/Gasoline
NG Fuel Consumption @ 100% Load
180 ft³/hr
LP Fuel Consumption @ 50% Load
1.5 gallons/hr
Rated Amps
33 Amps
Portability Kit
Sold Separately
Tank Size
7 Gallons
Run Time @ 50% Load
7 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
77 dbA
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Battery
Not Included
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Button Start w/ Recoil
HP
16 HP
CC
480 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
242 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
32.75 Inches
Product Width
22.5 Inches
Product Height
22 Inches
Additional Model Numbers
HPS9000VE, 16609-002
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
Reviews
4.6 out of 54.6 out of 54.6 out of 54.6 out of 54.6 out of 5
(14)
+−
Winco 16609-002 Reviews & Ratings
90% of Reviewers Recommend This Product
Product Q&A
(5)
+−
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+−
Can this run off the 20lb tanks that we use for BBQ? I see that you say it can run off any size tank in a previous question but I am not sure that it can connect right to the BBQ tanks. I am looking for a portable generator that could run even just our heating system. My electrician had shown me the generac models, but I am not sure if that is safe with my Quietside burner. I looked throughout that manual but I don't see anything about THD in it. Last year when my area lost power we couldn't even buy gas for our cars so I was trying to find another alternative.
Daniel Reich
from New York
August 09, 2013
Answer
These units "cannot" be used with a 5 gallon (20#) propane tank.

Here are the tank requirements from the owner's manual which are based on temperature (Found on Page 7)...Owner's Manual Link Below....

HPS9000VE

60 Deg. F - 70 gal.
30 Deg. F - 80 gal.
0 Deg. F - 200 gal.
-20 Deg. F - 7000 gal.

Owner's Manual
Was this answer helpful?
Yes
Thumbs Up Icon
2
No
Thumbs Down Icon
0
+−
Winco HPS9000VE......I currently have a Weber natural gas barbeque being fed by 50 feet of 3/4" CSST Flexible Tubing. If I disconnect the barbeque and connect this generator will it receive enough pressure to operate properly?
Howard Rubenstein
from New Jersey
July 20, 2013
Answer
Page 6 of the owner's manual, available on our site under the specs tab has the following chart....

Size of pipe required for generators operating on natural gas/
LP gas.

-Length of Fuel Line* Fuel Line Size
-Less than 25 feet 3/4 inch black pipe
-25 to 100 feet 1 inch black pipe
-over 100 feet not recommended**

*allow an additional 3 feet for each standard elbow. Do not
use ‘street ells’ (restrictive)

** Consult factory for fuel runs over 100 feet.

The manual also lists specific requirements for fuel regulation and the use of fuel regulators.

We recommend consulting the owner's manual and a certified plumber for proper installation.
Was this answer helpful?
Yes
Thumbs Up Icon
1
No
Thumbs Down Icon
0
+−
Will this generator (HPS12000HE) deliver full rated power while operating on Propane?
Joseph Smith
from New York
January 21, 2012
Answer
Per page 3 of the owner's manual you would Derate 10% for LP and 20% for NG.

This is true on all Winco Tri-Fuel models.

Owner's Manual
Was this answer helpful?
Yes
Thumbs Up Icon
2
No
Thumbs Down Icon
0
+−
What is the LP gas line in pressure required to run this generator.
Joseph Smith
from New York
January 21, 2012
Answer
Correct fuel pressure cannot be stressed enough. The most common cause or inoperative systems is an inadequate or incorrect fuel pressure.

Power and performance of the engine is in direct relation to the correctness of the fuel system.

There are several fuel delivery systems mentioned in the owner's manual and should be referred to when connecting system.

Whichever fuel delivery system or type of vapor fuel used, the fuel pressure at the demand regulator installed on the engine generator must be between 4 and 6 oz. (7-11 inches of water column). Any lower pressure and the unit will starve for fuel under load. Any higher and the unit will ‘flood’ when attempting to start.

There is some very important LP tank sizing requirements in the owner's manual which needs to be reviewed.

Owner's Manual
Was this answer helpful?
Yes
Thumbs Up Icon
2
No
Thumbs Down Icon
0
+−
I'm needing a home back up generator that I can also use for hunting camp. Can either the 5500 watt or the 8000 watt model be run of off 100lb and 20lb tanks? What is the LP consumption of both at half and full load?
Jason Hyrczyk
from Wisconsin
March 07, 2011
Answer
These units "cannot" be used with a 5 gallon (20#) propane tank.

Here are the tank requirements from the owner's manual which are based on temperature (Found on Page 7)...Owner's Manual Link Below....

Owner's Manual

Winco only lists the fuel consumption at full load. Please see link below to review the spec sheet which covers all their Tri-Fuel models.

Spec Sheet
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
Recommended Accessories
+−
Expert Recommended Accessories Hand Picked By Our Expert Jared
icon-social-fb1
Required Accessories Add All Required
Optional Accessories
How-To Articles
+−
Manuals
+−


Media Gallery
Winco HPS9000VE - 8,000 Watt Tri-Fuel Generator w/ Electric Start B&S Vanguard Engine (49-State)
Winco 16609-002
+
–
↻Reset View
Winco 16609-002
Winco 16609-002
Winco 16609-002
×
Customer Review Images
