Reliance Controls 30-Amp (120/240V 10-Circuit) Power Transfer System w/ Interchangeable Breakers
Reliance Controls 30-Amp (120/240V 10-Circuit) Power Transfer System w/ Interchangeable Breakers
+
Share This Product
-
Product Description
-
12Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- 30-Amp (120/240V 10-Circuit) Power Transfer System
- Everything but the electrician and generator
- Safest Way to Distribute Power
- Eliminates dangerous back-feeds and electrical overloads
- Standard Circuits
- (6) 15A 1-pole, (1) 20A 2-pole, and (1) 30A 2-pole
- Versatile Design w/ Interchangeable Breakers
- You determine the right combination for your application
- Built-in Wattage Meter
- Track power input to ensure proper load balancing

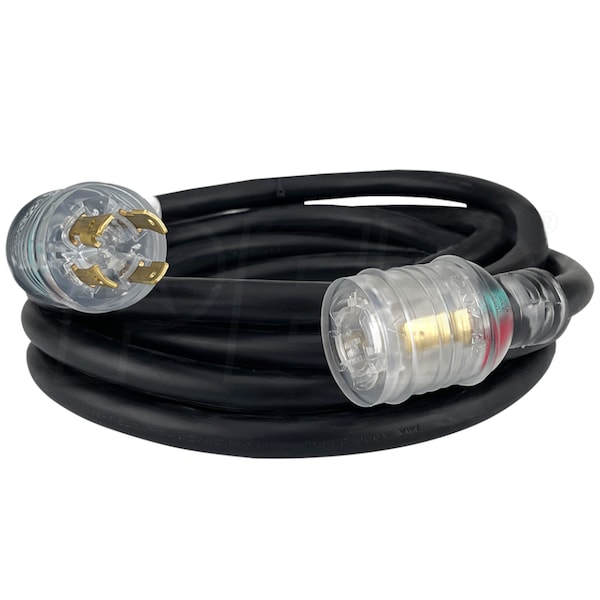

- 20-Foot 30-Amp Power Cord (L14-30)
- Flexible design with male and female molded ends

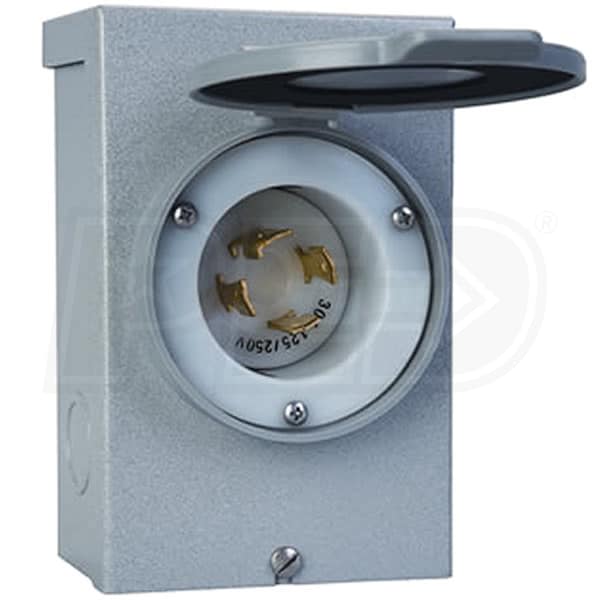

- 30-Amp 4-Prong (L14-30) Power Inlet Box
- Rain-tight design w/ flip-lid keeps dirt and debris out
- Generous wiring space that facilitates rough-in

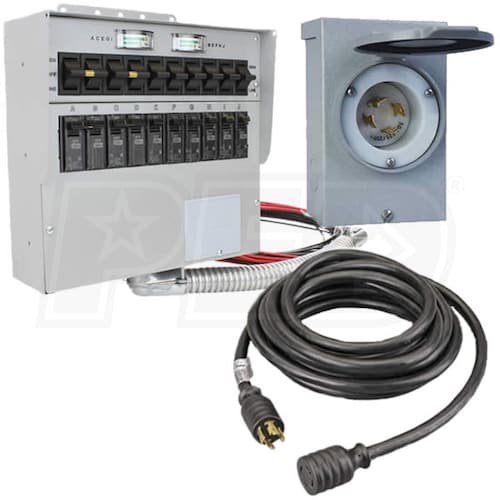

- Kit Includes:
- 30-Amp (120/240V 10-Circuit) Manual Transfer Switch
- 30-Amp (4-Prong 20-Foot) Generator Power Cord
- 30-Amp (4-Prong) Power Inlet Box
- UL Listed & Certified for use by Underwriter Laboratories
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
35 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
13 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
20 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
A310C Specifications+
PC3020M Specifications+
PB-30 Specifications+
Features
Features
- 30-Amp (120/240V 10-Circuit) Power Transfer System
- Everything but the electrician and generator
- Safest Way to Distribute Power
- Eliminates dangerous back-feeds and electrical overloads
- Standard Circuits
- (6) 15A 1-pole, (1) 20A 2-pole, and (1) 30A 2-pole
- Versatile Design w/ Interchangeable Breakers
- You determine the right combination for your application
- Built-in Wattage Meter
- Track power input to ensure proper load balancing
- 20-Foot 30-Amp Power Cord (L14-30)
- Flexible design with male and female molded ends
- 30-Amp 4-Prong (L14-30) Power Inlet Box
- Rain-tight design w/ flip-lid keeps dirt and debris out
- Generous wiring space that facilitates rough-in
- Kit Includes:
- 30-Amp (120/240V 10-Circuit) Manual Transfer Switch
- 30-Amp (4-Prong 20-Foot) Generator Power Cord
- 30-Amp (4-Prong) Power Inlet Box
- UL Listed & Certified for use by Underwriter Laboratories
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
35 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
13 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
20 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
A310C Specifications+
PC3020M Specifications+
PB-30 Specifications+
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
35 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
13 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
20 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
A310C Specifications+
PC3020M Specifications+
PB-30 Specifications+
Product Q&A
(2)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
If I have a generator with 12500/9500 surge/running watts would it be OK to use a 30-amp transfer switch?
Kevin
from New York
February 12, 2019
Answer
You are able to use a 30-amp transfer switch with that generator. 7500 watts is just the maximum amount of wattage you can get through the 30-amp outlet.
Was this answer helpful?
Yes
0
No
0
+−
Can the Reliance Q310KIT be installed as a flush mount unit?
William Walsh
from New Jersey
August 06, 2015
Answer
Thanks for your inquiry.
The flush mount kit for this unit is P/N - K2F10 and the link to this is below.
Reliance Controls Pro/Tran 2 - (8-10 Circuit) Transfer Switch Flush Mount Kit
The flush mount kit for this unit is P/N - K2F10 and the link to this is below.
Reliance Controls Pro/Tran 2 - (8-10 Circuit) Transfer Switch Flush Mount Kit
Was this answer helpful?
Yes
0
No
0
