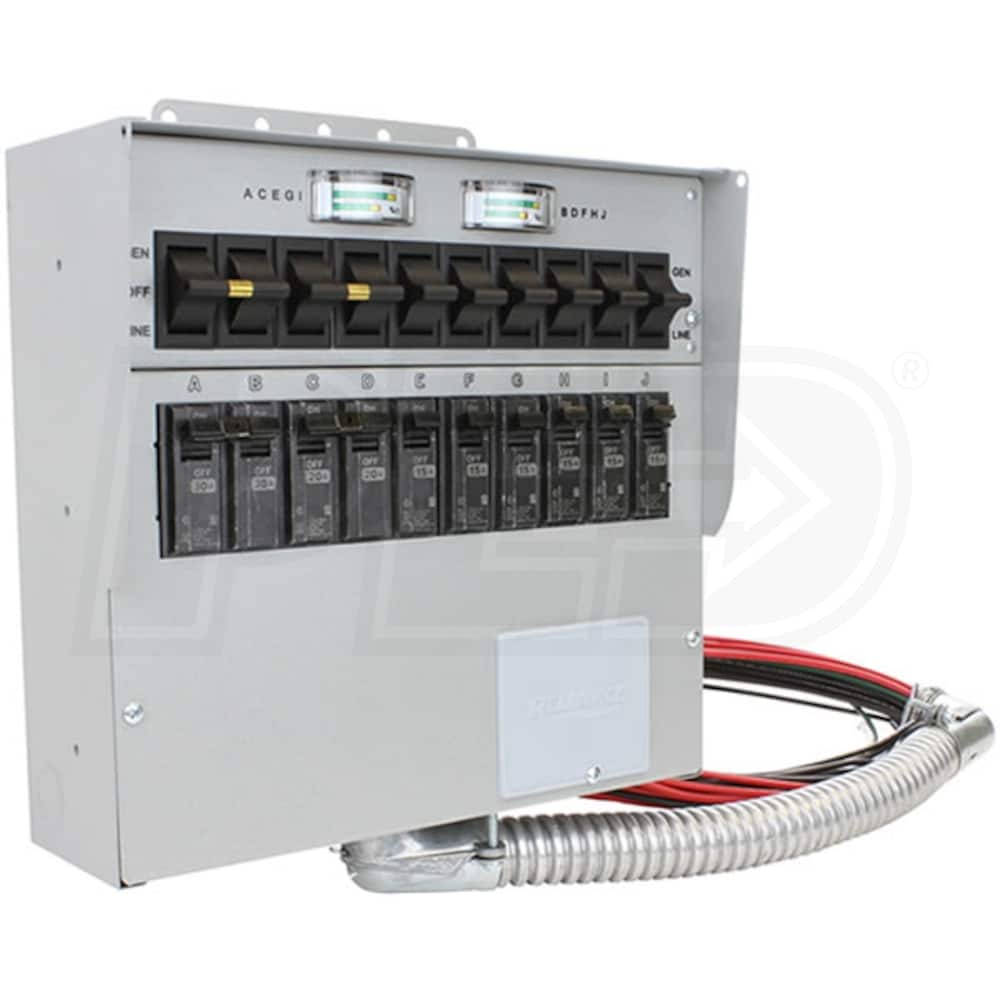

Reliance Controls Pro/Tran 2 - 30-Amp (120/240V 10-Circuit) Transfer Switch w/ Interchangeable Breakers
Reliance Controls Pro/Tran 2 - 30-Amp (120/240V 10-Circuit) Transfer Switch w/ Interchangeable Breakers
+
Share This Product
-
Product Description
-
26Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Type
Amp Rating
30
Circuits
10
Enclosure
Type
Manual
Amp Rating
30
Circuits
10
Enclosure
NEMA 1R
Features
Features
- Pro/Tran® 2 30-Amp 10-Circuit 120/240V Manual Transfer Switch
- The next generation of Loadside™ manual transfer switches
- Multiple Circuits
- (6) 15A 1-pole, (1) 20A 2-pole, and (1) 30A 2-pole
- Safest Way to Distribute Power
- Eliminates dangerous backfeeds and electrical overloads
- (10) Total Circuits (1" Interchangable Style)
- 10 Single-Pole Circuits or 5 Double-Pole Circuits
- NEW Color-Coded Built-In Wattage Meter
- Helps you balance and manager generator load
- Hinged, Non-Metalic Cover
- Protects toggle swtiches/breakrs & povides a finished apperance
- Powder-Coated Steel Cabinet For Indoor Installation
- 18" Flexible conduit w/ all factory wires clearly marked/colored
- (6) Combination 1/2" & 3/4" knockouts for easier installation
- Easily re-configured in the field for multiple 2-pole circuits
- Safety & Certifications
- Certified for use by Underwriter Laboratories to UL Stanard 1008
- Meets all requirements of article 702 of the NEC ANSI/NFPA 70
- 5-Year Limited Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
UPC
815181012199
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Type
Amp Rating
30
Circuits
10
Enclosure
Type
Manual
Amp Rating
30
Circuits
10
Enclosure
NEMA 1R
Features
Features
- Pro/Tran® 2 30-Amp 10-Circuit 120/240V Manual Transfer Switch
- The next generation of Loadside™ manual transfer switches
- Multiple Circuits
- (6) 15A 1-pole, (1) 20A 2-pole, and (1) 30A 2-pole
- Safest Way to Distribute Power
- Eliminates dangerous backfeeds and electrical overloads
- (10) Total Circuits (1" Interchangable Style)
- 10 Single-Pole Circuits or 5 Double-Pole Circuits
- NEW Color-Coded Built-In Wattage Meter
- Helps you balance and manager generator load
- Hinged, Non-Metalic Cover
- Protects toggle swtiches/breakrs & povides a finished apperance
- Powder-Coated Steel Cabinet For Indoor Installation
- 18" Flexible conduit w/ all factory wires clearly marked/colored
- (6) Combination 1/2" & 3/4" knockouts for easier installation
- Easily re-configured in the field for multiple 2-pole circuits
- Safety & Certifications
- Certified for use by Underwriter Laboratories to UL Stanard 1008
- Meets all requirements of article 702 of the NEC ANSI/NFPA 70
- 5-Year Limited Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
UPC
815181012199
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Product Specs
+−
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
UPC
815181012199
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Can I run 2 20 amp breakers to the 30 amp double pole breakers without changing anything else?
Lawrence
from Kentucky
March 05, 2017
Answer
There is not a problem configuring this switch to meet your needs, however you will need to change the wiring to accommodate the circuits beings used - and to make sure it meets local code. I recommend checking with an electrician if you plan on doing this.
Was this answer helpful?
Yes
0
No
0
