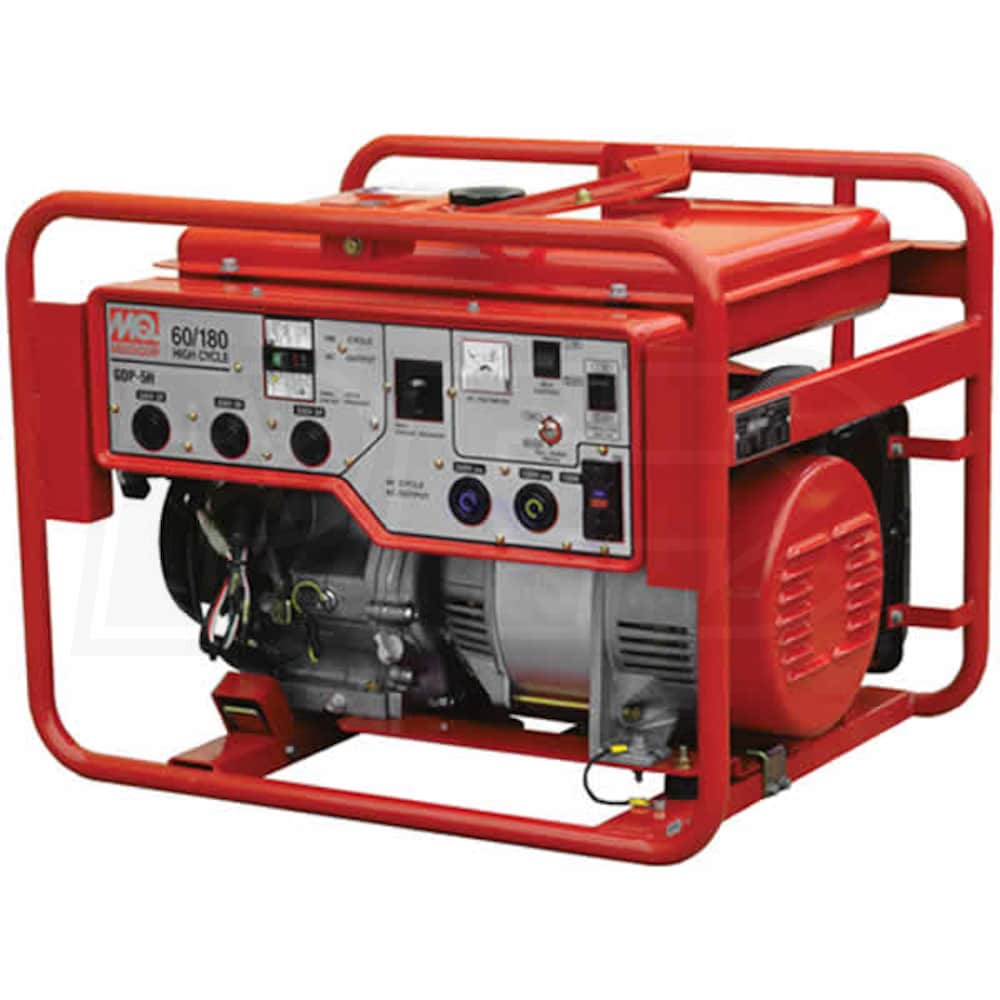

Multiquip GDP5HA - 3600 Watt 60/180 Hz Professional Portable Generator w/ Honda GX Engine

Multiquip GDP5HA - 3600 Watt 60/180 Hz Professional Portable Generator w/ Honda GX Engine
Model: GDP5HA
$3,649.99
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Add-Ons
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California, Florida, Louisiana, Massachusetts, Maryland, New York, Pennsylvania or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
3,600
Rated Watts
Surge Watts
4,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
3,600
Surge Watts
4,000 Starting Watts
Fuel
Gasoline
Engine
Honda GX
Features
Features
  • Multiquip High Cycle Portable Generator - For The Professional Contractor
  • Produces 3600w of continuous 120/240V 60Hz power
  • Only Model That Simultaneously Produces 60Hz/180Hz Power
  • 180Hz for high-cycle concrete vibrators
  • Honda GX340 Industrial-Grade OHV Engine w/ Oil Alert«
  • Provides consistent, dependable & fuel efficient performance
  • Alerts you or shuts engine down if oil reaches an unsafe level
  • Superior Voltage Regulation
  • Brushless alternator w/ 100% copper windings for clean power
  • Full-Panel GFCI Protection - OSHA & NEC Compliant
  • Must use GFI type manual transfer switch for panel connection
  • Not for use with interlock kits
  • Automatic Idle Control
  • Reduces engine speed during periods of no load
  • Rugged & Easy To Use Control Panel w/ Voltmeter
  • Separate 60Hz and 180Hz outlets & allows for easy monitoring
  • Versatile Design
  • Powers up to (3) Multiquip 2" FXA-series high cycle vibrators
  • Fold-Down Lifting Bail Standard
  • 2-Year Parts & Labor Warranty
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA L6-20R
NEMA L5-30R
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Not Necessary
Surge Watts
4000 Watts
Rated Watts
3600 Watts
Fuel Type
Gasoline
Tank Size
5 Gallons
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
1
NEMA L6-20R
1
NEMA L5-30R
1
Overview
Weight
252 Pounds
Product Style
Portable Generator
Product Length
28.34 Inches
Product Width
22.04 Inches
Product Height
21.25 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Grade
Style
Run Watts
3,600
Rated Watts
Surge Watts
4,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
3,600
Surge Watts
4,000 Starting Watts
Fuel
Gasoline
Engine
Honda GX
Features
Features
  • Multiquip High Cycle Portable Generator - For The Professional Contractor
  • Produces 3600w of continuous 120/240V 60Hz power
  • Only Model That Simultaneously Produces 60Hz/180Hz Power
  • 180Hz for high-cycle concrete vibrators
  • Honda GX340 Industrial-Grade OHV Engine w/ Oil Alert«
  • Provides consistent, dependable & fuel efficient performance
  • Alerts you or shuts engine down if oil reaches an unsafe level
  • Superior Voltage Regulation
  • Brushless alternator w/ 100% copper windings for clean power
  • Full-Panel GFCI Protection - OSHA & NEC Compliant
  • Must use GFI type manual transfer switch for panel connection
  • Not for use with interlock kits
  • Automatic Idle Control
  • Reduces engine speed during periods of no load
  • Rugged & Easy To Use Control Panel w/ Voltmeter
  • Separate 60Hz and 180Hz outlets & allows for easy monitoring
  • Versatile Design
  • Powers up to (3) Multiquip 2" FXA-series high cycle vibrators
  • Fold-Down Lifting Bail Standard
  • 2-Year Parts & Labor Warranty
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA L6-20R
NEMA L5-30R
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Not Necessary
Surge Watts
4000 Watts
Rated Watts
3600 Watts
Fuel Type
Gasoline
Tank Size
5 Gallons
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
1
NEMA L6-20R
1
NEMA L5-30R
1
Overview
Weight
252 Pounds
Product Style
Portable Generator
Product Length
28.34 Inches
Product Width
22.04 Inches
Product Height
21.25 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Specs
+
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA L6-20R
NEMA L5-30R
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Not Necessary
Surge Watts
4000 Watts
Rated Watts
3600 Watts
Fuel Type
Gasoline
Tank Size
5 Gallons
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
1
NEMA L6-20R
1
NEMA L5-30R
1
Overview
Weight
252 Pounds
Product Style
Portable Generator
Product Length
28.34 Inches
Product Width
22.04 Inches
Product Height
21.25 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
