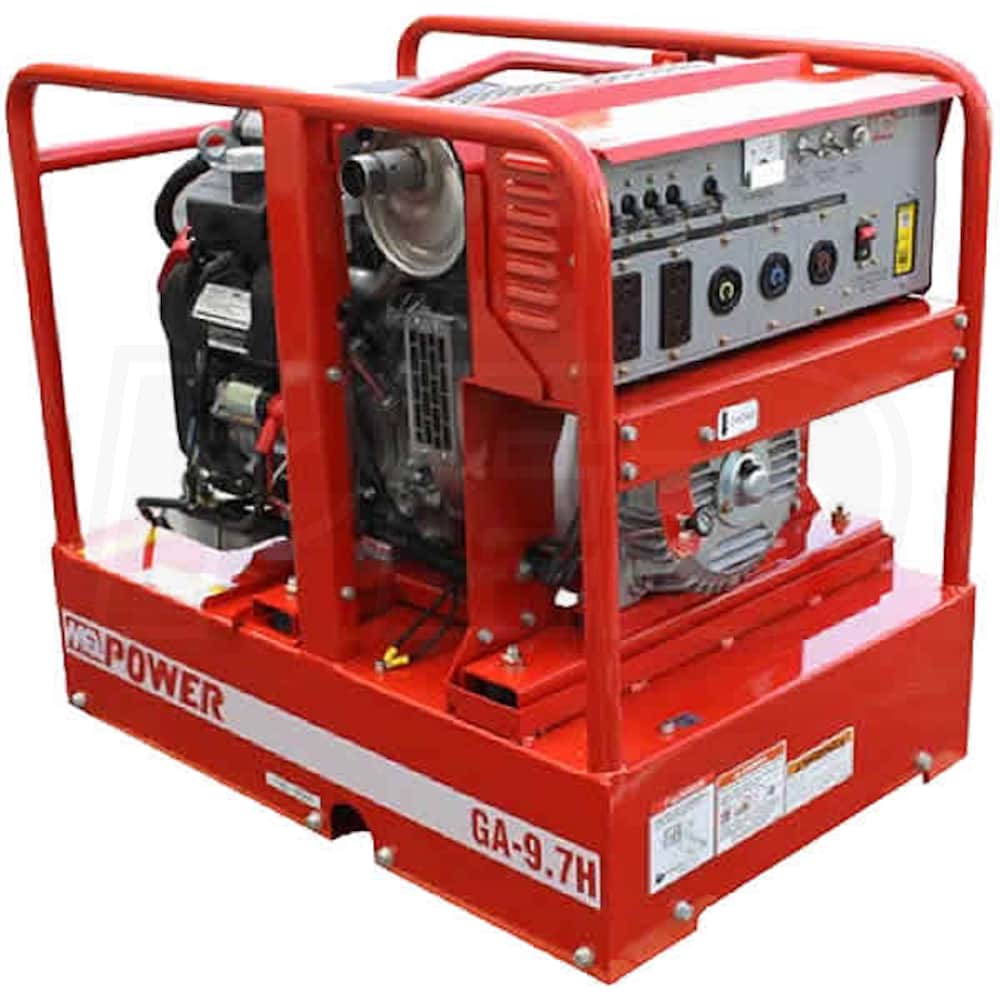

Multiquip GA97HEA - 8400 Watt Electric Start Portable Generator w/ Honda GX Engine (CARB)
Model: GA97HEA
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
8,400
Rated Watts
Surge Watts
9,700
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
8,400
Surge Watts
9,700 Starting Watts
Fuel
Gasoline
Engine
Honda GX
Features
Features
- Multiquip GA-Series Professional-Grade Generator
- Enough power to run a variety of tools and equipment
- Honda V-Twin GX610 Industrial-Grade OHV Engine
- Provides consistent, dependable & fuel efficient performance
- Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- Electric Start (SP-30 Battery NOT Included) w/ Recoil Back-Up
- Provides quick, easy starting and reliable operation
- Superior Voltage Regulation w/ Voltmeter
- Brushless alternator w/ 100% copper windings for clean power
- Automatic Idle Control
- Reduces engine speed during periods of no load
- 10-Gallon Steel Fuel Tank w/ Integral Site Gauge
- Up to 8 hours of runtime per tank @ 100% Load
- Full-Panel GFCI Protection - OSHA & NEC Compliant
- Must use GFI type manual transfer switch for panel connection
- Not for use with interlock kits
- Fold-Down Lifting Bail Standard
- Wheel Kit For Easy Mobility (Sold Separately)
- 2-Year Parts & Labor Warranty
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Not Necessary
Rated Watts
8400 Watts
Surge Watts
9700 Watts
Fuel Type
Gasoline
Rated Amps
35 Amps
Portability Kit
Sold Separately
Tank Size
10 Gallons
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
CC
614 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
342 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Portable Generator
Product Length
31.5 Inches
Product Width
21.25 Inches
Product Height
27.5 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-20R
1
NEMA L5-30R
1
NEMA L14-30R
1
Grade
Style
Run Watts
8,400
Rated Watts
Surge Watts
9,700
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
8,400
Surge Watts
9,700 Starting Watts
Fuel
Gasoline
Engine
Honda GX
Features
Features
- Multiquip GA-Series Professional-Grade Generator
- Enough power to run a variety of tools and equipment
- Honda V-Twin GX610 Industrial-Grade OHV Engine
- Provides consistent, dependable & fuel efficient performance
- Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- Electric Start (SP-30 Battery NOT Included) w/ Recoil Back-Up
- Provides quick, easy starting and reliable operation
- Superior Voltage Regulation w/ Voltmeter
- Brushless alternator w/ 100% copper windings for clean power
- Automatic Idle Control
- Reduces engine speed during periods of no load
- 10-Gallon Steel Fuel Tank w/ Integral Site Gauge
- Up to 8 hours of runtime per tank @ 100% Load
- Full-Panel GFCI Protection - OSHA & NEC Compliant
- Must use GFI type manual transfer switch for panel connection
- Not for use with interlock kits
- Fold-Down Lifting Bail Standard
- Wheel Kit For Easy Mobility (Sold Separately)
- 2-Year Parts & Labor Warranty
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Not Necessary
Rated Watts
8400 Watts
Surge Watts
9700 Watts
Fuel Type
Gasoline
Rated Amps
35 Amps
Portability Kit
Sold Separately
Tank Size
10 Gallons
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
CC
614 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
342 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Portable Generator
Product Length
31.5 Inches
Product Width
21.25 Inches
Product Height
27.5 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-20R
1
NEMA L5-30R
1
NEMA L14-30R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Not Necessary
Rated Watts
8400 Watts
Surge Watts
9700 Watts
Fuel Type
Gasoline
Rated Amps
35 Amps
Portability Kit
Sold Separately
Tank Size
10 Gallons
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
CC
614 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
342 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Portable Generator
Product Length
31.5 Inches
Product Width
21.25 Inches
Product Height
27.5 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-20R
1
NEMA L5-30R
1
NEMA L14-30R
1
