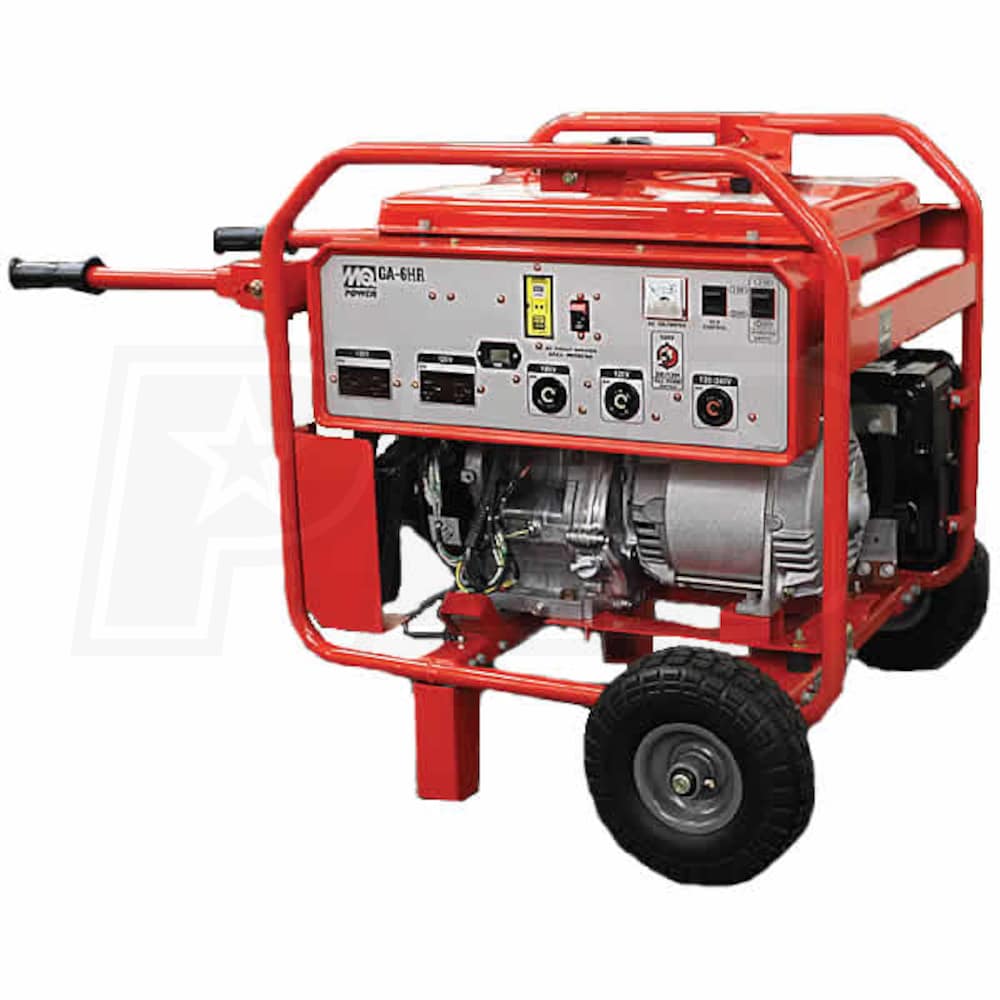

Multiquip GA6HR - 5000 Watt Professional Portable Generator w/ Honda GX Engine (CARB)
Multiquip GA6HR - 5000 Watt Professional Portable Generator w/ Honda GX Engine (CARB)
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
5,000
Rated Watts
Surge Watts
6,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
5,000
Surge Watts
6,000 Starting Watts
Fuel
Gasoline
Engine
Honda GX
Features
Features
- Multiquip GA-Series Professional-Grade Generator
- Tough enough for any jobsite condition
- Powered By Honda's GX340 Industrial-Grade OHV Engine
- Provides consistent, dependable & fuel efficient performance
- Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- Brushless Alternator w/ 100% Copper Windings
- Designed to provide years of dependable service
- Superior Voltage Regulation w/ Voltmeter
- Prevents damaging voltage spikes to keep your tools safe
- Automatic Idle Control
- Reduces engine speed during periods of no load
- 5-Gallon Steel Fuel Tank w/ Integral Site Gauge
- Up to 5.7 hours of runtime per tank @ 100% Load
- Full-Panel GFCI Protection - OSHA & NEC Compliant
- Must use GFI type manual transfer switch for panel connection
- Not for use with interlock kits
- Mobility Kit w/ Folding Handles & Built-In Lifting Bail/Eye
- Provides easy manueverability & storage on the jobsite
- 2-Year Parts & Labor Warranty
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Not Necessary
Rated Watts
5000 Watts
Surge Watts
6000 Watts
Fuel Type
Gasoline
Rated Amps
21 Amps
Portability Kit
Never Flat Wheels
Tank Size
5 Gallons
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Grade Type
Professional
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
221 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Portable Generator
Product Length
25.5 Inches
Product Width
22 Inches
Product Height
21.25 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-20R
1
NEMA L5-30R
1
NEMA L14-30R
1
Grade
Style
Run Watts
5,000
Rated Watts
Surge Watts
6,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
5,000
Surge Watts
6,000 Starting Watts
Fuel
Gasoline
Engine
Honda GX
Features
Features
- Multiquip GA-Series Professional-Grade Generator
- Tough enough for any jobsite condition
- Powered By Honda's GX340 Industrial-Grade OHV Engine
- Provides consistent, dependable & fuel efficient performance
- Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- Brushless Alternator w/ 100% Copper Windings
- Designed to provide years of dependable service
- Superior Voltage Regulation w/ Voltmeter
- Prevents damaging voltage spikes to keep your tools safe
- Automatic Idle Control
- Reduces engine speed during periods of no load
- 5-Gallon Steel Fuel Tank w/ Integral Site Gauge
- Up to 5.7 hours of runtime per tank @ 100% Load
- Full-Panel GFCI Protection - OSHA & NEC Compliant
- Must use GFI type manual transfer switch for panel connection
- Not for use with interlock kits
- Mobility Kit w/ Folding Handles & Built-In Lifting Bail/Eye
- Provides easy manueverability & storage on the jobsite
- 2-Year Parts & Labor Warranty
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Not Necessary
Rated Watts
5000 Watts
Surge Watts
6000 Watts
Fuel Type
Gasoline
Rated Amps
21 Amps
Portability Kit
Never Flat Wheels
Tank Size
5 Gallons
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Grade Type
Professional
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
221 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Portable Generator
Product Length
25.5 Inches
Product Width
22 Inches
Product Height
21.25 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-20R
1
NEMA L5-30R
1
NEMA L14-30R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Not Necessary
Rated Watts
5000 Watts
Surge Watts
6000 Watts
Fuel Type
Gasoline
Rated Amps
21 Amps
Portability Kit
Never Flat Wheels
Tank Size
5 Gallons
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Grade Type
Professional
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
221 Pounds
Made in USA
No
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Portable Generator
Product Length
25.5 Inches
Product Width
22 Inches
Product Height
21.25 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-20R
1
NEMA L5-30R
1
NEMA L14-30R
1
