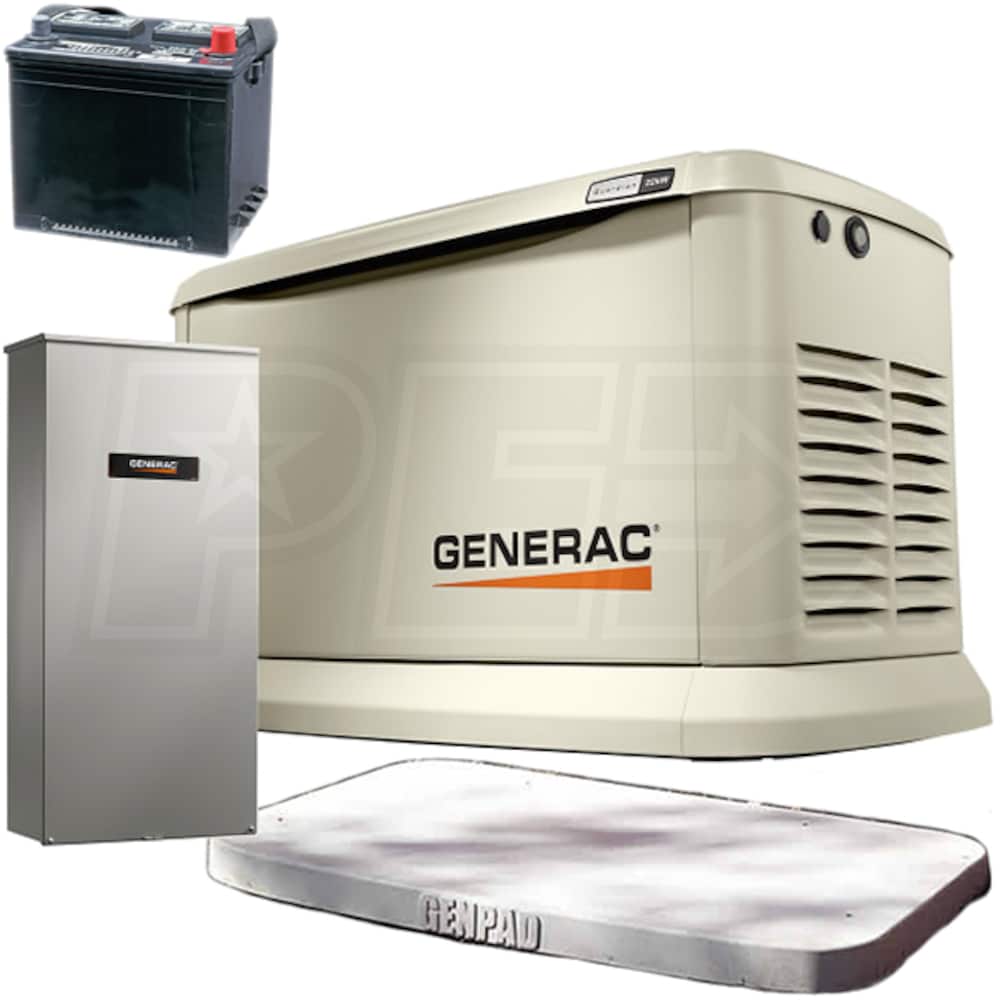

Generac Guardian® 22kW Standby Generator System (200A Service Disconnect + AC Shedding) w/ Wi-Fi + 4" Hurricane GenPad™ + Battery

Model:

EGD-70432KIT-A

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Generac Guardian® 22kW Standby Generator System (200A Service Disconnect + AC Shedding) w/ Wi-Fi + 4
Generac Guardian® 22kW Standby Generator System (200A Service Disconnect + AC Shedding) w/ Wi-Fi + 4" Hurricane GenPad™ + Battery
Model: EGD-70432KIT-A
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

22,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Generac OHVI



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • 22kW (LPG) / 19.5kW (NG) Guardian Air-Cooled Standby Generator
  • Protects your home and family during a power outage
  • Digital Power Management (DPM) protects against overload
  • Includes Mobile Link™ Wi-Fi Remote Monitoring*
  • Monitor generator status on a smart phone, tablet or PC
  • *Requires internet connection and wireless router
  • Includes 200-Amp Service Entrance Rated Automatic Smart Switch
  • Installs between main meter & service panel for faster & less costly installation
  • DPM technology allows for the Smart Control of (4) A/C units
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Add Up To (8) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • 5-Year Limited Warranty + 24/7-365 Customer Support
  • Have your questions answered when it's convenient for you
  • Generac's G-Force Engine
  • Specifically designed for the demanding environment standby generators endure
  • Full pressure lubrication system w/ 2 year oil change interval
  • Operates On Clean Burning, Efficient Natural Gas or LP (Vapor)
  • Connects to your existing LP or natural gas fuel supply
  • True Power Electrical Technology
  • Less than 5% Total Harmonic Distortion (THD) for utility grade power
  • Automatic Digital Voltage Regulation (+/-1%)
  • Allows for faster response time & maximum motor starting ability
  • Evolution™ 2.0 Digital Controller
  • Multilingual, 2-Line LCD display for simple, straightforward operation
  • Programmable-exerciser lets you set how often & what time generator will self-test
  • Quiet-Test™ Self-Test Mode
  • Low RPM, 5 or 12 minute test for reduced noise and fuel consumption
  • Tough, Durable All-Aluminum Sound Attenuated Enclosure
  • RhinoCoat™ powder-coated finish keeps enclosure protected from the elements
  • Installation Flexibility*
  • Can be installed within 18" of a building; *Always check local building codes
  • Generac Standby Generators & Engines - Built In The USA*
  • Built in the USA using domestic & foreign parts
  • Additional Features:
  • Flexible fuel line and Direct-To-Dirt composite mounting pad
  • Built-in Battery Charger
  • Automatic Transfer Switch Model # RXSW200A3
  • Also Includes:
  • GenPad™ Hurricane 4" Composite Cement Pad & Starting Battery
  • Product Includes
    • (1) Generac Guardian® 22kW Standby Generator System (200A Service Disconnect + AC Shedding) w/ Wi-Fi (70432)
    • (1) GenPad™ Hurricane 4" Composite Cement Pad for Generac 9kW-26kW (2016+) (10000007848)
    • (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (5819)

Specifications

Product Includes
  • (1) Generac Guardian® 22kW Standby Generator System (200A Service Disconnect + AC Shedding) w/ Wi-Fi (70432)
  • (1) GenPad™ Hurricane 4" Composite Cement Pad for Generac 9kW-26kW (2016+) (10000007848)
  • (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (5819)
EGD-70432KIT-A
specs product image PID-83315
Overview
Weight
466 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
19500 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
228 ft³/hr
NG Fuel Consumption @ 100% Load
327 ft³/hr
LP Fuel Consumption @ 50% Load
2.53 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
91.7 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Included
Enclosure
Aluminum
Circuit Breaker Size
100 Amps
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
466 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
48 Inches
Product Width
25 Inches
Product Height
29 Inches
Installation Available
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
22000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
19500 Watts
LP Power Capacity
22000 Watts
NG Fuel Consumption @ 50% Load
203 ft³/hr
NG Fuel Consumption @ 100% Load
306 ft³/hr
LP Fuel Consumption @ 50% Load
2.53 gallons/hr
LP Fuel Consumption @ 100% Load
3.9 gallons/hr
Rated Amps
91.7 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included
Enclosure
Aluminum
Circuit Breaker Size
100 Amps
A/C Ton Rating
2 x 5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Service Disconnect
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Yes
Engine
Engine Brand
Generac OHVI
Starting System
12v Auto Start
CC
999 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
10000007848
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
275 Pounds
Made in USA
Yes
Product Length
54 Inches
Product Width
31 Inches
Product Height
4 Inches
Overview
Weight
30 Pounds
Product Length
8.7 Inches
Product Width
6.8 Inches
Product Height
7.6 Inches
Product Specs
Frequency
60 Hertz
