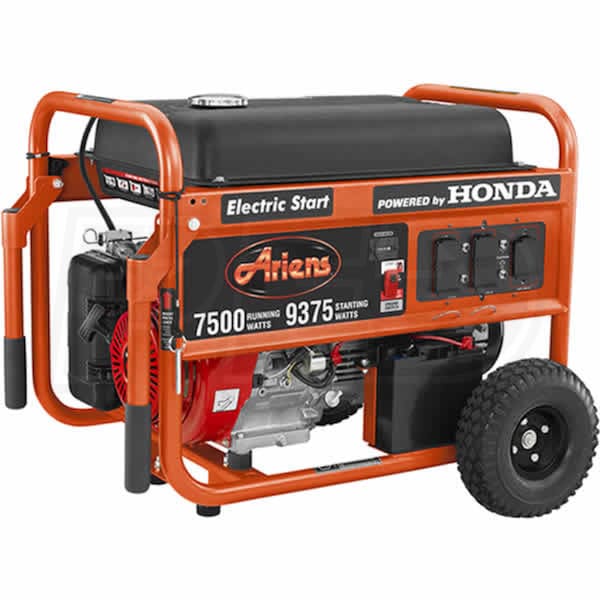

Ariens 7500 Watt Electric Start Portable Generator w/ Honda GX Engine
Model: 986055
+
Share This Product
-
Product Description
-
32Reviews
-
3Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
7,500
Rated Watts
Surge Watts
9,375
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
7,500
Surge Watts
9,375 Starting Watts
Fuel
Gasoline
Engine
Honda GX
Features
Features
- Ariens Electric Start Emergency Generator
- Easily back up the essentials in your home during an outage
- 390cc Honda GX390 OHV Commercial Grade Engine
- Reliable, incredibly rugged and plenty of power
- Electric Starting System (Battery Included) w/ Recoil Backup
- Easily start your generator with the push of a button
- Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- 8-Gallon Metal Fuel Tank w/ Fuel Valve
- Provides up to 12 hours of run time @ 1/2 load
- Brush-Type Alternator w/ Auto Voltage Regulation (AVR)
- Prevents the damaging voltage spikes that can harm electronics
- (4) 120V GFCI & (1) 30A Twistlock Outlets
- Easily connect extension cords or a manual transfer switch
- 1-1/4" Tubular Steel Frame & Hour Meter
- Provides protection on all sides during operation & transportation
- Easily keep track of maintenance intervals for engine longevity
- 10" Semi-Pneumatic Wheels & Fold-Down Locking Handles
- Makes it easy to move this generator over uneven terrain
- 3-Year Limited Consumer Warranty & 90-Day Commercial Warranty
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7500 Watts
Surge Watts
9375 Watts
Fuel Type
Gasoline
Rated Amps
31 Amps
Portability Kit
Pneumatic Wheels
Tank Size
8 Gallons
Run Time @ 50% Load
12 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
CC
390 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
90 Days
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
221 Pounds
Consumer Warranty
3 Years
Commercial Warranty
90 Days
Product Style
Portable Generator
Product Length
31 Inches
Product Width
20.5 Inches
Product Height
24 Inches
UPC
751058035246
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
Grade
Style
Run Watts
7,500
Rated Watts
Surge Watts
9,375
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
7,500
Surge Watts
9,375 Starting Watts
Fuel
Gasoline
Engine
Honda GX
Features
Features
- Ariens Electric Start Emergency Generator
- Easily back up the essentials in your home during an outage
- 390cc Honda GX390 OHV Commercial Grade Engine
- Reliable, incredibly rugged and plenty of power
- Electric Starting System (Battery Included) w/ Recoil Backup
- Easily start your generator with the push of a button
- Oil Alert® Warning System
- Alerts you or shuts engine down if oil reaches an unsafe level
- 8-Gallon Metal Fuel Tank w/ Fuel Valve
- Provides up to 12 hours of run time @ 1/2 load
- Brush-Type Alternator w/ Auto Voltage Regulation (AVR)
- Prevents the damaging voltage spikes that can harm electronics
- (4) 120V GFCI & (1) 30A Twistlock Outlets
- Easily connect extension cords or a manual transfer switch
- 1-1/4" Tubular Steel Frame & Hour Meter
- Provides protection on all sides during operation & transportation
- Easily keep track of maintenance intervals for engine longevity
- 10" Semi-Pneumatic Wheels & Fold-Down Locking Handles
- Makes it easy to move this generator over uneven terrain
- 3-Year Limited Consumer Warranty & 90-Day Commercial Warranty
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7500 Watts
Surge Watts
9375 Watts
Fuel Type
Gasoline
Rated Amps
31 Amps
Portability Kit
Pneumatic Wheels
Tank Size
8 Gallons
Run Time @ 50% Load
12 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
CC
390 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
90 Days
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
221 Pounds
Consumer Warranty
3 Years
Commercial Warranty
90 Days
Product Style
Portable Generator
Product Length
31 Inches
Product Width
20.5 Inches
Product Height
24 Inches
UPC
751058035246
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7500 Watts
Surge Watts
9375 Watts
Fuel Type
Gasoline
Rated Amps
31 Amps
Portability Kit
Pneumatic Wheels
Tank Size
8 Gallons
Run Time @ 50% Load
12 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
CC
390 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
90 Days
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
221 Pounds
Consumer Warranty
3 Years
Commercial Warranty
90 Days
Product Style
Portable Generator
Product Length
31 Inches
Product Width
20.5 Inches
Product Height
24 Inches
UPC
751058035246
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
Product Q&A
(3)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Does this unit have an L14-30 twist lock outlet?
Is it safe for tvs, electronics as household backup?
Installing transfer switch in house.
Todd
from Minnesota
June 30, 2016
Answer
Conventional generators like the Ariens consist of heavy copper coils, which generate a raw form of electricity. The engine must maintain a constant speed of 3,600 rotations per minute to produce AC power. In other words, it must run at full speed, regardless of the load needed, consuming more fuel and generating more noise.
The electricity produced isn't as clean as utility power. Therefore, standard generators are NOT recommended to power sensitive electronics like computers.
Inverter generators, however, utilize a different type of alternator to generate very clean AC power. The inverter technology reduces the generator's size and weight. But more importantly, the engine can run at varying speeds, significantly reducing the noise levels and fuel consumption..
This unit does have the L14-30 3 prong twist lock outlet.
If you have any other questions please let us know.
The electricity produced isn't as clean as utility power. Therefore, standard generators are NOT recommended to power sensitive electronics like computers.
Inverter generators, however, utilize a different type of alternator to generate very clean AC power. The inverter technology reduces the generator's size and weight. But more importantly, the engine can run at varying speeds, significantly reducing the noise levels and fuel consumption..
This unit does have the L14-30 3 prong twist lock outlet.
If you have any other questions please let us know.
Was this answer helpful?
Yes
0
No
0
+−
Hello,
Where is the Ariens 7500 Generator manufactured please? I am trying to buy American. If the Ariens isn't made here what would you recommend in this size and price range that is made in the US?
Thanks for your time.
Rodney
from Indiana
June 30, 2016
Answer
The Ariens is an imported generator and not Made in the US. I would recommend the Generac XG or XP series portable generators which are Made in the US in Wisconsin.
Generac XG Portable Generators
Generac XP Portable Generators
Generac XG Portable Generators
Generac XP Portable Generators
Was this answer helpful?
Yes
0
No
0
+−
I would like to buy the Ariens 986055. I have on my wall garage a 50 amp power inlet box.
How I can connect the generator to the box? What type of cable do I need?
Javier
from North Carolina
June 27, 2016
Answer
Because this generator only has a 30-amp outlet you will need to change out the inlet box to a 30-amp.
Reliance Controls 30-Amp (4-Prong) Power Inlet Box
Once this is installed you would use a 30-amp 4-prong power cord.
30-Amp Generator Power Cords
Reliance Controls 30-Amp (4-Prong) Power Inlet Box
Once this is installed you would use a 30-amp 4-prong power cord.
30-Amp Generator Power Cords
Was this answer helpful?
Yes
0
No
0
