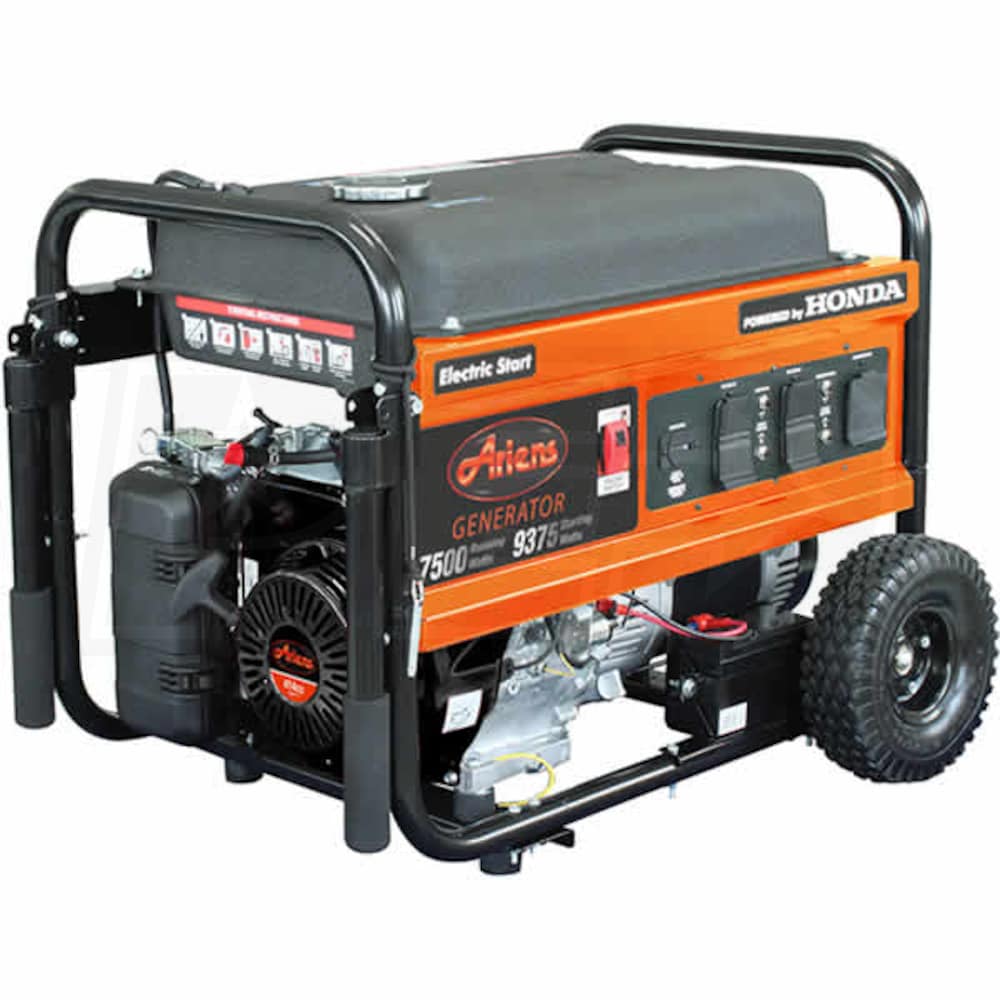

Ariens 7500 Watt Electric Start Portable Generator w/ Honda GX Engine
Model: 986061
+
Share This Product
-
Product Description
-
21Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
7,500
Rated Watts
Surge Watts
9,375
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
7,500
Surge Watts
9,375 Starting Watts
Fuel
Gasoline
Engine
Honda GX
Features
Features
- Ariens Electric Start Emergency Generator
- Easily back up the essentials in your home during an outage
- 390cc Honda GX390 OHV Commercial Grade Engine
- OHV design provides increased performance and peak power transfer
- Electric Starting System (Battery Included) w/ Recoil Backup
- Provides effortless starting with the push of a button
- Automatic mechanical de-compression system makes manual starting even easier
- Oil Alert® Warning System
- Crankcase located oil level sensor helps prevent engine seizure
- Alerts you or shuts engine down if oil reaches an unsafe level
- Brush-Type Alternator w/ Auto Voltage Regulation (AVR)
- Prevents the damaging voltage spikes that can harm electronics
- Low THD design produces cleaner power for sensitive equipment
- 8-Gallon Metal Fuel Tank w/ Fuel Shut-Off Valve
- Provides up to 12 hours of run time @ 50% load
- (4) 120V GFCI & (1) 30A Twistlock Outlets
- Easily connect extension cords or a manual transfer switch
- Circuit-breaker protection provides an added level of safety
- Analog Hour Meter
- Helps you keep track of refueling and maintenance interval
- 1-1/4" Tubular Steel Frame
- Provides protection on all sides during operation & transportation
- 10" Semi-Pneumatic Wheels & Fold-Down Locking Handles
- Makes it easy to move this generator over uneven terrain
- 3-Year Limited Consumer Warranty & 90-Day Commercial Warranty
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7500 Watts
Surge Watts
9375 Watts
Fuel Type
Gasoline
Rated Amps
31 Amps
Portability Kit
Pneumatic Wheels
Tank Size
8 Gallons
Run Time @ 50% Load
12 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
HP
11 HP
CC
390 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
221 Pounds
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
31 Inches
Product Width
20.5 Inches
Product Height
24 Inches
UPC
751058035246
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
Grade
Style
Run Watts
7,500
Rated Watts
Surge Watts
9,375
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
7,500
Surge Watts
9,375 Starting Watts
Fuel
Gasoline
Engine
Honda GX
Features
Features
- Ariens Electric Start Emergency Generator
- Easily back up the essentials in your home during an outage
- 390cc Honda GX390 OHV Commercial Grade Engine
- OHV design provides increased performance and peak power transfer
- Electric Starting System (Battery Included) w/ Recoil Backup
- Provides effortless starting with the push of a button
- Automatic mechanical de-compression system makes manual starting even easier
- Oil Alert® Warning System
- Crankcase located oil level sensor helps prevent engine seizure
- Alerts you or shuts engine down if oil reaches an unsafe level
- Brush-Type Alternator w/ Auto Voltage Regulation (AVR)
- Prevents the damaging voltage spikes that can harm electronics
- Low THD design produces cleaner power for sensitive equipment
- 8-Gallon Metal Fuel Tank w/ Fuel Shut-Off Valve
- Provides up to 12 hours of run time @ 50% load
- (4) 120V GFCI & (1) 30A Twistlock Outlets
- Easily connect extension cords or a manual transfer switch
- Circuit-breaker protection provides an added level of safety
- Analog Hour Meter
- Helps you keep track of refueling and maintenance interval
- 1-1/4" Tubular Steel Frame
- Provides protection on all sides during operation & transportation
- 10" Semi-Pneumatic Wheels & Fold-Down Locking Handles
- Makes it easy to move this generator over uneven terrain
- 3-Year Limited Consumer Warranty & 90-Day Commercial Warranty
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7500 Watts
Surge Watts
9375 Watts
Fuel Type
Gasoline
Rated Amps
31 Amps
Portability Kit
Pneumatic Wheels
Tank Size
8 Gallons
Run Time @ 50% Load
12 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
HP
11 HP
CC
390 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
221 Pounds
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
31 Inches
Product Width
20.5 Inches
Product Height
24 Inches
UPC
751058035246
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7500 Watts
Surge Watts
9375 Watts
Fuel Type
Gasoline
Rated Amps
31 Amps
Portability Kit
Pneumatic Wheels
Tank Size
8 Gallons
Run Time @ 50% Load
12 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
HP
11 HP
CC
390 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
221 Pounds
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
31 Inches
Product Width
20.5 Inches
Product Height
24 Inches
UPC
751058035246
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
