Yamaha EF4000DE
Yamaha EF4000DE
Hover to zoom
1 Of 5

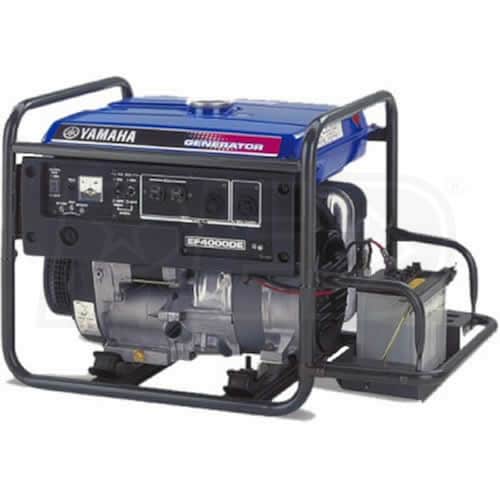

Yamaha EF4000DE - 3500 Watt Electric Start Portable Generator

Model:

EF4000DE

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Yamaha EF4000DE - 3500 Watt Electric Start Portable Generator
Yamaha EF4000DE - 3500 Watt Electric Start Portable Generator
Model: EF4000DE
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Alberto, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

3,500 Rated Watts

Surge Watts

4,000
Starting Watts

Fuel

Gasoline

Engine

Yamaha

  • 4,000 Max Rated Watts
  • Generator can produce 4,000 watts for up to 20 minutes
  • 3,500 rated watts for continuous operation over 20 minutes
  • Electric Start Yamaha Engine
  • Easily starts with a press of a button (recoil backup)
  • Heavy-Duty
  • Rugged design with lifting eye is great for the jobsite
  • Ground Fault Protection
  • Protected outlets meet OSHA requirements
  • Combustion Chamber Design
  • Improves power output and reduces exhaust emmissions
  • Cast-Iron Sleeve
  • Rugged material extends engine life span
  • Brushless Alternator
  • Low maintenance and years of worry-free service
  • Fuel Gauge & Voltmeter
  • Easily read gas and voltage levels
  • Battery Not Included
  • Recommended capacity 12V / 26Ah

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA L14-20R
NEMA L5-30R
EF4000DE
specs product image PID-1211
Overview
Weight
145.5 Pounds
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
31.7 Inches
Product Width
20.7 Inches
Product Height
20.1 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Not Necessary
Rated Watts
3500 Watts
Surge Watts
4000 Watts
Fuel Type
Gasoline
Rated Amps
15 Amps
Portability Kit
Sold Separately
Tank Size
4.8 Gallons
Run Time @ 50% Load
10.6 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69 dbA
Idle Control
Yes
Hour Meter
No
Voltage Meter
Yes
Lifting Eye
No
Battery
Not Included
Grade Type
Emergency
Engine
Engine Brand
Yamaha
Starting System
12-Volt Button Start
HP
8.5 HP
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
1
NEMA L14-20R
1
NEMA L5-30R
1
