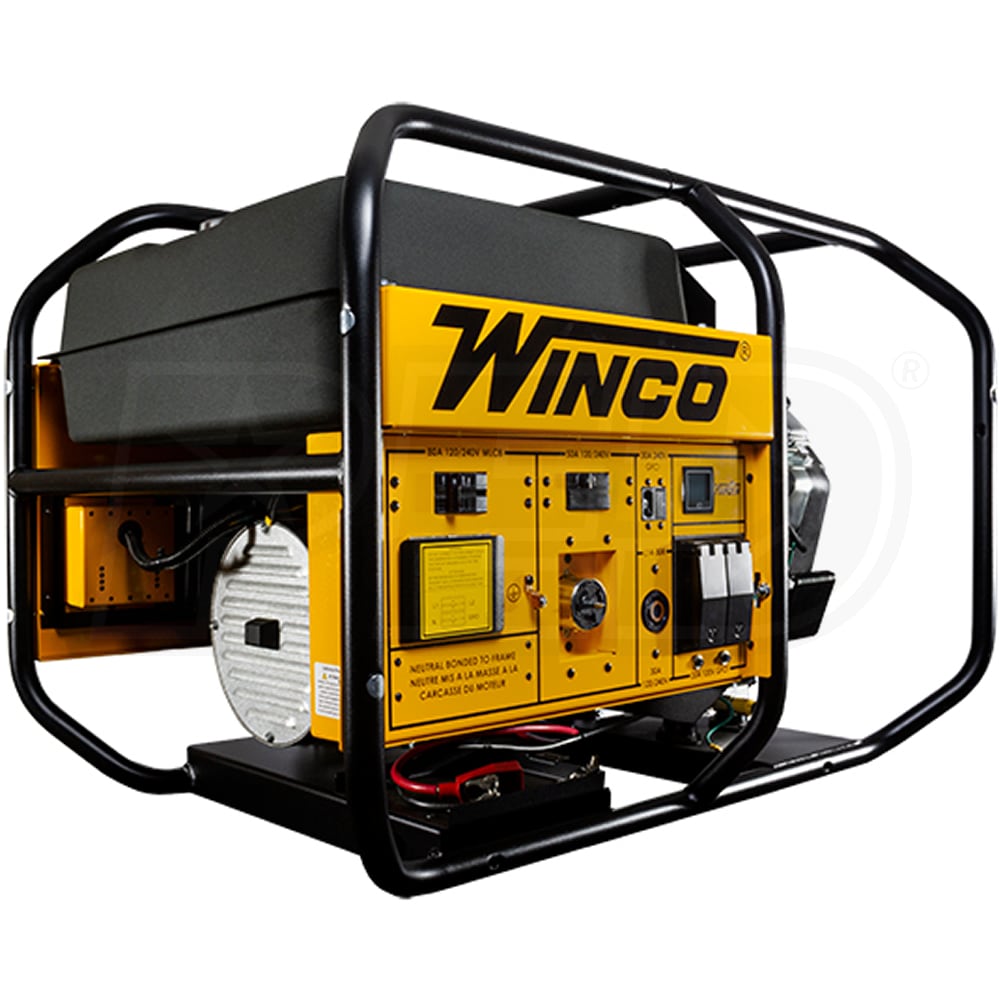

Winco WL22000VE/B - 19,000 Watt Electric Start Portable Generator (Anderson Plug) w/ B&S Vanguard Engine (49-State)
Model: WL22000VE-ANDERSON
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
19,000
Rated Watts
Surge Watts
22,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
19,000
Surge Watts
22,000 Starting Watts
Fuel
Gasoline
Engine
Briggs and Stratton Vanguard
Features
Features
- Winco WL22000VE Industrial Series Portable Generator
- Provides the most power output in the class
- Electric Start (Battery Not Included)
- Allows for easier starting, just turn the key
- Flywheel-mounted charger keeps battery charged when engine runs
- 993cc Briggs & Stratton Vanguard V-Twin OHV Engine
- Low vibration, improved valve life and better fuel economy
- Full pressure lubrication system w/ spin-on oil filter
- Oil Alert - Low Oil Shutdown System
- Oil pressure switch prevents engine damage before it occurs
- Mecc Alte ECP3 Brushless Alternator
- 100% copper windings, NEMA Class F insulation
- < 6% Total Harmonic Distortion (THD)
- Inherent voltage regulation protects electronics from surges
- 15-Gallon Steel Fuel Tank w/ Fuel Gauge
- EPA approved design eliminates carbon emissions
- YourGen Digital Meter w/ LED Screen
- Displays hours, RPMs, voltage & frequency (Hz) readings
- Load bars makes it easy to balance generator loads
- Visual warnings for added safety and maintenance
- Anderson Full Power Plug
- Full power 120/240V receptacle (Includes Plug)
- Not compatible with Interlock Kits
- Premium Square D Circuit Breakers
- Visi-Trip indicator to easily identify a tripped circuit
- Wrap-Around 1" Tubular Steel (14-Gauge) Cradle
- Powder-coat paint protects finish from damage and debris
- 100% Load Tested
- All generators are tested prior to leaving the factory
- Requires BCI GROUP 26 500 CCA (Not Included)
- 2-Year (Generator) / 3-Year (Engine) Commercial Warranty
- Non-CARB Compliant - Not For Sale In CA
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
19000 Watts
Surge Watts
22000 Watts
Fuel Type
Gasoline
Rated Amps
79.2 Amps
Portability Kit
Sold Separately
Tank Size
15 Gallons
Run Time @ 50% Load
7.97 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
79
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included (500 CCA)
Grade Type
Professional
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Key Start
CC
993 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
504 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
43.5 Inches
Product Width
31 Inches
Product Height
37 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L6-30R
1
Full Power Receptacle
1
Grade
Style
Run Watts
19,000
Rated Watts
Surge Watts
22,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
19,000
Surge Watts
22,000 Starting Watts
Fuel
Gasoline
Engine
Briggs and Stratton Vanguard
Features
Features
- Winco WL22000VE Industrial Series Portable Generator
- Provides the most power output in the class
- Electric Start (Battery Not Included)
- Allows for easier starting, just turn the key
- Flywheel-mounted charger keeps battery charged when engine runs
- 993cc Briggs & Stratton Vanguard V-Twin OHV Engine
- Low vibration, improved valve life and better fuel economy
- Full pressure lubrication system w/ spin-on oil filter
- Oil Alert - Low Oil Shutdown System
- Oil pressure switch prevents engine damage before it occurs
- Mecc Alte ECP3 Brushless Alternator
- 100% copper windings, NEMA Class F insulation
- < 6% Total Harmonic Distortion (THD)
- Inherent voltage regulation protects electronics from surges
- 15-Gallon Steel Fuel Tank w/ Fuel Gauge
- EPA approved design eliminates carbon emissions
- YourGen Digital Meter w/ LED Screen
- Displays hours, RPMs, voltage & frequency (Hz) readings
- Load bars makes it easy to balance generator loads
- Visual warnings for added safety and maintenance
- Anderson Full Power Plug
- Full power 120/240V receptacle (Includes Plug)
- Not compatible with Interlock Kits
- Premium Square D Circuit Breakers
- Visi-Trip indicator to easily identify a tripped circuit
- Wrap-Around 1" Tubular Steel (14-Gauge) Cradle
- Powder-coat paint protects finish from damage and debris
- 100% Load Tested
- All generators are tested prior to leaving the factory
- Requires BCI GROUP 26 500 CCA (Not Included)
- 2-Year (Generator) / 3-Year (Engine) Commercial Warranty
- Non-CARB Compliant - Not For Sale In CA
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
19000 Watts
Surge Watts
22000 Watts
Fuel Type
Gasoline
Rated Amps
79.2 Amps
Portability Kit
Sold Separately
Tank Size
15 Gallons
Run Time @ 50% Load
7.97 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
79
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included (500 CCA)
Grade Type
Professional
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Key Start
CC
993 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
504 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
43.5 Inches
Product Width
31 Inches
Product Height
37 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L6-30R
1
Full Power Receptacle
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
19000 Watts
Surge Watts
22000 Watts
Fuel Type
Gasoline
Rated Amps
79.2 Amps
Portability Kit
Sold Separately
Tank Size
15 Gallons
Run Time @ 50% Load
7.97 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
79
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included (500 CCA)
Grade Type
Professional
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Key Start
CC
993 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
504 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
43.5 Inches
Product Width
31 Inches
Product Height
37 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L6-30R
1
Full Power Receptacle
1
