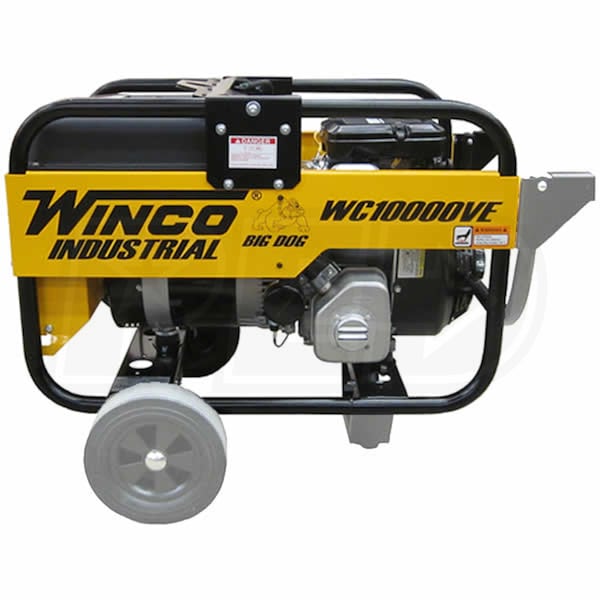

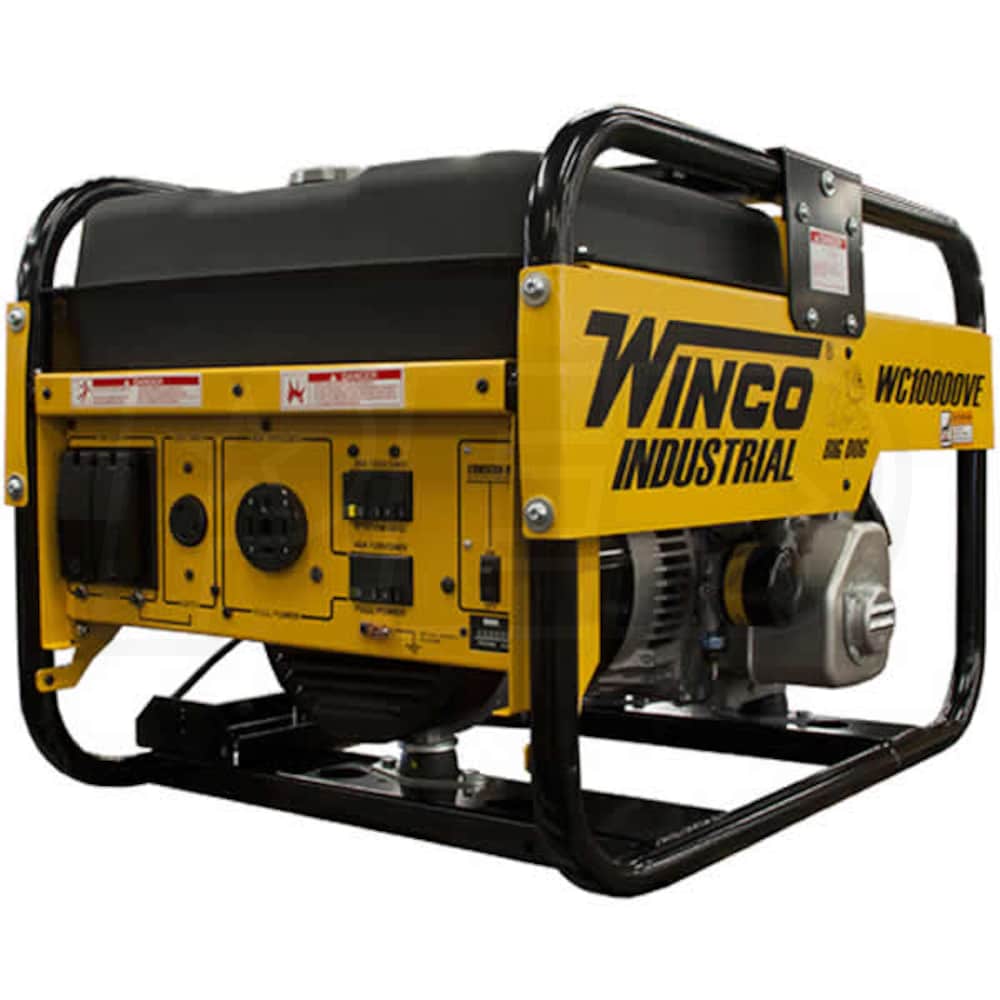

Winco WC10000VE - 9600 Watt Electric Start Portable Generator

Model:

WC10000VE

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Winco WC10000VE - 9600 Watt Electric Start Portable Generator
Winco WC10000VE - 9600 Watt Electric Start Portable Generator
Model: WC10000VE
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Alberto, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Portable

Run Watts

9,600 Rated Watts

Surge Watts

10,500
Starting Watts

Fuel

Gasoline

Engine

Briggs and Stratton Vanguard



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Winco Big Dog Electric Start Portable Job Site Generator
  • Designed to provide years of reliable service
  • 570cc V-Twin OHV Briggs & Stratton Vanguard Engine
  • Engineered to deliver the dependability you need
  • Electric Start w/ Recoil Backup & Low Oil Shutdown
  • Makes starting an easy task and extends the life of the engine
  • Brushless Alternator w/ 100% Copper Windings
  • Provides clean power with no maintenance required
  • Conserv-R (Automatic Idle Control)
  • Generator will idle down when there is no load
  • Reduce noise and engine wear while improving fuel economy
  • Heavy-Duty 1-1/4" 13-Gauge Tubular Steel Cradle
  • Built to take any abuse the job site my dish out
  • Single Point Lifting Eye w/Optional Wheel Kit (Sold Separately)
  • Make moving this generator around the job site an easy task
  • GFCI protected 20 & 30 Amp Receptacles for Job Site Protection
  • 60 Amp NEMA L14-60 Receptacle
  • Lets you get the maximum power out of your generator
  • 3 Year Engine Warranty & 2 Year Generator Warranty
  • Battery Not Included (Group U1-275 CCA)
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Ethylene glycol (ingested) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L6-30R
NEMA 14-60R
WC10000VE
specs product image PID-8525
Overview
Weight
306 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Portable Generator
Product Length
33.5 Inches
Product Width
22 Inches
Product Height
22 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
9600 Watts
Surge Watts
10500 Watts
Fuel Type
Gasoline
Rated Amps
40 Amps
Portability Kit
Sold Separately
Tank Size
7 Gallons
Fuel Tank Material
Plastic
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Key Start w/ Recoil
CC
570 CC
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L6-30R
1
NEMA 14-60R
1
