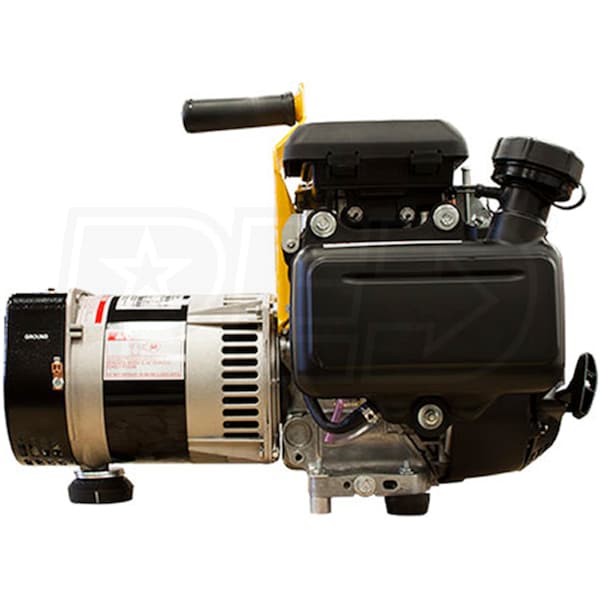

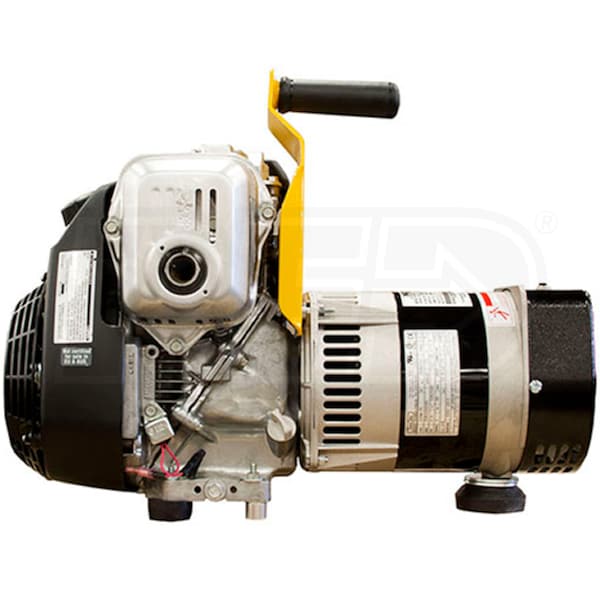

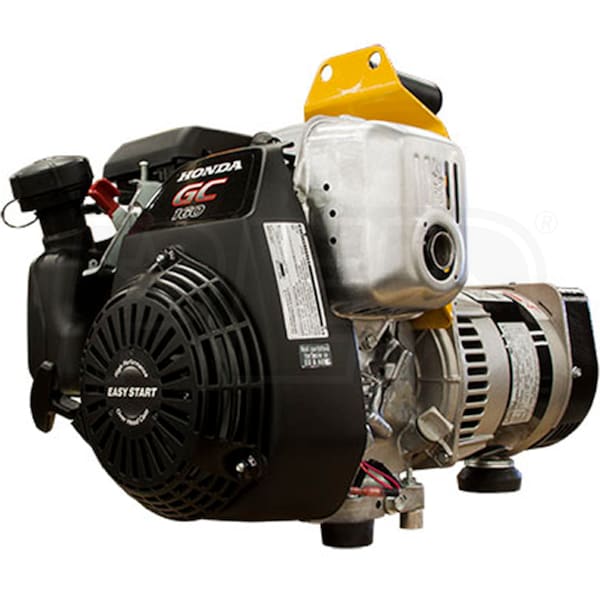

Winco W3000H - 2400 Watt Portable Generator w/ Honda GC Engine (CARB)
Model: 16077-001
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
Number of Reviews(5)
Write a Review
Q&A (1)
$639.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
Add an Extended Warranty
Excludes CA
Share
  • Product Description
  • 5
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Grade
Style
Run Watts
2,400
Rated Watts
Surge Watts
3,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
2,400
Surge Watts
3,000 Starting Watts
Fuel
Gasoline
Engine
Honda GC


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features

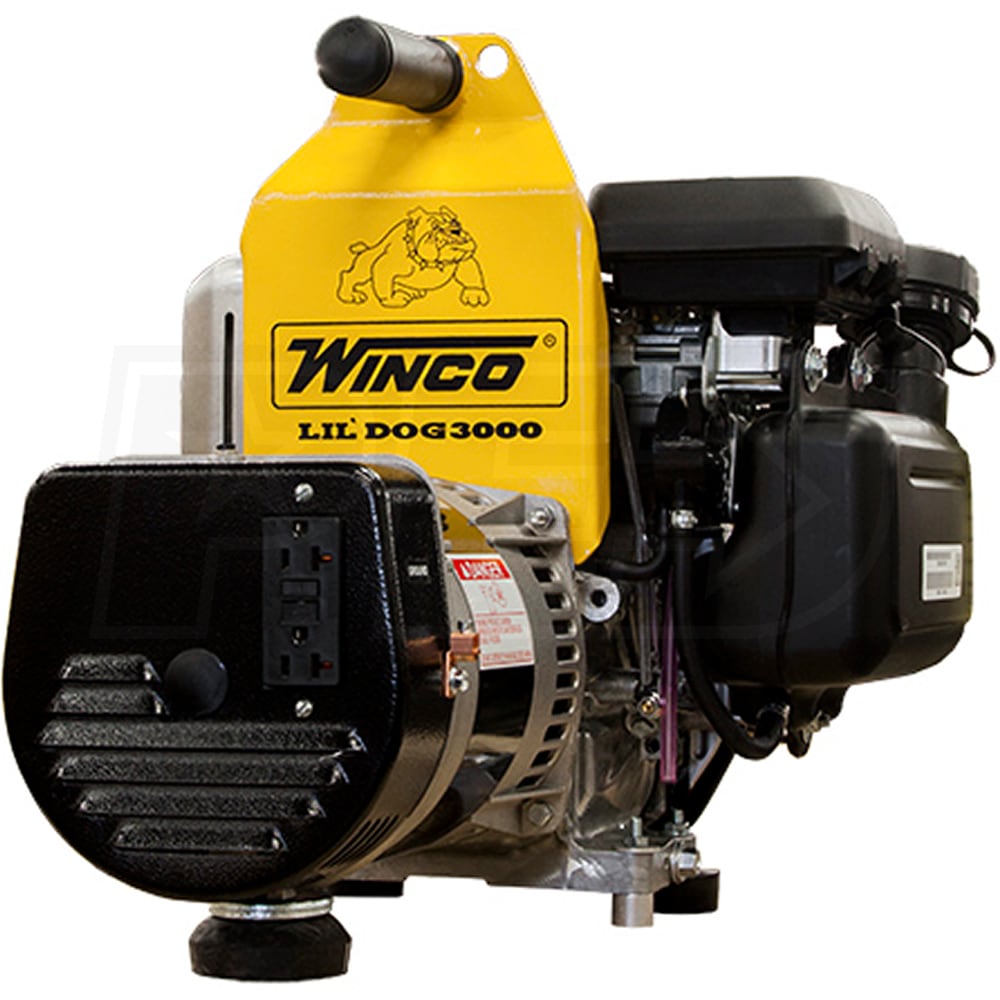

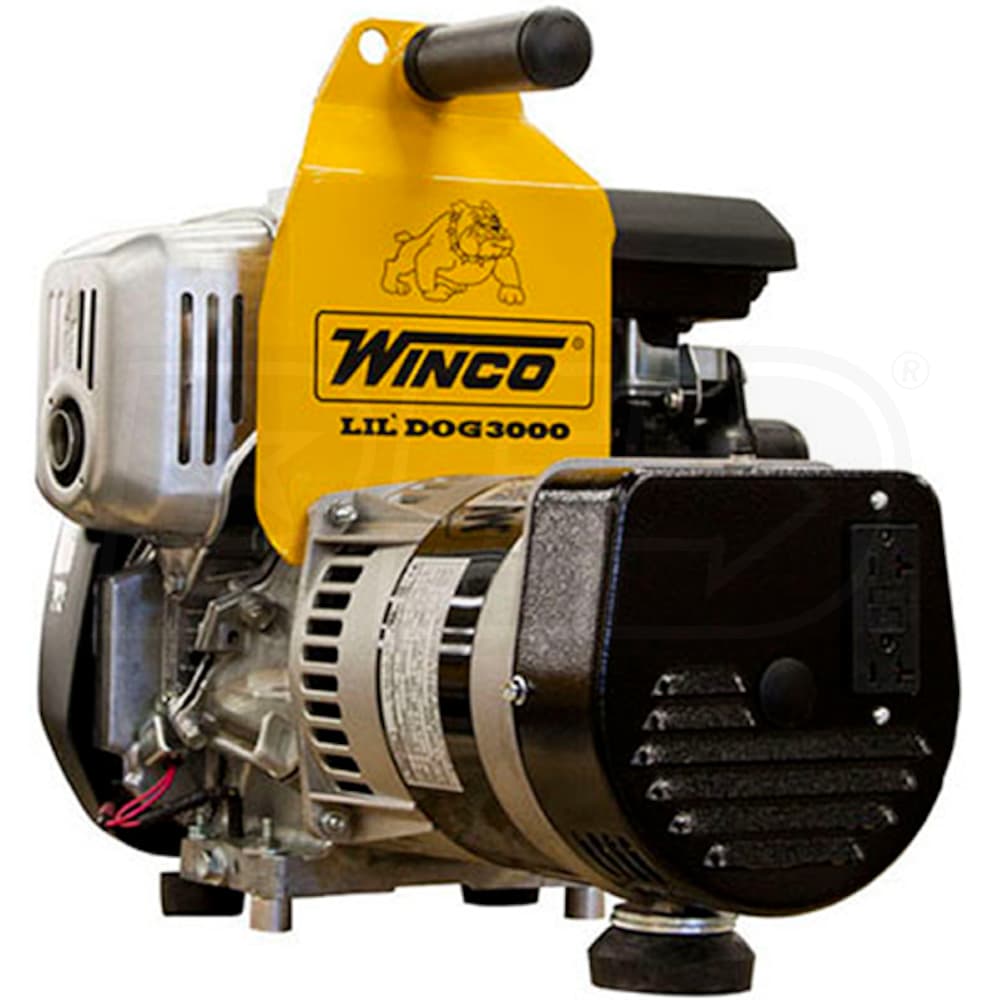

  • Winco's Lil' Dog Ultra Compact Portable Generator
  • Basically an engine, alternator and handle bolted together

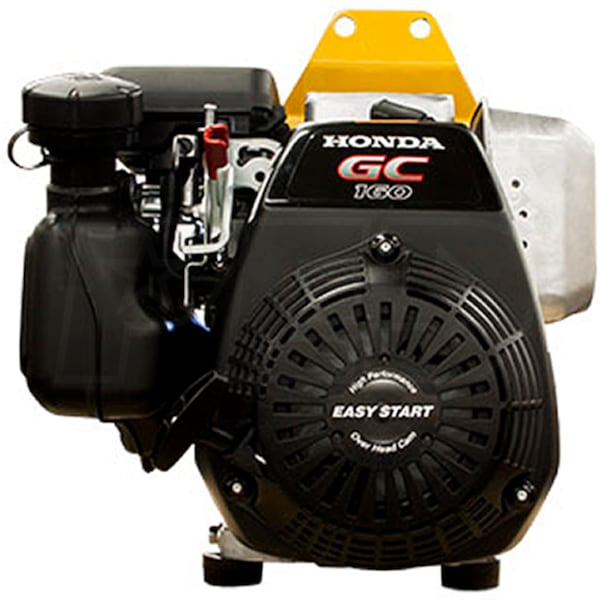

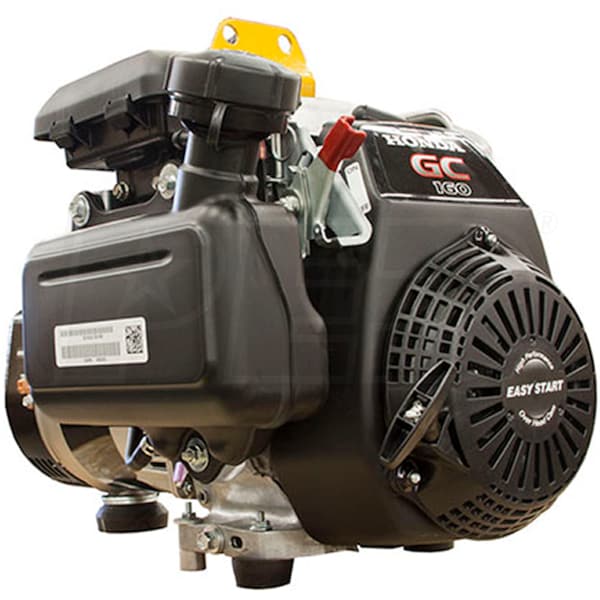

  • 160cc OHC Honda GC Engine
  • Longer life, easier maintenance and less noise
  • Dua-Lube System w/ Low Oil Protection
  • Provides superior engine lubrication & extends engine life
  • 100% Copper Windings
  • Provides longer generator life and improved motor starting
  • Dampers, Skewed Rotors
  • Provides less than 6% total harmonic distortion
  • Industrial DuPont Powder Coat Paint
  • Provides an incredibly durable finish
  • Dual Lifting Eyes
  • Makes it easy to safely hoist to roof tops
  • Large Vibration Isolator/Feet
  • A stable base that prevents generator stress
  • Ergonomic, Lightweight Design
  • Great for one man jobs around the house or job site
  • 1 Year Limited Warranty
Specifications
Plugs
NEMA 5-20R (GFCI)
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
2400 Watts
Surge Watts
3000 Watts
Fuel Type
Gasoline
Rated Amps
20 Amps
Tank Size
0.5 Gallons
Run Time @ 50% Load
1.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
Yes
Grade Type
Professional
Engine
Engine Brand
Honda GC
Starting System
Recoil Start
CC
160 CC
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
No
Overview
Weight
68 Pounds
Certification
CARB, EPA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
22.2 Inches
Product Width
14.7 Inches
Product Height
16.2 Inches
Additional Model Numbers
W3000H, 16077-001
Plugs
NEMA 5-20R - GFCI
1
Grade
Style
Run Watts
2,400
Rated Watts
Surge Watts
3,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
2,400
Surge Watts
3,000 Starting Watts
Fuel
Gasoline
Engine
Honda GC


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Winco's Lil' Dog Ultra Compact Portable Generator
  • Basically an engine, alternator and handle bolted together
  • 160cc OHC Honda GC Engine
  • Longer life, easier maintenance and less noise
  • Dua-Lube System w/ Low Oil Protection
  • Provides superior engine lubrication & extends engine life
  • 100% Copper Windings
  • Provides longer generator life and improved motor starting
  • Dampers, Skewed Rotors
  • Provides less than 6% total harmonic distortion
  • Industrial DuPont Powder Coat Paint
  • Provides an incredibly durable finish
  • Dual Lifting Eyes
  • Makes it easy to safely hoist to roof tops
  • Large Vibration Isolator/Feet
  • A stable base that prevents generator stress
  • Ergonomic, Lightweight Design
  • Great for one man jobs around the house or job site
  • 1 Year Limited Warranty
Specifications
Plugs
NEMA 5-20R (GFCI)
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
2400 Watts
Surge Watts
3000 Watts
Fuel Type
Gasoline
Rated Amps
20 Amps
Tank Size
0.5 Gallons
Run Time @ 50% Load
1.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
Yes
Grade Type
Professional
Engine
Engine Brand
Honda GC
Starting System
Recoil Start
CC
160 CC
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
No
Overview
Weight
68 Pounds
Certification
CARB, EPA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
22.2 Inches
Product Width
14.7 Inches
Product Height
16.2 Inches
Additional Model Numbers
W3000H, 16077-001
Plugs
NEMA 5-20R - GFCI
1
Product Specs
+−
Specifications
Plugs
NEMA 5-20R (GFCI)
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
2400 Watts
Surge Watts
3000 Watts
Fuel Type
Gasoline
Rated Amps
20 Amps
Tank Size
0.5 Gallons
Run Time @ 50% Load
1.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
Yes
Grade Type
Professional
Engine
Engine Brand
Honda GC
Starting System
Recoil Start
CC
160 CC
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
No
Overview
Weight
68 Pounds
Certification
CARB, EPA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
22.2 Inches
Product Width
14.7 Inches
Product Height
16.2 Inches
Additional Model Numbers
W3000H, 16077-001
Plugs
NEMA 5-20R - GFCI
1
Reviews
4.8 out of 54.8 out of 54.8 out of 54.8 out of 54.8 out of 5
(5)
+−
Winco 16077-001 Reviews & Ratings
Product Q&A
(1)
+−
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+−
Jim how loud is this unit. I would like to use it for camping.
Mike Kramer
from Arizona
May 13, 2013
Answer
Per the spec sheet found under the specs tab it lists the sound rating at....

72 db(A) @ 7 Meters
