Winco 8,000 Watt Tri-Fuel Power System w/ Electric Start B&S Vanguard Engine

Winco 8,000 Watt Tri-Fuel Power System w/ Electric Start B&S Vanguard Engine
Model: HPS9000VE PKG
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
8,000
Rated Watts
Surge Watts
9,000
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
8,000
Surge Watts
9,000 Starting Watts
Fuel
LP/Natural Gas/Gasoline
Engine
Briggs and Stratton Vanguard
Features
Features
  • Everything But The Electrician
  • Provides the ability to power your home right out of the box
  • Tri-Fuel Carburetor and Gas Regulator
  • Versatile generator runs on LP gas, natural gas or gasoline
  • 16-HP Electric Start B&S Vanguard Engine (Battery Not Included)
  • Premium-quality, fuel-efficient engine with low oil protection
  • Standard electric start (recoil backup) w/ battery rack & cables
  • Inherent voltage regulation protects electronics from surges
  • Less than 6% THD (Total Harmonic Distortion)
  • 100% copper windings, NEMA Class F insulation
  • 30-Amp Power Transfer Kit
  • Indoor transfer switch with interlocked breakers
  • Heavy-duty 12-foot power cord with L14-30P plug
  • NOTICE: TRI-FUEL STARTING
  • When using vapor fuel (LP or NG), Electric starter must be used
  • Never use choke, It will prevent proper air/fuel mixture

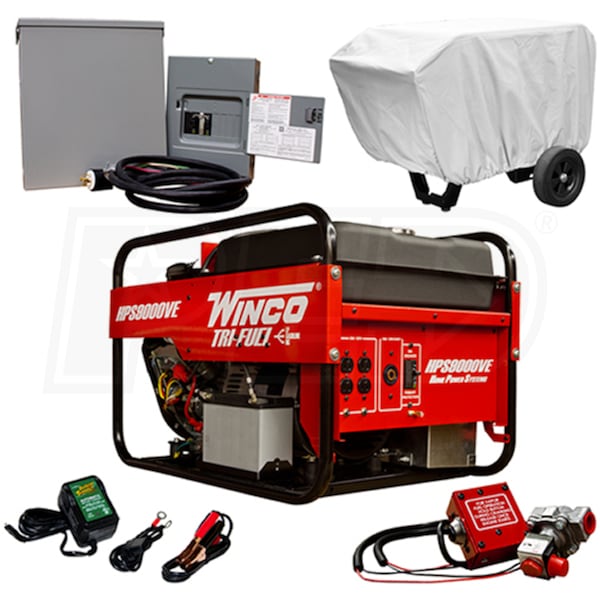

  • Package Includes
  • Generator, Low Pressure Fuel Solenoid, 30A Power Transfer Kit
  • Canvas Cover, Battery Charger & 2-Wheel Dolly w/ Fold-Down Handle
  • Recommended Battery - Group 20 or 24HL 300 CCA (Not Included)
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L5-30R
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Button Start w/ Recoil
HP
16 HP
CC
480 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
9000 Watts
Rated Watts
8000 Watts
Fuel Type
LP/Natural Gas/Gasoline
NG Fuel Consumption @ 100% Load
180 ft³/hr
LP Fuel Consumption @ 50% Load
1.5 gallons/hr
Rated Amps
33 Amps
Portability Kit
Never Flat Wheels
Tank Size
7 Gallons
Run Time @ 50% Load
7 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
77 dbA
Idle Control
No
Transfer Switch
Manual (Included)
Battery
Not Included
Grade Type
Emergency
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L5-30R
1
Overview
Made in USA
Yes
Assembly Required
Yes
Weight
242 Pounds
Product Style
Portable Generator
Product Length
32.75 Inches
Product Width
22.5 Inches
Product Height
22 Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Grade
Style
Run Watts
8,000
Rated Watts
Surge Watts
9,000
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
8,000
Surge Watts
9,000 Starting Watts
Fuel
LP/Natural Gas/Gasoline
Engine
Briggs and Stratton Vanguard
Features
Features
  • Everything But The Electrician
  • Provides the ability to power your home right out of the box
  • Tri-Fuel Carburetor and Gas Regulator
  • Versatile generator runs on LP gas, natural gas or gasoline
  • 16-HP Electric Start B&S Vanguard Engine (Battery Not Included)
  • Premium-quality, fuel-efficient engine with low oil protection
  • Standard electric start (recoil backup) w/ battery rack & cables
  • Inherent voltage regulation protects electronics from surges
  • Less than 6% THD (Total Harmonic Distortion)
  • 100% copper windings, NEMA Class F insulation
  • 30-Amp Power Transfer Kit
  • Indoor transfer switch with interlocked breakers
  • Heavy-duty 12-foot power cord with L14-30P plug
  • NOTICE: TRI-FUEL STARTING
  • When using vapor fuel (LP or NG), Electric starter must be used
  • Never use choke, It will prevent proper air/fuel mixture
  • Package Includes
  • Generator, Low Pressure Fuel Solenoid, 30A Power Transfer Kit
  • Canvas Cover, Battery Charger & 2-Wheel Dolly w/ Fold-Down Handle
  • Recommended Battery - Group 20 or 24HL 300 CCA (Not Included)
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L5-30R
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Button Start w/ Recoil
HP
16 HP
CC
480 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
9000 Watts
Rated Watts
8000 Watts
Fuel Type
LP/Natural Gas/Gasoline
NG Fuel Consumption @ 100% Load
180 ft³/hr
LP Fuel Consumption @ 50% Load
1.5 gallons/hr
Rated Amps
33 Amps
Portability Kit
Never Flat Wheels
Tank Size
7 Gallons
Run Time @ 50% Load
7 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
77 dbA
Idle Control
No
Transfer Switch
Manual (Included)
Battery
Not Included
Grade Type
Emergency
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L5-30R
1
Overview
Made in USA
Yes
Assembly Required
Yes
Weight
242 Pounds
Product Style
Portable Generator
Product Length
32.75 Inches
Product Width
22.5 Inches
Product Height
22 Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Specs
+
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L5-30R
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Button Start w/ Recoil
HP
16 HP
CC
480 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
9000 Watts
Rated Watts
8000 Watts
Fuel Type
LP/Natural Gas/Gasoline
NG Fuel Consumption @ 100% Load
180 ft³/hr
LP Fuel Consumption @ 50% Load
1.5 gallons/hr
Rated Amps
33 Amps
Portability Kit
Never Flat Wheels
Tank Size
7 Gallons
Run Time @ 50% Load
7 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
77 dbA
Idle Control
No
Transfer Switch
Manual (Included)
Battery
Not Included
Grade Type
Emergency
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L5-30R
1
Overview
Made in USA
Yes
Assembly Required
Yes
Weight
242 Pounds
Product Style
Portable Generator
Product Length
32.75 Inches
Product Width
22.5 Inches
Product Height
22 Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Reviews
(1)
+
Winco HPS9000VE PKG Reviews & Ratings
Product Q&A
(2)
+
Search Product Q&A's Answered by Jared, the Portable Generator Expert
icon-social-fb1
+
What type/size battery is recommended for this generator?
Lou
from New York
September 09, 2013
Answer
The recommended battery per the owner's manual - Group 20 or 24HL 300CCA (Cold Cranking Amps)


+
What size gas line is needed for the tri fuel generator? How far away from gas meter can generator be?
Andrew McGoldrick
from New Jersey
August 24, 2013
Answer
Pages 6 & 7 of the owner's/installation manual available on the product page under the specs tab in the download document section discusses fuel line sizing and installation.....
