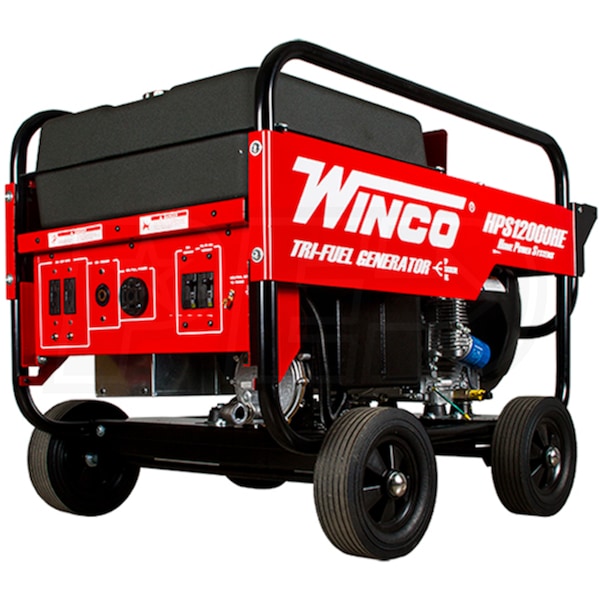

Winco 10,800 Watt Tri-Fuel Power System w/ Electric Start Honda Engine

Winco 10,800 Watt Tri-Fuel Power System w/ Electric Start Honda Engine
Model: HPS12000HE PKG
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to California or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • 2
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
10,800
Rated Watts
Surge Watts
12,000
Starting Watts
Fuel
Engine
Features
Features
  • Everything But The Electrician
  • Provides the ability to power your home right out of the box
  • Tri-Fuel Carburetor and Gas Regulator
  • Versatile generator runs on LP gas, natural gas or gasoline
  • 688cc Electric Start Honda GX630 V-Twin Engine (Battery Not Incld.)
  • Premium-quality, fuel-efficient engine with low oil protection
  • Standard electric start w/ battery rack and cables
  • Inherent voltage regulation protects electronics from surges
  • Less than 6% THD (Total Harmonic Distortion)
  • 100% copper windings, NEMA Class F insulation
  • 60-Amp Emergency Transfer Kit
  • Indoor transfer switch with interlocked breakers
  • Heavy-duty 12-foot power cord with 14-60P plug
  • NOTICE: TRI-FUEL STARTING
  • When using vapor fuel (LP or NG), Never use choke
  • It will prevent proper air/fuel mixture

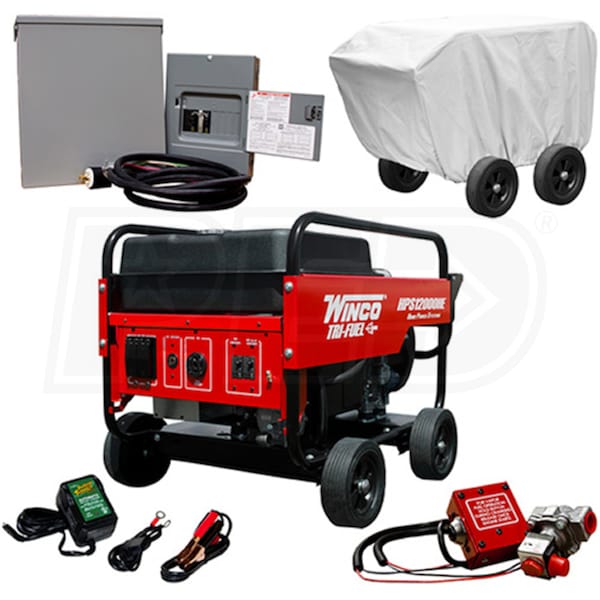

  • Also Includes:
  • Generator, Low Pressure Fuel Solenoid, 60A Power Transfer Kit
  • Canvas Cover, Battery Charger & 4-Wheel Dolly w/ Fold-Down Handle
  • Recommended Battery - Group U1/300CCA (Not Included)
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
NEMA 14-60R
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start
CC
688 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
12000 Watts
Rated Watts
10800 Watts
Fuel Type
LP/Natural Gas/Gasoline
Rated Amps
45 Amps
Portability Kit
Never Flat Wheels
Tank Size
15 Gallons
Run Time @ 50% Load
14.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
78 dbA
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Transfer Switch
Manual (Included)
Battery
Not Included
Grade Type
Emergency
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-60R
1
Overview
Made in USA
Yes
Assembly Required
Yes
Weight
435 Pounds
Product Style
Portable Generator
Product Length
39.5 Inches
Product Width
26 Inches
Product Height
26 Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Grade
Style
Run Watts
10,800
Rated Watts
Surge Watts
12,000
Starting Watts
Fuel
Engine
Features
Features
  • Everything But The Electrician
  • Provides the ability to power your home right out of the box
  • Tri-Fuel Carburetor and Gas Regulator
  • Versatile generator runs on LP gas, natural gas or gasoline
  • 688cc Electric Start Honda GX630 V-Twin Engine (Battery Not Incld.)
  • Premium-quality, fuel-efficient engine with low oil protection
  • Standard electric start w/ battery rack and cables
  • Inherent voltage regulation protects electronics from surges
  • Less than 6% THD (Total Harmonic Distortion)
  • 100% copper windings, NEMA Class F insulation
  • 60-Amp Emergency Transfer Kit
  • Indoor transfer switch with interlocked breakers
  • Heavy-duty 12-foot power cord with 14-60P plug
  • NOTICE: TRI-FUEL STARTING
  • When using vapor fuel (LP or NG), Never use choke
  • It will prevent proper air/fuel mixture
  • Also Includes:
  • Generator, Low Pressure Fuel Solenoid, 60A Power Transfer Kit
  • Canvas Cover, Battery Charger & 4-Wheel Dolly w/ Fold-Down Handle
  • Recommended Battery - Group U1/300CCA (Not Included)
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
NEMA 14-60R
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start
CC
688 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
12000 Watts
Rated Watts
10800 Watts
Fuel Type
LP/Natural Gas/Gasoline
Rated Amps
45 Amps
Portability Kit
Never Flat Wheels
Tank Size
15 Gallons
Run Time @ 50% Load
14.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
78 dbA
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Transfer Switch
Manual (Included)
Battery
Not Included
Grade Type
Emergency
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-60R
1
Overview
Made in USA
Yes
Assembly Required
Yes
Weight
435 Pounds
Product Style
Portable Generator
Product Length
39.5 Inches
Product Width
26 Inches
Product Height
26 Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Specs
+
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
NEMA 14-60R
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start
CC
688 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
12000 Watts
Rated Watts
10800 Watts
Fuel Type
LP/Natural Gas/Gasoline
Rated Amps
45 Amps
Portability Kit
Never Flat Wheels
Tank Size
15 Gallons
Run Time @ 50% Load
14.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
78 dbA
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Transfer Switch
Manual (Included)
Battery
Not Included
Grade Type
Emergency
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-60R
1
Overview
Made in USA
Yes
Assembly Required
Yes
Weight
435 Pounds
Product Style
Portable Generator
Product Length
39.5 Inches
Product Width
26 Inches
Product Height
26 Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Reviews
(2)
+
Winco HPS12000HE PKG Reviews & Ratings
Product Q&A
(1)
+
With the Winco portable propane generator, what size propane tank can be used?
Anthony Greco
from Pennsylvania
June 14, 2014
Read Response +
Answer
Tank size requirements can be found in the owners manual on page 8....
