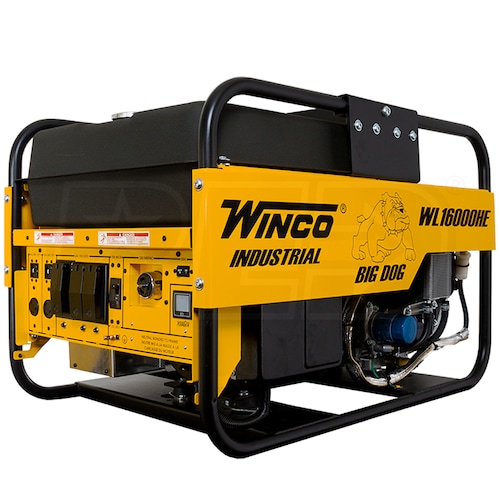

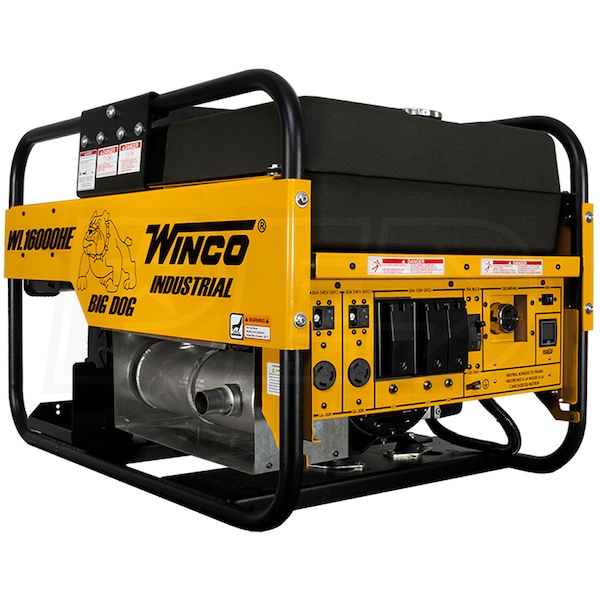

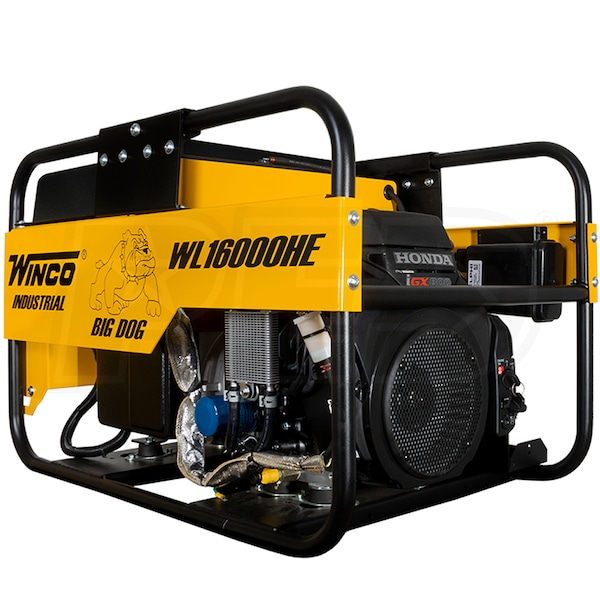

Winco WL16000HE-03/A- 14,000 Watt Electric Start Fuel-Injected Portable Generator w/ Honda iGX V-Twin (49-State)
Model: 24016-001
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
14,000
Rated Watts
Surge Watts
16,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
14,000
Surge Watts
16,000 Starting Watts
Fuel
Gasoline
Engine
Honda iGX
Features
Features
- Winco WL16000He-03/A Industrial Series Portable Generator
- One of the largest Honda-powered portable generators on the market
- Electric Start (Battery Not Included)
- Allows for easier starting, just turn the key
- Flywheel-mounted charger keeps battery charged when engine runs

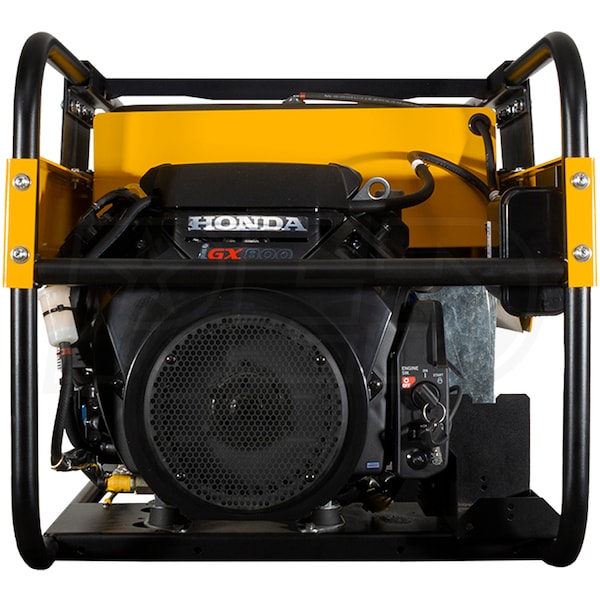

- 779cc Honda iGX800 Fuel-Injected V-Twin OHV Engine
- EFI technology for fuel efficiency, smoother operation & better Hz control
- Full pressure lubrication system w/ spin-on oil filter
- Low Oil Protection
- Shuts engine down in the event of a low oil event to prevent engine damage
- Brushless Industrial Alternator
- 100% copper windings, NEMA Class H insulation
- Capacitor Regulated Voltage - < 5% Total Harmonic Distortion (THD)
- Inherent voltage regulation protects electronics from surges
- 15-Gallon Steel Fuel Tank w/ Fuel Gauge
- EPA approved design eliminates carbon emissions
- 120/240V 50-Amp (CS6365) Twist-lock Receptacle
- Allows for connection to a manual transfer switch (MTS)
- YourGen Digital Meter w/ LED Screen
- Displays hours, RPMs, voltage & frequency (Hz) readings
- Load bars makes it easy to balance generator loads
- Visual warnings for added safety and maintenance
- Premium Circuit Breakers
- Visi-Trip indicator to easily identify a tripped circuit
- Wrap-Around Tubular Steel (13-Gauge) Cradle
- Powder-coat paint protects finish from damage and debris
- Standard Lifting Eye
- Make this generator easier to lift
- 100% Load Tested
- All generators are tested prior to leaving the factory
- Requires BCI GROUP 31 300 CCA (Not Included)
- 3-Year (Generator) / 3-Year (Engine) Commercial Warranty
- Non-CARB Compliant - Not For Sale In CA
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
14000 Watts
Surge Watts
16000 Watts
Fuel Type
Gasoline
Rated Amps
58 Amps
Portability Kit
Sold Separately
Tank Size
15 Gallons
Run Time @ 50% Load
11 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
82
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
CO Sensing
No
Engine
Engine Brand
Honda iGX
Starting System
12-Volt Key Start
CC
779 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
504 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
49.5 Inches
Product Width
27 Inches
Product Height
30 Inches

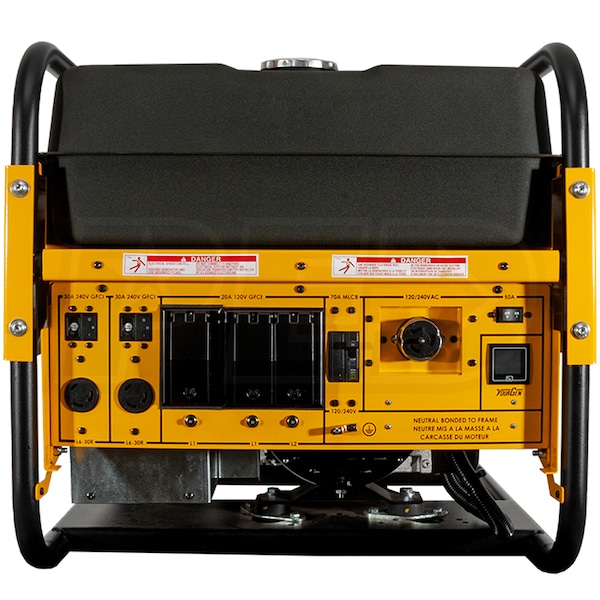

Plugs
NEMA 5-20R - GFCI
3
NEMA L6-30R
2
CS6369 - 50-Amp Twistlock
1
Grade
Style
Run Watts
14,000
Rated Watts
Surge Watts
16,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
14,000
Surge Watts
16,000 Starting Watts
Fuel
Gasoline
Engine
Honda iGX
Features
Features
- Winco WL16000He-03/A Industrial Series Portable Generator
- One of the largest Honda-powered portable generators on the market
- Electric Start (Battery Not Included)
- Allows for easier starting, just turn the key
- Flywheel-mounted charger keeps battery charged when engine runs
- 779cc Honda iGX800 Fuel-Injected V-Twin OHV Engine
- EFI technology for fuel efficiency, smoother operation & better Hz control
- Full pressure lubrication system w/ spin-on oil filter
- Low Oil Protection
- Shuts engine down in the event of a low oil event to prevent engine damage
- Brushless Industrial Alternator
- 100% copper windings, NEMA Class H insulation
- Capacitor Regulated Voltage - < 5% Total Harmonic Distortion (THD)
- Inherent voltage regulation protects electronics from surges
- 15-Gallon Steel Fuel Tank w/ Fuel Gauge
- EPA approved design eliminates carbon emissions
- 120/240V 50-Amp (CS6365) Twist-lock Receptacle
- Allows for connection to a manual transfer switch (MTS)
- YourGen Digital Meter w/ LED Screen
- Displays hours, RPMs, voltage & frequency (Hz) readings
- Load bars makes it easy to balance generator loads
- Visual warnings for added safety and maintenance
- Premium Circuit Breakers
- Visi-Trip indicator to easily identify a tripped circuit
- Wrap-Around Tubular Steel (13-Gauge) Cradle
- Powder-coat paint protects finish from damage and debris
- Standard Lifting Eye
- Make this generator easier to lift
- 100% Load Tested
- All generators are tested prior to leaving the factory
- Requires BCI GROUP 31 300 CCA (Not Included)
- 3-Year (Generator) / 3-Year (Engine) Commercial Warranty
- Non-CARB Compliant - Not For Sale In CA
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
14000 Watts
Surge Watts
16000 Watts
Fuel Type
Gasoline
Rated Amps
58 Amps
Portability Kit
Sold Separately
Tank Size
15 Gallons
Run Time @ 50% Load
11 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
82
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
CO Sensing
No
Engine
Engine Brand
Honda iGX
Starting System
12-Volt Key Start
CC
779 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
504 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
49.5 Inches
Product Width
27 Inches
Product Height
30 Inches
Plugs
NEMA 5-20R - GFCI
3
NEMA L6-30R
2
CS6369 - 50-Amp Twistlock
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
14000 Watts
Surge Watts
16000 Watts
Fuel Type
Gasoline
Rated Amps
58 Amps
Portability Kit
Sold Separately
Tank Size
15 Gallons
Run Time @ 50% Load
11 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
82
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
CO Sensing
No
Engine
Engine Brand
Honda iGX
Starting System
12-Volt Key Start
CC
779 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
504 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
49.5 Inches
Product Width
27 Inches
Product Height
30 Inches
Plugs
NEMA 5-20R - GFCI
3
NEMA L6-30R
2
CS6369 - 50-Amp Twistlock
1
