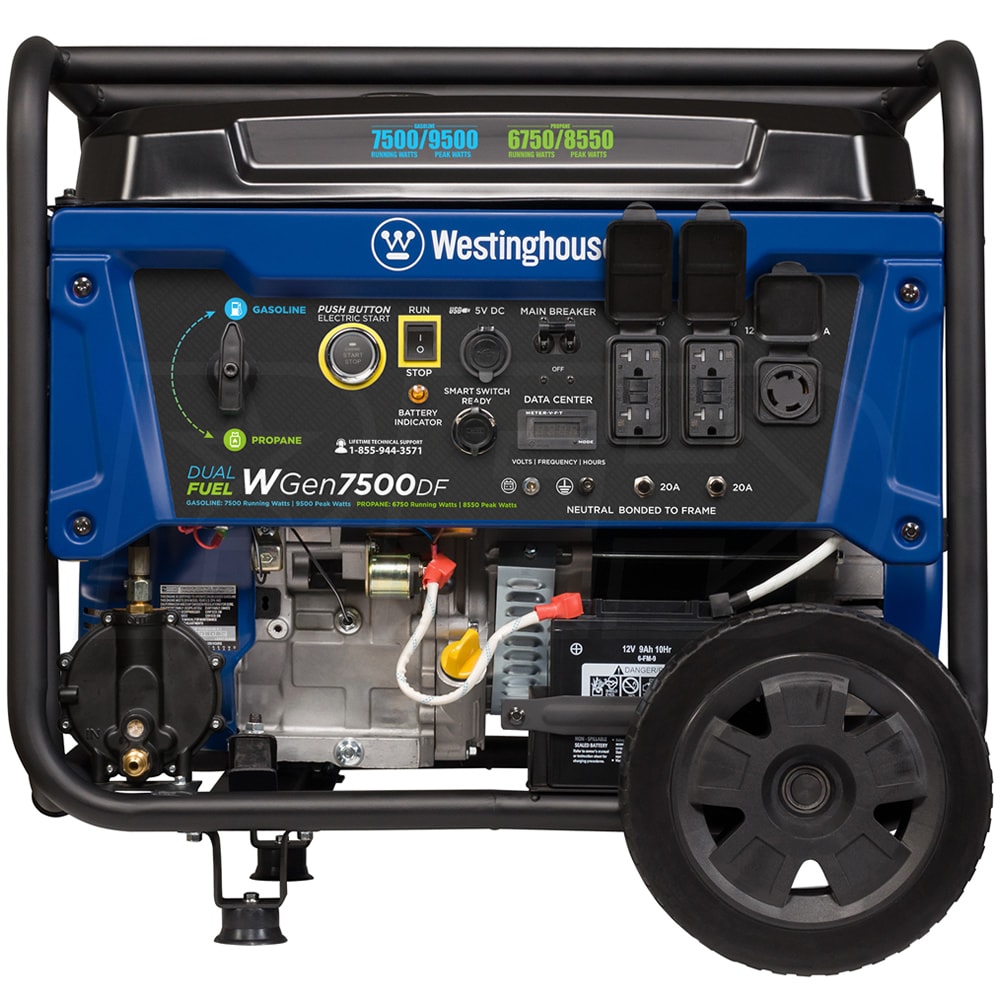

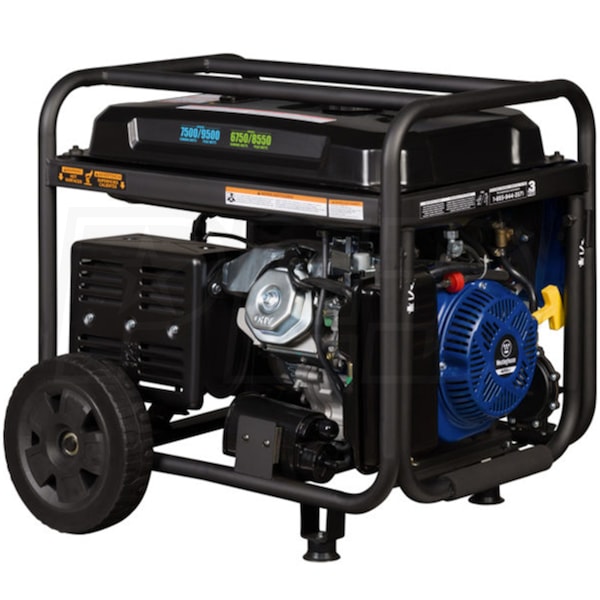

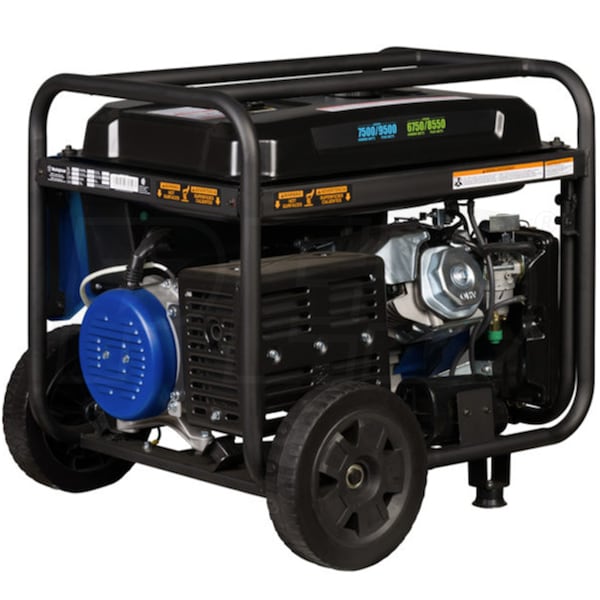

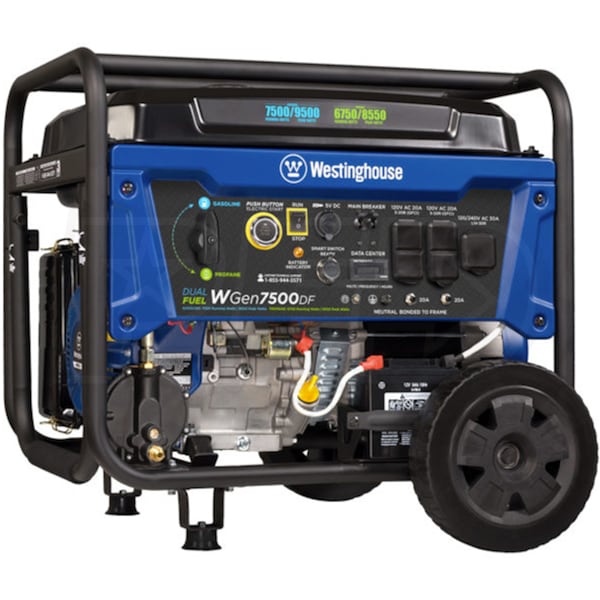

Westinghouse WGen7500DF - 7500 Watt Electric Start Dual Fuel Portable Generator w/ GFCI Protection & Wireless Remote Start (CARB)
Model: WGEN7500DF
.jpg)
+
Share This Product
-
Product Description
-
66Reviews
-
3Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
7,500
Rated Watts
Surge Watts
9,500
Starting Watts
Fuel
Engine
Westinghouse
Grade
Emergency
Style
Portable
Run Watts
7,500
Surge Watts
9,500 Starting Watts
Fuel
Gasoline/LP
Engine
Westinghouse
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Westinghouse WGen7500DF Electric Start Dual-Fuel Generator
- Provides up to 7,500 (Running) / 9,500 (Starting) watts on gasoline
- Provides up to 6,750 (Running) / 8,550 (Starting) watts on propane
- Push Button Electric Start (Battery Included) w/ Wireless Remote
- Allows for quick and easy starting
- 420cc Westinghouse OHV 4-Cycle Engine
- Designed for easier starting and fuel-efficient operation
- Cast Iron sleeve helps extend engine life
- Low Oil Shutdown
- Helps prevent engine damage before it happens
- Fuel Selector Switch
- Simply turn the dial to the fuel choice you're using
- 6.6-Gallon Fuel Tank w/ Fuel Gauge
- Provides up to 11-hours of run time @ 50% load
- Automatic Voltage Regulator (AVR) & Circuit Breaker Protection
- Protects appliances & equipment from harmful voltage swings
- Helps prevent overload to generator
- 30A 120/240V (L14-30R) Twist-Lock Receptacle***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord
- Hour Meter & Outlet Covers
- Allows for easy tracking of maintenance intervals
- Keeps out moisture and debris when outlets are not being used
- 10" Solid Wheels & Single Fold-Down Handle
- Allows for easy movement over uneven terrain
- Added Extras:
- Oil, funnel, tool kit, and Quick Start Guide
- 3-Year Residential Warranty and Lifetime Technical Support
- EPA / CARB Compliant
- ***Note - Allows You To Get Maximum Power From Generator
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7500 Watts
Surge Watts
9500 Watts
Fuel Type
Gasoline/LP
LP Power Capacity
6750 Watts
Rated Amps
31.25 Amps
Portability Kit
Never Flat Wheels
Tank Size
6.6 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
76
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Westinghouse
Starting System
12-Volt Button Start w/ Recoil + Remote
CC
420 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
207 Pounds
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
27.32 Inches
Product Width
26.18 Inches
Product Height
26.2 Inches
UPC
855464003636
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
Grade
Style
Run Watts
7,500
Rated Watts
Surge Watts
9,500
Starting Watts
Fuel
Engine
Westinghouse
Grade
Emergency
Style
Portable
Run Watts
7,500
Surge Watts
9,500 Starting Watts
Fuel
Gasoline/LP
Engine
Westinghouse
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Westinghouse WGen7500DF Electric Start Dual-Fuel Generator
- Provides up to 7,500 (Running) / 9,500 (Starting) watts on gasoline
- Provides up to 6,750 (Running) / 8,550 (Starting) watts on propane
- Push Button Electric Start (Battery Included) w/ Wireless Remote
- Allows for quick and easy starting
- 420cc Westinghouse OHV 4-Cycle Engine
- Designed for easier starting and fuel-efficient operation
- Cast Iron sleeve helps extend engine life
- Low Oil Shutdown
- Helps prevent engine damage before it happens
- Fuel Selector Switch
- Simply turn the dial to the fuel choice you're using
- 6.6-Gallon Fuel Tank w/ Fuel Gauge
- Provides up to 11-hours of run time @ 50% load
- Automatic Voltage Regulator (AVR) & Circuit Breaker Protection
- Protects appliances & equipment from harmful voltage swings
- Helps prevent overload to generator
- 30A 120/240V (L14-30R) Twist-Lock Receptacle***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord
- Hour Meter & Outlet Covers
- Allows for easy tracking of maintenance intervals
- Keeps out moisture and debris when outlets are not being used
- 10" Solid Wheels & Single Fold-Down Handle
- Allows for easy movement over uneven terrain
- Added Extras:
- Oil, funnel, tool kit, and Quick Start Guide
- 3-Year Residential Warranty and Lifetime Technical Support
- EPA / CARB Compliant
- ***Note - Allows You To Get Maximum Power From Generator
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7500 Watts
Surge Watts
9500 Watts
Fuel Type
Gasoline/LP
LP Power Capacity
6750 Watts
Rated Amps
31.25 Amps
Portability Kit
Never Flat Wheels
Tank Size
6.6 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
76
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Westinghouse
Starting System
12-Volt Button Start w/ Recoil + Remote
CC
420 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
207 Pounds
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
27.32 Inches
Product Width
26.18 Inches
Product Height
26.2 Inches
UPC
855464003636
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
7500 Watts
Surge Watts
9500 Watts
Fuel Type
Gasoline/LP
LP Power Capacity
6750 Watts
Rated Amps
31.25 Amps
Portability Kit
Never Flat Wheels
Tank Size
6.6 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
76
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Westinghouse
Starting System
12-Volt Button Start w/ Recoil + Remote
CC
420 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
207 Pounds
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
27.32 Inches
Product Width
26.18 Inches
Product Height
26.2 Inches
UPC
855464003636
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
Product Q&A
(3)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
How long will the generator run on a 20 lb. propane tank?
Robert
from Oregon
March 11, 2019
Answer
This generator will run for 11 hours at 25% load on a 20 lb. tank.
Was this answer helpful?
Yes
1
No
1
+−
I am off grid and would like to know if this generator can be connected to an AGS circuit.
Robert C.
from Arizona
January 30, 2019
Answer
We do not sell any portable generators for this specific application. I recommend checking with Westinghouse directly at 855-944-3571 to see if they recommend this unit for an AGS system.
Was this answer helpful?
Yes
0
No
0
+−
Can the generator's 4-Prong cable go from the NEMA L14-30R 1-120/240VAC output on the generator to a distribution box that has multiple 120VAC outlets?
James
from Nevada
August 27, 2018
Answer
We do carry convenience cords that would take the L14-30R (30-amp 120/240 volt) outlet down to (4) 5-20R (20-amp 120 volt) outlets. Check out the Conntek model #20611.
This is a 25-foot cord that costs $58.99. This cord branches from the L14-30R outlet and splits the two legs of 240 volts into 120 volts for each of the paired outlets resulting in (4) 5-30R outlets.
This is a 25-foot cord that costs $58.99. This cord branches from the L14-30R outlet and splits the two legs of 240 volts into 120 volts for each of the paired outlets resulting in (4) 5-30R outlets.
Was this answer helpful?
Yes
0
No
0
