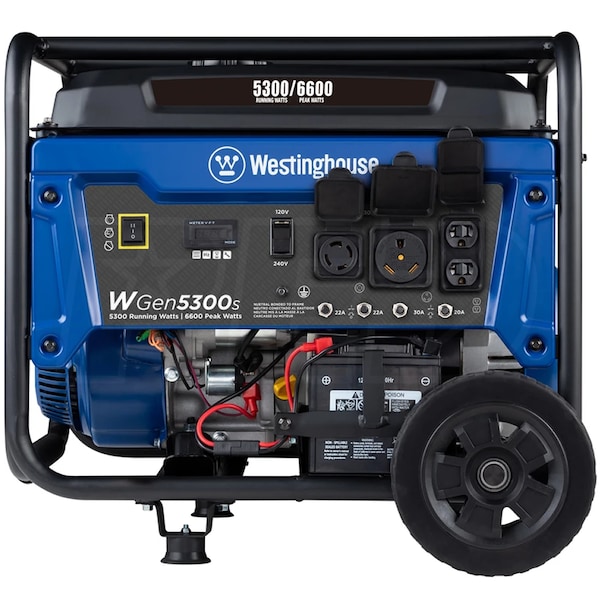

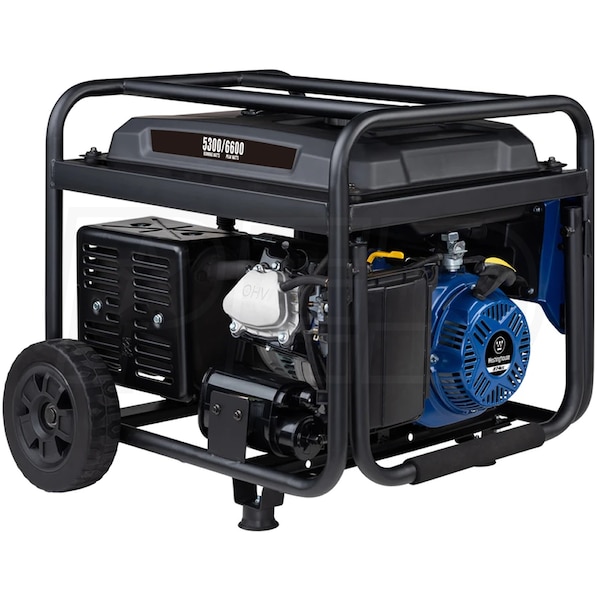

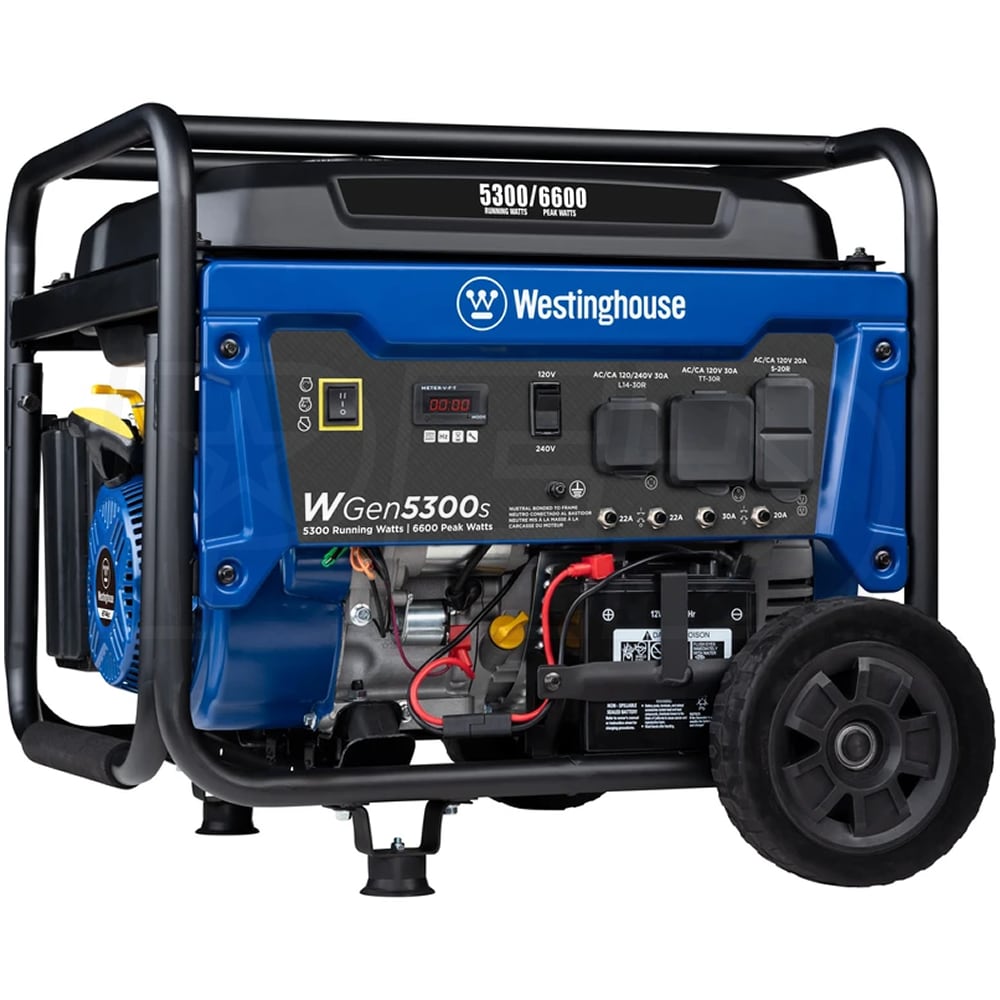

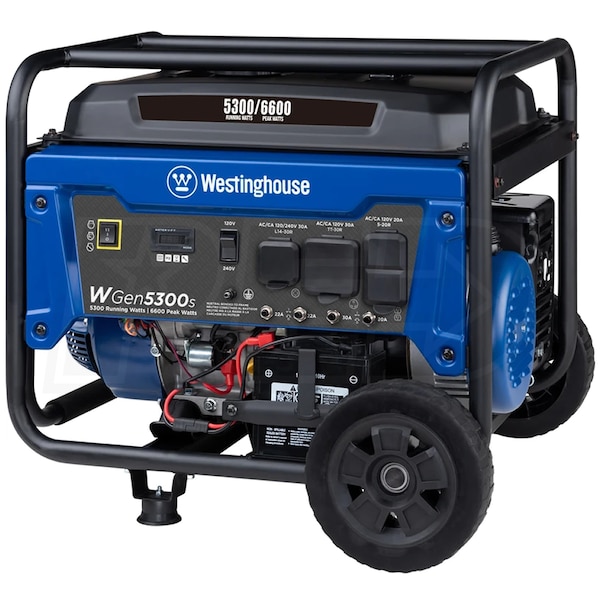

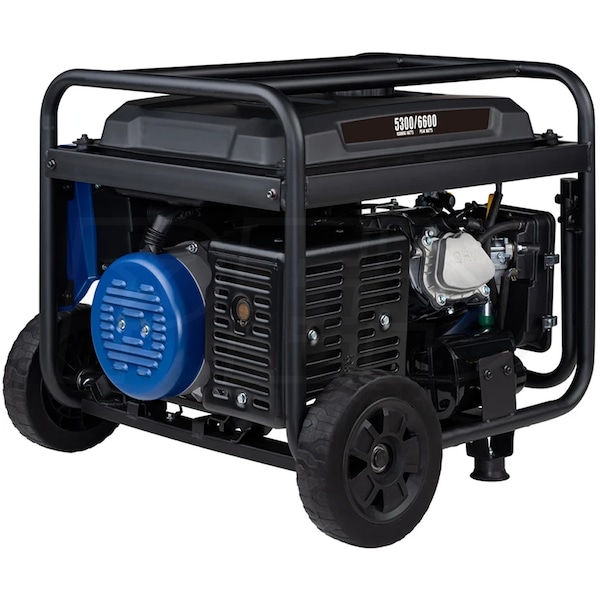

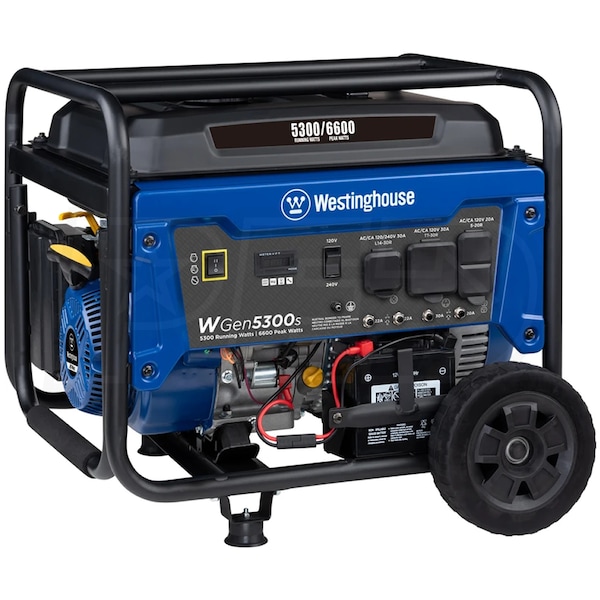

Westinghouse WGen5300s - 5300 Watt Electric Start Portable Generator (CARB)
Model: WGEN5300S
.jpg)
+
Share This Product
-
Product Description
-
9Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
5,300
Rated Watts
Surge Watts
6,600
Starting Watts
Fuel
Engine
Westinghouse
Grade
Emergency
Style
Portable
Run Watts
5,300
Surge Watts
6,600 Starting Watts
Fuel
Gasoline
Engine
Westinghouse
Features
Features
- Westinghouse WGen5300S Portable Generators
- Great for providing emergency backup around the house
- Electric Start (Battery Included) w/ Recoil Backup
- Allows for quick and easy starting
- 274cc Westinghouse OHV 4-Cycle Engine
- Designed for easier starting and fuel-efficient operation
- Cast Iron sleeve helps extend engine life
- Low Oil Protection
- Helps prevent engine damage before it happens
- 4.7-Gallon Fuel Tank w/ Fuel Gauge
- Provides up to 13.5-hours of run time @ 50% load
- Automatic Voltage Regulator (AVR) & Circuit Breaker Protection
- Protects appliances & equipment from harmful voltage swings
- Helps prevent overload to generator
- RV Ready - TT-30R Outlet
- Power your RV without the need of an extra adapter
- 30-Amp (L14-30R) 120/240V Twist-Lock Receptacle***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord
- VFT Data Center
- Easily see volts, Hz and run-time hours
- Outlet Covers
- Keeps out moisture and debris when outlets are not being used
- Solid Wheels & Single Fold-Down Handle
- Allows for easy movement over uneven terrain
- Added Extras:
- Oil, funnel, tool kit, and Quick Start Guide
- 3-Year Residential Warranty and Lifetime Technical Support
- EPA / CARB Compliant
- ***Note - Allows You To Get Maximum Power From Generator
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5300 Watts
Surge Watts
6600 Watts
Fuel Type
Gasoline
Rated Amps
22 Amps
Portability Kit
Never Flat Wheels
Tank Size
4.7 Gallons
Run Time @ 50% Load
13.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Westinghouse
Starting System
12-Volt Button Start w/ Recoil
CC
274 CC
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
107 Pounds
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
26.97 Inches
Product Width
21.65 Inches
Product Height
19.69 Inches
UPC
850008720949
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L14-30R
1
RV Ready 30-Amp
1
Grade
Style
Run Watts
5,300
Rated Watts
Surge Watts
6,600
Starting Watts
Fuel
Engine
Westinghouse
Grade
Emergency
Style
Portable
Run Watts
5,300
Surge Watts
6,600 Starting Watts
Fuel
Gasoline
Engine
Westinghouse
Features
Features
- Westinghouse WGen5300S Portable Generators
- Great for providing emergency backup around the house
- Electric Start (Battery Included) w/ Recoil Backup
- Allows for quick and easy starting
- 274cc Westinghouse OHV 4-Cycle Engine
- Designed for easier starting and fuel-efficient operation
- Cast Iron sleeve helps extend engine life
- Low Oil Protection
- Helps prevent engine damage before it happens
- 4.7-Gallon Fuel Tank w/ Fuel Gauge
- Provides up to 13.5-hours of run time @ 50% load
- Automatic Voltage Regulator (AVR) & Circuit Breaker Protection
- Protects appliances & equipment from harmful voltage swings
- Helps prevent overload to generator
- RV Ready - TT-30R Outlet
- Power your RV without the need of an extra adapter
- 30-Amp (L14-30R) 120/240V Twist-Lock Receptacle***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord
- VFT Data Center
- Easily see volts, Hz and run-time hours
- Outlet Covers
- Keeps out moisture and debris when outlets are not being used
- Solid Wheels & Single Fold-Down Handle
- Allows for easy movement over uneven terrain
- Added Extras:
- Oil, funnel, tool kit, and Quick Start Guide
- 3-Year Residential Warranty and Lifetime Technical Support
- EPA / CARB Compliant
- ***Note - Allows You To Get Maximum Power From Generator
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5300 Watts
Surge Watts
6600 Watts
Fuel Type
Gasoline
Rated Amps
22 Amps
Portability Kit
Never Flat Wheels
Tank Size
4.7 Gallons
Run Time @ 50% Load
13.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Westinghouse
Starting System
12-Volt Button Start w/ Recoil
CC
274 CC
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
107 Pounds
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
26.97 Inches
Product Width
21.65 Inches
Product Height
19.69 Inches
UPC
850008720949
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L14-30R
1
RV Ready 30-Amp
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5300 Watts
Surge Watts
6600 Watts
Fuel Type
Gasoline
Rated Amps
22 Amps
Portability Kit
Never Flat Wheels
Tank Size
4.7 Gallons
Run Time @ 50% Load
13.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Westinghouse
Starting System
12-Volt Button Start w/ Recoil
CC
274 CC
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
107 Pounds
Certification
CARB, EPA
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
26.97 Inches
Product Width
21.65 Inches
Product Height
19.69 Inches
UPC
850008720949
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L14-30R
1
RV Ready 30-Amp
1
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Should I choose the 120 or 240 selection when using the L14-30 connection to power a house panel?
Bradley
from Indiana
November 09, 2020
Answer
You should use the 120/240V outlet labeled L14-30R.
