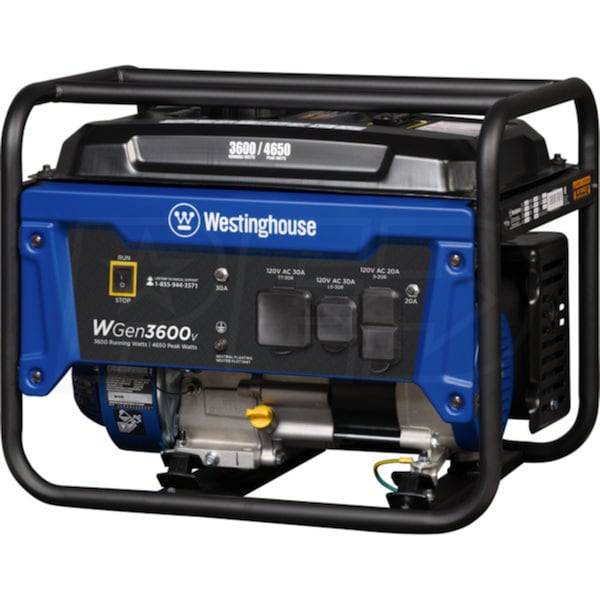

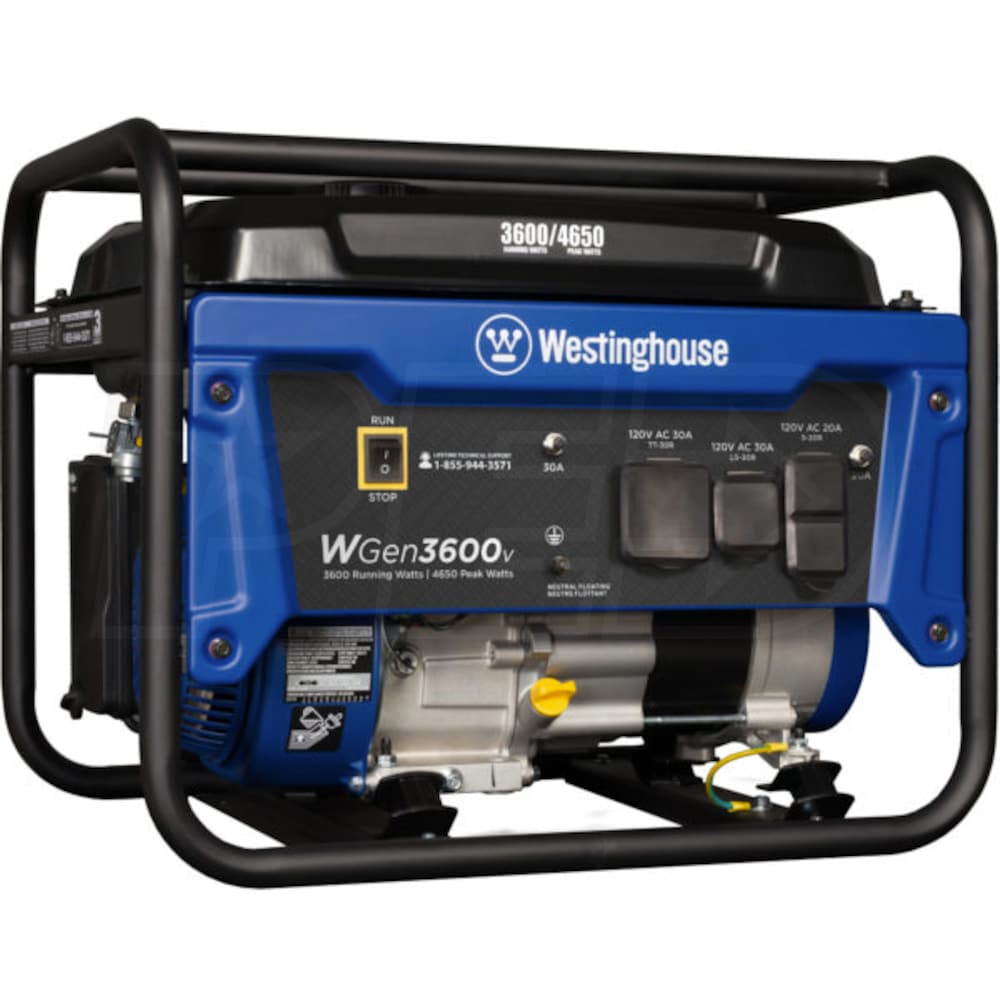

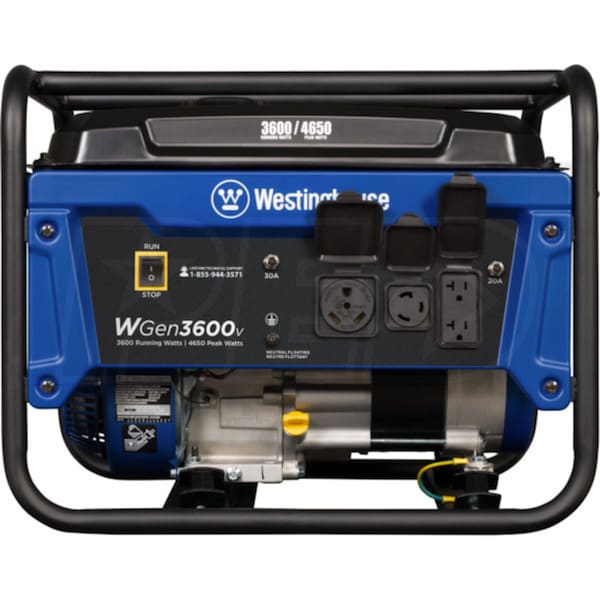

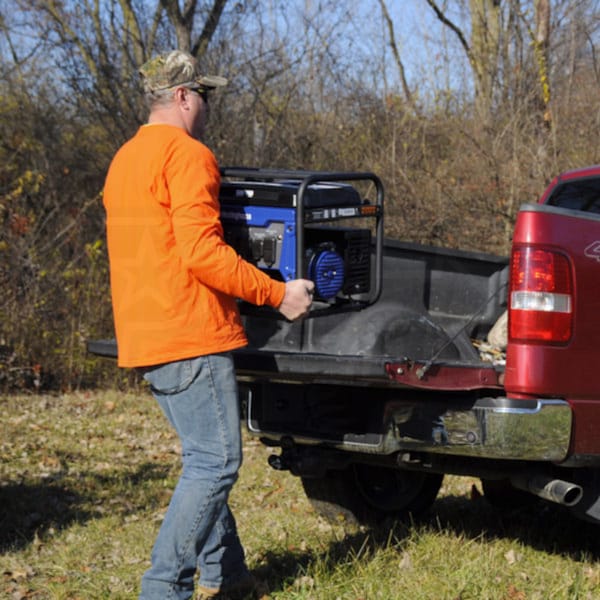

Westinghouse WGEN3600V - 3600 Watt Portable Generator w/ RV Outlet (CARB)
Model: WGEN3600V
.jpg)
+
Share This Product
-
Product Description
-
15Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
3,600
Rated Watts
Surge Watts
4,650
Starting Watts
Fuel
Engine
Westinghouse
Grade
Emergency
Style
Portable
Run Watts
3,600
Surge Watts
4,650 Starting Watts
Fuel
Gasoline
Engine
Westinghouse
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Westinghouse WGen3600V Portable Gas Powered Generator

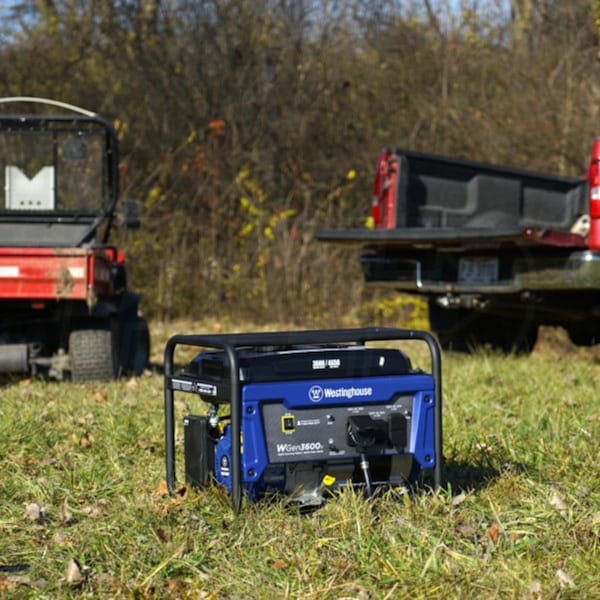

- Ideal for RV's, camping, hunting and powering small appliances

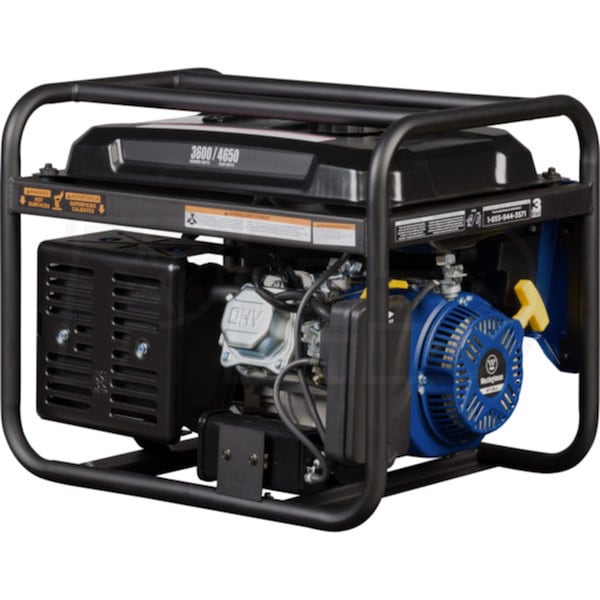

- 212cc Westinghouse OHV 4-Cycle Engine
- Designed for easier starting and fuel-efficient operation
- Cast Iron sleeve helps extend engine life
- Low Oil Shutdown
- Helps prevent engine damage before it happens
- 4-Gallon Fuel Tank w/ Fuel Gauge
- Provides up to 13.5-hours of run time @ 50% load
- Provides up to 18-hours of run time @ 25% load
- Automatic Voltage Regulator (AVR) & Circuit Breaker Protection
- Protects appliances & equipment from harmful voltage swings
- Helps prevent overload to generator

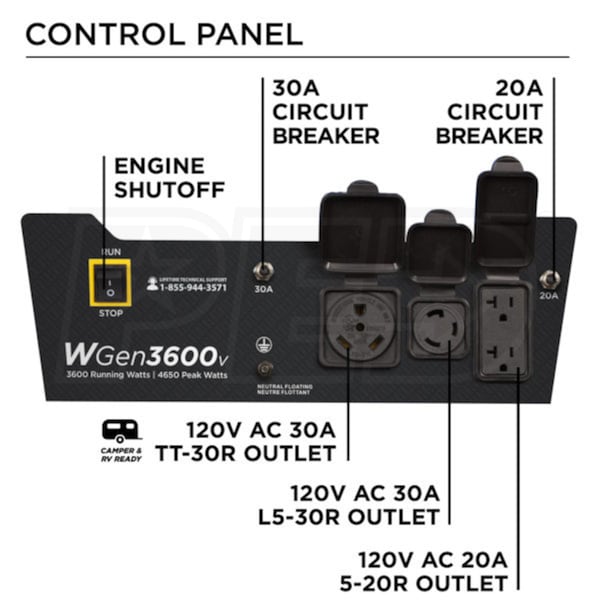

- RV Ready - TT-30R Outlet
- Power your RV without the need of an extra adapter
- 30-Amp (L5-30R) 120V Twist-lock Receptacle
- Allows for connection to a manual transfer switch (MTS)
- Outlet Covers
- Keeps out moisture and debris when outlets are not being used

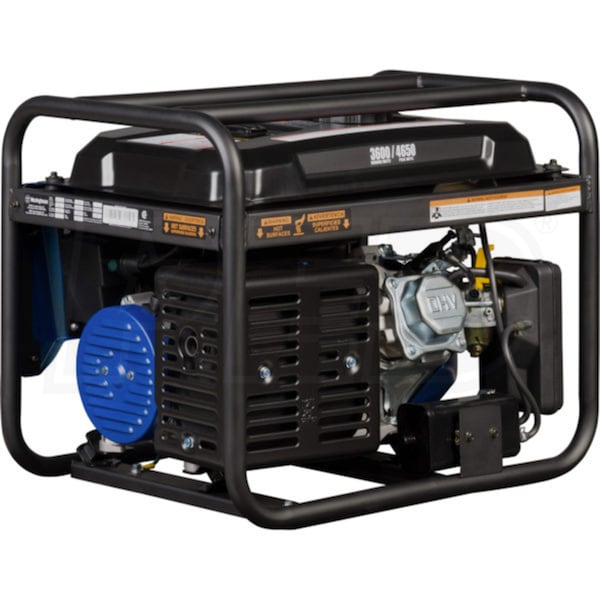

- Pulse-Flo Muffler w/ Spark Arrestor
- Provides quieter and safer operation
- Added Extras:
- Oil, funnel, tool kit, and Quick Start Guide
- 3-Year Residential Warranty and Lifetime Technical Support
- EPA / CARB Compliant
Specifications
Plugs
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
3600 Watts
Surge Watts
4650 Watts
Fuel Type
Gasoline
Rated Amps
30 Amps
Tank Size
4 Gallons
Run Time @ 50% Load
13.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Idle Control
No
Hour Meter
No
Voltage Meter
No
Grade Type
Emergency
Engine
Engine Brand
Westinghouse
Starting System
Recoil Start
CC
212 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
112 Pounds
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
23.23 Inches
Product Width
17.5 Inches
Product Height
18.7 Inches
UPC
855464003599
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L5-30R
1
RV Ready 30-Amp
1
Grade
Style
Run Watts
3,600
Rated Watts
Surge Watts
4,650
Starting Watts
Fuel
Engine
Westinghouse
Grade
Emergency
Style
Portable
Run Watts
3,600
Surge Watts
4,650 Starting Watts
Fuel
Gasoline
Engine
Westinghouse
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Westinghouse WGen3600V Portable Gas Powered Generator
- Ideal for RV's, camping, hunting and powering small appliances
- 212cc Westinghouse OHV 4-Cycle Engine
- Designed for easier starting and fuel-efficient operation
- Cast Iron sleeve helps extend engine life
- Low Oil Shutdown
- Helps prevent engine damage before it happens
- 4-Gallon Fuel Tank w/ Fuel Gauge
- Provides up to 13.5-hours of run time @ 50% load
- Provides up to 18-hours of run time @ 25% load
- Automatic Voltage Regulator (AVR) & Circuit Breaker Protection
- Protects appliances & equipment from harmful voltage swings
- Helps prevent overload to generator
- RV Ready - TT-30R Outlet
- Power your RV without the need of an extra adapter
- 30-Amp (L5-30R) 120V Twist-lock Receptacle
- Allows for connection to a manual transfer switch (MTS)
- Outlet Covers
- Keeps out moisture and debris when outlets are not being used
- Pulse-Flo Muffler w/ Spark Arrestor
- Provides quieter and safer operation
- Added Extras:
- Oil, funnel, tool kit, and Quick Start Guide
- 3-Year Residential Warranty and Lifetime Technical Support
- EPA / CARB Compliant
Specifications
Plugs
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
3600 Watts
Surge Watts
4650 Watts
Fuel Type
Gasoline
Rated Amps
30 Amps
Tank Size
4 Gallons
Run Time @ 50% Load
13.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Idle Control
No
Hour Meter
No
Voltage Meter
No
Grade Type
Emergency
Engine
Engine Brand
Westinghouse
Starting System
Recoil Start
CC
212 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
112 Pounds
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
23.23 Inches
Product Width
17.5 Inches
Product Height
18.7 Inches
UPC
855464003599
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L5-30R
1
RV Ready 30-Amp
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
3600 Watts
Surge Watts
4650 Watts
Fuel Type
Gasoline
Rated Amps
30 Amps
Tank Size
4 Gallons
Run Time @ 50% Load
13.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Idle Control
No
Hour Meter
No
Voltage Meter
No
Grade Type
Emergency
Engine
Engine Brand
Westinghouse
Starting System
Recoil Start
CC
212 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
112 Pounds
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
23.23 Inches
Product Width
17.5 Inches
Product Height
18.7 Inches
UPC
855464003599
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L5-30R
1
RV Ready 30-Amp
1
Product Q&A
(2)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
What is the noise in dB of this unit?
Raymond L.
from Virginia
March 30, 2019
Answer
This model is rated at 69 dBa at 7 meters.
Was this answer helpful?
Yes
0
No
0
+−
Can this generator be kept outside all year long?
Susan D.
from New Jersey
April 25, 2018
Answer
It is not recommended to keep generators stored outside year-round. This is to prevent the generator from getting wet either from weather or condensation. The water will corrode metals and connections over time and will cause the generator to fail. If you must store it outside then I would highly suggest using a water proof cover and winterizing the unit before storage.
Was this answer helpful?
Yes
0
No
0
