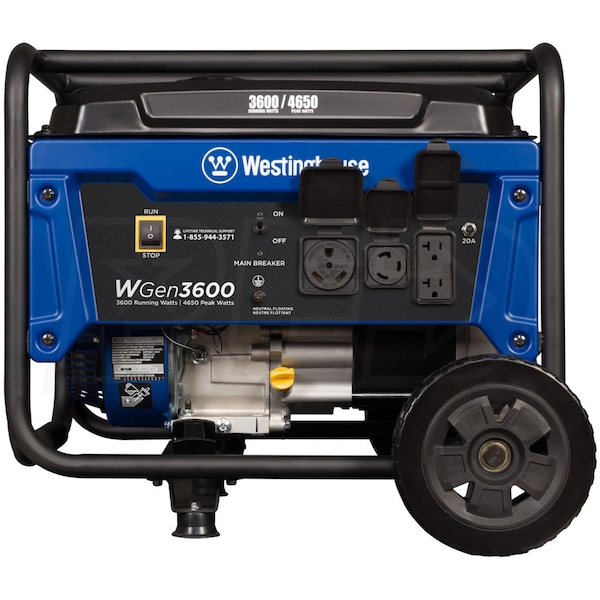

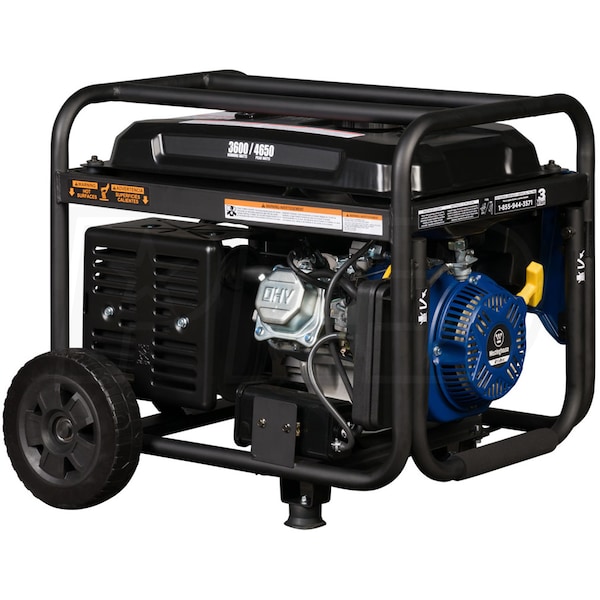

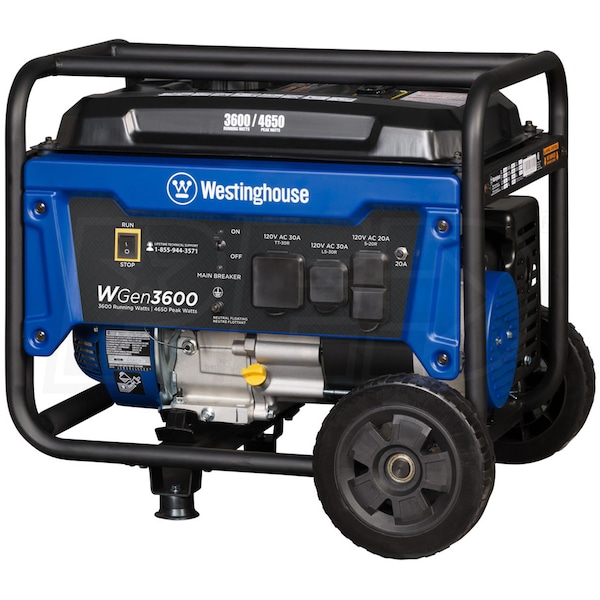

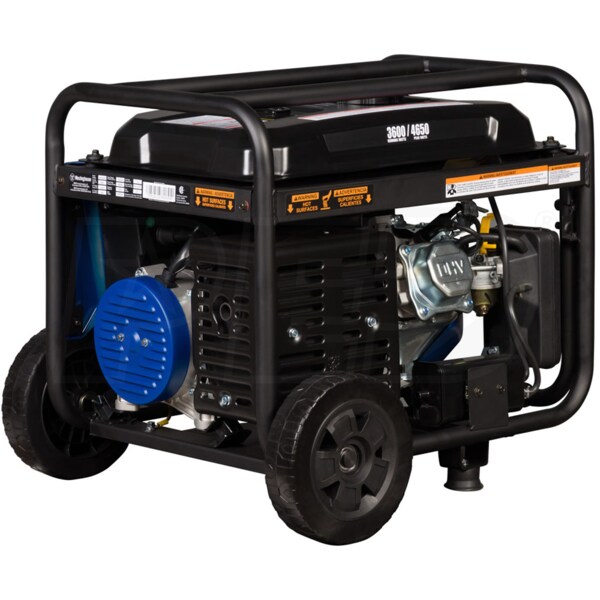

Westinghouse WGen3600 - 3600 Watt Portable Generator w/ RV Outlet

• Product Description
• Specs
• 1
  Reviews
• Recommended Accessories
• How-To Articles
• Manuals

Grade

Style

Run Watts

3,600

Rated Watts

Surge Watts

4,650

Starting Watts

Fuel

Engine

Westinghouse

Grade

Emergency

Style

Portable

Run Watts

3,600

Surge Watts

4,650 Starting Watts

Fuel

Gasoline

Engine

Westinghouse

Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features

Features

• Westinghouse WGen3600 Portable Gas Powered Generator
• Ideal for RV's, camping, hunting and powering small appliances
• 212cc Westinghouse OHV 4-Cycle Engine
• Designed for easier starting and fuel-efficient operation
• Cast Iron sleeve helps extend engine life
• Low Oil Shutdown
• Helps prevent engine damage before it happens
• 4-Gallon Fuel Tank w/ Fuel Gauge
• Provides up to 12-hours of run time @ 50% load
• Automatic Voltage Regulator (AVR) & Circuit Breaker Protection
• Protects appliances & equipment from harmful voltage swings
• Helps prevent overload to generator
• RV Ready - TT-30R Outlet
• Power your RV without the need of an extra adapter
• L5-30R 120V Twist-lock Receptacle
• Allows for connection to a manual transfer switch (MTS)
• Outlet Covers
• Keeps out moisture and debris when outlets are not being used
• 8" Solid Wheels & Single Fold-Down Handle
• Allows for easy movement over uneven terrain
• Added Extras:
• Oil, funnel, tool kit, and Quick Start Guide
• 3-Year Residential Warranty and Lifetime Technical Support
• EPA / CARB Compliant

Specifications

Plugs

Engine

Engine Brand

Westinghouse

Starting System

Recoil Start

CC

212 CC

Engine RPM

3600 RPM

Low Oil Alert/Shutdown

Yes

Cast Iron Sleeve

Yes

Product Specs

Voltage

120 Single-Phase

Frequency

60 Hertz

Auto Voltage Regulation

Yes

Surge Watts

4650 Watts

Rated Watts

3600 Watts

Fuel Type

Gasoline

Rated Amps

30 Amps

Portability Kit

Never Flat Wheels

Tank Size

4 Gallons

Run Time @ 50% Load

12 Hours

Fuel Gauge

Yes

Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.

73

Idle Control

No

Hour Meter

No

Voltage Meter

No

Cooling System

Air Cooled

Grade Type

Emergency

Plugs

NEMA 5-20R - Wall-Type

1

NEMA L5-30R

1

RV Ready 30-Amp

1

Overview

Made in USA

No

Assembly Required

Yes

Weight

112 Pounds

Product Length

23.23 Inches

Product Width

22.84 Inches

Product Height

21.26 Inches

Consumer Warranty

3 Years

UPC

855464003964

Grade

Style

Run Watts

3,600

Rated Watts

Surge Watts

4,650

Starting Watts

Fuel

Engine

Westinghouse

Grade

Emergency

Style

Portable

Run Watts

3,600

Surge Watts

4,650 Starting Watts

Fuel

Gasoline

Engine

Westinghouse

Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features

Features

• Westinghouse WGen3600 Portable Gas Powered Generator
• Ideal for RV's, camping, hunting and powering small appliances
• 212cc Westinghouse OHV 4-Cycle Engine
• Designed for easier starting and fuel-efficient operation
• Cast Iron sleeve helps extend engine life
• Low Oil Shutdown
• Helps prevent engine damage before it happens
• 4-Gallon Fuel Tank w/ Fuel Gauge
• Provides up to 12-hours of run time @ 50% load
• Automatic Voltage Regulator (AVR) & Circuit Breaker Protection
• Protects appliances & equipment from harmful voltage swings
• Helps prevent overload to generator
• RV Ready - TT-30R Outlet
• Power your RV without the need of an extra adapter
• L5-30R 120V Twist-lock Receptacle
• Allows for connection to a manual transfer switch (MTS)
• Outlet Covers
• Keeps out moisture and debris when outlets are not being used
• 8" Solid Wheels & Single Fold-Down Handle
• Allows for easy movement over uneven terrain
• Added Extras:
• Oil, funnel, tool kit, and Quick Start Guide
• 3-Year Residential Warranty and Lifetime Technical Support
• EPA / CARB Compliant

Specifications

Plugs

Engine

Engine Brand

Westinghouse

Starting System

Recoil Start

CC

212 CC

Engine RPM

3600 RPM

Low Oil Alert/Shutdown

Yes

Cast Iron Sleeve

Yes

Product Specs

Voltage

120 Single-Phase

Frequency

60 Hertz

Auto Voltage Regulation

Yes

Surge Watts

4650 Watts

Rated Watts

3600 Watts

Fuel Type

Gasoline

Rated Amps

30 Amps

Portability Kit

Never Flat Wheels

Tank Size

4 Gallons

Run Time @ 50% Load

12 Hours

Fuel Gauge

Yes

Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.

73

Idle Control

No

Hour Meter

No

Voltage Meter

No

Cooling System

Air Cooled

Grade Type

Emergency

Plugs

NEMA 5-20R - Wall-Type

1

NEMA L5-30R

1

RV Ready 30-Amp

1

Overview

Made in USA

No

Assembly Required

Yes

Weight

112 Pounds

Product Length

23.23 Inches

Product Width

22.84 Inches

Product Height

21.26 Inches

Consumer Warranty

3 Years

UPC

855464003964

Specifications

Plugs

Engine

Engine Brand

Westinghouse

Starting System

Recoil Start

CC

212 CC

Engine RPM

3600 RPM

Low Oil Alert/Shutdown

Yes

Cast Iron Sleeve

Yes

Product Specs

Voltage

120 Single-Phase

Frequency

60 Hertz

Auto Voltage Regulation

Yes

Surge Watts

4650 Watts

Rated Watts

3600 Watts

Fuel Type

Gasoline

Rated Amps

30 Amps

Portability Kit

Never Flat Wheels

Tank Size

4 Gallons

Run Time @ 50% Load

12 Hours

Fuel Gauge

Yes

Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.

73

Idle Control

No

Hour Meter

No

Voltage Meter

No

Cooling System

Air Cooled

Grade Type

Emergency

Plugs

NEMA 5-20R - Wall-Type

1

NEMA L5-30R

1

RV Ready 30-Amp

1

Overview

Made in USA

No

Assembly Required

Yes

Weight

112 Pounds

Product Length

23.23 Inches

Product Width

22.84 Inches

Product Height

21.26 Inches

Consumer Warranty

3 Years

UPC

855464003964
