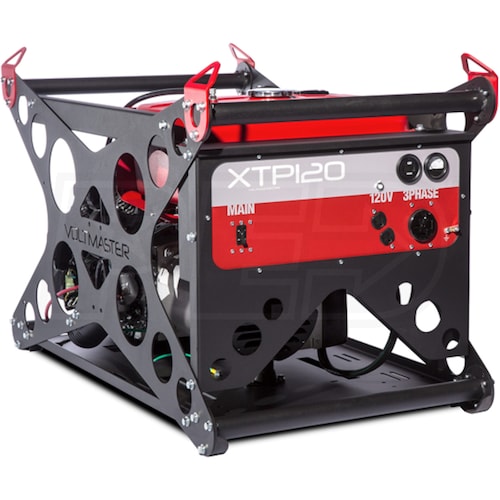

Voltmaster XTP120EV-480 - 12,000 Watt Electric Start Professional Generator w/ Vanguard (277/480V 3-Phase)

Voltmaster XTP120EV-480 - 12,000 Watt Electric Start Professional Generator w/ Vanguard (277/480V 3-Phase)
Model: XTP120EV-480
$7,676.00
Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Add-Ons
Free ShippingNo Sales Tax* (Except IL)$7,676.00Buy Now
No Sales Tax* (Except IL)$7,676.00Visit Site
Factory-Direct
Ships in 7-14 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
12,000
Rated Watts
Surge Watts
12,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
12,000
Surge Watts
12,000 Starting Watts
Fuel
Gasoline
Engine
Briggs and Stratton Vanguard
Features
Features
  • Votlmaster XTP Series 277/480V 3-Phase Generator
  • Perfect for powering commercial/industrial motors, boilers, etc.
  • Briggs & Stratton Vanguard Commercial-Grade Engine
  • Powerful 21-HP engine starts easily & runs smoothly
  • Electric Start (Battery NOT Included)
  • Provides effortless starting on the job site
  • Low Oil Pressure Shutdown
  • Shuts the engine down if oil reaches an unsafe operating level
  • Automatic Voltage Regulator
  • Prevents equipment damage & power related performance problems
  • 7.25-Gallon Extended Run Steel Fuel Tank
  • Allows for up to 6.2 hours of power@ 1/2 load
  • Magnetic CB & Brush Alternator w/ All Copper Windings
  • Provides safer operation & clean power; <6% harmonic distortion
  • Fuel Gauge & Hour Meter
  • Allows you to easily monitor and maintain your generator
  • Modular Design & Heavy Duty Frame
  • Provides greater protection for the engine & components
  • Side Control Panel For Easy Opeartion When Truck Mounted
  • 1-Year Consumer/30-Day Commercial Warranty
Specifications
Plugs
NEMA L16-20R
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Key Start
HP
21 HP
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
12000 Watts
Rated Watts
12000 Watts
Fuel Type
Gasoline
Rated Amps
18 Amps
Portability Kit
Sold Separately
Tank Size
7.25 Gallons
Run Time @ 50% Load
6.2 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Plugs
NEMA L16-20R
1
Overview
Made in USA
Yes
Weight
330 Pounds
Product Style
Portable Generator
Product Length
44.5 Inches
Product Width
25.25 Inches
Product Height
28.75 Inches
Consumer Warranty
1 Year
Commercial Warranty
30 Days
Grade
Style
Run Watts
12,000
Rated Watts
Surge Watts
12,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
12,000
Surge Watts
12,000 Starting Watts
Fuel
Gasoline
Engine
Briggs and Stratton Vanguard
Features
Features
  • Votlmaster XTP Series 277/480V 3-Phase Generator
  • Perfect for powering commercial/industrial motors, boilers, etc.
  • Briggs & Stratton Vanguard Commercial-Grade Engine
  • Powerful 21-HP engine starts easily & runs smoothly
  • Electric Start (Battery NOT Included)
  • Provides effortless starting on the job site
  • Low Oil Pressure Shutdown
  • Shuts the engine down if oil reaches an unsafe operating level
  • Automatic Voltage Regulator
  • Prevents equipment damage & power related performance problems
  • 7.25-Gallon Extended Run Steel Fuel Tank
  • Allows for up to 6.2 hours of power@ 1/2 load
  • Magnetic CB & Brush Alternator w/ All Copper Windings
  • Provides safer operation & clean power; <6% harmonic distortion
  • Fuel Gauge & Hour Meter
  • Allows you to easily monitor and maintain your generator
  • Modular Design & Heavy Duty Frame
  • Provides greater protection for the engine & components
  • Side Control Panel For Easy Opeartion When Truck Mounted
  • 1-Year Consumer/30-Day Commercial Warranty
Specifications
Plugs
NEMA L16-20R
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Key Start
HP
21 HP
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
12000 Watts
Rated Watts
12000 Watts
Fuel Type
Gasoline
Rated Amps
18 Amps
Portability Kit
Sold Separately
Tank Size
7.25 Gallons
Run Time @ 50% Load
6.2 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Plugs
NEMA L16-20R
1
Overview
Made in USA
Yes
Weight
330 Pounds
Product Style
Portable Generator
Product Length
44.5 Inches
Product Width
25.25 Inches
Product Height
28.75 Inches
Consumer Warranty
1 Year
Commercial Warranty
30 Days
Product Specs
+
Specifications
Plugs
NEMA L16-20R
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Key Start
HP
21 HP
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
12000 Watts
Rated Watts
12000 Watts
Fuel Type
Gasoline
Rated Amps
18 Amps
Portability Kit
Sold Separately
Tank Size
7.25 Gallons
Run Time @ 50% Load
6.2 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Plugs
NEMA L16-20R
1
Overview
Made in USA
Yes
Weight
330 Pounds
Product Style
Portable Generator
Product Length
44.5 Inches
Product Width
25.25 Inches
Product Height
28.75 Inches
Consumer Warranty
1 Year
Commercial Warranty
30 Days
