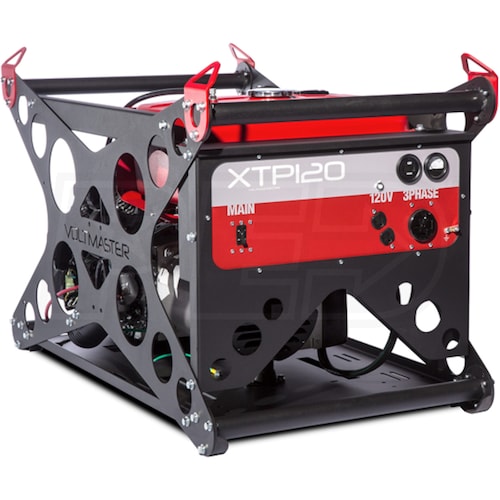

Voltmaster XTP120EH-240 - 12,000 Watt Electric Start Professional Generator w/ Honda GX (120/240V 3-Phase)

Voltmaster XTP120EH-240 - 12,000 Watt Electric Start Professional Generator w/ Honda GX (120/240V 3-Phase)
Model: XTP120EH-240
$7,676.00
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free Lift Gate Service -
Add-Ons
Free ShippingNo Sales Tax* (Except IL)$7,676.00Buy Now
No Sales Tax* (Except IL)$7,676.00Visit Site
Factory-Direct
This Item Is Built To Order
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
12,000
Rated Watts
Surge Watts
12,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
12,000
Surge Watts
12,000 Starting Watts
Fuel
Gasoline
Engine
Honda GX
Features
Features
  • Votlmaster XTP Series 120/240V 3-Phase Generator
  • Perfect for powering commercial/industrial motors, boilers, etc.
  • 688cc Honda« GX660 OHV Commercial-Grade Engine
  • Powerful 21-HP engine starts easily & runs smoothly
  • Electric Start (Battery NOT Included)
  • Provides effortless starting on the job site
  • Protected By Honda Oil Alert« Warning System
  • Shuts the engine down if oil reaches an unsafe operating level
  • Automatic Voltage Regulator
  • Prevents equipment damage & power related performance problems
  • 7.25-Gallon Extended Run Steel Fuel Tank
  • Allows for up to 6.2 hours of power@ 1/2 load
  • Magnetic CB & Brush Alternator w/ All Copper Windings
  • Provides safer operation & clean power; <6% harmonic distortion
  • Voltmeter & Hour Meter
  • Allows you to easily monitor and maintain your generator
  • Modular Design & Heavy Duty Frame
  • Provides greater protection for the engine & components
  • Side Control Panel For Easy Opeartion When Truck Mounted
  • 1-Year Consumer/30-Day Commercial Warranty
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 15-50R
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start
HP
21 HP
CC
688 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
12000 Watts
Rated Watts
12000 Watts
Fuel Type
Gasoline
Rated Amps
36 Amps
Portability Kit
Sold Separately
Tank Size
7.25 Gallons
Run Time @ 50% Load
6.2 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 15-50R
1
Overview
Made in USA
Yes
Weight
330 Pounds
Product Style
Portable Generator
Product Length
44.5 Inches
Product Width
25.25 Inches
Product Height
28.75 Inches
Consumer Warranty
3 Years
Commercial Warranty
30 Days
Grade
Style
Run Watts
12,000
Rated Watts
Surge Watts
12,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
12,000
Surge Watts
12,000 Starting Watts
Fuel
Gasoline
Engine
Honda GX
Features
Features
  • Votlmaster XTP Series 120/240V 3-Phase Generator
  • Perfect for powering commercial/industrial motors, boilers, etc.
  • 688cc Honda« GX660 OHV Commercial-Grade Engine
  • Powerful 21-HP engine starts easily & runs smoothly
  • Electric Start (Battery NOT Included)
  • Provides effortless starting on the job site
  • Protected By Honda Oil Alert« Warning System
  • Shuts the engine down if oil reaches an unsafe operating level
  • Automatic Voltage Regulator
  • Prevents equipment damage & power related performance problems
  • 7.25-Gallon Extended Run Steel Fuel Tank
  • Allows for up to 6.2 hours of power@ 1/2 load
  • Magnetic CB & Brush Alternator w/ All Copper Windings
  • Provides safer operation & clean power; <6% harmonic distortion
  • Voltmeter & Hour Meter
  • Allows you to easily monitor and maintain your generator
  • Modular Design & Heavy Duty Frame
  • Provides greater protection for the engine & components
  • Side Control Panel For Easy Opeartion When Truck Mounted
  • 1-Year Consumer/30-Day Commercial Warranty
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 15-50R
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start
HP
21 HP
CC
688 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
12000 Watts
Rated Watts
12000 Watts
Fuel Type
Gasoline
Rated Amps
36 Amps
Portability Kit
Sold Separately
Tank Size
7.25 Gallons
Run Time @ 50% Load
6.2 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 15-50R
1
Overview
Made in USA
Yes
Weight
330 Pounds
Product Style
Portable Generator
Product Length
44.5 Inches
Product Width
25.25 Inches
Product Height
28.75 Inches
Consumer Warranty
3 Years
Commercial Warranty
30 Days
Product Specs
+
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 15-50R
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start
HP
21 HP
CC
688 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
12000 Watts
Rated Watts
12000 Watts
Fuel Type
Gasoline
Rated Amps
36 Amps
Portability Kit
Sold Separately
Tank Size
7.25 Gallons
Run Time @ 50% Load
6.2 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 15-50R
1
Overview
Made in USA
Yes
Weight
330 Pounds
Product Style
Portable Generator
Product Length
44.5 Inches
Product Width
25.25 Inches
Product Height
28.75 Inches
Consumer Warranty
3 Years
Commercial Warranty
30 Days
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Portable Generator Expert
icon-social-fb1
+
What if any outdoor ATS can this # phase generator use
John Mcdermott
from Washington
June 30, 2016
Answer
The manual switch that is needed would have to be the same voltage (120/240V 3 Phase). At this time we do not offer any switches that will work with this generator.
