Voltmaster XDR60EL - 5500 Watt Electric Start Portable Diesel Generator

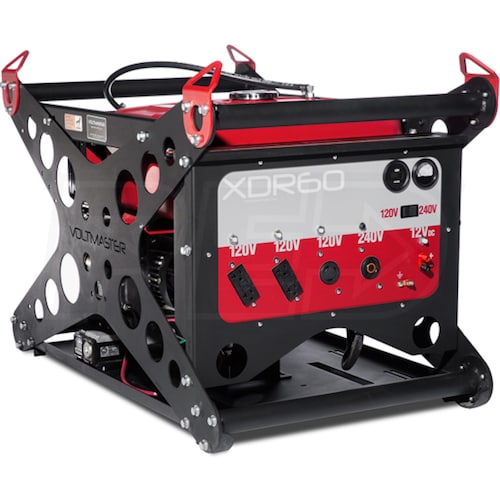

Voltmaster XDR60EL - 5500 Watt Electric Start Portable Diesel Generator
Our Price
Compare Prices
Shipping Info
Model: XDR60EL
$5,529.00

Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free Lift Gate Service -
Add-Ons
Factory-Direct
This Item Is Built To Order
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Grade
Style
Run Watts
5,500
Rated Watts
Surge Watts
6,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
5,500
Surge Watts
6,000 Starting Watts
Fuel
Diesel
Engine
Kohler
Features
Features
  • Votlmaster XDR Series Diesel Generator (120/240V)
  • Durable, long-run industrial/rental grade generator
  • 9.8 HP/442 cc Kohler Air-Cooled Diesel Engine (3600 RPM)
  • A durable, dependable and long-lasting powerplant
  • Electric Start w/ Recoil Backup (Battery Sold Separately)
  • Includes battery rack & cables
  • Cast Iron Cylinder Liner w/ Low Oil Pressure Shutdown
  • Provides added protection during extended opeartion
  • Smooth Wave™
  • Provides <6% total harmonic distortion
  • 7.25-Gallon Fuel Tank Provides Extended Run Time
  • Up to 11 hours of pwer @ full load

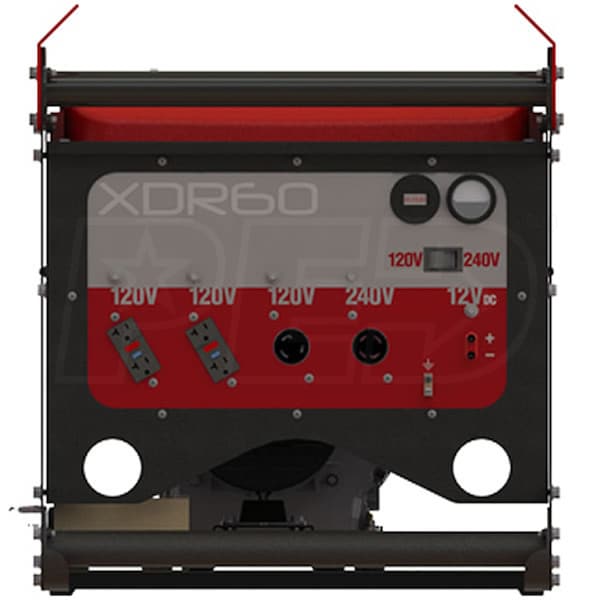

  • Professional Control Panel w/ 12-Volt DC Battery Charging
  • GFCI outlets, circuit breakers, volt meter and hour meter
  • Full Power Switch
  • Choose between 120 volt or 120/240 volt AC power
  • Modular Design & Heavy Duty Frame
  • Provides greater protection for the engine & components
  • Side Control Panel For Easy Opeartion When Truck Mounted
  • 1-Year Consumer/30-Day Commercial Warranty
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-20R
NEMA L5-30R
Engine
Engine Brand
Kohler
Starting System
12-Volt Key Start w/ Recoil
HP
9.8 HP
CC
442 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
6000 Watts
Rated Watts
5500 Watts
Fuel Type
Diesel
Rated Amps
23 Amps
Tank Size
7.25 Gallons
Run Time @ 50% Load
14 Hours
Fuel Tank Material
Plastic
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Hour Meter
Yes
Voltage Meter
Yes
Neutral Type
Bonded
Battery
Not Included (400 CCA)
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-20R
1
NEMA L5-30R
1
Overview
Made in USA
Yes
Weight
260 Pounds
Product Style
Portable Generator
Product Length
28 Inches
Product Width
22 Inches
Product Height
25 Inches
Consumer Warranty
1 Year
Commercial Warranty
30 Days
