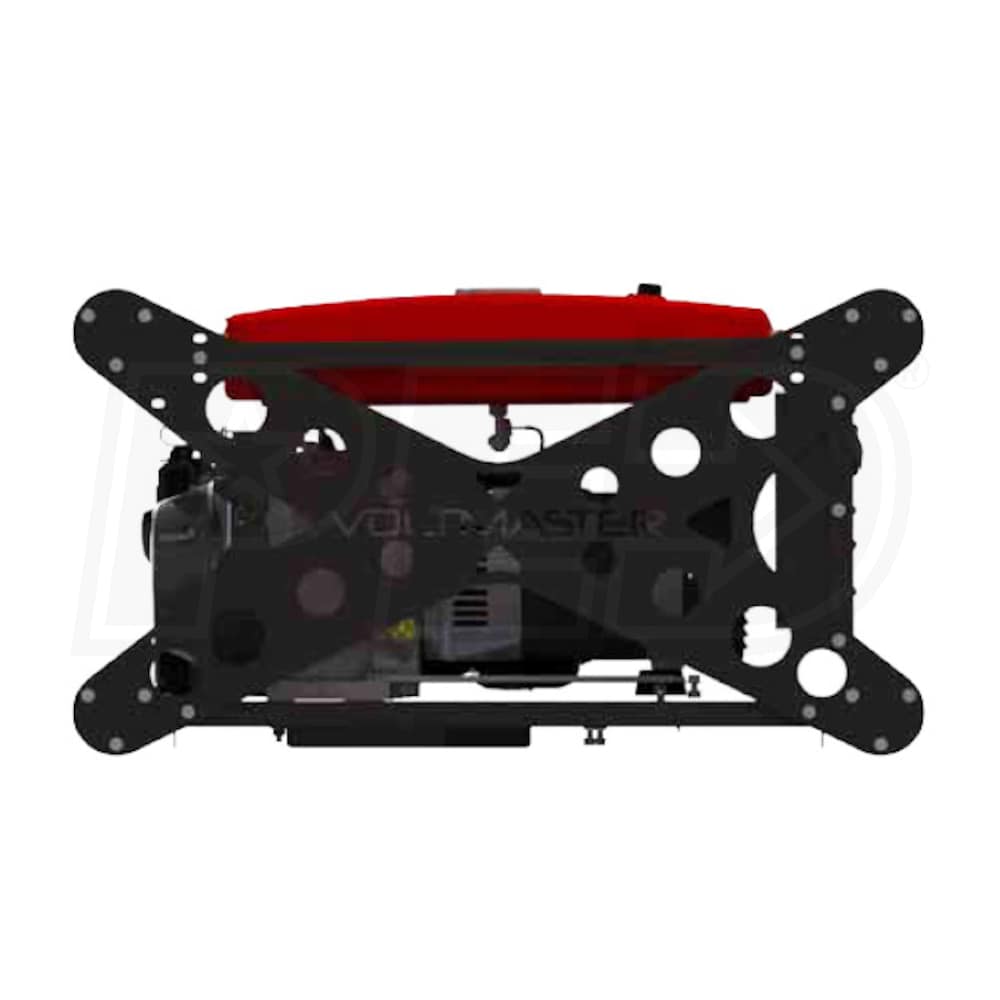

Voltmaster XCR80 - 7500 Watt Electric Start Portable Professional Generator
Model:
XCR80
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Alberto, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Professional
Style
Portable
Run Watts
7,500 Rated Watts
Surge Watts
8,000
Starting Watts
Fuel
Gasoline
Engine
Briggs and Stratton Vanguard
- XGen Series By Voltmaster Professional Grade Portable Generator
- Engineered specifically with contractors in mind
- Electric Start w/ Recoil Backup (Battery Not Included)
- The ability to start your generator when you need it most
- 479cc Vanguard V-Twin OHV Commercial Grade Engine
- Easy starting, long life for the most demanding applications
- Pressurized Lubrication System w/ Oil Filter & Low Oil Shutdown
- Significantly reduces the chance of engine damage
- All Copper Winding, Brushless Alternator w/ Capacitor
- Provides <6% harmonic distortion
- Full Panel GFCI Protection
- Must use GFI type manual transfer switch for panel connection
- Not for use with interlock kit
- 6.6-Gallon Metal Fuel Tank
- Provides up to 12 hours of run time at 1/2 load
- Voltmeter & Hour Meter
- Allows you to easily monitor and maintain your generator
- Modular Design
- Provides greater protection for the engine & components
- 3-Year Warranty
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
XCR80
Overview
Assembly Required
No
Weight
246 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator

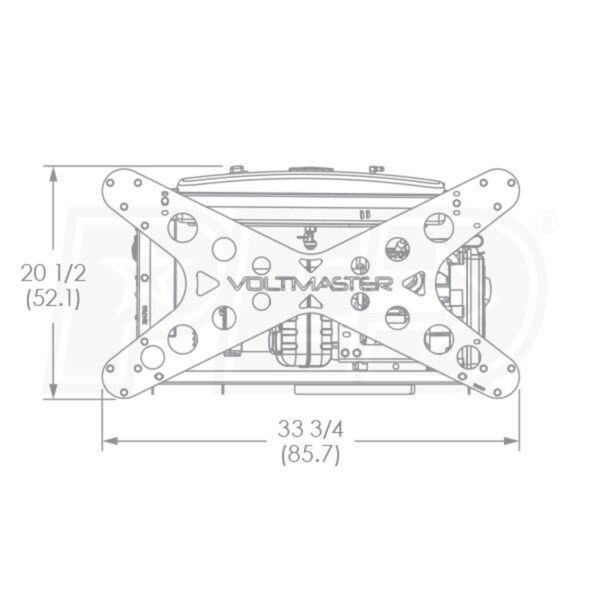

Product Length
33.75 Inches

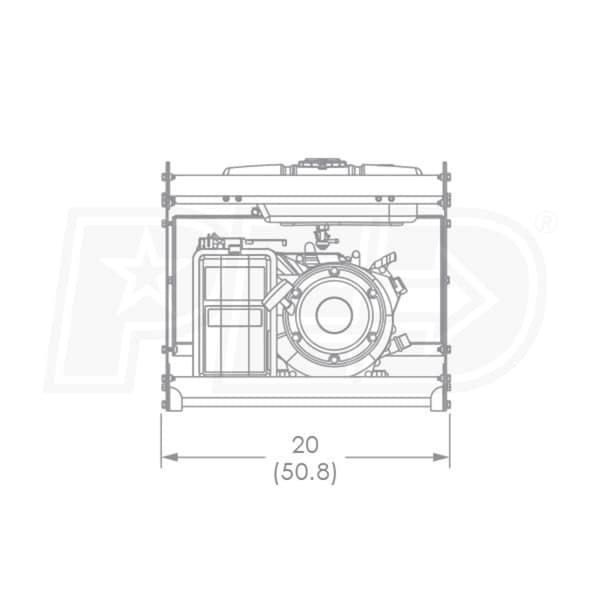

Product Width
20 Inches
Product Height
20.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Not Necessary
Rated Watts
7500 Watts
Surge Watts
8000 Watts
Fuel Type
Gasoline
Rated Amps
31 Amps
Tank Size
6.6 Gallons
Run Time @ 50% Load
12 Hours
Fuel Tank Material
Metal
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Key Start w/ Recoil
HP
16 HP
CC
479 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-20R
1
NEMA L5-30R
1
