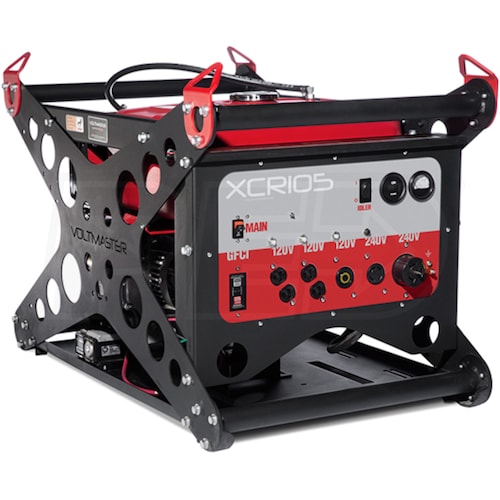

Voltmaster XCR105EV - 9500 Watt Electric Start Professional Generator

Voltmaster XCR105EV - 9500 Watt Electric Start Professional Generator
Model: XCR105EV
$4,139.15
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free Lift Gate Service -
Add-Ons
Factory-Direct
This Item Is Built To Order
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
9,500
Rated Watts
Surge Watts
10,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
9,500
Surge Watts
10,000 Starting Watts
Fuel
Gasoline
Engine
Briggs and Stratton Vanguard
Features
Features
  • Voltmaster XCR Series Contractor/Rental Grade Generator
  • Designed specifically for contractors & jobsite applications
  • OSHA Compliant Total Ground Fault System
  • Provides total 120/240 VAC ground-fault protection on all recps
  • 18 HP Vanguard Industrial-Grade V-Twin Engine w/ Electric Start
  • Quiet operation and greater fuel efficency on the job site
  • Includes battery rack & cables (Battery Sold Separately)
  • Cast Iron Cylinder Liner w/ Low Oil Pressure Shutdown
  • Provides added safety during operation to prevent downtime
  • Idle Control & 7.25-Gallon Fuel Tank w/ Fuel Gauge
  • Allows for up to 8 hours of run time @ half load
  • Magnetic CB & Brush Alternator w/ All Copper Windings
  • Provides safer operation & clean power; <6% harmonic distortion
  • Voltmeter & Hour Meter
  • Allows you to easily monitor and maintain your generator
  • Heavy Duty Frame & Modular Design w/ Side Control Panel
  • Provides greater protection for the engine & components
  • Makes it easy to operate when truck mounted
  • ***Not For Use w/ Transfer Switches or Interlock Kits***
  • 1-Year Consumer/30-Day Commercial Warranty
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
CS6369 (50-Amp Twistlock)
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Key Start
HP
18 HP
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
10000 Watts
Rated Watts
9500 Watts
Fuel Type
Gasoline
Rated Amps
40 Amps
Portability Kit
Sold Separately
Tank Size
7.25 Gallons
Run Time @ 50% Load
8 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Neutral Type
Bonded
Battery
Not Included
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
CS6369 - 50-Amp Twistlock
1
Overview
Made in USA
Yes
Weight
297 Pounds
Product Style
Portable Generator
Product Length
37.25 Inches
Product Width
23.5 Inches
Product Height
26 Inches
Consumer Warranty
1 Year
Commercial Warranty
30 Days
Grade
Style
Run Watts
9,500
Rated Watts
Surge Watts
10,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
9,500
Surge Watts
10,000 Starting Watts
Fuel
Gasoline
Engine
Briggs and Stratton Vanguard
Features
Features
  • Voltmaster XCR Series Contractor/Rental Grade Generator
  • Designed specifically for contractors & jobsite applications
  • OSHA Compliant Total Ground Fault System
  • Provides total 120/240 VAC ground-fault protection on all recps
  • 18 HP Vanguard Industrial-Grade V-Twin Engine w/ Electric Start
  • Quiet operation and greater fuel efficency on the job site
  • Includes battery rack & cables (Battery Sold Separately)
  • Cast Iron Cylinder Liner w/ Low Oil Pressure Shutdown
  • Provides added safety during operation to prevent downtime
  • Idle Control & 7.25-Gallon Fuel Tank w/ Fuel Gauge
  • Allows for up to 8 hours of run time @ half load
  • Magnetic CB & Brush Alternator w/ All Copper Windings
  • Provides safer operation & clean power; <6% harmonic distortion
  • Voltmeter & Hour Meter
  • Allows you to easily monitor and maintain your generator
  • Heavy Duty Frame & Modular Design w/ Side Control Panel
  • Provides greater protection for the engine & components
  • Makes it easy to operate when truck mounted
  • ***Not For Use w/ Transfer Switches or Interlock Kits***
  • 1-Year Consumer/30-Day Commercial Warranty
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
CS6369 (50-Amp Twistlock)
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Key Start
HP
18 HP
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
10000 Watts
Rated Watts
9500 Watts
Fuel Type
Gasoline
Rated Amps
40 Amps
Portability Kit
Sold Separately
Tank Size
7.25 Gallons
Run Time @ 50% Load
8 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Neutral Type
Bonded
Battery
Not Included
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
CS6369 - 50-Amp Twistlock
1
Overview
Made in USA
Yes
Weight
297 Pounds
Product Style
Portable Generator
Product Length
37.25 Inches
Product Width
23.5 Inches
Product Height
26 Inches
Consumer Warranty
1 Year
Commercial Warranty
30 Days
Product Specs
+
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
CS6369 (50-Amp Twistlock)
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Key Start
HP
18 HP
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
10000 Watts
Rated Watts
9500 Watts
Fuel Type
Gasoline
Rated Amps
40 Amps
Portability Kit
Sold Separately
Tank Size
7.25 Gallons
Run Time @ 50% Load
8 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Neutral Type
Bonded
Battery
Not Included
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
CS6369 - 50-Amp Twistlock
1
Overview
Made in USA
Yes
Weight
297 Pounds
Product Style
Portable Generator
Product Length
37.25 Inches
Product Width
23.5 Inches
Product Height
26 Inches
Consumer Warranty
1 Year
Commercial Warranty
30 Days
