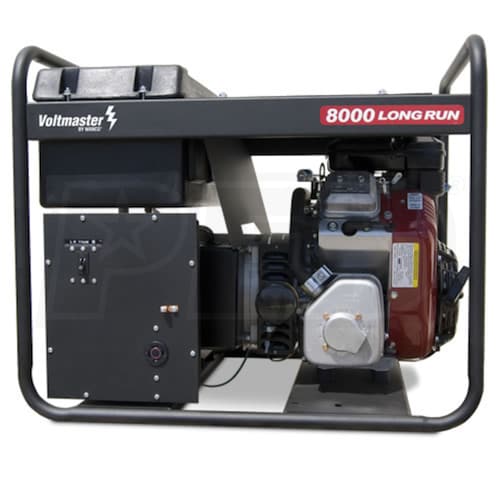

Voltmaster LR80E-208 - 8000 Watt Electric Start Portable Generator (208V - 3-Phase)
Model:
LR80E-208
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Alberto, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Professional
Style
Portable
Run Watts
8,000 Rated Watts
Surge Watts
8,000
Starting Watts
Fuel
Gasoline
Engine
Briggs and Stratton Vanguard
- 208V Three Phase Generator
- Perfect for powering commercial/industrial motors, boilers, etc.
- Briggs & Stratton Vanguard Engine
- Powerful 16-HP engine starts easily & runs smoothly
- Electric Start w/ Recoil Backup (Battery Sold Separately)
- Includes battery rack & cables
- Cast Iron Cylinder Liner w/ Low Oil Pressure Shutdown
- Provides added protection
- Automatic Voltage Regulator
- Prevents equipment damage & power related performance problems
- 8-Gallon Fuel Tank Provides Extended Run Time
- 9.9 hours @ half load & 6 hours @ full load
- All Copper Windings, Brush Alternator
- Provides <6% harmonic distortion
- Added Features
- 1" Welded steel roll cage
- Isolated and recessed control panel
- Magnetic circuit breakers
- Plugs for 3-Phase receptacles
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
LR80E-208
Overview
Weight
216 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Portable Generator
Product Length
30 Inches
Product Width
24 Inches
Product Height
25 Inches
Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
8000 Watts
Surge Watts
8000 Watts
Fuel Type
Gasoline
Rated Amps
28 Amps
Tank Size
8 Gallons
Run Time @ 50% Load
9.9 Hours
Fuel Tank Material
Plastic
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
76.5 dbA
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Key Start w/ Recoil
HP
16 HP
CC
480 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 15-50R
1
