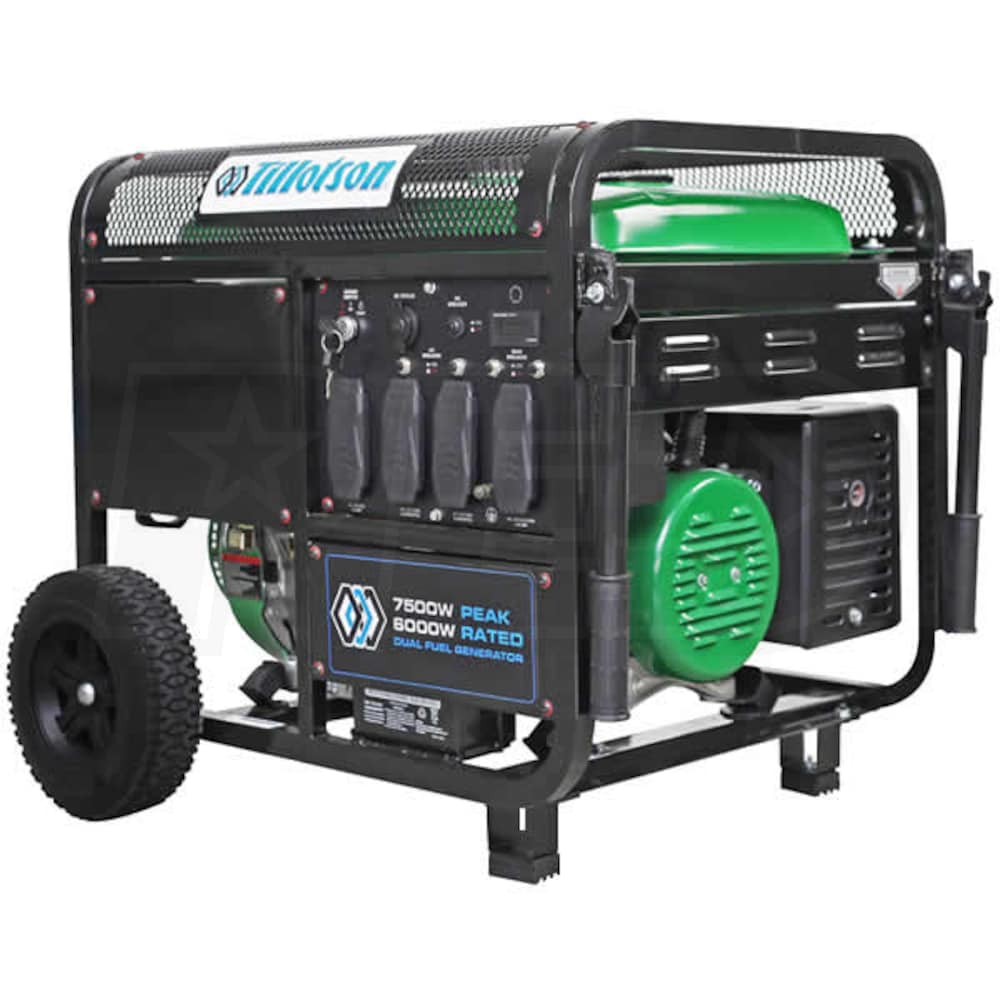

Tillotson TPP-7500DF-A - 6000 Watt Dual Fuel Electric Start Portable Generator

Tillotson TPP-7500DF-A - 6000 Watt Dual Fuel Electric Start Portable Generator



Product Discontinued Product Discontinued
Share
  • Product Description
  • 1
    Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+−
Grade
Style
Run Watts
6,000
Rated Watts
Surge Watts
7,500
Starting Watts
Fuel
Engine
Tillotson
Grade
Emergency
Style
Portable
Run Watts
6,000
Surge Watts
7,500 Starting Watts
Fuel
Gasoline/LP
Engine
Tillotson
Features
Features
  • Tillotson 6000 Watt Duel-Fuel Electric Start Generator
  • Reliable power wherever and whenever you need it
  • 420cc Tillotson OHV 4-Stroke Engine w/ Low Oil Shutdown
  • Long life, 2000+ hour modified racing engine
  • Provides added safety against engine damage
  • 20 or 30-lb Tank Compatible (Not Included)
  • Provides up to 12 hours of run time @ 1/2 load (25 lb.)
  • Long-Run, 6.6-Gallon Metal Fuel Tank w/ Fuel Gauge
  • Provides up to 11 hours of run time @ 1/2 load
  • 30-Amp 120V & 30-Amp 120/240V Twistlock Outlets
  • Provides easy connection a transfer switch or RV
  • Square Tubular Steel Roll-Cage Frame w/ Diamond Grate
  • Reduces vibration, provides protection & compact Storage
  • XL Run-Flat Wheels & Heavy-Duty Fold-Down Handles
  • Provides the mobility you need and the stability you require
  • Added Features : 120V GFCI Outlets & Outlet Covers
  • Circuit Breaker Protection - Safer operation for yourself & your tools
  • Hour Meter to track maintenance and fuel usage
  • EPA Certified - Non-CARB Compliant - Not For Sale In CA
  • 2-Year Parts/1-Year Labor Limited Warranty
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
Engine
Engine Brand
Tillotson
Starting System
12-Volt Key Start w/ Recoil
CC
420 CC
Consumer Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Made in USA
No
Weight
190 Pounds
Product Style
Portable Generator
Product Length
28.1 Inches
Product Width
21.6 Inches
Product Height
22.4 Inches
Consumer Warranty
2 Years
UPC
680474076765
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
6000 Watts
Surge Watts
7500 Watts
Fuel Type
Gasoline/LP
LP Fuel Consumption @ 50% Load
0.5 gallons/hr
Rated Amps
25 Amps
Portability Kit
Never Flat Wheels
Tank Size
6.6 Gallons
Run Time @ 50% Load
12 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
Grade
Style
Run Watts
6,000
Rated Watts
Surge Watts
7,500
Starting Watts
Fuel
Engine
Tillotson
Grade
Emergency
Style
Portable
Run Watts
6,000
Surge Watts
7,500 Starting Watts
Fuel
Gasoline/LP
Engine
Tillotson
Features
Features
  • Tillotson 6000 Watt Duel-Fuel Electric Start Generator
  • Reliable power wherever and whenever you need it
  • 420cc Tillotson OHV 4-Stroke Engine w/ Low Oil Shutdown
  • Long life, 2000+ hour modified racing engine
  • Provides added safety against engine damage
  • 20 or 30-lb Tank Compatible (Not Included)
  • Provides up to 12 hours of run time @ 1/2 load (25 lb.)
  • Long-Run, 6.6-Gallon Metal Fuel Tank w/ Fuel Gauge
  • Provides up to 11 hours of run time @ 1/2 load
  • 30-Amp 120V & 30-Amp 120/240V Twistlock Outlets
  • Provides easy connection a transfer switch or RV
  • Square Tubular Steel Roll-Cage Frame w/ Diamond Grate
  • Reduces vibration, provides protection & compact Storage
  • XL Run-Flat Wheels & Heavy-Duty Fold-Down Handles
  • Provides the mobility you need and the stability you require
  • Added Features : 120V GFCI Outlets & Outlet Covers
  • Circuit Breaker Protection - Safer operation for yourself & your tools
  • Hour Meter to track maintenance and fuel usage
  • EPA Certified - Non-CARB Compliant - Not For Sale In CA
  • 2-Year Parts/1-Year Labor Limited Warranty
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
Engine
Engine Brand
Tillotson
Starting System
12-Volt Key Start w/ Recoil
CC
420 CC
Consumer Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Made in USA
No
Weight
190 Pounds
Product Style
Portable Generator
Product Length
28.1 Inches
Product Width
21.6 Inches
Product Height
22.4 Inches
Consumer Warranty
2 Years
UPC
680474076765
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
6000 Watts
Surge Watts
7500 Watts
Fuel Type
Gasoline/LP
LP Fuel Consumption @ 50% Load
0.5 gallons/hr
Rated Amps
25 Amps
Portability Kit
Never Flat Wheels
Tank Size
6.6 Gallons
Run Time @ 50% Load
12 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
Product Specs
+−
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
Engine
Engine Brand
Tillotson
Starting System
12-Volt Key Start w/ Recoil
CC
420 CC
Consumer Engine Warranty
2 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Made in USA
No
Weight
190 Pounds
Product Style
Portable Generator
Product Length
28.1 Inches
Product Width
21.6 Inches
Product Height
22.4 Inches
Consumer Warranty
2 Years
UPC
680474076765
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
6000 Watts
Surge Watts
7500 Watts
Fuel Type
Gasoline/LP
LP Fuel Consumption @ 50% Load
0.5 gallons/hr
Rated Amps
25 Amps
Portability Kit
Never Flat Wheels
Tank Size
6.6 Gallons
Run Time @ 50% Load
12 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
