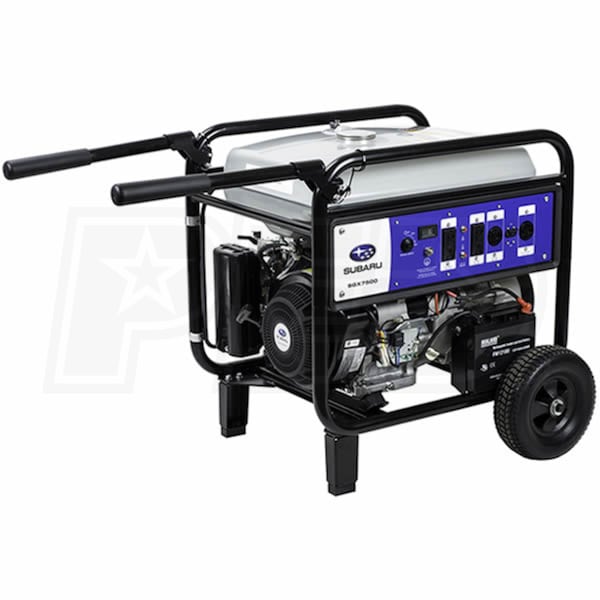

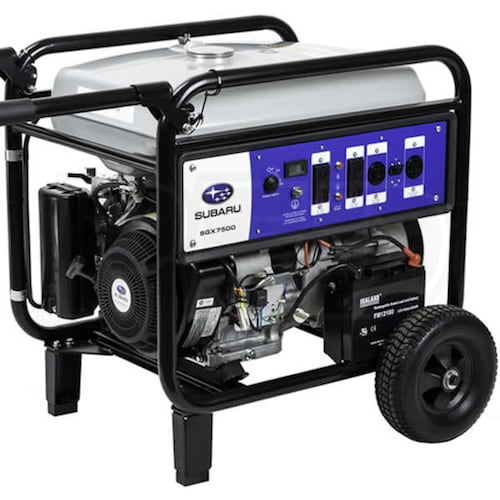

Subaru SGX7500E - 6700 Watt Electric Start Portable Generator

Subaru SGX7500E - 6700 Watt Electric Start Portable Generator
Model: SGX7500E
(Based on expert analysis, manufacturer ratings and customer reviews)
4.0 out of 54.0 out of 54.0 out of 54.0 out of 54.0 out of 5
Number of Reviews (4)
Write A Review
Product Discontinued
Sorry, this product is no longer available.
Discontinued
Sales Tax Extra $2,060.00Visit Site
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • 4
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
6,700
Rated Watts
Surge Watts
7,300
Starting Watts
Fuel
Engine
Robin Subaru
Grade
Semi-Pro
Style
Portable
Run Watts
6,700
Surge Watts
7,300 Starting Watts
Fuel
Gasoline
Engine
Robin Subaru


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Technologically-Advanced Overhead Cam (OHC) Engines
  • Offer quieter operation, easier starting and increased longevity
  • 100% Copper Windings
  • Ensure high-performance with maximum surge capacity
  • GFCI and Twist Lock Receptacles
  • Enhance operator safety
  • Hourmeter
  • Convenient tracking device for important maintenance levels
  • AVR (Automatic Voltage Regulator)
  • Provides precise voltage control output on the generator
  • Makes the system appropriate for sensitive electronic equipment
  • Large Capacity Fuel Tank with Fuel Gauge
  • Lets the operator know current fuel level
  • Two-Wheel Kit w/ Flat-Free Tires
  • Provides enhanced portability and convenience
  • Low Oil Shutdown
  • Automatically shuts off the engine when low oil level is detected
  • U.S. Forestry-Approved Spark Arrestor
  • Reduces the risk of spark-induced fires
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
Engine
Engine Brand
Robin Subaru
Starting System
12-Volt Key Start w/ Recoil
HP
14 HP
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
7300 Watts
Rated Watts
6700 Watts
Fuel Type
Gasoline
Rated Amps
28 Amps
Portability Kit
Never Flat Wheels
Tank Size
8 Gallons
Run Time @ 50% Load
10.4 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
76 dbA
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Semi-Pro
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
Overview
Made in USA
No
Assembly Required
Yes
Weight
229 Pounds
Product Style
Portable Generator
Product Length
30 Inches
Product Width
29 Inches
Product Height
29 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
859723000527
Grade
Style
Run Watts
6,700
Rated Watts
Surge Watts
7,300
Starting Watts
Fuel
Engine
Robin Subaru
Grade
Semi-Pro
Style
Portable
Run Watts
6,700
Surge Watts
7,300 Starting Watts
Fuel
Gasoline
Engine
Robin Subaru


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Technologically-Advanced Overhead Cam (OHC) Engines
  • Offer quieter operation, easier starting and increased longevity
  • 100% Copper Windings
  • Ensure high-performance with maximum surge capacity
  • GFCI and Twist Lock Receptacles
  • Enhance operator safety
  • Hourmeter
  • Convenient tracking device for important maintenance levels
  • AVR (Automatic Voltage Regulator)
  • Provides precise voltage control output on the generator
  • Makes the system appropriate for sensitive electronic equipment
  • Large Capacity Fuel Tank with Fuel Gauge
  • Lets the operator know current fuel level
  • Two-Wheel Kit w/ Flat-Free Tires
  • Provides enhanced portability and convenience
  • Low Oil Shutdown
  • Automatically shuts off the engine when low oil level is detected
  • U.S. Forestry-Approved Spark Arrestor
  • Reduces the risk of spark-induced fires
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
Engine
Engine Brand
Robin Subaru
Starting System
12-Volt Key Start w/ Recoil
HP
14 HP
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
7300 Watts
Rated Watts
6700 Watts
Fuel Type
Gasoline
Rated Amps
28 Amps
Portability Kit
Never Flat Wheels
Tank Size
8 Gallons
Run Time @ 50% Load
10.4 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
76 dbA
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Semi-Pro
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
Overview
Made in USA
No
Assembly Required
Yes
Weight
229 Pounds
Product Style
Portable Generator
Product Length
30 Inches
Product Width
29 Inches
Product Height
29 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
859723000527
Product Specs
+
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
Engine
Engine Brand
Robin Subaru
Starting System
12-Volt Key Start w/ Recoil
HP
14 HP
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
7300 Watts
Rated Watts
6700 Watts
Fuel Type
Gasoline
Rated Amps
28 Amps
Portability Kit
Never Flat Wheels
Tank Size
8 Gallons
Run Time @ 50% Load
10.4 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
76 dbA
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Semi-Pro
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
Overview
Made in USA
No
Assembly Required
Yes
Weight
229 Pounds
Product Style
Portable Generator
Product Length
30 Inches
Product Width
29 Inches
Product Height
29 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
859723000527
Reviews
(4)
+
Subaru SGX7500E Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Portable Generator Expert
icon-social-fb1
+
what is difference between brushed and brushless alternator? What is better? What is thd of this unit.
Johnny Cakes
from New Jersey
September 03, 2012
Answer
True brush type generators are almost obsolete. They used carbon brushes riding on a brass slip ring to collect power from the rotor. Today, there are brushless field generators that take power from the stator and not thru the brush rack. Just about all generators today are brushless field variety but most will still have a pair of brushes on the rotor for field excitation.

None of the above are better or worse than the others. I'm still 'old school' in that I like the old brush type machines as they were great electric motor starters and had clean power output (low THD). My point is - don't be afraid of brushes.

This model is brushless field, with the AVR/excitation forced thru brushes. The resulting power is about 8-10% THD - which is good for a generator. Utility power is less than 5%.
