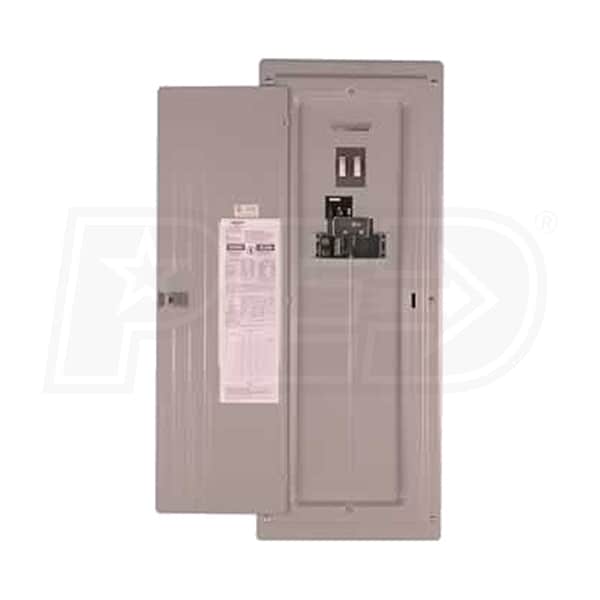

Reliance Controls 200-Amp Indoor Generator-Ready Load Center w/ Watt Meters
Model:
TTV2005C
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features

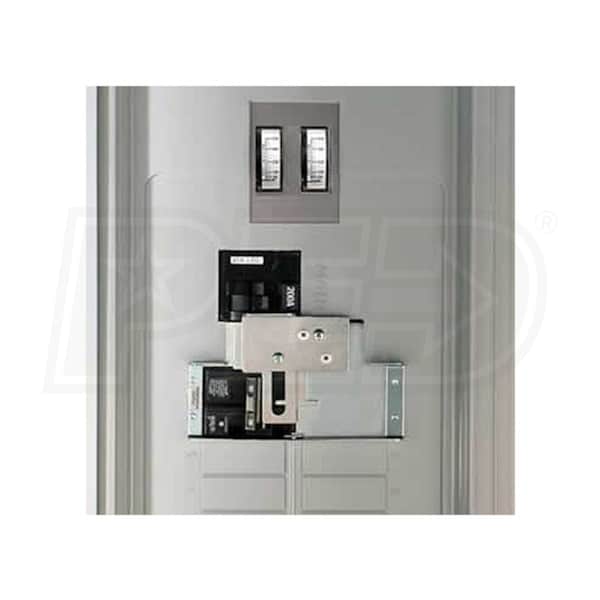

- Reliance Panel/Link®
- Perfect for new construction and/or renovation
- Hardwire to your generator or power inlet box
- This load center replaces your house's standard panel
California residents see
Warning: This product can expose you to chemicals including Wood dust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
TTV2005C
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
46 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
39 Inches
Product Width
14.38 Inches
Product Height
3.94 Inches
UPC
815181010690
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
200 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
36
Max Utility Input
200 Amps
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Reviews
(1)
Reliance Controls TTV2005C Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Jared, the Generator Expert
What kind of breakers can I use with this panel?
Josh
from New York
March 30, 2011
