Q: Can this 50amp inlet box w/flip up lid be mounted sideways and still be a NEMA boc. If so, can you run conduit into what is now the top of the box and stil be UL listed? by Les Grzesik from Illinois on September 03, 2013
A: Thank you for your inquiry!
The PB50 is designed to be installed in a vertical manner, any deviation from this would invalidate the UL listing. Being that the enclosure features overlapping metal lips, installation in a sideways configuration could potentially allow for moisture to infiltrate the enclosure posing significant hazards. by Mike, Product Expert
Q: What size knockouts are on the box? Can I use 1 inch PVC conduit with this box?
by LP from New Jersey on May 21, 2013
A: Thank you for the inquiry!
The Reliance Controls inlet box, PB50 features three knock-out locations. These are fitted with 1/2" and 3/4" options. Unfortunately this box does not feature a 1" knockout.
by Mike, Product Expert
Q: What is the largest, physical wire you can put in this plug? (6ga, 6ga, 1oga. etc) by Delwayne Wright from Missouri on July 11, 2012
A: Minimum size is #8 AWG and the Maximum size is #4 AWG. by Mike, Product Expert
Q: Hi Jim, I am looking at your Generac 15kw. The place of installment has a 200A service with a 50A/240V CB for the stove and a 20A/240V CB for the large door. I do not look forward to wiring a transfer switch inside as the layout is not good. Putting the switch next to the outside box makes more sense to me. What do you recommend? Do you sell a 200A switch without CBs? I do not know what the NEC states but it seems if all circuits already have CBs and as the generator has a CB, it would be safe. Only thing the owner will have to monitor what is on at once. Thanks for your help. Steve by Steve Deckard from California on January 04, 2012
A: The proper switch for this application would be the Reliance Controls TWB2005DR. See link for details:
Mounted between the meter and main for full panel control which is managed by the home owner.
by Mike, Product Expert
Q: Thinking about splicing this into the dryer line to hook up generator for power outage. What say you? by Steve Kreinbrink from Michigan on March 05, 2011
A: This specific product is to be wired to a manual transfer switch and not to be used to back feed into your panel where you can injure a utility worker working on the line. Even though you may turn off the main breaker you are continually connected to the neutral in the panel.
Suppose some appliance you are running has a hot to ground fault. (Not hot to neutral.) Now the hot side is grounded putting your neutral at 120v. Don't depend on the neutral-ground bond in your panel; it depends on too many iffy connections and may not even be required in some jurisdictions. Now you have a hot neutral wire running to your transformer on the pole. Any other fault that connects one of the hot leads of that transformer to ground puts 120v across the secondary (neutral), which puts anywhere from 4000 to 13,000 volts back along the high voltage lines feeding the transformer. So, the breaker in the generator or the breaker in your panel won't trip immediately. by Mike, Product Expert

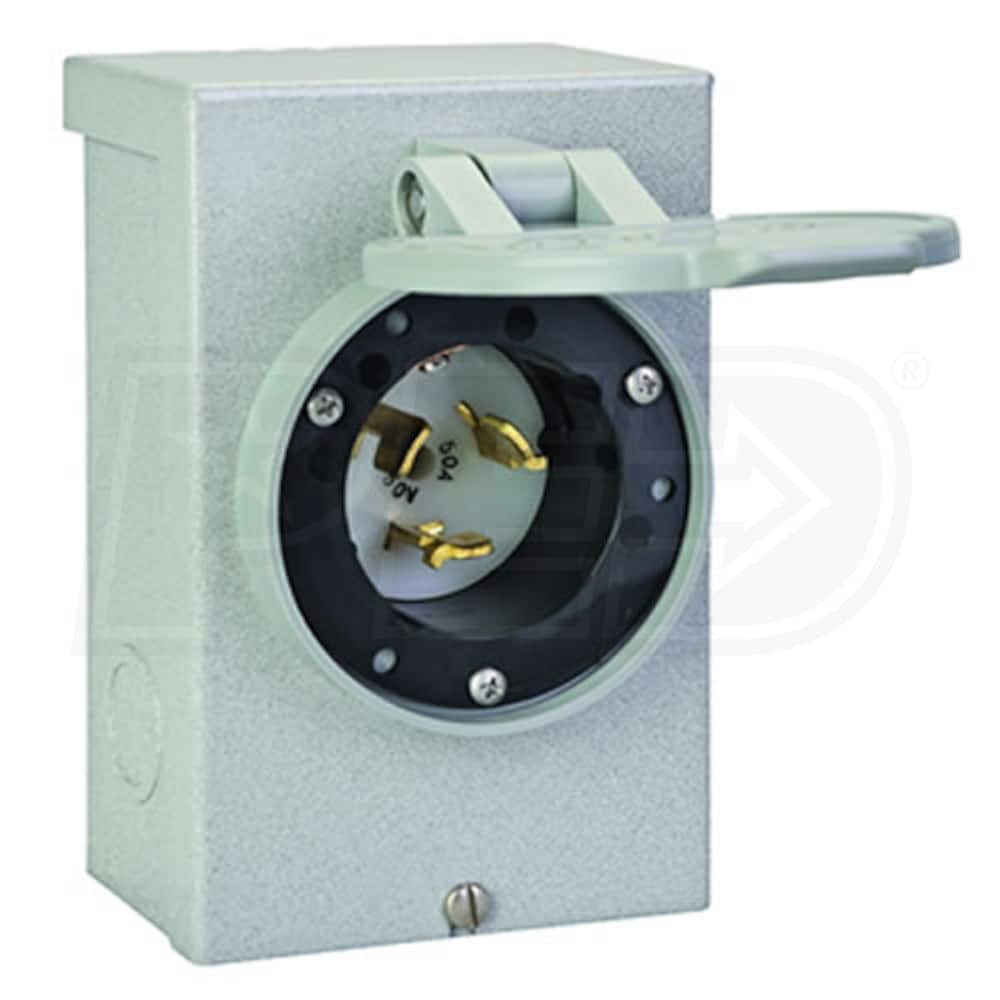

Q: Is this product a 4 prong because the photo shows 3 prongs? by Tim from New York on January 26, 2011
A: The inlet box actually has a 4th prong which is the center post and is the correct connection for a 50A cord. by Mike, Product Expert
50% of respondents would recommend this product to a friend
13 Reviews
Sort by
Karl H. Hoover, AL
Purchased 7/18/12
3 Reviews
REVIEWED
SEP.
19
2012
Needed Power In Case Of Natural Disaster Extended Outage
We have 2 fridge/freezer combos and one stand-up freezer, and a bunch of computer network stuff that has to be up since we have someone that works from home. Gotta have power or you could lose your job.
I got the Generac GP15000E and it supplies a TON of power for what we need - maybe a bit of excess, but we didn't want to take any chances. I hooked it up to a 10-circuit transfer switch via the power inlet box and we are gold. The generator power cord was on backorder for a month so I ordered via a big box store online and it got here in 3 days. Strange.
No issues with the generator. It's heavy... 400 lbs. heavy with a full tank of gas (16 gal). Putting it together was not difficult but I am mechanically inclined. Getting the wheelbase on was the toughest part because of the sheer weight of the unit. I had the main part propped up on a couple of wood crate pallets used to deliver the generator on. No issues with battery cables, bolts, etc. All parts were included. Not sure what some other people are having trouble with.
I put in the transfer switch myself and it was easy as well. Just make sure you know what you're doing - if not, get an electrician. I have an EE degree so I have a good grasp on what to do. The transfer switch works great - all circuits worked fine. I have used it 3 times for testing purposes only (and to show my wife how it works in case I'm not here - and how to get everything going).
The only tough thing would be the gas amount to have on hand if you have an extended outage. It says it should run around 10 hours or so... that's 16 gal of gas. The biggest gas can is 5 gal, so if you need to run it overnight, you'll be out by morning - and if you only have 5 gal tank to refill from, you'll be making multiple trips to the gas station. Guess I need more gas storage containers to solve that problem.... but nothing wrong with the products I purchased.
This was only purchased for emergencies only anyway, so hopefully it won't get a ton of use except for the monthly testing run.
The only thing not shown here is the 10-4 wire I purchased at a big box store (the thick black wire out of the transfer switch to inlet box)... it was routed on top of the basement wall top (it's an unfinished basement right now) and thru the rafters... so it would be out of the way once we finish the basement out in the next month or 2.
We have 2 fridge/freezer combos and one stand-up freezer, and a bunch of computer network stuff that has to be up since we have someone that works from home. Gotta have power or you could lose your job.
I got the Generac GP15000E and it supplies a TON of power for what we need - maybe a bit of excess, but we didn't want to take any chances. I hooked it up to a 10-circuit transfer switch via the power inlet box and we are gold. The generator power cord was on backorder for a month so I... more
Was this review helpful?
75
Dan Hoffman Norman, OK
Purchased 12/7/10
2 Reviews
25 Helpful Votes
REVIEWED
JAN.
15
2011
Greatly Flexible 10-circuit Manual Switch
After numerous years of putting up with dirty power and extended power outages, I realized that I needed a generator backup system. I did not have a lot of cash to spend on this. A logical solution for me was to be as utilitarian as possible.
Our house is just shy of 2200 sqft with a seperate water well and anerobic septic system and most of the modern appliances. In order to be as comfortable as possible and not break the bank I picked a 10-Circuit 50AMP capacity switch made by Reliance Controls, Q510C along with the external 50AMP power receptical, PB50.
I had a certified electrician install it for me. During installation I realized that it was better to install in the PB50 in the slot provided within the Q510C. I had to change out a couple of breakers in order to support both my well and septic, which made me glad that I purchased the Q510C.
After testing the manual transfer switch I am extremely happy! Ten circuits was perfect. I will be marrying it with a 10K generator now that I know what will allow me to run what I need during power outages.
After numerous years of putting up with dirty power and extended power outages, I realized that I needed a generator backup system. I did not have a lot of cash to spend on this. A logical solution for me was to be as utilitarian as possible.
Our house is just shy of 2200 sqft with a seperate water well and anerobic septic system and most of the modern appliances. In order to be as comfortable as possible and not break the bank I picked a 10-Circuit 50AMP capacity switch made by Reliance... more
Was this review helpful?
43
Dean R. Sebastopol, CA
Purchased 11/6/13
REVIEWED
JAN.
08
2014
Not Bad, Missing A Lug Screw
It's compact size is nice, but doesn't give you quite enough room to connect the 6 awg wire necessary for a 50-Amp circuit.
The unit came missing 1 of the lug screws that holds the wire into the back. Be careful, it's really easy to over tighten the lug screws and strip the small plate that pushes against the wire to hold it tight against the connector.
Pros:Features, Fast, Reliable, Easy To Store
Cons:Packaging, Durability, Not Enough Space Missing Lug Screw
Dean Does Not Recommend This Product
Was this review helpful?
84
Peter V. Bowling Green, OH
Purchased 10/30/15
REVIEWED
NOV.
23
2015
Not The Greatest
Box is not deep or big enough, specially if using 6 Ga wire.. Connections are on the back of the plug.. There is maybe 3/8 of an inch between the back of the plug and the back of the box....I would look for something bigger...
Peter Does Not Recommend This Product
Was this review helpful?
20
Charles Gate City, VA
Purchased 12/17/10
4 Reviews
REVIEWED
FEB.
12
2011
Wonderful Combination
I got this generator to augment a 5,000 watt generator. The model 30207 generator is very well built, much better than I expected it to be.
The electric start is a great addition. I wired it to the Q510A transfer switch by way of the PB50 power inlet box. This combination is wonderful and with some wiring knowledge does not really require an expert electrician to preform.
Was this review helpful?
31
Joseph D. Gibbstown, NJ
Purchased 6/29/15
2 Reviews
REVIEWED
AUG.
03
2015
High Quality
liked the product but found that it was hard to install the wires due to the lack of space
Pros:Durable, High Quality
Cons:Difficult To Use, Expensive
Joseph Recommends This Reliance Controls Product
Was this review helpful?
10
Jim Kline Massapequa, NY
Purchased 4/23/10
3 Reviews
REVIEWED
MAY.
15
2010
What Great Service
I placed an order on a Friday and I received everything by the following Wednesday.
The smaller items came by UPS on Tuesday and the generator on Wednesday; everything was in perfect condition- what great service.
I was a little surprised at the size of the generator at first. It's big, but with the wheels on it's well balanced and pretty easy to move around for a 400 lb machine.
Putting it together was easy and after adding the oil and gas it started right up and ran very well and was only as loud as my old Powermate 3500 watt generator- not too bad for a machine this large; in idle mode it's very quiet.
So far I'm very satisfied with the service and products Electric Generators Direct provided me and would recommend your company to anyone who is looking for a generator at a great price.
I placed an order on a Friday and I received everything by the following Wednesday.
The smaller items came by UPS on Tuesday and the generator on Wednesday; everything was in perfect condition- what great service.
I was a little surprised at the size of the generator at first. It's big, but with the wheels on it's well balanced and pretty easy to move around for a 400 lb machine.
Putting it together was easy and after adding the oil and gas it started right up and ran very well and... more
Was this review helpful?
10
Zane
Purchased 12/8/15
REVIEWED
DEC.
23
2015
Disappointed
Box not deep enough for 6 ga wire. Takes time and patience to get it wired in without pinching the wire.
Not used yet. Seems like a good product and is easy to install.
Pros:Durable, Easy To Use, Price
Preston Recommends This Reliance Controls Product
Was this review helpful?
11
Robert H. Abingdon, VA
Purchased 2/6/13
REVIEWED
APR.
11
2013
Generator Installation
A friend of mine wanted a generator for his home due to frequent outages and asked me to help with installation. He had 10 kw generator but needed transfer switch/panel and power inlet box. We got on Electric Generators Direct website and ordered parts and are very pleased with product and service, will use this company again in future. Thanks
