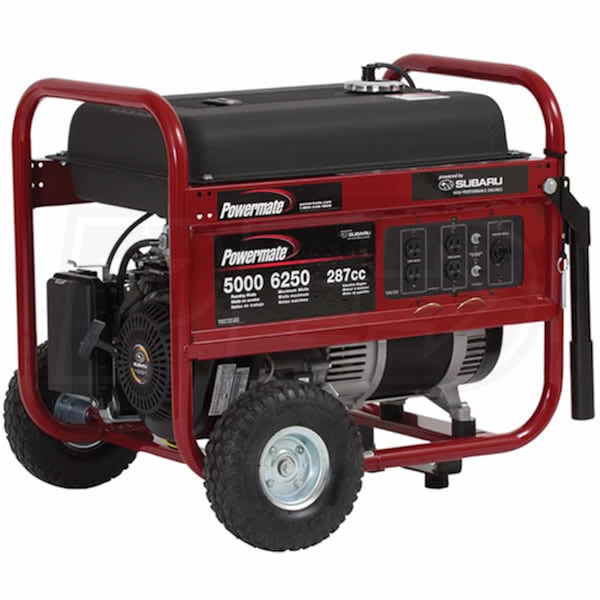

Powermate Px Series 5000 Watt Portable Generator w/ Subaru Engine

Powermate Px Series 5000 Watt Portable Generator w/ Subaru Engine
Our Price
Compare Prices
Shipping Info
Model: PM0435005
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (2)
Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try This Instead
Model:
PM0435005.02
$779.00
Product Discontinued
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
5,000
Rated Watts
Surge Watts
6,250
Starting Watts
Fuel
Engine
Robin Subaru
Grade
Emergency
Style
Portable
Run Watts
5,000
Surge Watts
6,250 Starting Watts
Fuel
Gasoline
Engine
Robin Subaru
Features
Features
  • 287cc Subaru EX30 Engine
  • Longer life, easier maintenance, less noise & fuel efficient
  • Less moving parts for greater reliability & life
  • Quieter operation and reduced emissions helps the environment
  • Low Oil Shutdown
  • Shuts the engine off when low oil level is detected
  • Long Life Alternator w/ Auto Voltage Regulation (AVR)
  • Protects appliances & equipment from harmful voltage swings
  • Circuit Breaker Protection
  • Helps prevent overload to generator
  • 6 Gallon Fuel Tank
  • Provides up to 11.4 hours of run time @ half load
  • Mobility Kit w/ Folding Handles & 10" Wheels
  • Makes moving and storing this generator an easy task
  • Full Tubular Frame
  • Provides added protection during use and transportation
  • Also Includes:
  • 25' - 20A Generator Cord & 1 Qt. Engine Oil
  • Manufactured In Kearney, NE (Foreign & Domestic Parts)
  • 3-Year Warranty
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L14-20R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5000 Watts
Surge Watts
6250 Watts
Fuel Type
Gasoline
Rated Amps
21 Amps
Portability Kit
Pneumatic Wheels
Tank Size
6 Gallons
Run Time @ 50% Load
11.4 Hours
Fuel Tank Material
Plastic
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
72.4 dbA
Hour Meter
No
Lifting Eye
No
Battery
Not Applicable
Grade Type
Emergency
Engine
Engine Brand
Robin Subaru
Starting System
Recoil Start
CC
287 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
162 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
29 Inches
Product Width
21 Inches
Product Height
25 Inches
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-20R
1
Grade
Style
Run Watts
5,000
Rated Watts
Surge Watts
6,250
Starting Watts
Fuel
Engine
Robin Subaru
Grade
Emergency
Style
Portable
Run Watts
5,000
Surge Watts
6,250 Starting Watts
Fuel
Gasoline
Engine
Robin Subaru
Features
Features
  • 287cc Subaru EX30 Engine
  • Longer life, easier maintenance, less noise & fuel efficient
  • Less moving parts for greater reliability & life
  • Quieter operation and reduced emissions helps the environment
  • Low Oil Shutdown
  • Shuts the engine off when low oil level is detected
  • Long Life Alternator w/ Auto Voltage Regulation (AVR)
  • Protects appliances & equipment from harmful voltage swings
  • Circuit Breaker Protection
  • Helps prevent overload to generator
  • 6 Gallon Fuel Tank
  • Provides up to 11.4 hours of run time @ half load
  • Mobility Kit w/ Folding Handles & 10" Wheels
  • Makes moving and storing this generator an easy task
  • Full Tubular Frame
  • Provides added protection during use and transportation
  • Also Includes:
  • 25' - 20A Generator Cord & 1 Qt. Engine Oil
  • Manufactured In Kearney, NE (Foreign & Domestic Parts)
  • 3-Year Warranty
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L14-20R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5000 Watts
Surge Watts
6250 Watts
Fuel Type
Gasoline
Rated Amps
21 Amps
Portability Kit
Pneumatic Wheels
Tank Size
6 Gallons
Run Time @ 50% Load
11.4 Hours
Fuel Tank Material
Plastic
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
72.4 dbA
Hour Meter
No
Lifting Eye
No
Battery
Not Applicable
Grade Type
Emergency
Engine
Engine Brand
Robin Subaru
Starting System
Recoil Start
CC
287 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
162 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
29 Inches
Product Width
21 Inches
Product Height
25 Inches
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-20R
1
Product Specs
+
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L14-20R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
5000 Watts
Surge Watts
6250 Watts
Fuel Type
Gasoline
Rated Amps
21 Amps
Portability Kit
Pneumatic Wheels
Tank Size
6 Gallons
Run Time @ 50% Load
11.4 Hours
Fuel Tank Material
Plastic
Fuel Gauge
No
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
72.4 dbA
Hour Meter
No
Lifting Eye
No
Battery
Not Applicable
Grade Type
Emergency
Engine
Engine Brand
Robin Subaru
Starting System
Recoil Start
CC
287 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
162 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
29 Inches
Product Width
21 Inches
Product Height
25 Inches
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-20R
1
Reviews
(2)
+
Powermate PM0435005 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
Jim, I recently purchased this house with a Transfer switch for the emergency generator rated at 5000W. Can I use a higher rated portable Generator? Most 5000kw show a surge of up to 6000 on some. Would any surge above 5000 trip the breaker at the transfer switch? I do want bare minimum to get by in case of power outage. Its wired for the well pump, refrigerator, one kitchen plug in, one outlet for freezer and one outlet for bedroom. I have found some good buys on 5500W Gens, but this may be too much for my transfer switch?
Mike
from Georgia
January 05, 2013
Answer
This will depend on the amperage rating of the transfer switch.

If you have a 30A rated transfer switch you can go up to 7500 watts.

If you have a 20A rated transfer switch you can go up to 4800 watts.

(Ohms Law - Amps x Volts = Watts)

The size of the generator really does not matter due to Ohms Law. Most generators rated from 5000 up to 8000 watts have a 30A outlet as their largest outlet to connect to a transfer switch. This allows a maximum wattage capacity output of 7500 watts.

The rule of thumb when sizing a generator is to size it to 80% of its running capacity so the unit has the flexibility to handle starting loads with ease. If a generator has to jump into its surge capacity the output voltage will drop 30% due to the strain on the alternator to produce this starting current. This is why the rule of thumb is based on the running load and not the starting load.

Anything connected to the generator that is sensitive electronics can be damaged if the generator goes into its surge load. A surge load is typically used for motor load starting such as a well pump, refrigerator compressor motor or sump pump.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
