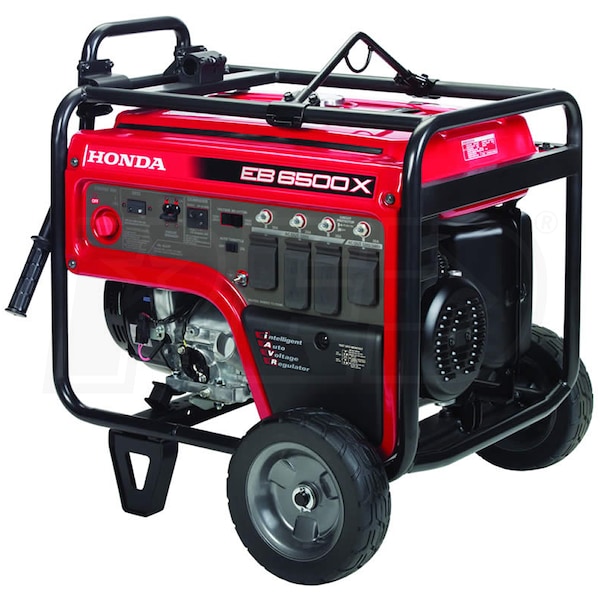

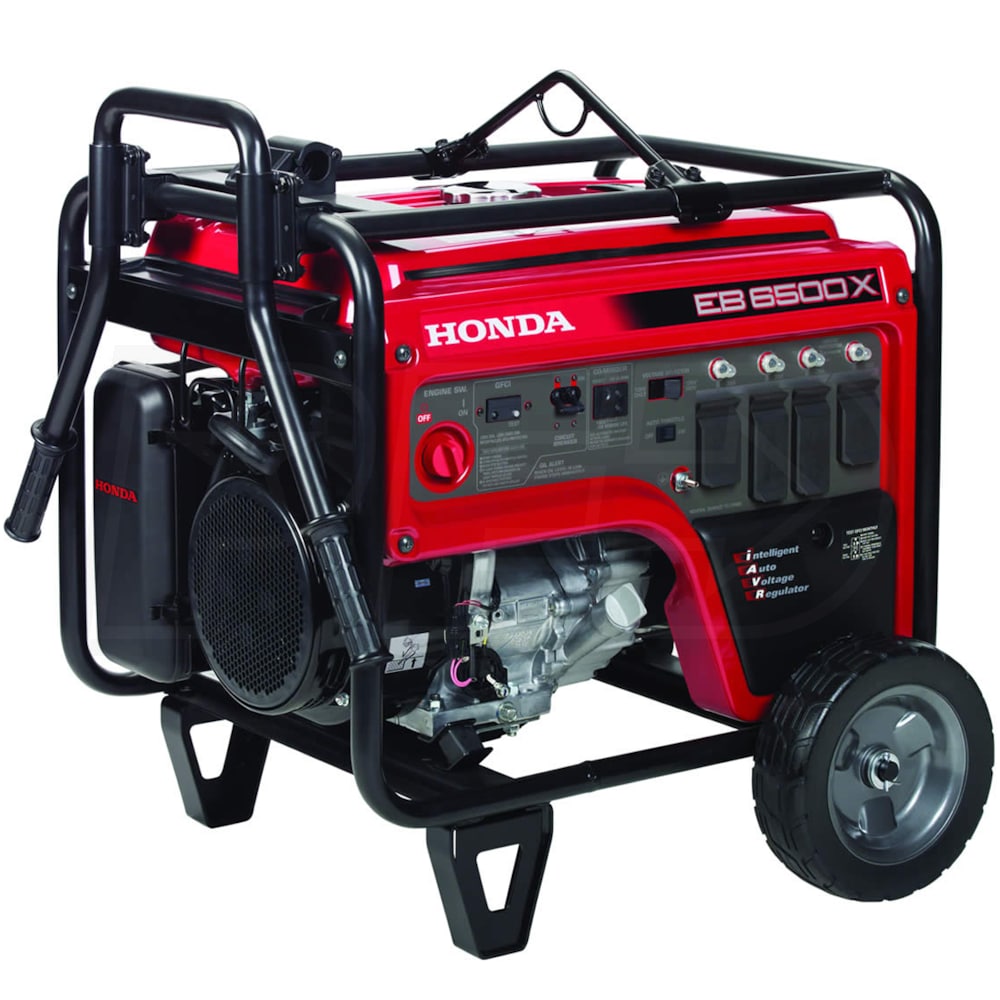

Honda EB6500X - 5500 Watt Portable Industrial Generator w/ CO-MINDER™ & GFCI Protection (49-State)

Model:

EB6500X1AN

Write a Review
$2,899.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
In-Stock
Ships in 1-2 Business Days
Shipping to60601
Honda EB6500X - 5500 Watt Portable Industrial Generator w/ CO-MINDER™ & GFCI Protection (49-State)
Honda EB6500X - 5500 Watt Portable Industrial Generator w/ CO-MINDER™ & GFCI Protection (49-State)
Model: EB6500X1AN
$2,899.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Portable

Run Watts

5,500 Rated Watts

Surge Watts

6,500
Starting Watts

Fuel

Gasoline

Engine

Honda iGX

  • Honda EB6500 Portable Industrial Generator
  • Ideal for power on the job site
  • iAVR (Intelligent Automatic Voltage Regulator)
  • Ensures a consistent flow of power regardless of load
  • Protection for sensitive equipment and reliable power for you
  • iVAR Bump - 7,000 Watts For Up To 10 Seconds
  • Provides the ability to start high amp draw tools and motors
  • 389cc Honda iGX360 OHV 4-Cycle Engine
  • Digital CDI ignition system provides improved ignition timing
  • Integrated ECU with a self-tuning regulator/governor system
  • Oil Alert® Warning System
  • Shuts the engine down if oil reaches an unsafe operating level
  • Prevent engine damage from overheating due to lack of oil
  • 6.2-Gallon Fuel Tank w/ Fuel Gauge
  • Provides up to 9.8 hours of run time @ 50% load
  • Auto Throttle® System
  • Reduces engine speed when no load is present
  • CO-Minder™ Advanced Carbon Monoxide Detection System
  • Continuously measures CO levels & shuts down at high levels

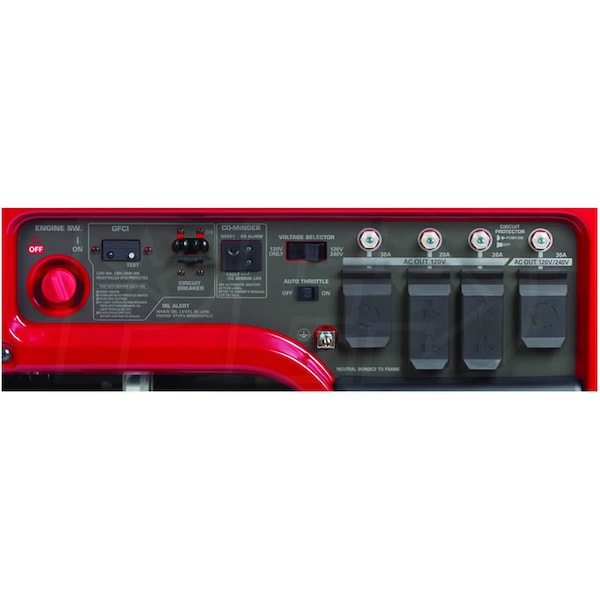

  • Voltage Selector Switch - 120/240V Operation
  • Gives you more usable power and added flexibility
  • Full Panel GFCI Protection - OSHA Compliant
  • Must use GFI type manual transfer switch for panel connection
  • Not for use with interlock kit
  • USDA-Qualified Spark Arrestor/Muffler
  • Provides quieter and safer operation
  • One-Piece Welded Steel Frame
  • Keeps the generator safe no matter where it is
  • Wheel Kit, Folding Handle & Lifting Eye
  • Makes this generator easy to transport
  • 3 Year Commercial/Residential Warranty
  • ***Please Note - Not For Resale***
  • Non-CARB Compliant - Not For Sale In CA
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm, and Soots, tars, and mineral oils (untreated and mildly treated oils and used engine oils) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
EB6500X1AN
specs product image PID-112656
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
5500 Watts
Surge Watts
6500 Watts
Fuel Type
Gasoline
Rated Amps
23 Amps
Portability Kit
Solid Rubber
Tank Size
6.2 Gallons
Run Time @ 50% Load
9.8 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
No
Voltage Meter
No
Lifting Eye
Yes
Neutral Type
Bonded
Battery
Not Applicable
Grade Type
Professional
CO Sensing
Yes
Engine
Engine Brand
Honda iGX
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
215.8 Pounds
CA (CARB) Compliant
No
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
41.4 Inches
Product Style
Portable Generator
Product Width
27.8 Inches
Product Height
30.4 Inches
UPC
786102009003
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
