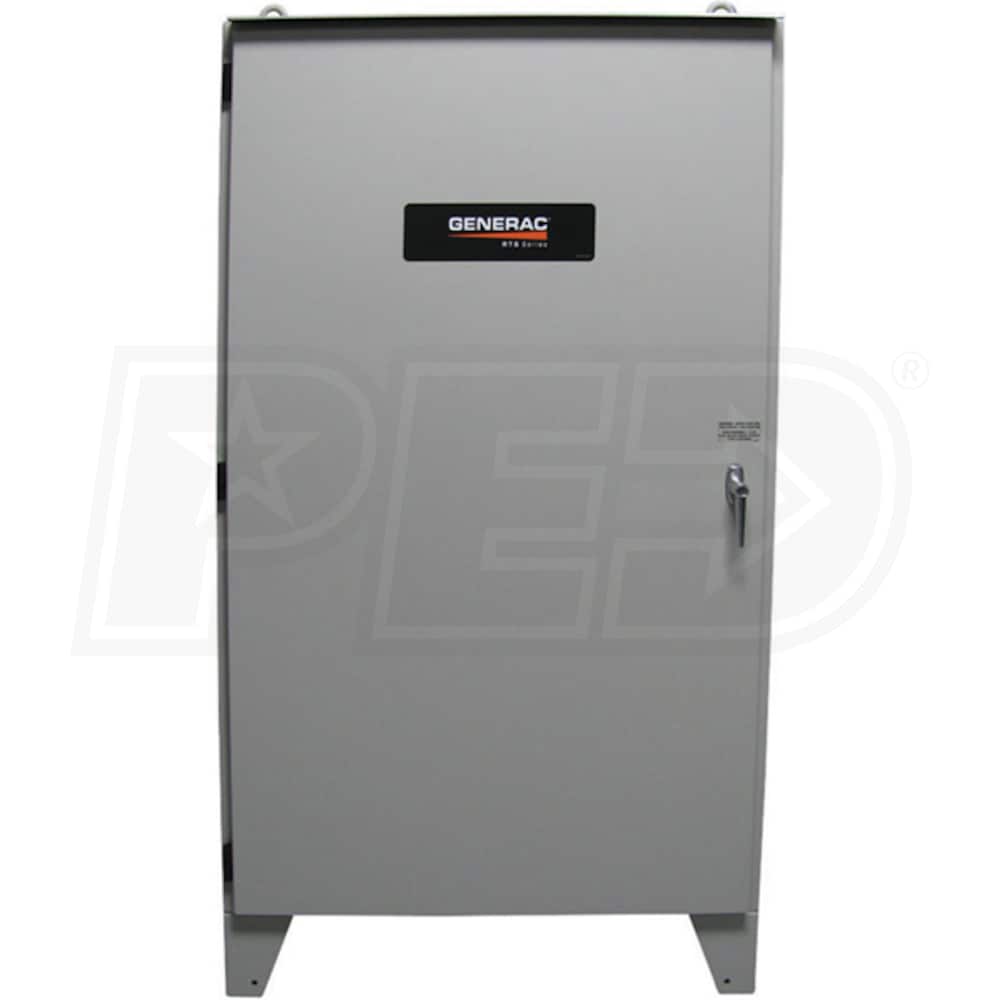

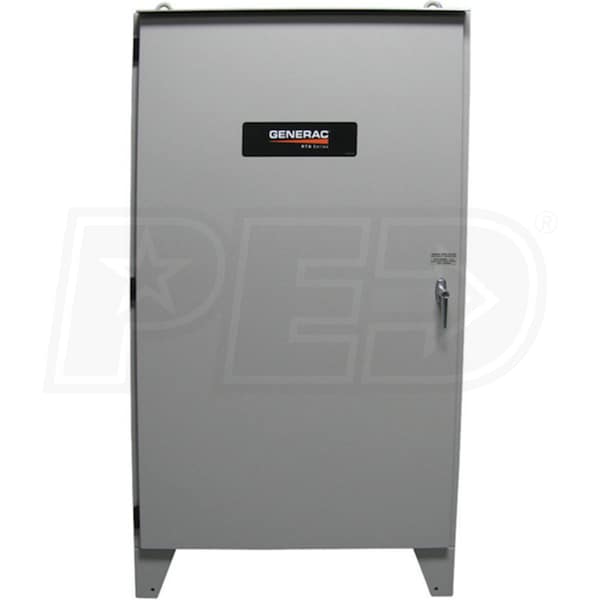

Generac 600-Amp Automatic Smart Transfer Switch w/ Power Management (120/240V 1P)

Model:

RTSC600A3

Write a Review
$4,899.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 6-8 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
$62 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Learn More Installation
Generac 600-Amp Automatic Smart Transfer Switch w/ Power Management (120/240V 1P)
Generac 600-Amp Automatic Smart Transfer Switch w/ Power Management (120/240V 1P)
Model: RTSC600A3
$4,899.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Type

Standard

Amp Rating

600

Load Mgmt.

Built-In

Enclosure

NEMA 3R

  • 600-Amp Automatic Smart Transfer Switch w/ Power Management
  • Only works with 120/240 Single-Phase generators
  • Compatible w/ all Generac 22-150kW liquid-cooled models
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • Digital Power Management Technology (DPM)
  • Allows your generator to work smarter, not harder
  • Be Smart....Get More Out Of Your Generator
  • Cycles power on and off as needed for different appliances
  • Manage Up To (2) Individual HVAC Loads - No Hardware Rec'd
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Up To (4) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • NEMA 3R Indoor/Outdoor Rated Enclosure
  • Heavy-duty, lockable steel design provides added security
  • Tech Spec Summary: Only For Use w/ Generac Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 42,000 Amps --- Lug Range: 1/0 - 500 MCM
  • 5-Year Limited Warranty - UL Listed
California residents see
Warning: This product can expose you to chemicals including Di-n-butyl phthalate (DBP) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RTSC600A3
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
144000 Watts
Rated Amps
600 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
No
Max Utility Input
600 Amps
Max Generator Input
600 Amps
Maximum Wattage
144000 Watts
UL Listed
Yes
Overview
Weight
439 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
66 Inches
Product Width
36 Inches
Product Height
21 Inches
UPC
696471619874
