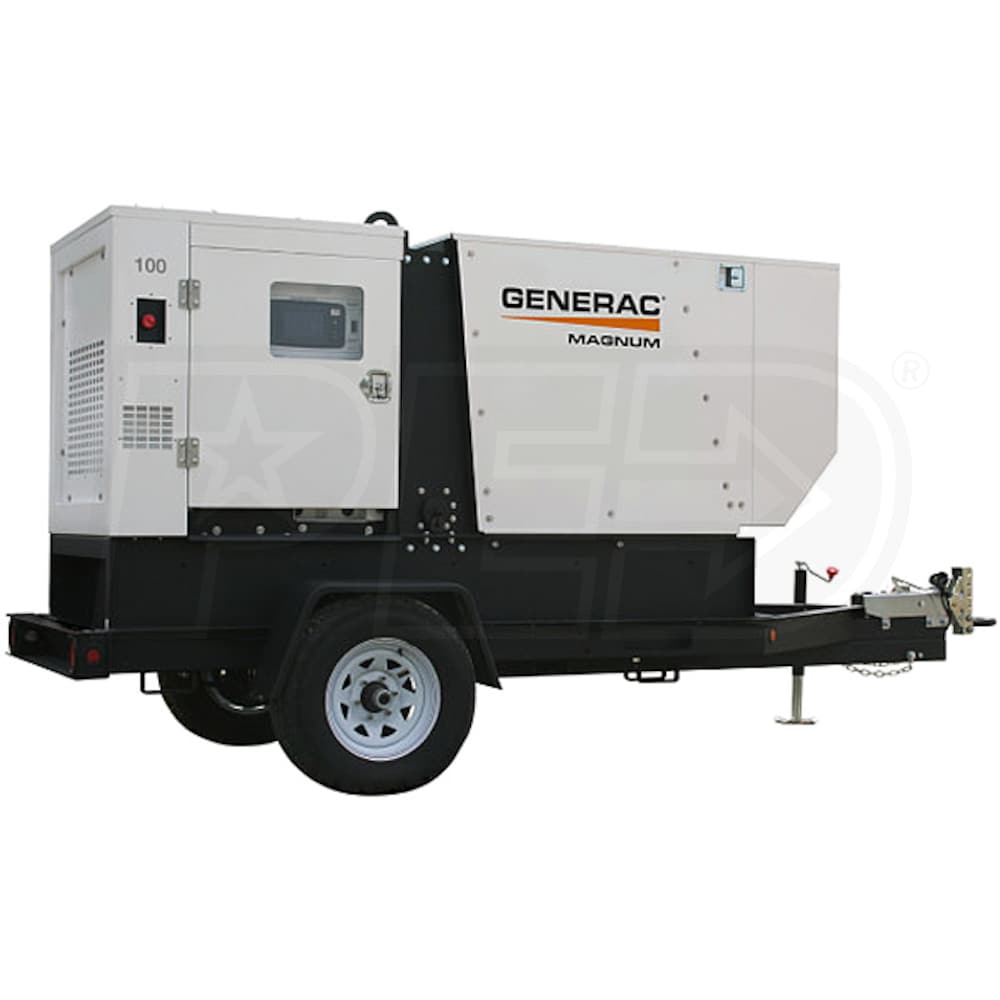

Generac MMG100D - 78kW (Prime) / 86kW (Standby) Towable Diesel Generator w/ John Deere Engine

Model:

MMG100

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Generac MMG100D - 78kW (Prime) / 86kW (Standby) Towable Diesel Generator w/ John Deere Engine
Generac MMG100D - 78kW (Prime) / 86kW (Standby) Towable Diesel Generator w/ John Deere Engine
Model: MMG100
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Grade

Professional

Style

Tow-Behind

Run Watts

78,000 Rated Watts

Surge Watts

86,000
Starting Watts

Fuel

Diesel

Engine

John Deere

  • Generac Magnum MMG100D Mobile Diesel Generator
  • Designed & engineered for optimum performance & reliability
  • Marathon Electric SUPERSTART Brushless Alternator - Multi-Phase Output
  • Three-Phase: 78 kW / 98 kVA (Prime), 86 kW / 107 kVA (Standby)
  • Single-Phase: 71 kW / 71 kVA (Prime), 75 kW / 75 kVA (Standby)
  • Magnum PM600 Voltage Regulator Voltage Regulator
  • Provides Voltage regulation of +/- 0.5% for cleaner power
  • 3-Position Voltage Selector Switch
  • Single Phase - 120/240V Zig Zag, 3-Phase - 120/208V Low Wye & 3-Phase 277/480V High Wye
  • 4.5L John Deere® Turbocharged, After-Cooled Diesel Engine (EPA Tier 4 Final)
  • Fuel efficient design runs at 1800 RPM for extended engine life
  • Rubber vibration dampers isolate engine/generator from frame for quieter operation
  • 165-Gallon Polyethylene Internal Fuel Tank w/ 3.5" Fill Port
  • Provides up to 24 hours of run time @ 100% load
  • Power Zone® Generator Controller w/ Color LCD Display
  • Push buttons for easy operation; Manual or Auto Start, Engine Start, Stop/Reset, Alarm Mute
  • Automatic coarse voltage adjustment and Integrated fine voltage adjustment
  • Scrolling Arrows for Diagnostic Information; Engine and Generator diagnostics
  • *Please see spec sheet for additional controller information
  • 9-Warning & Shutdown Alarms w/ 250-Event (Date/Time Stamp) History Log
  • Provides safer operation by monitoring engine and generator systems
  • 400A Main Breaker With Shunt Trip
  • Lockable control box door w/ diagnostics window; Remote Start/Stop contacts located in lug box
  • Lockable lug box with safety switch; Output ground connection lug inside lug box
  • (2) 120V 20A GFCI Duplex Outlets (5-20R) & (3) 240V 50A (Non-Nema 6369) Twistlock Outlets
  • Individually breakered for added safety during operation
  • Sound Attenuated Aluminum Enclosure - 68 dB(A) @ 23' (Prime Power)
  • Powder-coated, UV and fade resistant paint for exterior/interior of enclosure
  • Fully-lockable (enclosure & fuel fill), insulated & baffled w/ central lifting point
  • External Emergency Stop Switch; Multi-lingual operating/safety decals
  • DOT Approved Tubular Steel Trailer w/ 3" Lunette Ring Hitch
  • Transportation tie downs, Safety chains w/ spring-loaded hooks
  • Tail, side, brake, and directional lights; Recessed rear lights
  • 15" ST225/75R15 - tubeless tires - 8 ply & Single wall polyethylene fenders
  • CUSTOMERS MUST UNLOAD FROM FREIGHT CARRIER
  • 2-Year / 2,000 Hour Limited Warranty

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
CS6364/5
CS6364/5
CS6364/5
MMG100
specs product image PID-71668
Overview
Weight
4480 Pounds
Certification
EPA Tier 4
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Towable Generator
Product Length
170 Inches
Product Width
69 Inches
Product Height
80 Inches
UPC
696471067897
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
78000 Watts
Surge Watts
86000 Watts
Fuel Type
Diesel
Diesel Fuel Consumption @ 50% Load
4.7 gallons/hr
Tank Size
165 Gallons
Run Time @ 50% Load
53 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Included
Circuit Breaker Size
400 Amps
Grade Type
Professional
Engine
Engine Brand
John Deere
Starting System
12-Volt Key Start
HP
121 HP
CC
4500 CC
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Plugs
NEMA 5-20R - GFCI
2
CS6364/5 - 50-Amp Twistlock
3
