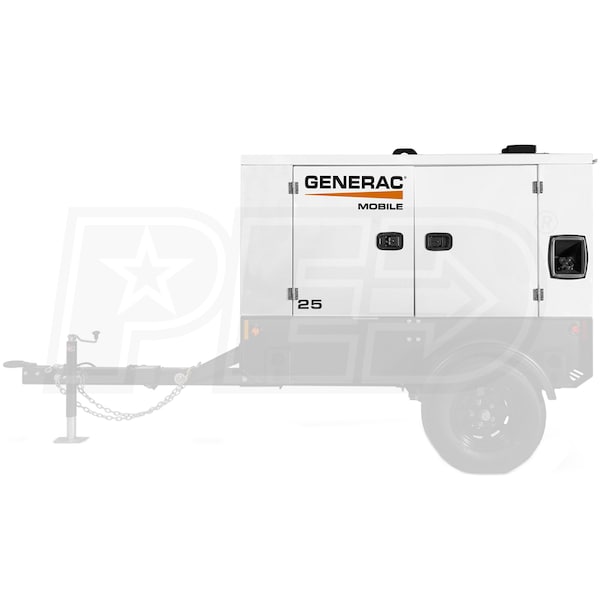

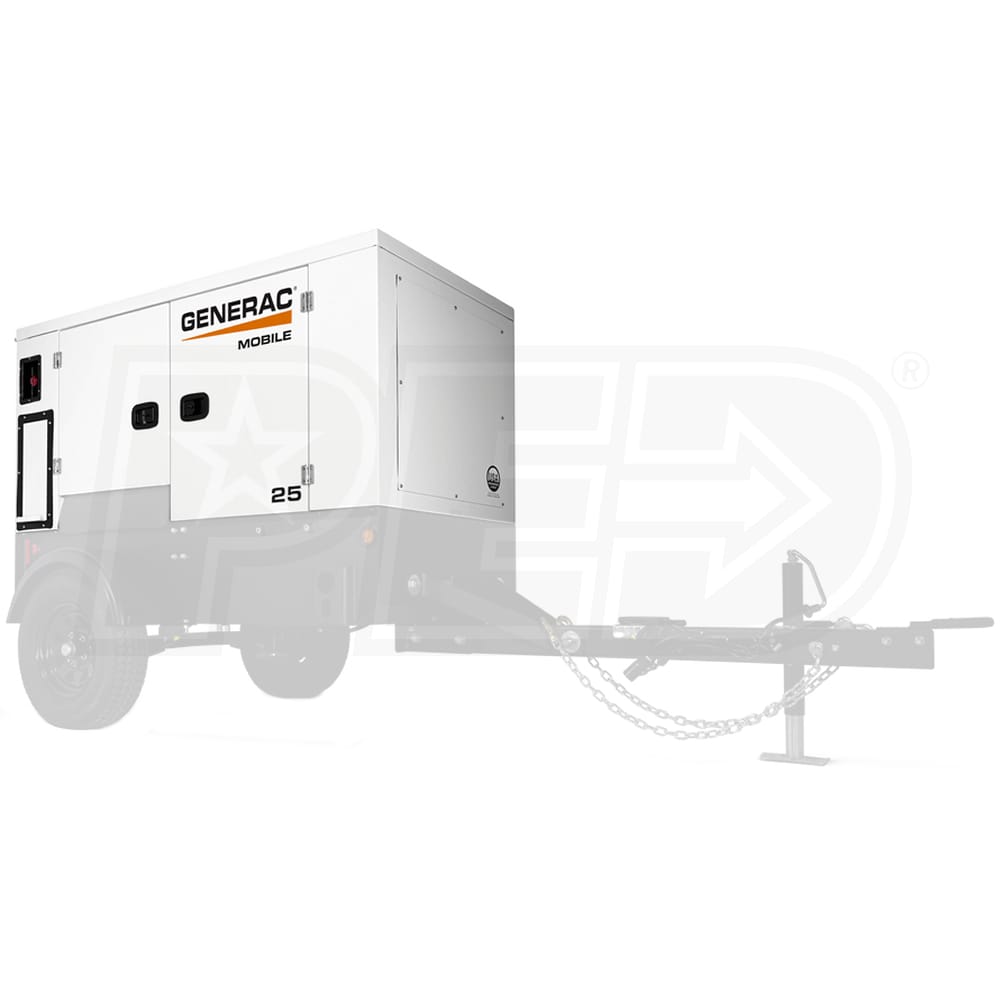

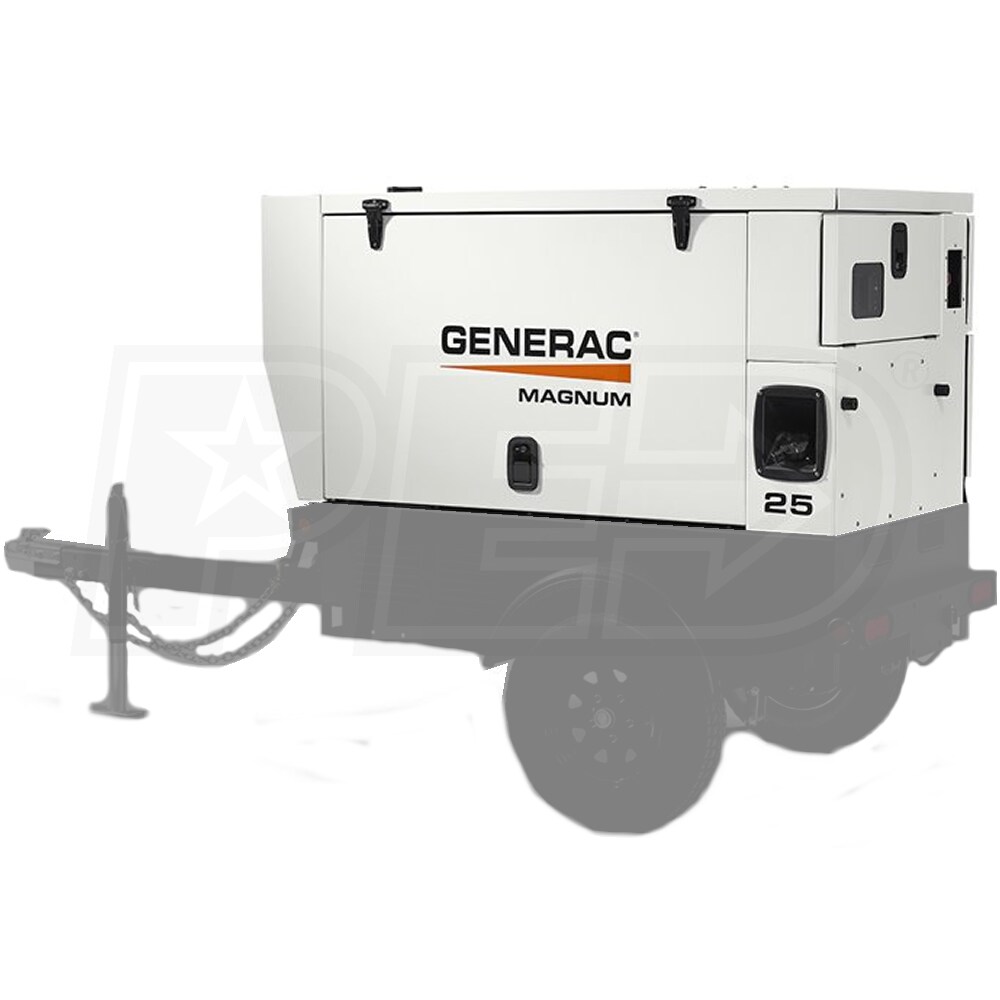

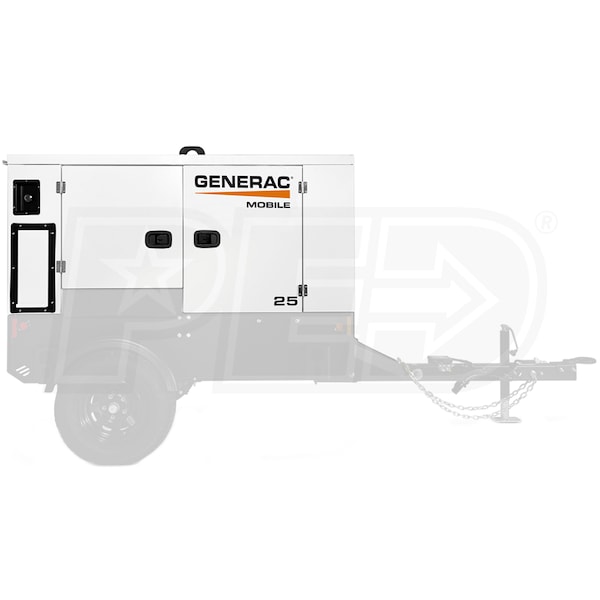

Generac 20kW (Prime) / 25kW (Standby) Skid-Mount Diesel Generator w/ Isuzu Engine

Model:

MDG25IF4

Write a Review
$24,999.00
Free Shipping
  Learn More About Free Freight
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer. Shipping times vary.
synchrony card logo
$313 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Generac 20kW (Prime) / 25kW (Standby) Skid-Mount Diesel Generator w/ Isuzu Engine
Generac 20kW (Prime) / 25kW (Standby) Skid-Mount Diesel Generator w/ Isuzu Engine
Model: MDG25IF4
$24,999.00
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Grade

Professional

Style

Tow-Behind

Run Watts

20,000 Rated Watts

Surge Watts

25,000
Starting Watts

Fuel

Diesel

Engine

Isuzu

  • Generac Mobile MDG25IF4 Skid-Mount Diesel Generator
  • Designed & engineered for optimum performance & reliability
  • Marathon Electric® Brushless Alternator - Multi-Phase Output
  • Three-Phase: 20 kW / 25 kVA (Prime), 25 kW / 31 kVA (Standby)
  • Single-Phase: 20 kW / 20 kVA (Prime), 25 kW / 25 kVA (Standby)
  • PM600 Voltage Regulator
  • Provides Voltage regulation of +/- 0.5% for cleaner power
  • 3-Position Voltage Selector Switch
  • Single Phase - 120/240V Zig Zag, 3-Phase - 120/208V Low Wye & 3-Phase 277/480V High Wye
  • 2.2L IsuzuŽ Turbocharged, After-Cooled Diesel Engine (EPA Tier 4 Final)
  • Fuel efficient design runs at 1800 RPM for extended engine life
  • Rubber vibration dampers isolate engine/generator from frame for quieter operation
  • 56-Gallon Polyethylene Internal Fuel Tank w/ 3.5" Fill Port
  • Provides up to 28 hours of run time @ 100% load
  • Deep SeaŽ Controller w/ 4-Line Back-lit LCD Text Display
  • Push buttons for easy operation; Manual or Auto Start, Engine Start, Stop/Reset, Alarm Mute
  • Scrolling Arrows for Diagnostic Information; Engine and Generator diagnostics
  • *Please see spec sheet for additional controller information
  • 13-Warning & Shutdown Features w/ Date/Time Stamp History Log
  • Provides safer operation by monitoring engine and generator systems
  • 125A Main Breaker With Shunt Trip
  • Lockable control box door w/ diagnostics window; Remote Start/Stop contacts located in lug box
  • Lockable lug box with safety switch; Output ground connection lug inside lug box
  • (2) 120V 20A GFCI Duplex Outlets (5-20R) & (3) 240V 50A (Non-Nema 6369) Twistlock Outlets
  • Individually breakered for added safety during operation
  • Sound Attenuated Aluminum Enclosure - 67 dB(A) @ 23' (Prime Power)
  • Powder-coated, UV and fade resistant paint for exterior/interior of enclosure
  • Fully-lockable (enclosure & fuel fill), insulated & baffled w/ central lifting point
  • External Emergency Stop Switch; Multi-lingual operating/safety decals
  • CUSTOMERS MUST UNLOAD FROM FREIGHT CARRIER
  • 2-Year / 2,000 Hour Limited Warranty
  • *Please Note Trailer Not Included
California residents see
Warning: This product can expose you to chemicals including Diesel engine exhaust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
CS6369 (50-Amp Twistlock)
CS6369 (50-Amp Twistlock)
CS6369 (50-Amp Twistlock)
MDG25IF4
specs product image PID-96059
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
20000 Watts
Surge Watts
25000 Watts
Fuel Type
Diesel
Diesel Fuel Consumption @ 50% Load
1.1-1.2 gallons/hr
Tank Size
56 Gallons
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
67
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Included
Enclosure
Aluminum
Grade Type
Professional
Engine
Engine Brand
Isuzu
Starting System
12-Volt Key Start
CC
2200 CC
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
1977 Pounds
Certification
EPA Tier 4
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
70 Inches
Product Style
Skid-Mount Generator
Product Width
35 Inches
Product Height
48 Inches
Plugs
NEMA 5-20R - GFCI
2
CS6369 - 50-Amp Twistlock
3
