Generac GP6500E - 6500 Watt Electric Start Portable Generator w/ Power Transfer Kit

Generac GP6500E - 6500 Watt Electric Start Portable Generator w/ Power Transfer Kit
Model: EGD-5941KIT
$1,248.00
Only 4 In-Stock
Ships Tuesday, Apr 24th
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Add-Ons
Extended Warranty
Excludes CA

Only 4 In-Stock
Ships Tuesday, Apr 24th
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • 3
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
6,500
Rated Watts
Surge Watts
8,000
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
6,500
Surge Watts
8,000 Starting Watts
Fuel
Gasoline
Engine
Generac
Features
Features

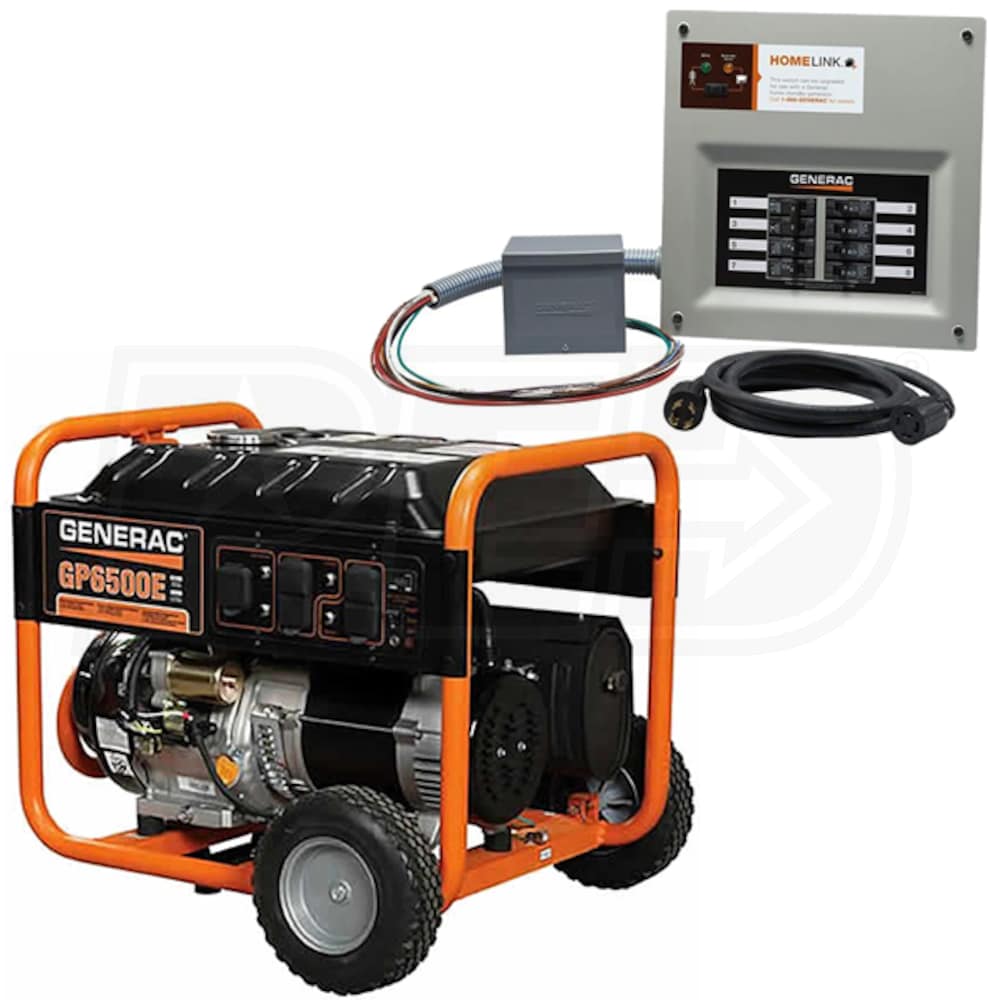

  • Emergency Power Bundle (Generator & Power Transfer Kit)
  • Provide emergency power to your panel when you need it most

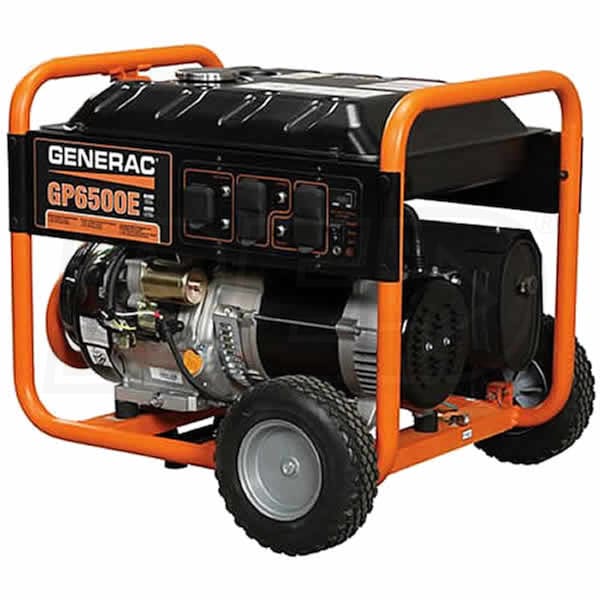

  • 6500 Watt Electric Start Portable Generator (Battery Included)
  • Start the generator with the press of a button w/ recoil backup
  • Generac OHV Engine w/ Low Oil Shutdown
  • Prevents engine damage and provides longer engine life
  • 7.2-Gallon Steel Fuel Tank w/ Fuel Gauge
  • Provides up to 10 hours of power at 1/2 load
  • Heavy-Duty Cradle & Mobility Kit
  • Protects the generator and makes it easy to move

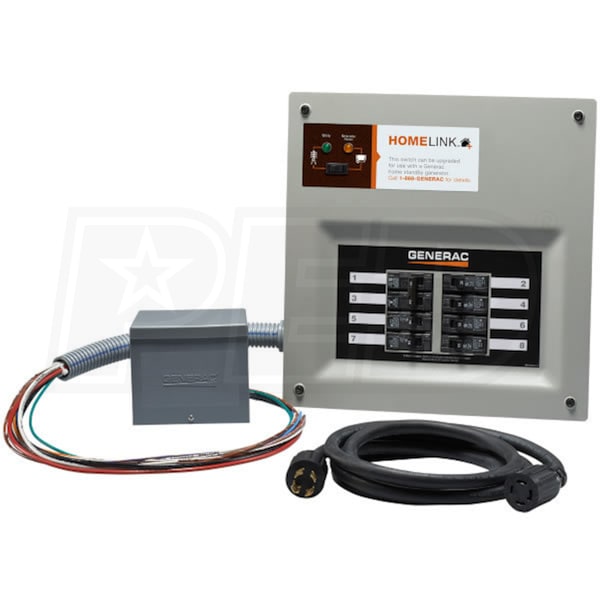

  • Pre-Wired 30-Amp Manual Transfer Kit For 6-10 Circuits (6853)
  • Interchangeable breakers make it easy to reconfigure or expand
  • Power Transfer Kit Includes:
  • 30-Amp Manual Transfer Switch
  • 30-Amp Non-Metallic Power Inlet Box (Must Be Hardwired)
  • 10' 30-Amp (L14-30) Power Cord
  • Wiring Harness & Connectors, Conduit and Fittings
  • Installation Manual
  • PLEASE NOTE - Requires 2-Pole 50-Amp Breaker in Main Load Center
  • 2 Year Warranty (Generator) & 5 Year Warranty (Transfer Switch)
  • Product Includes
    • (1) Generac GP6500E - 6500 Watt Electric Start Portable Generator (5941)
    • (1) Generac 6853 - 30-Amp HomeLink™ Upgradeable Pre-Wired Manual Transfer Switch System (6853)
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L14-30R
Engine
Engine Brand
Generac
Starting System
12-Volt Button Start w/ Recoil
CC
389 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
8000 Watts
Rated Watts
6500 Watts
Fuel Type
Gasoline
Rated Amps
27 Amps
Portability Kit
Never Flat Wheels
Tank Size
7.2 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Transfer Switch
Manual (Included)
Battery
Included
Grade Type
Emergency
Transfer Switch Circuits
15A 120V
2
20A 120V
2
20A 240V
1
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
Overview
Made in USA
No
Assembly Required
Yes
Weight
195 Pounds
Product Style
Portable Generator
Product Length
27.25 Inches
Product Width
27 Inches
Product Height
25 Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year
GP6500E Specifications
Engine
Engine Brand
Generac
Starting System
12-Volt Button Start w/ Recoil
CC
389 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
8000 Watts
Rated Watts
6500 Watts
Fuel Type
Gasoline
Rated Amps
27 Amps
Portability Kit
Never Flat Wheels
Tank Size
7.2 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
Overview
Made in USA
No
Assembly Required
Yes
Weight
195 Pounds
Product Style
Portable Generator
Product Length
27.25 Inches
Product Width
27 Inches
Product Height
25 Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year
6853 Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Number of Circuit Breakers
8
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
5
20A 120V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Overview
Made in USA
Yes
Weight
27.5 Pounds
Product Length
15.4 Inches
Product Width
15.8 Inches
Product Height
4 Inches
Consumer Warranty
5 Years
