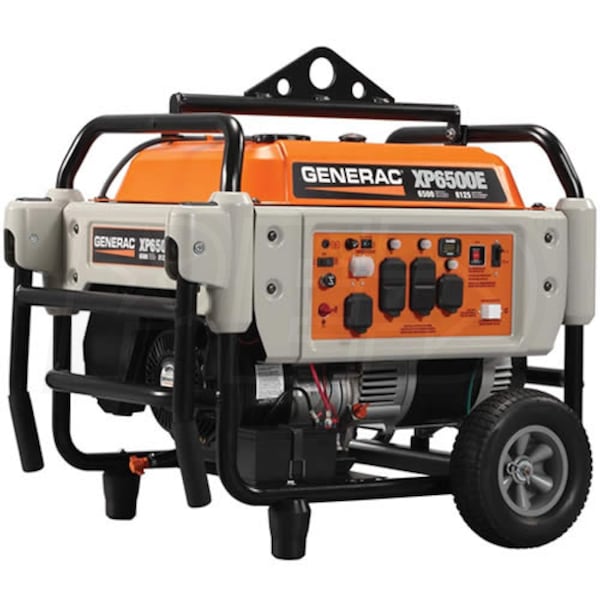

Generac XP6500E - 6500 Watt Electric Start Professional Portable Generator (CA Compliant)

Generac XP6500E - 6500 Watt Electric Start Professional Portable Generator (CA Compliant)
Model: 5934
Sold Out
Sorry, this product is no longer available.
Sold Out

(as of 06:57 CST - Details) Sales Tax Extra $2,149.00Visit Site
Sales Tax Extra $2,149.00Visit Site
Sales Tax Extra $2,149.00Visit Site
Discontinued
Sorry, this product is no longer available
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • 1
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
6,500
Rated Watts
Surge Watts
8,125
Starting Watts
Fuel
Engine
Features
Features
  • XP Series Professional Grade Portable Generator (CARB Compliant)
  • Engineered specifically with contractors in mind
  • Electric Start w/ Recoil Backup (Battery Included)
  • Makes starting as easy as pushing a button
  • 410cc Generac OHVI Engine - Designed Specifically For Generators
  • Provides longer life and longer maintenance intervals
  • Pressurized Lubrication System w/ Oil Filter & Low Oil Shutdown
  • Provides maximum safety for longer engine life
  • TruePower™ Technology - Less Than 5% THD
  • Provides clean, smooth operation of sensitive electronics
  • Full Panel GFCI Protection - OSHA & NEC 2011 Compliant
  • Must use GFI type manual transfer switch for panel connection
  • Not for use with interlock kit
  • Large 9 Gallon Metal Fuel Tank
  • Provides up to 11 hours of run time @ 1/2 load
  • Hardened 1.25" Steel Tube Cradle & Cast Metal Corners
  • Combined with an integrated lifting eye for rugged durability
  • Fold-Down, Locking Handles w/ Never Flat Wheel Kit
  • Provides sturdy mobility and compact storage
  • Includes Battery Charger, Engine Oil & Maintenance Kit
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
Engine
Engine Brand
Generac OHVI
Starting System
12-Volt Button Start w/ Recoil
CC
410 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Surge Watts
8125 Watts
Rated Watts
6500 Watts
Fuel Type
Gasoline
Rated Amps
27 Amps
Portability Kit
Never Flat Wheels
Tank Size
9 Gallons
Run Time @ 50% Load
11 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
Overview
Assembly Required
Yes
Weight
241 Pounds
Product Style
Portable Generator
Product Length
34.5 Inches
Product Width
29 Inches
Product Height
27.25 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
696471059342
Grade
Style
Run Watts
6,500
Rated Watts
Surge Watts
8,125
Starting Watts
Fuel
Engine
Features
Features
  • XP Series Professional Grade Portable Generator (CARB Compliant)
  • Engineered specifically with contractors in mind
  • Electric Start w/ Recoil Backup (Battery Included)
  • Makes starting as easy as pushing a button
  • 410cc Generac OHVI Engine - Designed Specifically For Generators
  • Provides longer life and longer maintenance intervals
  • Pressurized Lubrication System w/ Oil Filter & Low Oil Shutdown
  • Provides maximum safety for longer engine life
  • TruePower™ Technology - Less Than 5% THD
  • Provides clean, smooth operation of sensitive electronics
  • Full Panel GFCI Protection - OSHA & NEC 2011 Compliant
  • Must use GFI type manual transfer switch for panel connection
  • Not for use with interlock kit
  • Large 9 Gallon Metal Fuel Tank
  • Provides up to 11 hours of run time @ 1/2 load
  • Hardened 1.25" Steel Tube Cradle & Cast Metal Corners
  • Combined with an integrated lifting eye for rugged durability
  • Fold-Down, Locking Handles w/ Never Flat Wheel Kit
  • Provides sturdy mobility and compact storage
  • Includes Battery Charger, Engine Oil & Maintenance Kit
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
Engine
Engine Brand
Generac OHVI
Starting System
12-Volt Button Start w/ Recoil
CC
410 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Surge Watts
8125 Watts
Rated Watts
6500 Watts
Fuel Type
Gasoline
Rated Amps
27 Amps
Portability Kit
Never Flat Wheels
Tank Size
9 Gallons
Run Time @ 50% Load
11 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
Overview
Assembly Required
Yes
Weight
241 Pounds
Product Style
Portable Generator
Product Length
34.5 Inches
Product Width
29 Inches
Product Height
27.25 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
696471059342
Product Specs
+
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
Engine
Engine Brand
Generac OHVI
Starting System
12-Volt Button Start w/ Recoil
CC
410 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Surge Watts
8125 Watts
Rated Watts
6500 Watts
Fuel Type
Gasoline
Rated Amps
27 Amps
Portability Kit
Never Flat Wheels
Tank Size
9 Gallons
Run Time @ 50% Load
11 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
Overview
Assembly Required
Yes
Weight
241 Pounds
Product Style
Portable Generator
Product Length
34.5 Inches
Product Width
29 Inches
Product Height
27.25 Inches
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
696471059342
Reviews
(1)
+
Generac 5934 Reviews & Ratings
Product Q&A
(2)
+
Jim, I'm a licensed NH Electrician I have a Honeywell 7500Watt Portable Generator that will be used to supply selected loads in a non-separately derived residential application as outlined by the 2011 NEC. The tag on this generator indicated that the neutral is bonded to the frame. I need to know if this generator can be made into a floating neutral generator without voiding listings or warranty. If the answer is yes then where and how does the manufacture recommend the removal of the bond? And will the manufacture send a new label that indicates the generator is now a floating neutral generator. This will be an issue with any generator that has its neutral bonded to the frame portable or stationary. Any info that you can give me will be a great help. Regards, Ron T.
Ron Tasker
from New Hampshire
January 08, 2012
Read Response +
Answer
Many generators that have a bonded neutral to frame can be modified so the neutral is floating, or separate from the frame and generator ground. If the neutral connection (bond) to frame can be removed, if the manufacturer supports this, it’s usually the best solution as it would result in a “floating neutral” generator and would be ideal for connecting to most transfer switches.

If the generator manufacturer does not support modifying the generator to remove the bond between neutral and ground/frame, the system can be setup to meet all codes by using a neutral switching transfer switch. A “non-separately derived system” is where the generator neutral is floating, and its neutral is always interconnected with the neutral for the utility – this is the most common way backup systems are setup – including automatic backup systems.

If you need to isolate the neutral then you need to use a GFI type transfer switch such as the Reliance Controls "X" series switches.....see link for details.

GFI Transfer Switches

Note: Typically these switches are not required unless the 120/240v outlet on the generator is GFI protected which is found on Professional generators such as the Generac "XP" models and not the "XG" model.

The fact that a generator has a bonded-neutral does not rule out compatibility with 2-pole transfer switches, which make up the majority of all transfer switches. The only time that a portable generator will not function with a 2-pole transfer switch is if the generator has a bonded-neutral AND there is a GFCI breaker or GFCI mechanism protecting the receptacle being used to connect the generator to the transfer switch. Most 120/240v generator receptacles are not GFCI protected.

National Code does not require switching the neutral in general, but arguably the neutral should be switched when using a bonded generator based on how the system is setup and defined as a whole. Any time a bonded-neutral generator is connected through a transfer switch to a house wiring system, what results are two neutral-to-ground bond points: one at the main panel and one at the generator. This can be construed as having two bond points in the electrical system, even though the portable generator is not part of the system, and therefore one of the bond points should be removed (or a transfer device implemented that isolates the neutral).

Having two bond points in this scenario creates 'dual paths' on the ground and neutral between the generator and the house panel, aka "ground loop", meaning the ground wire from the generator to the house panel will share some of the return power with the neutral wire. This leads to a very small amount of voltage on the ground wire between the generator and house panel. It can be argued by an installer or authority that this power on the ground is objectionable, and a special neutral switching setup might be mandated. This is also why if there is a GFCI breaker protecting the generator receptacle, it will sense this power being lost on the neutral (to the ground) and will trip every time the generator is connected, even under No load.

* If the generator does not have a GFCI protecting the in-use receptacle, there will not be a trip and the generator will power circuits successfully. Now it’s just a question of whether having this setup is acceptable to the home owner, installer and authority if applicable.
Using bonded generators without switching the neutral has been a common application for many years, regardless of how the code is interpreted, but about 10 years ago generators started adding GFCI's (per OSHA job site requirements) and wiring them into the larger receptacles, which will limit their applications when used at homes. The 2014 code will require new generators to have built in GFCI’s, but only on the 15/20 amp 120 volt outlets, which in most cases are not being used to power a transfer switch. If we look at all of the portable generators that are bonded neutral, and then separate the models WITH a GFCI breaker protecting the 120/240 outlet, the percentage of these generators is extremely small. These are the only generators that will functionally require a 3-pole transfer switch that breaks the neutral.

Breaking the neutral with a “3-pole” (neutral switching) transfer device eliminates the ground loop (dual paths) between the generator and house panel created by having two bond points, and will eliminate the problem of the GFCI breaker tripping creating a “separately derived system” where the generator neutral is never common with the utility neutral.

I hope this information was helpful.
Hide Response -
Can i use a Commercial generator for home use?
Spero
from Pennsylvania
August 27, 2011
Read Response +
Answer
This model is designed specifically for job site use. It's built be used on a daily basis, which makes it more expensive.

If you're looking to backup your home, we recommend getting an "Emergency" grade generator instead.

You can save a lot of money if you go with Generac's GP series instead.

Here's an article that explains in more detail:

How to Pick the Perfect Portable Generator
Hide Response -
