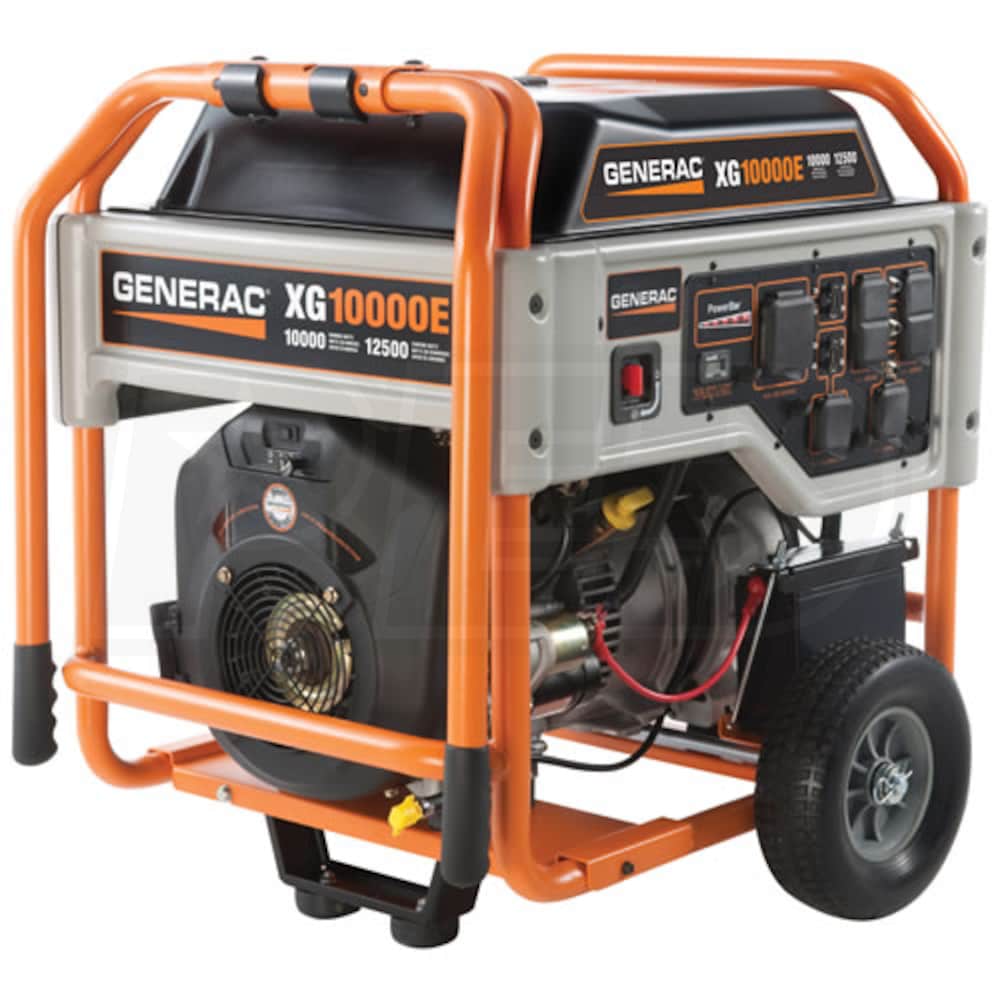

Generac XG10000E - 10,000 Watt Electric Start Portable Generator

Generac XG10000E - 10,000 Watt Electric Start Portable Generator
Model: 5802
$2,099.00
In-Stock
Ships Monday, Jan 22nd
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Add-Ons
Extended Warranty
Excludes CA

In-Stock Free ShippingNo Sales Tax* (Except IL)$2,099.00Buy Now
In-StockNo Sales Tax* (Except CA)$2,106.50Visit Site
Sales Tax Extra $2,279.99Visit Site
Sales Tax Extra $2,099.00Visit Site
Sales Tax Extra $2,099.00Visit Site
In-Stock
Ships Monday, Jan 22nd
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to California or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • 140
    Reviews
  • 14
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
10,000
Rated Watts
Surge Watts
12,500
Starting Watts
Fuel
Engine


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • GENERAC OHVI Engine With Full Pressure Lubrication
  • Equipped with low-oil shutdown to prevent engine damage
  • Illuminated Control Panel
  • Aids nighttime operation
  • PowerBar® Feature Displays Available Wattage
  • Covered Outlets
  • Provides protection from the elements
  • Hourmeter With Maintenance Resets
  • Reminds you when it is time to change the oil
  • Never Flat, Rally Style Wheels
  • Locking, Folding Handles
  • Sturdy portability option that conveniently folds for storage
  • External Battery Charge Jack (Includes Charger)
  • Plug in your generator when not in use to keep battery charged
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
NEMA 14-50R
Engine
Engine Brand
Generac OHVI
Starting System
12-Volt Button Start
CC
530 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
12500 Watts
Rated Watts
10000 Watts
Fuel Type
Gasoline
Rated Amps
42 Amps
Portability Kit
Never Flat Wheels
Tank Size
10 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Semi-Pro
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
NEMA 14-50R
1
Overview
Made in USA
Yes
Assembly Required
Yes
Weight
300 Pounds
Product Style
Portable Generator
Product Length
30 Inches
Product Width
29.5 Inches
Product Height
31 Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year
UPC
696471058024
Grade
Style
Run Watts
10,000
Rated Watts
Surge Watts
12,500
Starting Watts
Fuel
Engine


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • GENERAC OHVI Engine With Full Pressure Lubrication
  • Equipped with low-oil shutdown to prevent engine damage
  • Illuminated Control Panel
  • Aids nighttime operation
  • PowerBar® Feature Displays Available Wattage
  • Covered Outlets
  • Provides protection from the elements
  • Hourmeter With Maintenance Resets
  • Reminds you when it is time to change the oil
  • Never Flat, Rally Style Wheels
  • Locking, Folding Handles
  • Sturdy portability option that conveniently folds for storage
  • External Battery Charge Jack (Includes Charger)
  • Plug in your generator when not in use to keep battery charged
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
NEMA 14-50R
Engine
Engine Brand
Generac OHVI
Starting System
12-Volt Button Start
CC
530 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
12500 Watts
Rated Watts
10000 Watts
Fuel Type
Gasoline
Rated Amps
42 Amps
Portability Kit
Never Flat Wheels
Tank Size
10 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Semi-Pro
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
NEMA 14-50R
1
Overview
Made in USA
Yes
Assembly Required
Yes
Weight
300 Pounds
Product Style
Portable Generator
Product Length
30 Inches
Product Width
29.5 Inches
Product Height
31 Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year
UPC
696471058024
Product Specs
+
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
NEMA 14-50R
Engine
Engine Brand
Generac OHVI
Starting System
12-Volt Button Start
CC
530 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
12500 Watts
Rated Watts
10000 Watts
Fuel Type
Gasoline
Rated Amps
42 Amps
Portability Kit
Never Flat Wheels
Tank Size
10 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Battery
Included
Grade Type
Semi-Pro
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
NEMA 14-50R
1
Overview
Made in USA
Yes
Assembly Required
Yes
Weight
300 Pounds
Product Style
Portable Generator
Product Length
30 Inches
Product Width
29.5 Inches
Product Height
31 Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year
UPC
696471058024
Reviews
(140)
+
Generac 5802 Reviews & Ratings
88% of Reviewers Recommend This Product
Product Q&A
(14)
+
I have a 15,000 watt generac gasoline generator, is a natural gas conversion kit avaveibel ? is a permanent enclosier avalible ?
Gene Tedder
from Florida
December 18, 2013
Read Response +
Answer
Thanks for your inquiry.....Generator manufacturers do not offer conversion kits or permanent enclosures for portable generators.

We at Power Equipment Direct do not recommend converting your gasoline portable generator to an alternative fuel and doing so will void the manufacturer’s warranty and may cause damage to the generator itself. These conversions are not recommended by any of the generator manufacturers.

Gasoline has an Ignition Point of 475–536 °F. When a generator is manufactured to run solely on gasoline these temperatures are taken into consideration and the engine components are made to handle these temperatures.

Propane (LP) has an Ignition Point of 920-1020°F and Natural Gas (NG) has an Ignition Point of 900–1500°F. These higher temperatures will cause damage over time on any “gas only” powered engine.

The following guidelines cover Honda engines (Also applies to other engine manufacturers) modified to run on fuels other than the one for which they were designed, such as converting an engine to run on propane (LP) or natural gas (NG).


• Honda gasoline engines are certified to operate on unleaded fuel with a pump octane rating of 86 or higher, containing no more than 10% ethanol (E10).

• Any change to the original configuration of a certified Honda engine is a potential violation of the Clean Air Act prohibition against tampering (40 CFR §1068.101(b)(1)). The tampering prohibition is important because poorly designed and installed modifications can increase emissions.

• The Clean Air Act prohibits anyone from removing or rendering inoperative any device or design element installed on engines in compliance with regulations. These actions are considered tampering, which carries a civil penalty up to $37,500 for each engine or equipment in violation.

• Engines converted by a third party (OEM, dealer, converter, etc.) to run on a different fuel type must be recertified with the EPA on the new fuel to comply with applicable emission standards. The third party must recertify under a new family and notify Honda to not include the modified engines in the original family.

• Converted engines to be sold for use in California must meet CARB requirements and the converter must obtain approval from CARB. EPA certificates or tampering exemptions will not satisfy the requirement for CARB certification.

• Once certified, the third party must remove the Honda emission control label and apply a compliant emission control label for the new fuel indicating the new certifying manufacturer. Honda will no longer assume any responsibility as the certifying manufacturer.

• The Honda Distributor's Limited Warranty does not extend to parts affected or damaged by the conversion to or use of fuel other than the fuel for which the engine was originally designed.


• Honda offers V-twin engines specifically designed and certified for use in LP/NG applications. The engines incorporate special design features that address the higher combustion temperatures and reduced lubrication to the valve guide area (since it is a dry fuel, not liquid). Please contact your sales representative or distributor for additional information.


Disclaimer: The guidance provided is intended for Honda dealer/distributor informational purposes only and not for the purpose of providing legal advice. You must contact the appropriate certifying agencies if you require information on how regulations apply to your specific application.

The regulations and additional information can be found at these web sites:

EPA Regulations

CARB Compliance
Hide Response -
Good morning Mike. I am interested in the XG8000E and XG10000E units. Can you please tell me what tri-fuel adapter kit you recommend? Thanks
Brandon
from Oklahoma
November 03, 2013
Read Response +
Answer
Thanks for your inquiry.

These conversions are not recommended by any of the generator manufacturers.

Gasoline has an Ignition Point of 475–536 °F. When a generator is manufactured to run solely on gasoline these temperatures are taken into consideration and the engine components are made to handle these temperatures.

Propane (LP) has an Ignition Point of 920-1020°F and Natural Gas (NG) has an Ignition Point of 900–1500°F. These higher temperatures will cause damage over time on any “gas only” powered engine.

The following guidelines cover Honda engines (Also applies to other engine manufacturers) modified to run on fuels other than the one for which they were designed, such as converting an engine to run on propane (LP) or natural gas (NG).


• Honda gasoline engines are certified to operate on unleaded fuel with a pump octane rating of 86 or higher, containing no more than 10% ethanol (E10).

• Any change to the original configuration of a certified Honda engine is a potential violation of the Clean Air Act prohibition against tampering (40 CFR §1068.101(b)(1)). The tampering prohibition is important because poorly designed and installed modifications can increase emissions.

• The Clean Air Act prohibits anyone from removing or rendering inoperative any device or design element installed on engines in compliance with regulations. These actions are considered tampering, which carries a civil penalty up to $37,500 for each engine or equipment in violation.

• Engines converted by a third party (OEM, dealer, converter, etc.) to run on a different fuel type must be recertified with the EPA on the new fuel to comply with applicable emission standards. The third party must recertify under a new family and notify Honda to not include the modified engines in the original family.

• Converted engines to be sold for use in California must meet CARB requirements and the converter must obtain approval from CARB. EPA certificates or tampering exemptions will not satisfy the requirement for CARB certification.

• Once certified, the third party must remove the Honda emission control label and apply a compliant emission control label for the new fuel indicating the new certifying manufacturer. Honda will no longer assume any responsibility as the certifying manufacturer.

• The Honda Distributor's Limited Warranty does not extend to parts affected or damaged by the conversion to or use of fuel other than the fuel for which the engine was originally designed.


• Honda offers V-twin engines specifically designed and certified for use in LP/NG applications. The engines incorporate special design features that address the higher combustion temperatures and reduced lubrication to the valve guide area (since it is a dry fuel, not liquid). Please contact your sales representative or distributor for additional information.


Disclaimer: The guidance provided is intended for Honda dealer/distributor informational purposes only and not for the purpose of providing legal advice. You must contact the appropriate certifying agencies if you require information on how regulations apply to your specific application.

The regulations and additional information can be found at these web sites:

EPA

CARB

Hide Response -
Regarding the xg10000e, if you connect to the 50 amp outlet on the unit, can you still connect to the 30 amp outlets as well or the 50 amp connection cancels them out?
Chris Gabb
from Louisiana
August 24, 2013
Read Response +
Answer
It is not recommended to connect to 2 separate panels via the generators outlets due to causing off balanced loads on the alternator and damaging the generator and possibly the equipment you are connecting to it.

CAUTION: EQUIPMENT DAMAGE – Balanced Load

Failure to properly limit and balance the load applied to the generator will cause the generator to produce low voltage and may damage the engine generator set. It may also cause severe damage to the loads connected to the generator at that time. Improper loading of the generator set constitutes abuse and will not be covered by warranty.
Hide Response -
Generator delivered today. How often and how long should I run my generator to keep it in top condition?
Dave
from New York
February 20, 2013
Read Response +
Answer
Per the owner's manual the unit should be run monthly.

Owner's Manual Model 5802
Hide Response -
Can this generator be shipped to California?
Jerry Boles
from California
December 17, 2012
Read Response +
Answer
Sorry, this model is not CA CARB compliant so it cannot be shipped there.

You can view all of our CA CARB compliant models via the following link....

CARB Compliant Generators
Hide Response -
Would a 10,000 watt like the Generac XG10000E power a central air unit in the home. My main concern is the furnace in the winter along with other home items for extended periods, but wonder if it will power a Train A/C system?
Rick Anderson
from Ohio
July 05, 2012
Read Response +
Answer
Rick, it really depends on the size of your central air conditioner. Under most circumstances, this model might be a little small to run a 4- or 5-ton unit.

You can learn more about portable generators and central air conditioners here:

http://www.electricgeneratorsdirect.com/stories/53-How-to-Pick-the-Perfect-X-Large-Gas-Generator.html
Hide Response -
What is the DB rating on the Generac XG10000E?
George Ritko
from North Carolina
June 27, 2012
Read Response +
Answer
Unfortunately, not all generator manufacturers publish the decibel ratings for their generators.

Currently, there are no industry standards or requirements for generator manufacturers to follow when testing their generators for noise.

Due to this, manufacturers can test the noise level under any conditions they choose and, therefore, the results are not very reliable as each company will test under conditions that are favorable to their products.

At this time there are no db(A) ratings available on this model.
Hide Response -
I am interested in the 10,000 watt, generac portable generator, model XG1000E. Can you tell me what is included?
Kathy
from Alabama
April 14, 2012
Read Response +
Answer
This units comes with the following items:

Accessories Box Includes:
• 1 – Axle (secured to frame)
• Oil Filter
• 2 – Wheel Spacers
• Air Filter
• 2 – Hair Pins
• Spark Plugs
• 2 – Wheels
• Shop Towel
• 1 – Frame Foot
• 2 – Large Washers
• 2 – Carriage Bolts
• 2 – Small Washers
• 2 – Vibration Mounts
• Oil Funnel
• 4 – Flange Nuts
• 2 – Hex Head Bolts (long)
• 2 – 1 Quart SAE 30 Oil Bottles
• 2 – Hex Head Bolts
• 12 Volt Adapter Plug Charger (short)
• 2 Spacers or 4 Large Washers

This information can be found in the owner's manual which is available on our site on the product page in the specs section.


Hide Response -
Jim, I'm a licensed NH Electrician I have a Honeywell 7500Watt Portable Generator that will be used to supply selected loads in a non-separately derived residential application as outlined by the 2011 NEC. The tag on this generator indicated that the neutral is bonded to the frame. I need to know if this generator can be made into a floating neutral generator without voiding listings or warranty. If the answer is yes then where and how does the manufacture recommend the removal of the bond? And will the manufacture send a new label that indicates the generator is now a floating neutral generator. This will be an issue with any generator that has its neutral bonded to the frame portable or stationary. Any info that you can give me will be a great help. Regards, Ron T.
Ron Tasker
from New Hampshire
January 08, 2012
Read Response +
Answer
Many generators that have a bonded neutral to frame can be modified so the neutral is floating, or separate from the frame and generator ground. If the neutral connection (bond) to frame can be removed, if the manufacturer supports this, it’s usually the best solution as it would result in a “floating neutral” generator and would be ideal for connecting to most transfer switches.

If the generator manufacturer does not support modifying the generator to remove the bond between neutral and ground/frame, the system can be setup to meet all codes by using a neutral switching transfer switch. A “non-separately derived system” is where the generator neutral is floating, and its neutral is always interconnected with the neutral for the utility – this is the most common way backup systems are setup – including automatic backup systems.

If you need to isolate the neutral then you need to use a GFI type transfer switch such as the Reliance Controls "X" series switches.....see link for details.

GFI Transfer Switches

Note: Typically these switches are not required unless the 120/240v outlet on the generator is GFI protected which is found on Professional generators such as the Generac "XP" models and not the "XG" model.

The fact that a generator has a bonded-neutral does not rule out compatibility with 2-pole transfer switches, which make up the majority of all transfer switches. The only time that a portable generator will not function with a 2-pole transfer switch is if the generator has a bonded-neutral AND there is a GFCI breaker or GFCI mechanism protecting the receptacle being used to connect the generator to the transfer switch. Most 120/240v generator receptacles are not GFCI protected.

National Code does not require switching the neutral in general, but arguably the neutral should be switched when using a bonded generator based on how the system is setup and defined as a whole. Any time a bonded-neutral generator is connected through a transfer switch to a house wiring system, what results are two neutral-to-ground bond points: one at the main panel and one at the generator. This can be construed as having two bond points in the electrical system, even though the portable generator is not part of the system, and therefore one of the bond points should be removed (or a transfer device implemented that isolates the neutral).

Having two bond points in this scenario creates 'dual paths' on the ground and neutral between the generator and the house panel, aka "ground loop", meaning the ground wire from the generator to the house panel will share some of the return power with the neutral wire. This leads to a very small amount of voltage on the ground wire between the generator and house panel. It can be argued by an installer or authority that this power on the ground is objectionable, and a special neutral switching setup might be mandated. This is also why if there is a GFCI breaker protecting the generator receptacle, it will sense this power being lost on the neutral (to the ground) and will trip every time the generator is connected, even under No load.

* If the generator does not have a GFCI protecting the in-use receptacle, there will not be a trip and the generator will power circuits successfully. Now it’s just a question of whether having this setup is acceptable to the home owner, installer and authority if applicable.
Using bonded generators without switching the neutral has been a common application for many years, regardless of how the code is interpreted, but about 10 years ago generators started adding GFCI's (per OSHA job site requirements) and wiring them into the larger receptacles, which will limit their applications when used at homes. The 2014 code will require new generators to have built in GFCI’s, but only on the 15/20 amp 120 volt outlets, which in most cases are not being used to power a transfer switch. If we look at all of the portable generators that are bonded neutral, and then separate the models WITH a GFCI breaker protecting the 120/240 outlet, the percentage of these generators is extremely small. These are the only generators that will functionally require a 3-pole transfer switch that breaks the neutral.

Breaking the neutral with a “3-pole” (neutral switching) transfer device eliminates the ground loop (dual paths) between the generator and house panel created by having two bond points, and will eliminate the problem of the GFCI breaker tripping creating a “separately derived system” where the generator neutral is never common with the utility neutral.

I hope this information was helpful.
Hide Response -
What is the maximum output in watts out of the NEMA 14-50R outlet I can get from a XP 10000E Generac Generator
Michael Teixeira
from Connecticut
January 08, 2012
Read Response +
Answer
Any 50A outlet, receptacle, cord or switch has a maximum of 12,500 watts....Amps x Volts = Watts.
Hide Response -
What transfer panel would I need to have with the XG10000e to run a well pump, electric hot water heater,washer and electric dryer, two sump pumps with some lighting . talked to a friend who said i would need 3 double pole 30 amp pole???
Paul MacFadden
from Pennsylvania
September 21, 2011
Read Response +
Answer
The best way to power these items is with a whole house type manual switch that is installed between your meter and main panel. This allows you to manage all your circuits without overloading the generator and is a very easy install. See link for recommended model for a 200A main service:

Reliance Controls - TWB2005DR
Hide Response -
On a small portable generator like the XG10000E, are the outlets standard, or can the buyer request what type of outlets they want?
Jackie Barrett
from Oklahoma
February 07, 2011
Read Response +
Answer
The outlets are standard from the factory.
Hide Response -
What does HP/CC mean? The specs say 530 cc. What would the HP be?
Jackie Barrett
from Oklahoma
January 26, 2011
Read Response +
Answer
There isn't a direct math correlation from CC's (cubic centimeters) to horsepower. Imagine a Chevy 350 cubic inch V-8 engine in a Corvette, depending on whether you have a carburetor fed engine or a fuel injected version, the power could be between 275HP - 400HP. The same logic occurs with small gasoline utility engines. Each is different enough that like CC displacements won't mean the same HP ratings from manufacturer to manufacturer.

As a "close enough" rule in the air cooled engine world, however, there is between 30-40cc per horsepower. For the 530cc engine, this would be around 15HP.
Hide Response -
How does this generator start in cold weather with the electric start? What is the difference between OHV engine & Generac's OHVI engine?
Daryl Hammond
from Ohio
January 17, 2011
Read Response +
Answer
Portable generators are normally stored inside and the B&S 30471 comes with a float style battery charger which is plugged into the generator when not in use. This allows the generator battery to have a sufficient charge when the generator is needed to start.

An OHV (Overhead Valve) engine is compact designed and generally makes the unit operate quieter. The Generac OHVI (Overhead Valve Industrial) engine is built robustly with premium power and high performance and comes with a fully pressurized oil lubrication system and spin-on filter.
Hide Response -
Recommended Accessories
+
How-To Articles
+
Manuals
+


×
Generac XG10000E - 10,000 Watt Electric Start Portable Generator
+
Reset View

Visit Electric Generators Direct on Facebook
View the Electric Generators Direct Twitter Profile Page
Follow Electric Generators Direct on Pinterest
View Electric Generators Direct YouTube Channel
View Electric Generators Direct on Blog
View Electric Generators Direct Tumbler
View Electric Generators Direct LinkedIn Company Profile
