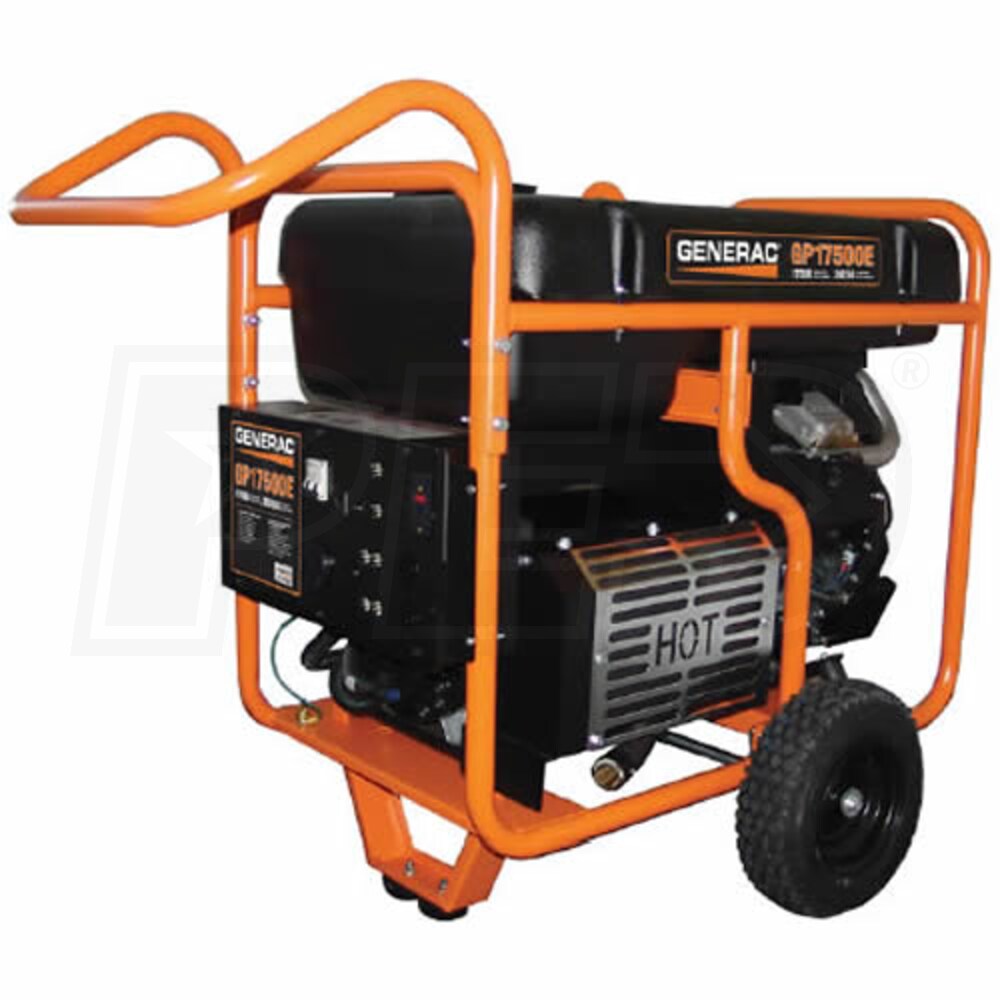

Generac GP17500E - 17,500 Watt Electric Start Portable Generator (Scratch & Dent)

Generac GP17500E - 17,500 Watt Electric Start Portable Generator (Scratch & Dent)
Model: 5735-SD
Product Discontinued
Sorry, this product is no longer available.
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
17,500
Rated Watts
Surge Watts
26,250
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
17,500
Surge Watts
26,250 Starting Watts
Fuel
Gasoline
Engine
Generac OHVI
Features
Features
  • *Scratch & Dent Model*
  • Scratches on the frame
  • Shipped to another customer and returned to us, cosmetic only, will not affect operation
  • 26,250 Surge Watts
  • Powerful enough to start a 5 ton A/C unit
  • Will also start two 4-ton A/C units
  • Electric Start (12VDC 365-CCA Battery Not Included)
  • Starts with a simple press of a button
  • Battery charged when generator in use
  • Automatic Idle Control
  • Reduces noise, increase fuel efficiency and extends life
  • Full Pressure Lubrication
  • Eliminates wear during starting & extends life engine life
  • 16-Gallon Gas Tank
  • Generates up to 10 hours of electricity at half load
  • Portability Kit
  • Includes 12" all terrain tires and heavy-duty lifting eye
  • This unit is NOT for sale in California
Specifications
Plugs
12-Amp DC
NEMA 5-20R (Wall-Type)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L5-30R
NEMA L14-30R
NEMA 14-50R
Engine
Engine Brand
Generac OHVI
Starting System
12-Volt Button Start
CC
992 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
26250 Watts
Rated Watts
17500 Watts
Fuel Type
Gasoline
Rated Amps
73 Amps
Portability Kit
Pneumatic Wheels
Tank Size
16 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Battery
Not Included
Grade Type
Emergency
Plugs
12-Amp DC
1
NEMA 5-20R - Wall-Type
1
NEMA 5-20R - GFCI
1
NEMA L5-30R
2
NEMA L14-30R
1
NEMA 14-50R
1
Overview
Made in USA
Yes
Weight
400 Pounds
Product Style
Portable Generator
Product Length
48.5 Inches
Product Width
30.75 Inches
Product Height
38.5 Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Grade
Style
Run Watts
17,500
Rated Watts
Surge Watts
26,250
Starting Watts
Fuel
Engine
Grade
Emergency
Style
Portable
Run Watts
17,500
Surge Watts
26,250 Starting Watts
Fuel
Gasoline
Engine
Generac OHVI
Features
Features
  • *Scratch & Dent Model*
  • Scratches on the frame
  • Shipped to another customer and returned to us, cosmetic only, will not affect operation
  • 26,250 Surge Watts
  • Powerful enough to start a 5 ton A/C unit
  • Will also start two 4-ton A/C units
  • Electric Start (12VDC 365-CCA Battery Not Included)
  • Starts with a simple press of a button
  • Battery charged when generator in use
  • Automatic Idle Control
  • Reduces noise, increase fuel efficiency and extends life
  • Full Pressure Lubrication
  • Eliminates wear during starting & extends life engine life
  • 16-Gallon Gas Tank
  • Generates up to 10 hours of electricity at half load
  • Portability Kit
  • Includes 12" all terrain tires and heavy-duty lifting eye
  • This unit is NOT for sale in California
Specifications
Plugs
12-Amp DC
NEMA 5-20R (Wall-Type)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L5-30R
NEMA L14-30R
NEMA 14-50R
Engine
Engine Brand
Generac OHVI
Starting System
12-Volt Button Start
CC
992 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
26250 Watts
Rated Watts
17500 Watts
Fuel Type
Gasoline
Rated Amps
73 Amps
Portability Kit
Pneumatic Wheels
Tank Size
16 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Battery
Not Included
Grade Type
Emergency
Plugs
12-Amp DC
1
NEMA 5-20R - Wall-Type
1
NEMA 5-20R - GFCI
1
NEMA L5-30R
2
NEMA L14-30R
1
NEMA 14-50R
1
Overview
Made in USA
Yes
Weight
400 Pounds
Product Style
Portable Generator
Product Length
48.5 Inches
Product Width
30.75 Inches
Product Height
38.5 Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Specs
+
Specifications
Plugs
12-Amp DC
NEMA 5-20R (Wall-Type)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L5-30R
NEMA L14-30R
NEMA 14-50R
Engine
Engine Brand
Generac OHVI
Starting System
12-Volt Button Start
CC
992 CC
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Surge Watts
26250 Watts
Rated Watts
17500 Watts
Fuel Type
Gasoline
Rated Amps
73 Amps
Portability Kit
Pneumatic Wheels
Tank Size
16 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Plastic
Fuel Gauge
Yes
Decibel Rating @ 7m
Not Measured by Manufacturer
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Battery
Not Included
Grade Type
Emergency
Plugs
12-Amp DC
1
NEMA 5-20R - Wall-Type
1
NEMA 5-20R - GFCI
1
NEMA L5-30R
2
NEMA L14-30R
1
NEMA 14-50R
1
Overview
Made in USA
Yes
Weight
400 Pounds
Product Style
Portable Generator
Product Length
48.5 Inches
Product Width
30.75 Inches
Product Height
38.5 Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Reviews
(1)
+
Generac 5735-SD Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Jim, the Portable Generator Expert
icon-social-fb1
+
What is the maximum output in watts out of the NEMA 14-50R outlet I can get from a XP 10000E Generac Generator
Michael Teixeira
from Connecticut
January 08, 2012
Answer
Any 50A outlet, receptacle, cord or switch has a maximum of 12,500 watts....Amps x Volts = Watts.
