Dewalt DXGNR6500 - 6500 Watt Portable Generator (CARB)

Model:

PMC166500

Recommended
Write A Review
$969.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 8-12 Weeks

Dewalt DXGNR6500 - 6500 Watt Portable Generator (CARB)
Dewalt DXGNR6500 - 6500 Watt Portable Generator (CARB)
Model: PMC166500
$969.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Alberto, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Semi-Pro

Style

Portable

Run Watts

6,500 Rated Watts

Surge Watts

8,750
Starting Watts

Fuel

Gasoline

Engine

DeWALT

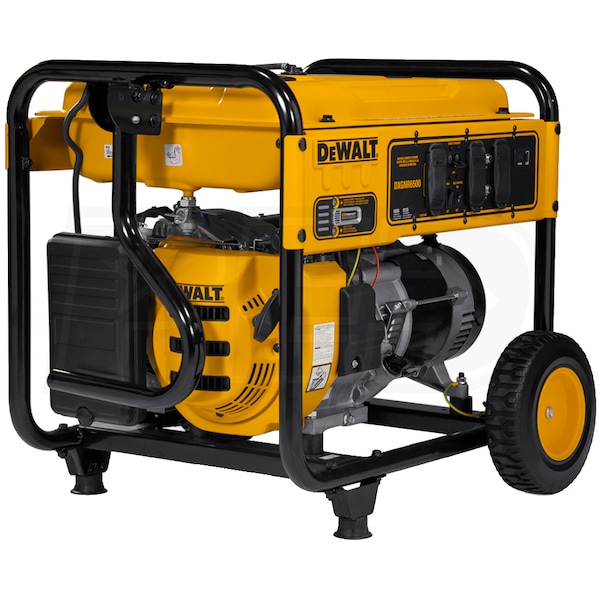

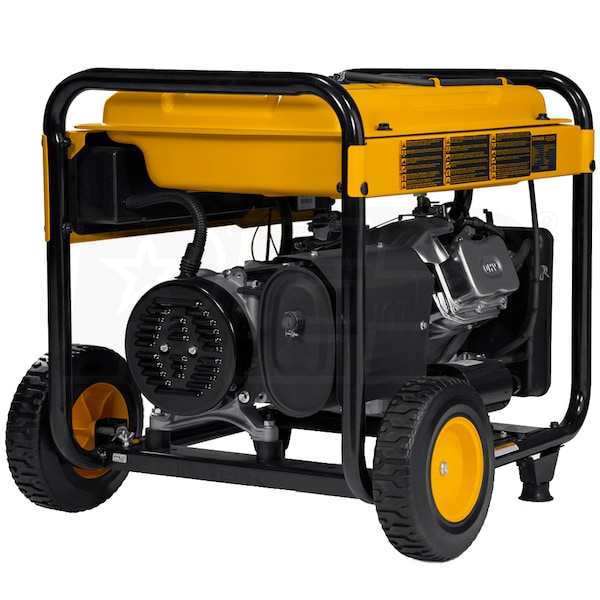

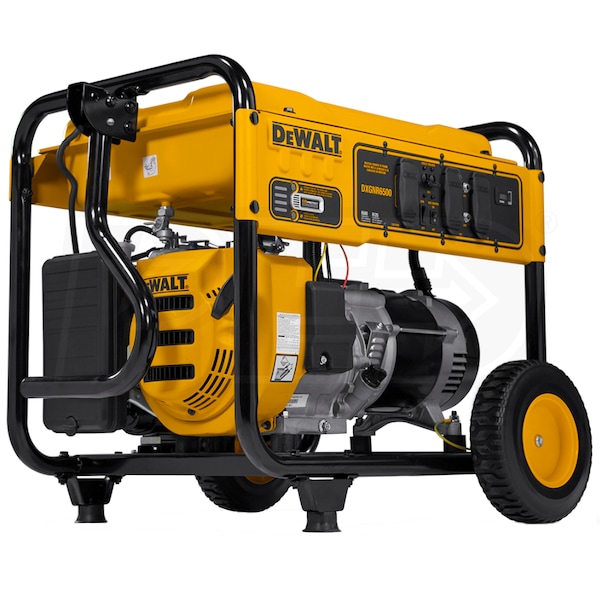

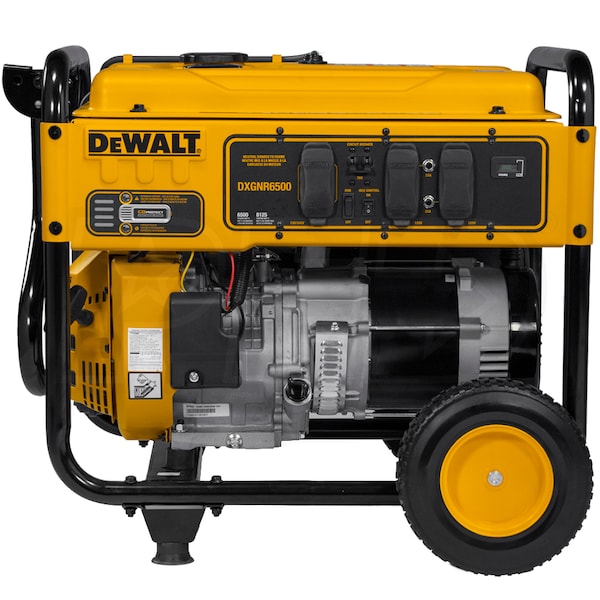

  • DeWalt DXGNR6500 Portable Generator
  • Ideal for applications at home or on the job
  • CO Protect Technology - Carbon Monoxide Shutdown
  • Stops, Alerts, Saves - provides added safety during operation
  • 420cc DeWalt OHV Engine w/ Recoil Start
  • Splash type lubrication for improved engine life
  • Low-Oil Level Shutdown
  • Helps prevent engine damage due to low-oil events
  • 7.5-Gallon Fuel Tank w/ Fuel Gauge
  • Provides up to 10 hours of run time @ 1/2 load
  • Idle Control
  • Reduces noise and saves fuel on the job site
  • 30-Amp 120/240V (L14-30) Receptacle***
  • Allows for connection to a manual transfer switch (MTS)
  • Allows for connection to a convenience cord
  • Hour Meter
  • Makes it easy to track maintenance intervals
  • Cover Outlets
  • Keeps dirt and debris out of outlets when not in-use
  • Heavy-Duty Cradle
  • 1-1/4" diameter hardened steel frame helps prevent damage
  • Portability Kit
  • Never-flat wheels allows for easier movement over uneven terrain
  • Fold-down, locking handle allows for compact storage
  • Includes Engine Oil
  • 3-Year Limited Warranty
  • CARB Compliant
  • ***Note - Allows You To Get Maximum Power From Generator
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
PMC166500
specs product image PID-116788
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
165 Pounds
CARB Compliant
Yes
Certification
CARB
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
27.2 Inches
Product Width
27.1 Inches
Product Height
25.8 Inches
UPC
696471074529
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
6500 Watts
Surge Watts
8750 Watts
Fuel Type
Gasoline
Rated Amps
27.08 Amps
Portability Kit
Never Flat Wheels
Tank Size
7.5 Gallons
Run Time @ 50% Load
10 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
No
Grade Type
Semi-Pro
CO Sensing
Yes
Low THD
No
Engine
Engine Brand
DeWALT
Starting System
Recoil Start
CC
389 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
