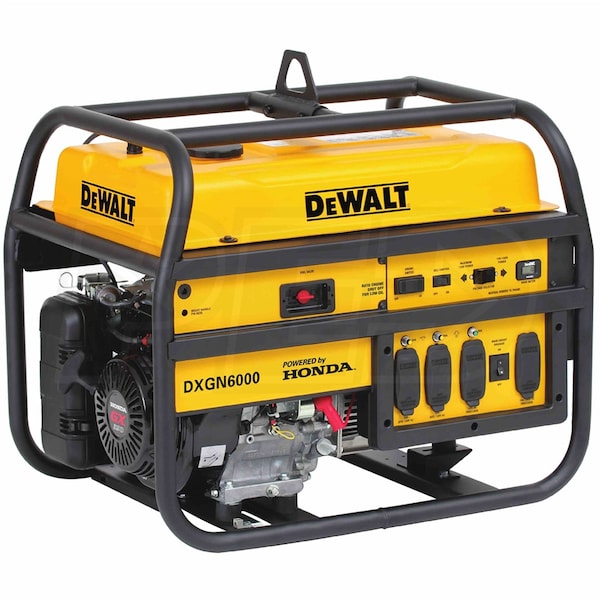

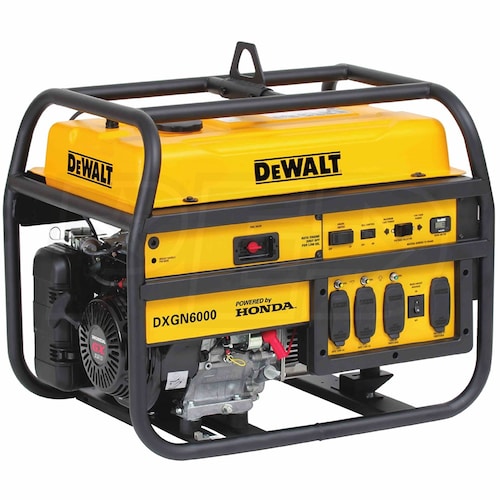

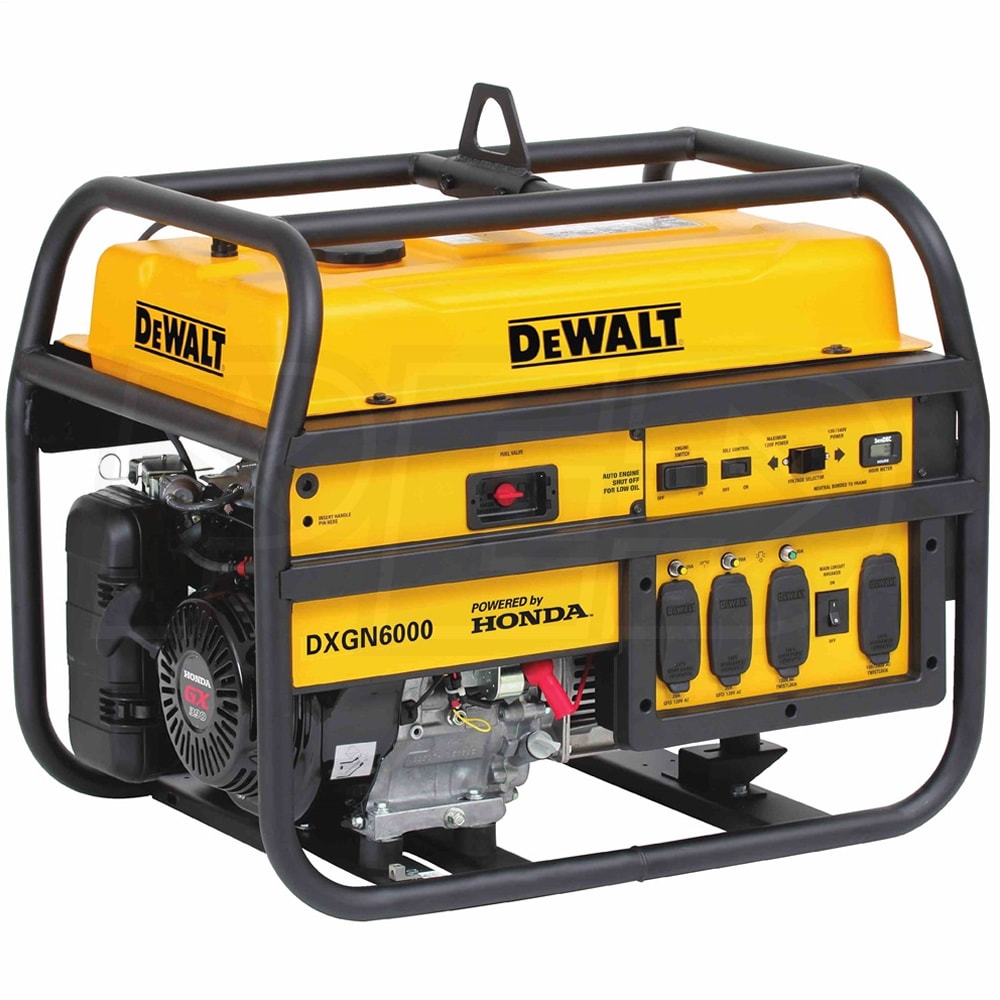

DeWalt DXGN6000 - 5300 Watt Professional Portable Generator w/ Honda GX Engine (CARB)

Model:

PD532MHI005

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
DeWalt DXGN6000 - 5300 Watt Professional Portable Generator w/ Honda GX Engine (CARB)
DeWalt DXGN6000 - 5300 Watt Professional Portable Generator w/ Honda GX Engine (CARB)
Model: PD532MHI005
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Alberto, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Portable

Run Watts

5,300 Rated Watts

Surge Watts

6,000
Starting Watts

Fuel

Gasoline

Engine

Honda GX

  • Powered By Honda's GX340 Commercial Grade OHV Engine
  • Reliable, Easy-to-Start and Incredibly Rugged
  • Oil Alert® Warning System
  • Alerts you or shuts engine down if oil reaches an unsafe level
  • Premium Grade Alternator - Less than 6% THD
  • Provides clean power for sensitive equipment
  • Idle Control
  • Reduces noise and saves fuel on the job site
  • 8-Gallon Long Run Metal Fuel Tank w/ Fuel Gauge
  • Provides up to to 13.7 hours of run time @ 1/2 load
  • Hydraulic/Magnetic Circuit Breakers
  • Provides superior overload protection
  • Hardened Steel Frame w/ Integrated Lifting Hook
  • Protects your investment and provides added security
  • Easy To Read Panel w/ Outlet Cover Protection
  • Keeps your outlets free of debris & minimizes down-time
  • Digital Hour Meter
  • Easily monitor run time and track maintenance intervals
  • Optional Wheel Kit (Sold Separately)
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
PD532MHI005
specs product image PID-62649
Overview
Weight
200 Pounds
CARB Compliant
Yes
Certification
CARB
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
31.4 Inches
Product Width
22.3 Inches
Product Height
26.3 Inches
UPC
696471618617
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Rated Watts
5300 Watts
Surge Watts
6000 Watts
Fuel Type
Gasoline
Rated Amps
22 Amps
Portability Kit
Sold Separately
Tank Size
8 Gallons
Run Time @ 50% Load
13.7 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
79 dbA
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Grade Type
Professional
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
CC
340 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L5-30R
1
NEMA L14-30R
1
