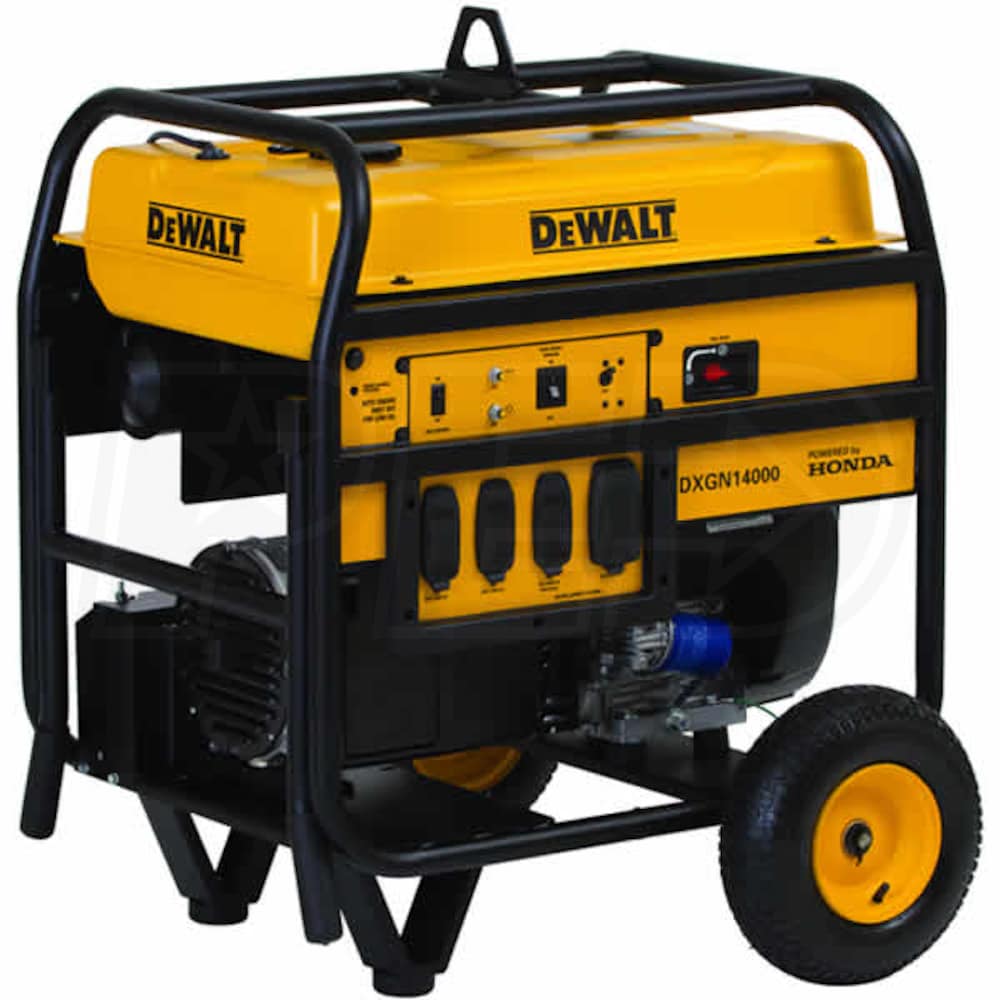

DeWalt DXGN14000 - 11,700 Watt Electric Start Professional Portable Generator w/ Honda GX Engine
Model: DXGN14000
4.9 out of 54.9 out of 54.9 out of 54.9 out of 54.9 out of 5
Number of Reviews(7)
Write a Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Share
  • Product Description
  • 7
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
11,700
Rated Watts
Surge Watts
14,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
11,700
Surge Watts
14,000 Starting Watts
Fuel
Gasoline
Engine
Honda GX
Features
Features
  • Powered By Honda's GX630 Commercial Grade OHV Engine
  • Reliable, incredibly rugged and plenty of power
  • Electric Starting System (Battery Included)
  • Easily start your generator with the turn of a key
  • Oil Alert® Warning System
  • Alerts you or shuts engine down if oil reaches an unsafe level
  • Premium Grade Alternator - Less than 6% THD
  • Provides clean power for sensitive equipment
  • Idle Control
  • Reduces noise and saves fuel on the job site
  • 10-Gallon Long Run Metal Fuel Tank w/ Fuel Gauge
  • Provides up to to 7.8 hours of run time @ 1/2 load
  • Hardened Steel Frame w/ Integrated Lifting Hook & Wheel Kit
  • Protects the generator and makes it easy to move
  • Hydraulic/Magnetic Circuit Breakers
  • Provides superior overload protection
  • Hour Meter & Easy To Read Panel w/ Outlet Cover Protection
  • Easily monitor run time and track maintenance intervals
  • 3-Year Limited Warranty
  • Includes 12V DC - 35Ah Battery
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
NEMA 14-50R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Rated Watts
11700 Watts
Surge Watts
14000 Watts
Fuel Type
Gasoline
Rated Amps
49 Amps
Portability Kit
Pneumatic Wheels
Tank Size
10 Gallons
Run Time @ 50% Load
7.8 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
83 dbA
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Neutral Type
Bonded
Battery
Included
Grade Type
Professional
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start
CC
688 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
346 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
37.5 Inches
Product Width
24.3 Inches
Product Height
31.1 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-50R
1
Grade
Style
Run Watts
11,700
Rated Watts
Surge Watts
14,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
11,700
Surge Watts
14,000 Starting Watts
Fuel
Gasoline
Engine
Honda GX
Features
Features
  • Powered By Honda's GX630 Commercial Grade OHV Engine
  • Reliable, incredibly rugged and plenty of power
  • Electric Starting System (Battery Included)
  • Easily start your generator with the turn of a key
  • Oil Alert® Warning System
  • Alerts you or shuts engine down if oil reaches an unsafe level
  • Premium Grade Alternator - Less than 6% THD
  • Provides clean power for sensitive equipment
  • Idle Control
  • Reduces noise and saves fuel on the job site
  • 10-Gallon Long Run Metal Fuel Tank w/ Fuel Gauge
  • Provides up to to 7.8 hours of run time @ 1/2 load
  • Hardened Steel Frame w/ Integrated Lifting Hook & Wheel Kit
  • Protects the generator and makes it easy to move
  • Hydraulic/Magnetic Circuit Breakers
  • Provides superior overload protection
  • Hour Meter & Easy To Read Panel w/ Outlet Cover Protection
  • Easily monitor run time and track maintenance intervals
  • 3-Year Limited Warranty
  • Includes 12V DC - 35Ah Battery
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
NEMA 14-50R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Rated Watts
11700 Watts
Surge Watts
14000 Watts
Fuel Type
Gasoline
Rated Amps
49 Amps
Portability Kit
Pneumatic Wheels
Tank Size
10 Gallons
Run Time @ 50% Load
7.8 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
83 dbA
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Neutral Type
Bonded
Battery
Included
Grade Type
Professional
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start
CC
688 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
346 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
37.5 Inches
Product Width
24.3 Inches
Product Height
31.1 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-50R
1
Product Specs
+
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
NEMA L14-30R
NEMA 14-50R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
No
Rated Watts
11700 Watts
Surge Watts
14000 Watts
Fuel Type
Gasoline
Rated Amps
49 Amps
Portability Kit
Pneumatic Wheels
Tank Size
10 Gallons
Run Time @ 50% Load
7.8 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
83 dbA
Idle Control
Yes
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Neutral Type
Bonded
Battery
Included
Grade Type
Professional
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start
CC
688 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
346 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
37.5 Inches
Product Width
24.3 Inches
Product Height
31.1 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-50R
1
Reviews
(7)
+
Dewalt DXGN14000 Reviews & Ratings
Product Q&A
(2)
+
Search Product Q&A's Answered by Jared, the Generator Expert
icon-social-fb1
+
Does idle control mean auto idle? Does idle control adjust the engine speed to the electrical demand?
Andrew Boyd
from Nevada
January 04, 2014
Answer
Thanks for your inquiry.

Below is what is listed in the Owner's Manual regarding the Idle Control.

The automatic idle control system is available on some generators. This feature allows the engine to automatically idle down when there is no load drawn against the generator thus saving fuel, decreasing wear and lowering the noise level.

There is an on-off switch located on the control panel that activates or deactivates this feature. In the on position the engine will idle down after detection of less than 40 Watts. The engine will return to the correct running speed immediately
when a load of 350 Watts or more is applied.

For applications with loads less than 50W or with near constant loads, such as home back up, it is best to turn the idle control feature off. The feature should be turned off before starting or stopping the generator and turned on when there will be extended periods of inactivity for the generator.

Model DXGN14000: A 12V battery must be installed in order for the idle control to function.

Owner's Manual
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
Does this generator require a switched neutral transfer switch?
Stephen Johnson
from Michigan
December 21, 2013
Answer
The large outlets on the control panel (30A & 50A) are not GFCI protected so you can use any transfer switch. A switched neutral kit is not required.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
