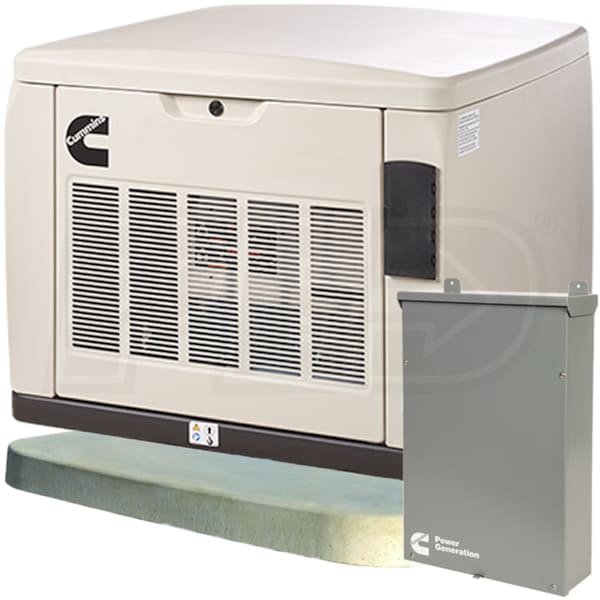

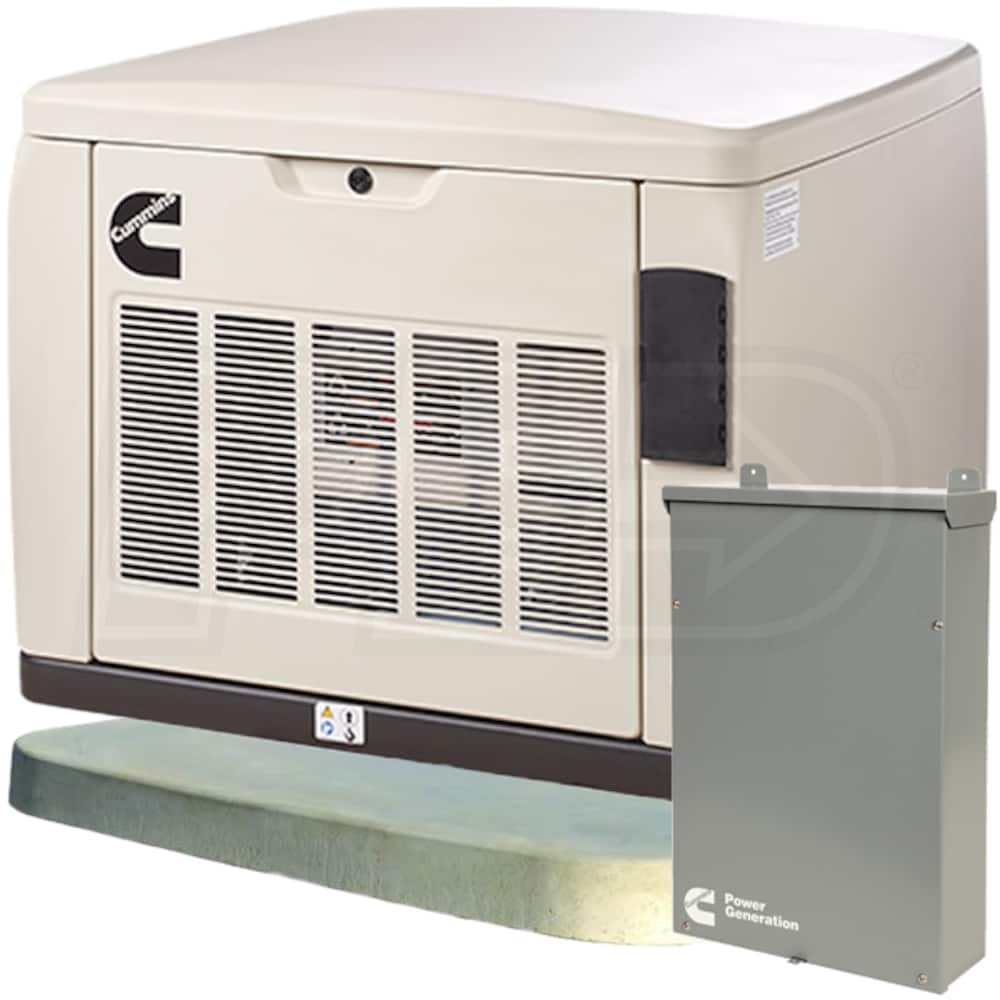

Cummins RS20AC - 20kW Quiet Connect™ Series Home Standby Generator System (200A Service Disconnect) + 3" Mounting Pad

Cummins RS20AC - 20kW Quiet Connect™ Series Home Standby Generator System (200A Service Disconnect) + 3" Mounting Pad
Our Price
Compare Prices
Shipping Info
Model: EGD-C20N6HCKIT
$5,052.71

Ships in 7-14 Business Days
Shipping Crate Icon
Free Shipping
Free Lift Gate Service -
Add-Ons

Ships in 7-14 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
20,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
20,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Cummins Onan
Features
Features
  • Cummins Quiet Connect™ 20kW Air-Cooled Standby Generator Package
  • New for 2017 with improved design, exercise modes, load management & monitoring
  • Includes 200-Amp Service Entrance Rated Automatic Transfer Switch
  • Installs between main meter & service panel for faster & less costly installation
  • Weather Protective Aluminum/Steel Sound Enclosure
  • Can be installed* within 18" of a build (NFPA 37) - Always check local building codes
  • Sound dampening engineering limits noise level to a low 65dB(A) @ 7M
  • 999cc Cummins Air-Cooled V-Twin OHV Engine
  • Field-selectable, runs on ultra efficient natural gas or LP (vapor)
  • Designed to operate down to 0 F; Cold weather accessories available for colder climates
  • < 5% THD (Total Harmonic Distortion)
  • Clean power that won't damage your electronic devices
  • Patented "Crank Only" Exercise Mode
  • Provides diagnostics without running engine for less wear and lower fuel costs
  • Allows user to select time, date and frequency of exercise
  • Load Management Capability (Requires Load Management Kit - Sold Separately)
  • Maximizes generator power by intelligently managing up to 2 electrical loads
  • Cummins Connect Cloud For Remote Monitoring
  • Monitor, exercise and manually run the generator
  • Use your computer, tablet or phone for maximum monitoring flexibility
  • Cold Weather Equipped
  • Operates in cold weather with performance down to 0 °F
  • Cold weather accessories allow for even colder operation (Sold Separately)
  • Standard 5-Year / 2,000 Hour Limited Warranty
  • Includes Cummins 3" Concrete Mounting Pad
  • A professional looking installation that looks great & lasts
  • Product Includes
    • (1) Cummins RS20AC - 20kW Quiet Connect™ Series Home Standby Generator System (200A Service Disconnect) (C20N6HC)
    • (1) Cummins A052A795 - Standard 3" Composite Cement Pad for RS13, RS17 & RS20 Air-Cooled Generators (A052A795)
Specifications
Engine
Engine Brand
Cummins Onan
Starting System
12v Auto Start
CC
999 CC
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Made in USA
Yes
Weight
540 Pounds
Product Style
Standby Generator
Product Length
34.1 Inches
Product Width
36.0 Inches
Product Height
27.3 Inches
Consumer Warranty
5 Years
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
20000 Watts
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
205 ft³/hr
NG Fuel Consumption @ 100% Load
300 ft³/hr
LP Fuel Consumption @ 50% Load
1.9 gallons/hr
LP Fuel Consumption @ 100% Load
3.2 gallons/hr
Rated Amps
75 (NG) & 83.3 (LPV) Amps
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65
Hour Meter
Yes
Voltage Meter
Yes
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Enclosure
Aluminum
Battery
Not Included
Circuit Breaker Size
100 Amps
A/C Ton Rating
5-Tons
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
A054X497 Specifications+
Engine
Engine Brand
Cummins Onan
Starting System
12v Auto Start
CC
999 CC
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Overview
Made in USA
Yes
Weight
540 Pounds
Product Style
Standby Generator
Product Length
34.1 Inches
Product Width
36.0 Inches
Product Height
27.3 Inches
Consumer Warranty
5 Years
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Surge Watts
20000 Watts
Rated Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
205 ft³/hr
NG Fuel Consumption @ 100% Load
300 ft³/hr
LP Fuel Consumption @ 50% Load
1.9 gallons/hr
LP Fuel Consumption @ 100% Load
3.2 gallons/hr
Rated Amps
75 (NG) & 83.3 (LPV) Amps
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65
Hour Meter
Yes
Voltage Meter
Yes
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Enclosure
Aluminum
Battery
Not Included
Circuit Breaker Size
100 Amps
A/C Ton Rating
5-Tons
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
A052A795 Specifications+
Overview
Weight
135 Pounds
Product Length
36.5 Inches
Product Width
38.5 Inches
Product Height
3 Inches
Consumer Warranty
1 Year
