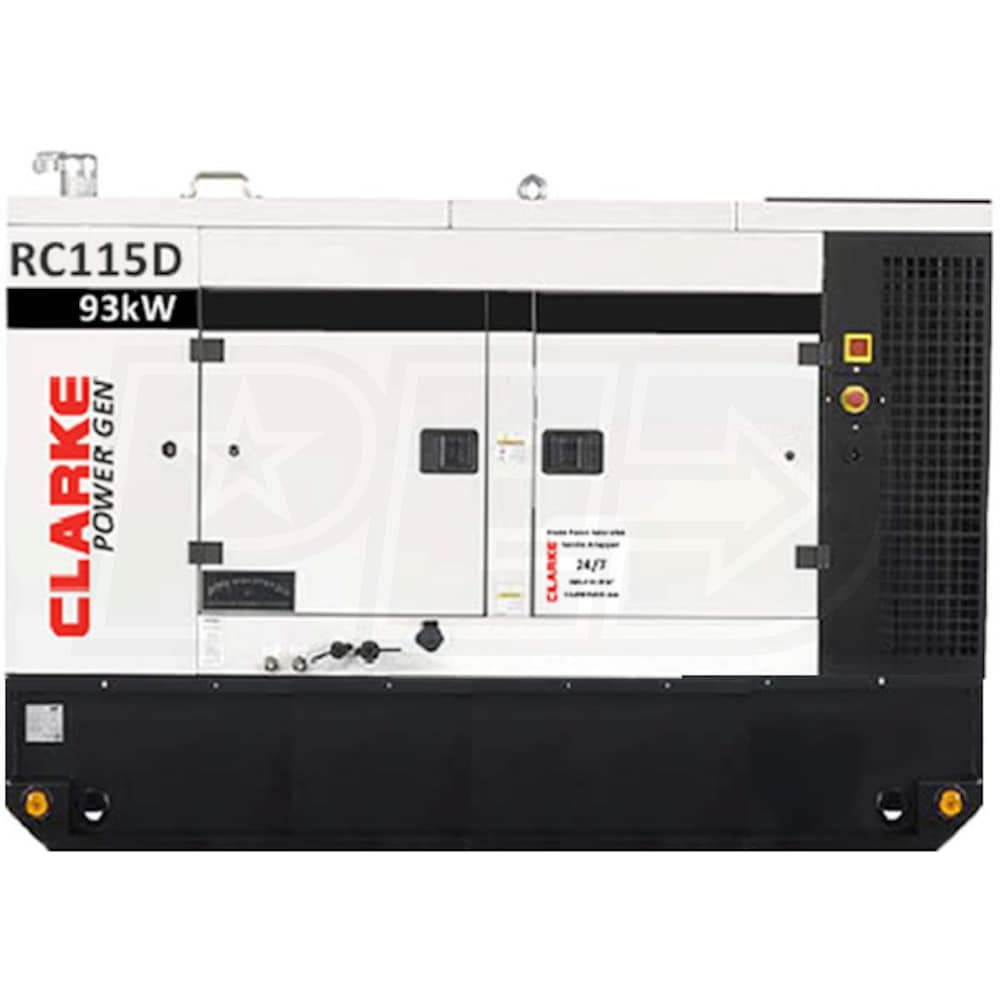

Clarke RC115D-JD3FX - 93kW Industrial Skid-Mounted Diesel Generator w/ John Deere Engine

Clarke RC115D-JD3FX - 93kW Industrial Skid-Mounted Diesel Generator w/ John Deere Engine
Our Price
Compare Prices
Shipping Info
Model: RC115D-JD3FXSM
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, Hawaii, California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
93,000
Rated Watts
Voltage
Voltage Selector Switch
Fuel
Engine
John Deere
Grade
Professional
Style
Tow-Behind
Run Watts
93,000
Voltage
Voltage Selector Switch
Fuel
Diesel
Engine
John Deere
Features
Features
  • Clarke Power Generation Industrial Prime Generators
  • Manufactured in Greensboro, North Carolina, USA.
  • 4.5L John Deere PowerTech E Industrial Diesel Engine (4045HF285)
  • Reliable performance & fuel economy; EPA Tier 3 & CARB Certified
  • 171-Gallon Skid-Base Mounted Fuel Tank w/ Low-Fuel Shutdown
  • Runtimes of up to 39 hours @ 1/2 load & very balanced lifting
  • Racor-style fuel/water separator & fine micron secondary fuel filter
  • Leroy Somer Alternator w/ AREP Brushless Excitation (<5% THD)
  • Industry leading motor starting kVA & 300% overload capability
  • 3-Position Voltage Selector Switch w/ Operation Lock
  • Single Phase 120/139/240/277V & 3-Phase 208/240/416/480V
  • Digital Genset Controller w/ LCD Display
  • Easy to read fault codes w/ # & text explanations
  • Remote Auto Start/Stop (2-Wire, Closed Contact Logic)
  • Allows for connection to auto transfer switch or remote starting device
  • Heavy Duty, Oilfield-Ready Skidbase w/ Min.110% EC
  • Prevents any leakage of fuel, oil, or coolant
  • Steel Sound Attenuated Enclosure (71 dB(A) @ 23' 100% Load)
  • Wide opening side access doors & center-point lifting eye
  • 1-Year / 2000 Hour Limited Warranty (See Spec Sheet)
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
CS6369 (50-Amp Twistlock)
CS6369 (50-Amp Twistlock)
CS6369 (50-Amp Twistlock)
Engine
Engine Brand
John Deere
Starting System
12-Volt Key Start
CC
4500 CC
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
93000 Watts
Fuel Type
Diesel
Diesel Fuel Consumption @ 50% Load
4.25 gallons/hr
Tank Size
171 Gallons
Run Time @ 50% Load
39.9 Hours
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
71 dbA
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
CS6369 - 50-Amp Twistlock
3
Overview
Made in USA
Yes
Weight
4865 Pounds
Product Style
Towable Generator
Product Length
107.1 Inches
Product Width
47.8 Inches
Product Height
69.4 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Grade
Style
Run Watts
93,000
Rated Watts
Voltage
Voltage Selector Switch
Fuel
Engine
John Deere
Grade
Professional
Style
Tow-Behind
Run Watts
93,000
Voltage
Voltage Selector Switch
Fuel
Diesel
Engine
John Deere
Features
Features
  • Clarke Power Generation Industrial Prime Generators
  • Manufactured in Greensboro, North Carolina, USA.
  • 4.5L John Deere PowerTech E Industrial Diesel Engine (4045HF285)
  • Reliable performance & fuel economy; EPA Tier 3 & CARB Certified
  • 171-Gallon Skid-Base Mounted Fuel Tank w/ Low-Fuel Shutdown
  • Runtimes of up to 39 hours @ 1/2 load & very balanced lifting
  • Racor-style fuel/water separator & fine micron secondary fuel filter
  • Leroy Somer Alternator w/ AREP Brushless Excitation (<5% THD)
  • Industry leading motor starting kVA & 300% overload capability
  • 3-Position Voltage Selector Switch w/ Operation Lock
  • Single Phase 120/139/240/277V & 3-Phase 208/240/416/480V
  • Digital Genset Controller w/ LCD Display
  • Easy to read fault codes w/ # & text explanations
  • Remote Auto Start/Stop (2-Wire, Closed Contact Logic)
  • Allows for connection to auto transfer switch or remote starting device
  • Heavy Duty, Oilfield-Ready Skidbase w/ Min.110% EC
  • Prevents any leakage of fuel, oil, or coolant
  • Steel Sound Attenuated Enclosure (71 dB(A) @ 23' 100% Load)
  • Wide opening side access doors & center-point lifting eye
  • 1-Year / 2000 Hour Limited Warranty (See Spec Sheet)
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
CS6369 (50-Amp Twistlock)
CS6369 (50-Amp Twistlock)
CS6369 (50-Amp Twistlock)
Engine
Engine Brand
John Deere
Starting System
12-Volt Key Start
CC
4500 CC
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
93000 Watts
Fuel Type
Diesel
Diesel Fuel Consumption @ 50% Load
4.25 gallons/hr
Tank Size
171 Gallons
Run Time @ 50% Load
39.9 Hours
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
71 dbA
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
CS6369 - 50-Amp Twistlock
3
Overview
Made in USA
Yes
Weight
4865 Pounds
Product Style
Towable Generator
Product Length
107.1 Inches
Product Width
47.8 Inches
Product Height
69.4 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Specs
+
Specifications
Plugs
NEMA 5-20R (GFCI)
NEMA 5-20R (GFCI)
CS6369 (50-Amp Twistlock)
CS6369 (50-Amp Twistlock)
CS6369 (50-Amp Twistlock)
Engine
Engine Brand
John Deere
Starting System
12-Volt Key Start
CC
4500 CC
Consumer Engine Warranty
1 Year
Commercial Engine Warranty
1 Year
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Product Specs
Voltage
Voltage Selector Switch
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
93000 Watts
Fuel Type
Diesel
Diesel Fuel Consumption @ 50% Load
4.25 gallons/hr
Tank Size
171 Gallons
Run Time @ 50% Load
39.9 Hours
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
71 dbA
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Plugs
NEMA 5-20R - GFCI
2
CS6369 - 50-Amp Twistlock
3
Overview
Made in USA
Yes
Weight
4865 Pounds
Product Style
Towable Generator
Product Length
107.1 Inches
Product Width
47.8 Inches
Product Height
69.4 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
