Champion 100306 - (2) 1600 Watt Inverter Generator Package w/ Parallel Cable Kit (CARB)

Model:

EGD-100306-KIT

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Champion 100306 - (2) 1600 Watt Inverter Generator Package w/ Parallel Cable Kit (CARB)
Champion 100306 - (2) 1600 Watt Inverter Generator Package w/ Parallel Cable Kit (CARB)
Model: EGD-100306-KIT
Product Discontinued
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Grade

Recreational

Style

Portable

Run Watts

1,600 Rated Watts

Surge Watts

2,000
Starting Watts

Fuel

Gasoline

Engine

Champion



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Champion Inverter Technology - Clean Power (<3% THD)
  • Clean, quiet power for campsites, RV's, cabins & tailgating
  • 2000 Max Rated Starting Watts
  • Easily power a small appliance or a couple household items
  • Champion 80cc OHV Engine w/ Low Oil Sensor
  • Provides added protection to extend engine life
  • EZ Start Dial w/Cold Start Technology
  • Makes starting your generator an easy task
  • Allows for easier starting in cold weather
  • Economy Mode Switch - 11 Hours of Run Time @ 1/4 Load
  • Adjusts engine speed to the optimum level depending on load
  • Digital LED Display
  • Easily see how much power you're using
  • Let's you know how much fuel life remains
  • Quiet - Only 53 dBA at 23'
  • Fully enclosed durable housing reduces sound output
  • Parallel Operation Capability
  • Increase available wattage when linking 2 Champion 100306 gens
  • Requires ParaLINK parallel kit (Included)
  • Fuel Fill Assist LED
  • Push-Button design, Illuminates gasoline fill area
  • Stackable Design
  • Great for storage, traveling and when paralleling generators
  • Lightweight Design w/ Built-In Carrying Handle
  • Makes this generator easy to move where you need it most
  • Added Features
  • 12V DC Outlet & USDA-Approved Spark Arrestor/Muffler
  • Also Includes:
  • USB Adapter & Oil Funnel
  • Please Note* Engine Oil NOT Included
  • 3-Year Limited Warranty & FREE Lifetime Technical Support
  • EPA Certified & CARB Compliant
  • Product Includes
    • (2) Champion 100306 - 1600 Watt Inverter Generator w/ Parallel Capability (CARB) (100306)

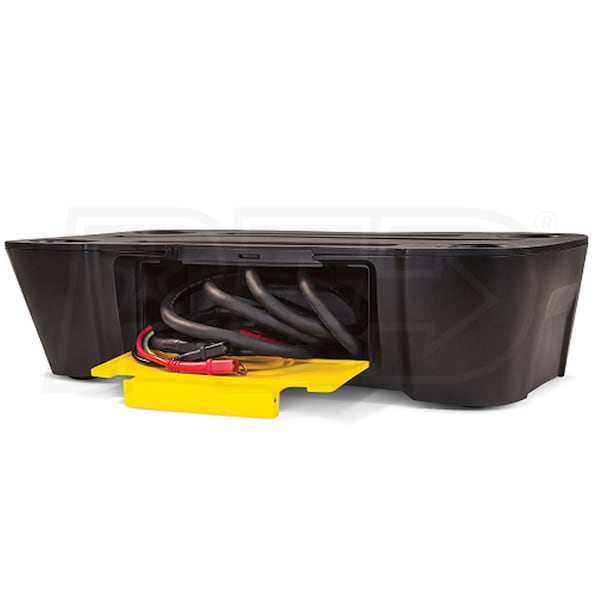

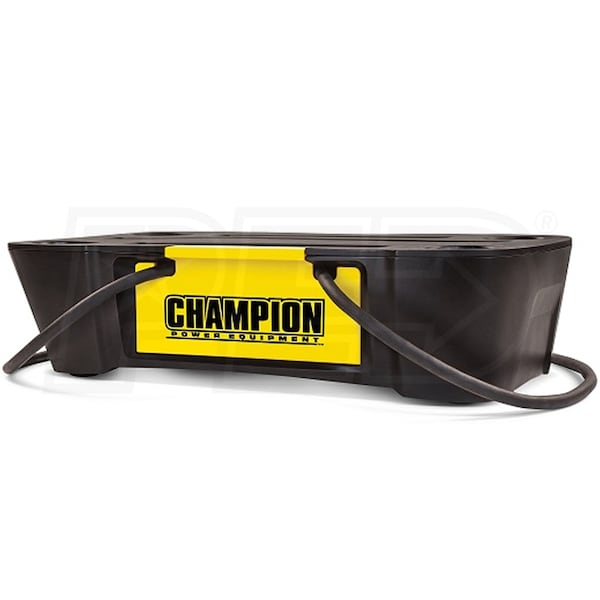

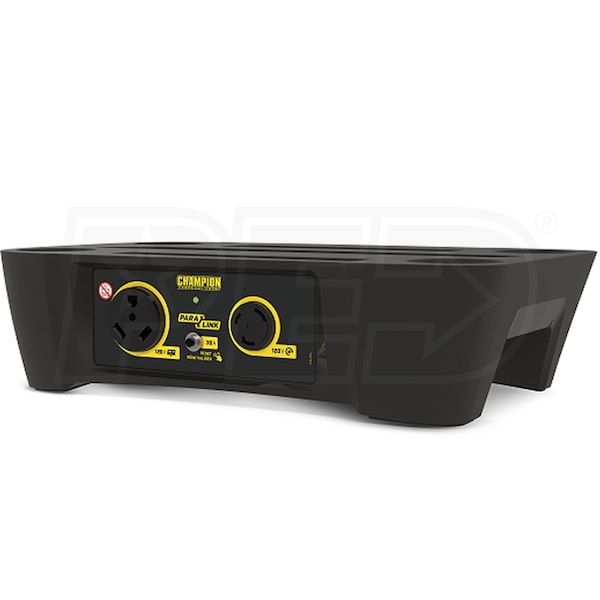

    • (1) Champion 100468 - Parallel Cable Kit For Champion 1600W-2000W Inverter Generators (100468)
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
10-Amp DC - Cigarette Adapter
Product Includes
  • (2) Champion 100306 - 1600 Watt Inverter Generator w/ Parallel Capability (CARB) (100306)
  • (1) Champion 100468 - Parallel Cable Kit For Champion 1600W-2000W Inverter Generators (100468)
EGD-100306-KIT
specs product image PID-105310
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Rated Watts
1600 Watts
Surge Watts
2000 Watts
Combined Kit Watts
3200 Watts
Fuel Type
Gasoline
Rated Amps
13.3 Amps
Tank Size
1.1 Gallons
Fuel Tank Material
Metal
Decibel Rating @ 7m Learn More
53 dbA
Idle Control
Yes
Grade Type
Recreational
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
80 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
46.3 Pounds
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Product Length
20.5 Inches
Product Style
Portable Generator
Product Width
13 Inches
Product Height
16.9 Inches
Plugs
10-Amp DC - Cigarette Adapter
1
NEMA 5-20R - Wall-Type
1
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Rated Watts
1600 Watts
Surge Watts
2000 Watts
Fuel Type
Gasoline
Rated Amps
13.3 Amps
Tank Size
1.1 Gallons
Fuel Tank Material
Metal
Decibel Rating @ 7m Learn More
53 dbA
Idle Control
Yes
Grade Type
Recreational
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
80 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
46.3 Pounds
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Product Length
20.5 Inches
Product Style
Portable Generator
Product Width
13 Inches
Product Height
16.9 Inches
Plugs
10-Amp DC - Cigarette Adapter
1
NEMA 5-20R - Wall-Type
1
Product Specs
Frequency
60 Hertz
Rated Watts
3600 Watts
Rated Amps
30 Amps
Maximum Wattage
3600 Watts
Overview
Weight
3 Pounds
Consumer Warranty
1 Year
Product Length
19.8 Inches
Product Width
7.9 Inches
Product Height
3.5 Inches
Plugs
NEMA L5-30R
1
RV Ready 30-Amp
1
