Champion 100306 - 1600 Watt Inverter Generator w/ Parallel Capability (CARB)

Model:

100306

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Champion 100306 -  1600 Watt Inverter Generator w/ Parallel Capability (CARB)
Champion 100306 - 1600 Watt Inverter Generator w/ Parallel Capability (CARB)
Model: 100306
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Electric Generators Direct expert image
Expert Recommended Accessories Selected by Alberto, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Recreational

Style

Portable

Run Watts

1,600 Rated Watts

Surge Watts

2,000
Starting Watts

Fuel

Gasoline

Engine

Champion



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Champion Inverter Technology - Clean Power (<3% THD)
  • Clean, quiet power for campsites, RV's, cabins & tailgating
  • 2000 Max Rated Starting Watts
  • Easily power a small appliance or a couple household items
  • Champion 80cc OHV Engine w/ Low Oil Sensor
  • Provides added protection to extend engine life
  • EZ Start Dial w/Cold Start Technology
  • Makes starting your generator an easy task
  • Allows for easier starting in cold weather
  • Economy Mode Switch - 11 Hours of Run Time @ 1/4 Load
  • Adjusts engine speed to the optimum level depending on load

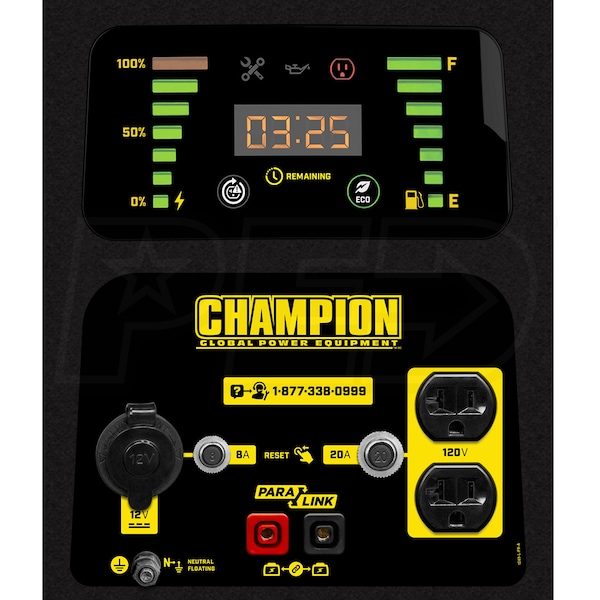

  • Digital LED Display
  • Easily see how much power you're using
  • Let's you know how much fuel life remains
  • Quiet - Only 53 dBA at 23'
  • Fully enclosed durable housing reduces sound output
  • Parallel Operation Capability
  • Increase available wattage when linking 2 Champion 100306 gens
  • Requires ParaLINK parallel kit (Sold Separately)
  • Fuel Fill Assist LED
  • Push-Button design, Illuminates gasoline fill area
  • Stackable Design
  • Great for storage, traveling and when paralleling generators
  • Lightweight Design w/ Built-In Carrying Handle
  • Makes this generator easy to move where you need it most
  • Added Features
  • 12V DC Outlet & USDA-Approved Spark Arrestor/Muffler
  • Also Includes:
  • USB Adapter & Oil Funnel
  • Please Note* Engine Oil NOT Included
  • 3-Year Limited Warranty & FREE Lifetime Technical Support
  • EPA Certified & CARB Compliant
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
10-Amp DC - Cigarette Adapter
100306
specs product image PID-97145
Overview
Weight
46.3 Pounds
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator
Product Length
20.5 Inches
Product Width
13 Inches
Product Height
16.9 Inches
UPC
817198020426
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Inverter
Rated Watts
1600 Watts
Surge Watts
2000 Watts
Fuel Type
Gasoline
Rated Amps
13.3 Amps
Tank Size
1.1 Gallons
Fuel Tank Material
Metal
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
53 dbA
Idle Control
Yes
Grade Type
Recreational
Engine
Engine Brand
Champion
Starting System
Recoil Start
CC
80 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
10-Amp DC - Cigarette Adapter
1
NEMA 5-20R - Wall-Type
1
