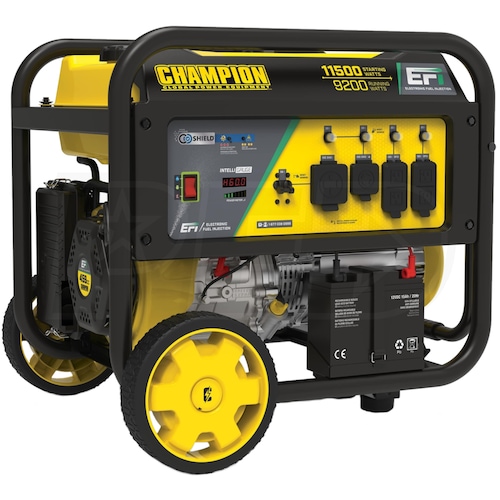

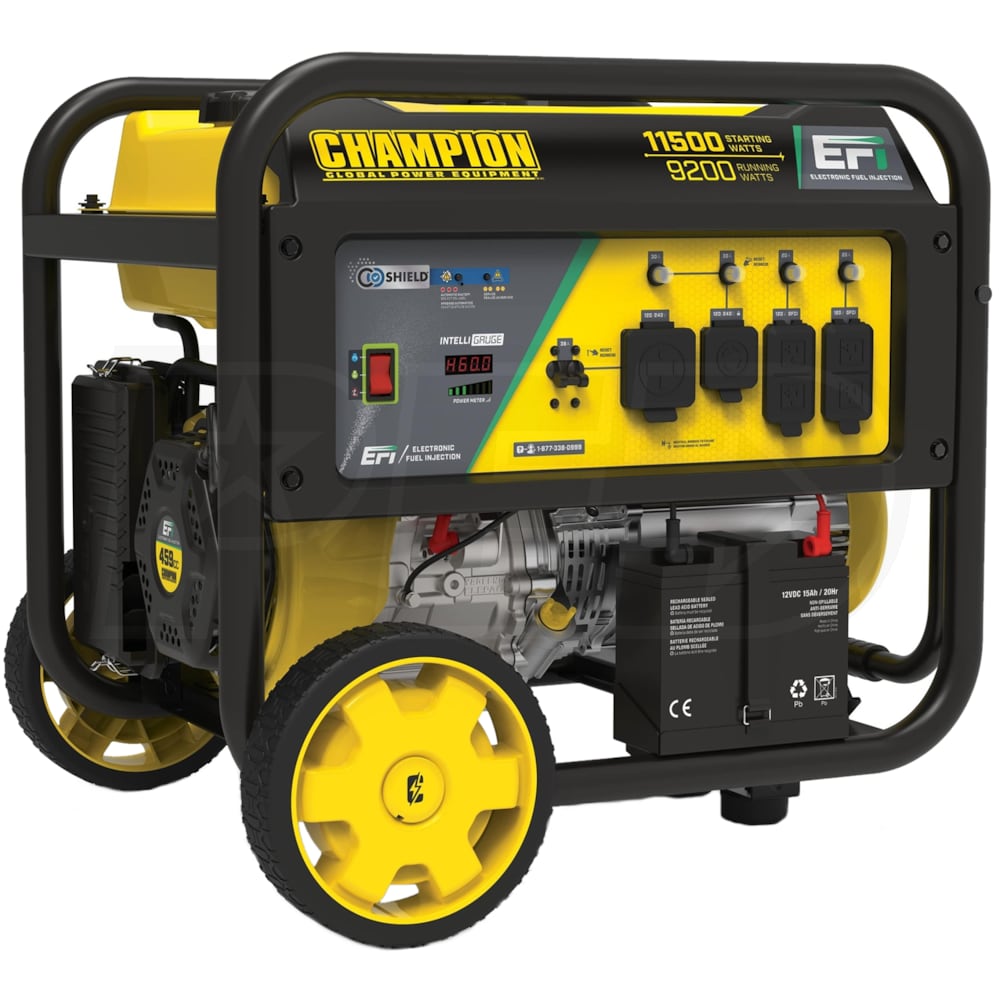

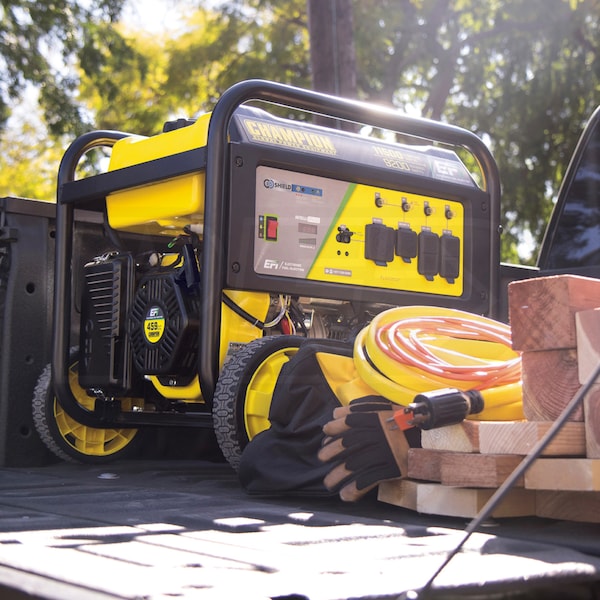

Champion 100485 - 9200-Watt Electric Start Portable Generator w/ EFI Technology & CO Shield™ (CARB)
Model:
100485
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Portable
Run Watts
9,200 Rated Watts
Surge Watts
11,500
Starting Watts
Fuel
Gasoline
Engine
Champion
- Champion 9200 Watt Electric Start Generator

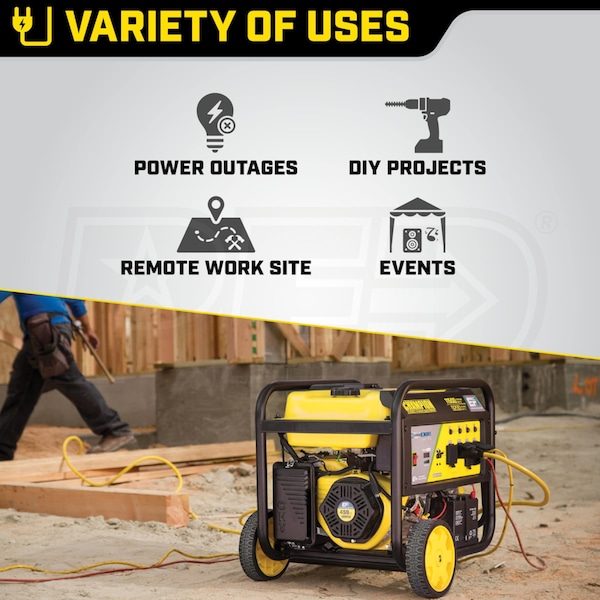

- Ideal for home backup and big jobs where you need it

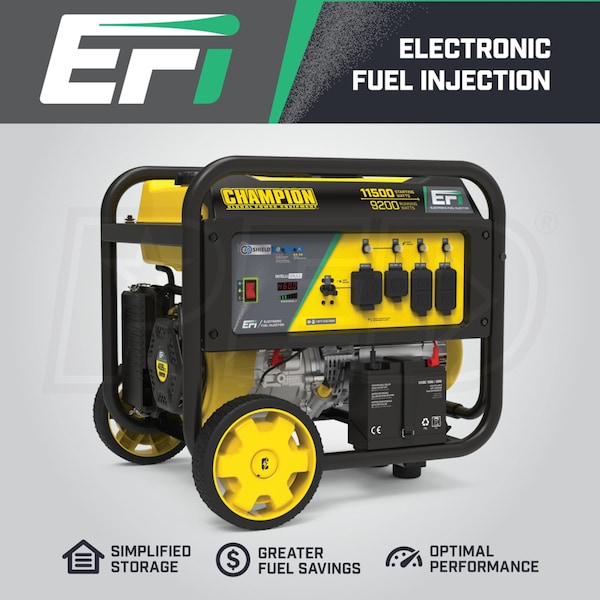

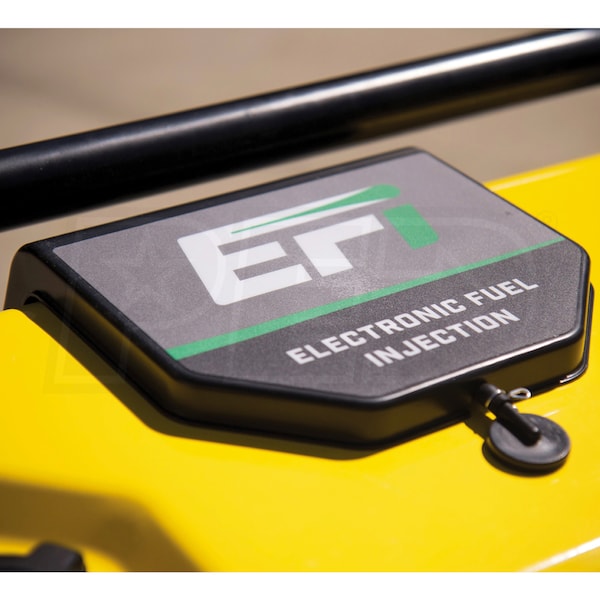

- Electronic Fuel Injection (EFI) Technology
- Optimal performance at all temperatures and altitudes
- Ensures peak engine efficiency resulting in up to 25% savings on fuel
- Carburetor-free design eliminates bad fuel issues and gum-ups

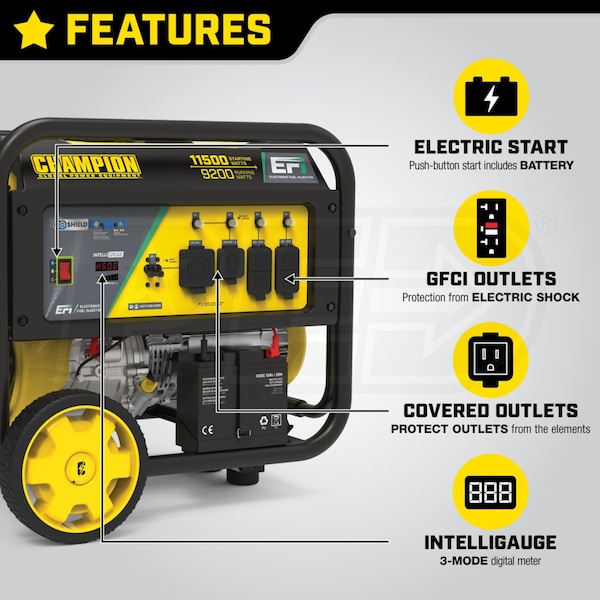

- Push-Button Electric Start (Battery Included)
- Plus an easy-pull recoil starter, so you'll always be ready for an outage
- 459cc Champion OHV 4-Stroke Engine w/ Low-Oil Shutoff Sensor
- Provides added protection to extend the life of the generator

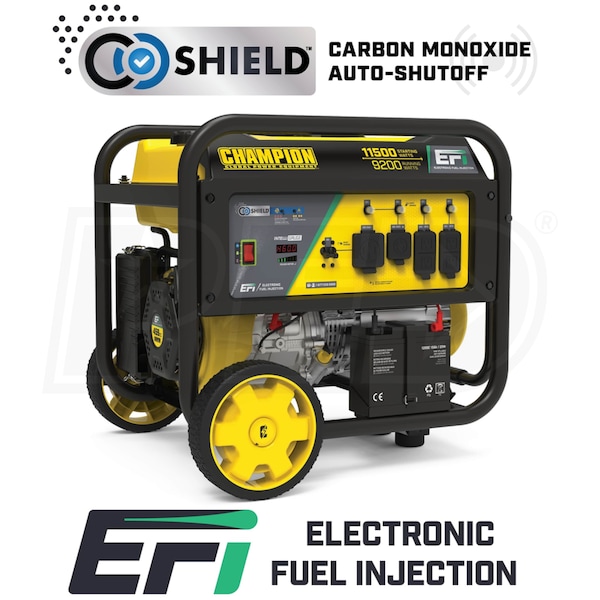

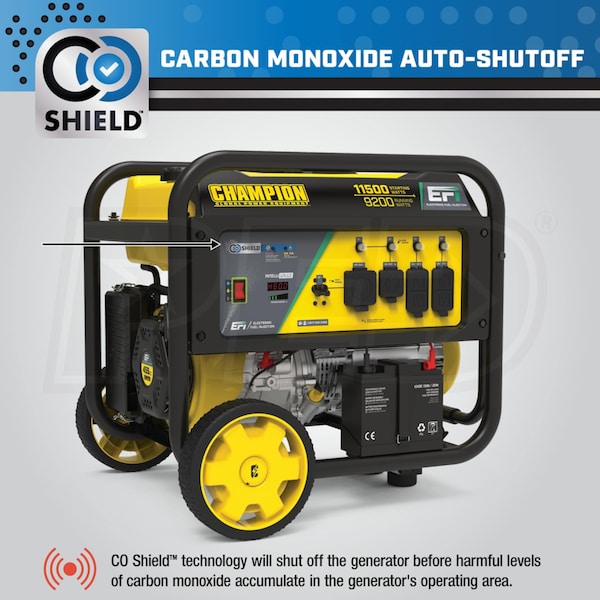

- CO Shield™ Technology^*^
- Alerts and shut off the generator automatically

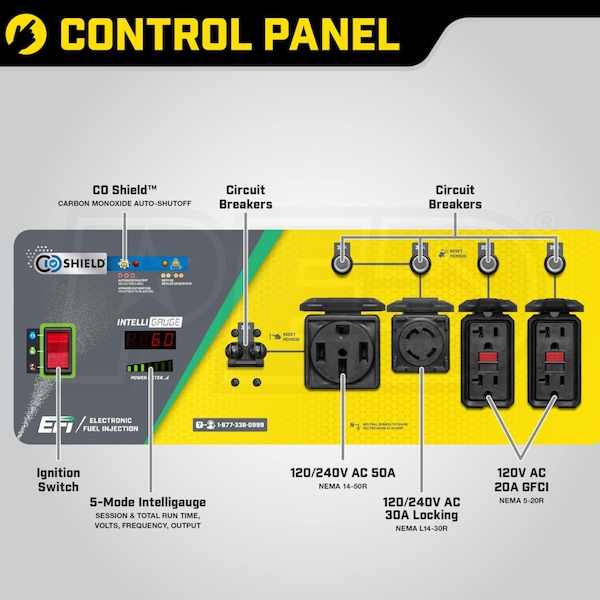

- 120/240V 50-Amp (L14-50R) & 30-Amp (14-30R) Outlets***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord
- (2) 120V GFCI Duplex Outlets & Circuit Breaker Protection
- Keeps your appliances protected while preventing overload to generator
- Large 7.7-Gallon Fuel Tank
- Provides up to 11.5-hours of run time @ 50% load
- Volt Guard™ Built-In Surge Protector
- Protects form power surges that can damage you appliances
- Intelligauge Digital Display w/ Power Meter
- Easily monitor your voltage, frequency & operating hours
- Lets you see how much power you're using
- Cold Start Technology
- Ensures a quick start in cold weather

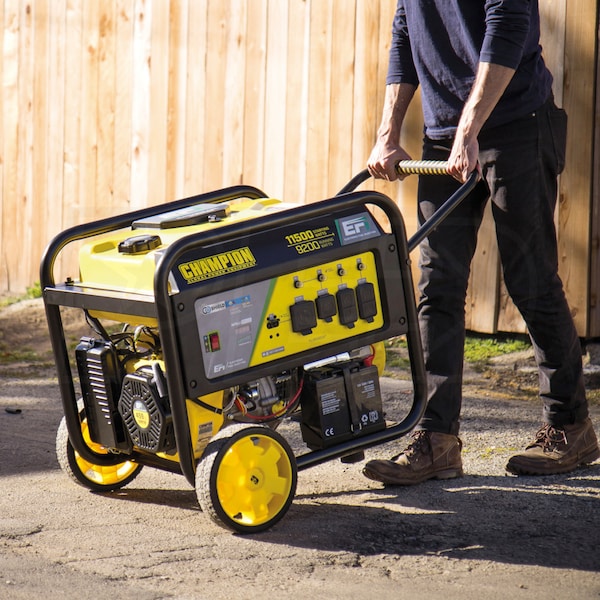

- Never Flat Tires & Fold-Down Locking Handle
- Makes this generator easy to move on even the most bumpy terrain

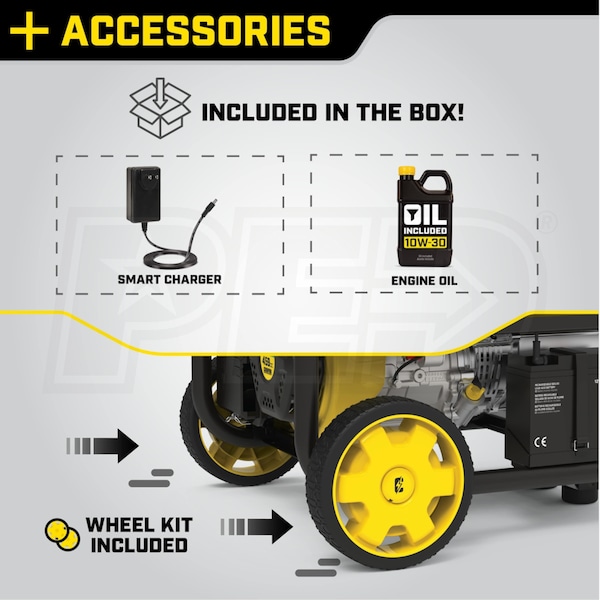

- Also includes Oil Funnel, Engine Oil & Smart Charger
- 3-Year Limited Warranty - CARB Compliant
- FREE lifetime technical support from dedicated experts at Champion
- ***Note - Allows You To Get Maximum Power From Generator
- ^*^ Meets ANSI/PGMA G300-2018 Requirements
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
100485
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
219 Pounds
CA (CARB) Compliant
Yes
Certification
CARB
Made in USA
No
Consumer Warranty
3 Years
Product Style
Portable Generator

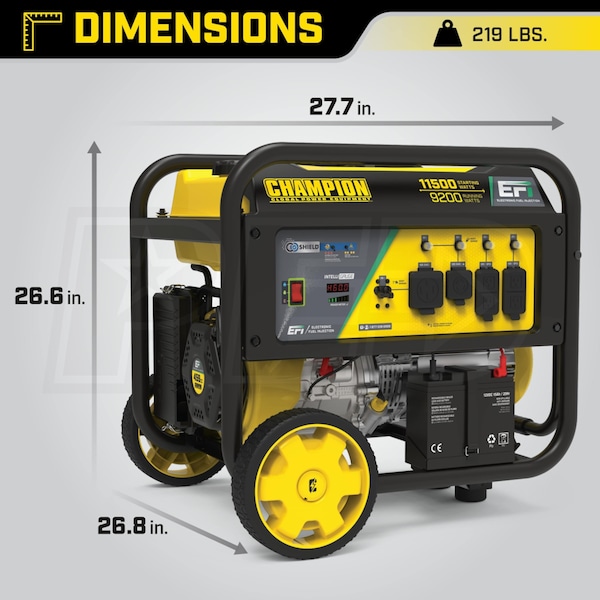

Product Length
27.7 Inches
Product Width
26.8 Inches
Product Height
26.6 Inches
UPC
817198022901
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
9200 Watts
Surge Watts
11500 Watts
Fuel Type
Gasoline
Rated Amps
38.8 Amps
Portability Kit
Never Flat Wheels
Tank Size
7.7 Gallons
Run Time @ 50% Load
11.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
No
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Champion
Starting System
12-Volt Button Start w/ Recoil
CC
459 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-50R
1
